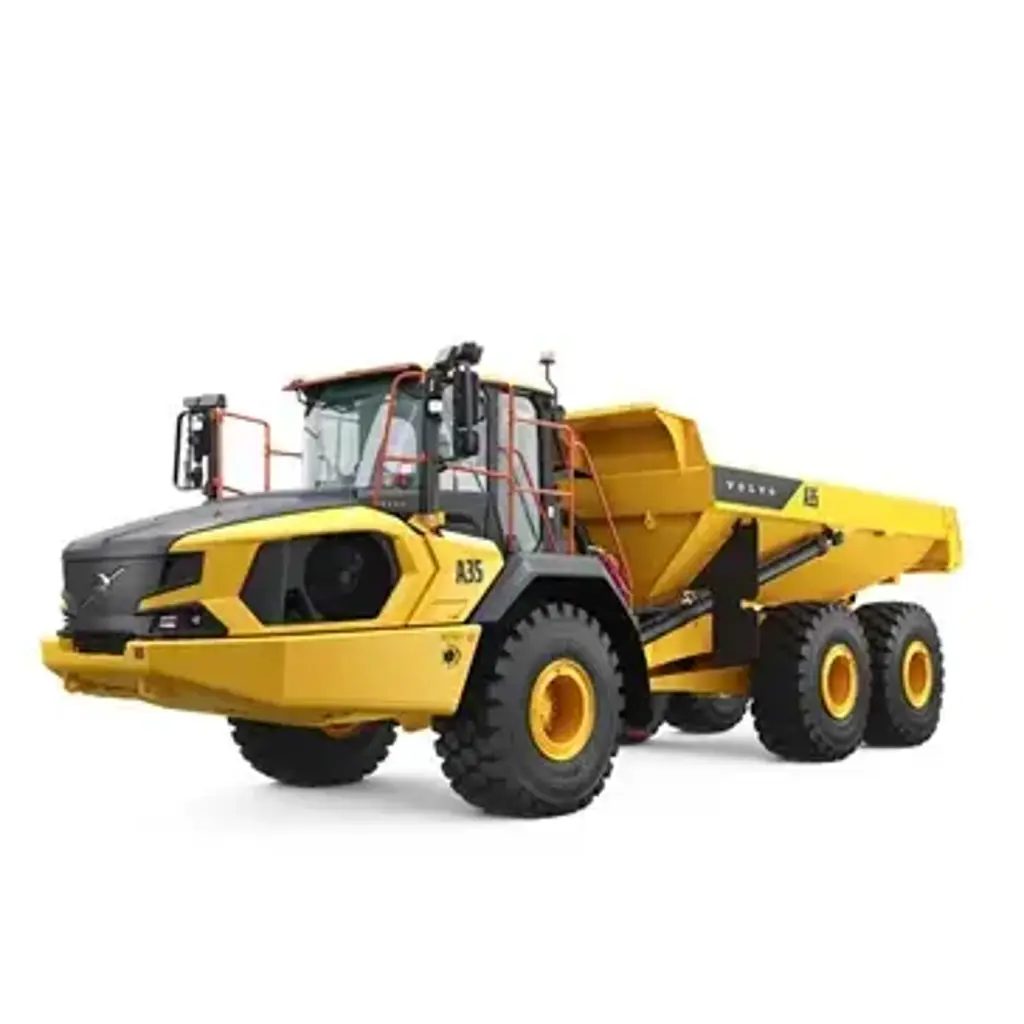

Volvo A35
Productive, efficient and reliable hauling operations.
Take on tough jobs in tough conditions in the Volvo A35, built for exceptional off-road performance, operator comfort, and maximum uptime. With features including Volvo drivetrain with Terrain Memory, an intuitive operator interface, enhanced visibility, superb durability, and lower service costs, the A35 delivers peak productivity, profitability, and performance.
Purchase this machine
Reach out to our team to learn more.
Rent this machine
Get a free rental quote.
Downloads
Features and Benefits
Volvo A35 Articulated Hauler -
- Intuitive in-cab interface
- A new level in operator comfort
- Unbeatable off-road performance
- Reduction in service costs
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
Driveline
| Engine Manufacturer | Volvo |
| Engine Model | D13J |
| Number Of Cylinders | 6 |
| After Treatment System 3 | Selective Catalytic Reduction |
| Displacement | 781 Inches³ (12.8 ltr) |
| Rated Speed | 1,900 rpm |
| Engine Output - Gross | 451 hp (336 kW) |
| Torque | 1,775 lbf / ft (2407 Nm) |
| Drive Configuration | 6 x 6 |
| Final Drive | Planetary |
| Transmission Type | PowerTronic |
| Traction Control | Yes |
| Front Differential | Locking |
| Second Axle Differential | Locking |
| Third Axle Differential | Locking |
| Centre Transfer Differential | Locking |
| Tire Size - Standard | 27 R25 |
| Tire Type - Standard | Radial |
| Front Suspension - Type | 3 Point |
| Front Suspension | Rubber Bushing / Shock Absorber |
| Rear Suspension - Type | 3 Point Bogie Beam |
| Rear Suspension | Rubber Suspension Blocks |
| Service Brake - Type | Wet Multi Disc |
Dimensions
| Length - Overall | 36 ft 11 in (11261 mm) |
| Height - Over Cab | 11 ft 8 in (3568 mm) |
| Height - Max | 11 ft 8 in (3568 mm) |
| Ground Clearance | 23 inches (586 mm) |
| Width Over Tires | 11 ft (3345 mm) |
| Width - Transport | 11 ft (3345 mm) |
| Width - Operating | 11 ft (3345 mm) |
| Wheelbase | 18 ft 4 in (5598 mm) |
| Length - Body | 19 ft (5811 mm) |
| Loading Height | 9 ft 8 in (2940 mm) |
| Full Dump Height | 24 ft 1 in (7340 mm) |
| Hoist - Type | Twin, 1-Stage |
| Dump Angle | 71 ° |
| Approach Angle | 24 ° |
| Articulation Angle | 45 ± ° |
| Turning Radius - Outside | 29 ft 11 in (9118 mm) |
| Turning Radius - Inside | 14 ft 6 in (4429 mm) |
Capacities
| Fuel Tank | 149 gallons (US) (563 ltr) |
| Heaped Capacity | 28 yd³ (21.3 m³) |
Performance
| Cycle Time - Raise | 12 s |
| Unladen Axle Load - Front | 36,222 lbs (16430 kg) |
| Unladen Axle Load - Rear | 29,696 lbs (13470 kg) |
| Laden Axle Load - Front | 45,040 lbs (20430 kg) |
| Laden Axle Load - Rear | 96,871 lbs (43940 kg) |
| Front - Unladen | 20 PSI (138 kPa) |
| Rear - Unladen | 8 PSI (56 kPa) |
| Front - Laden | 25 PSI (171 kPa) |
| Rear - Laden | 27 PSI (184 kPa) |
| Speed - Forward Maximum | 35 mph (57 kph) |
| Speed - Reverse Maximum | 11 mph (18 kph) |
Weights
| Net Weight | 65,918 lbs (29900 kg) |
| Payload | 76,059 lbs (34500 kg) |
| Gross Weight | 141,912 lbs (64370 kg) |
