Articulated Haulers

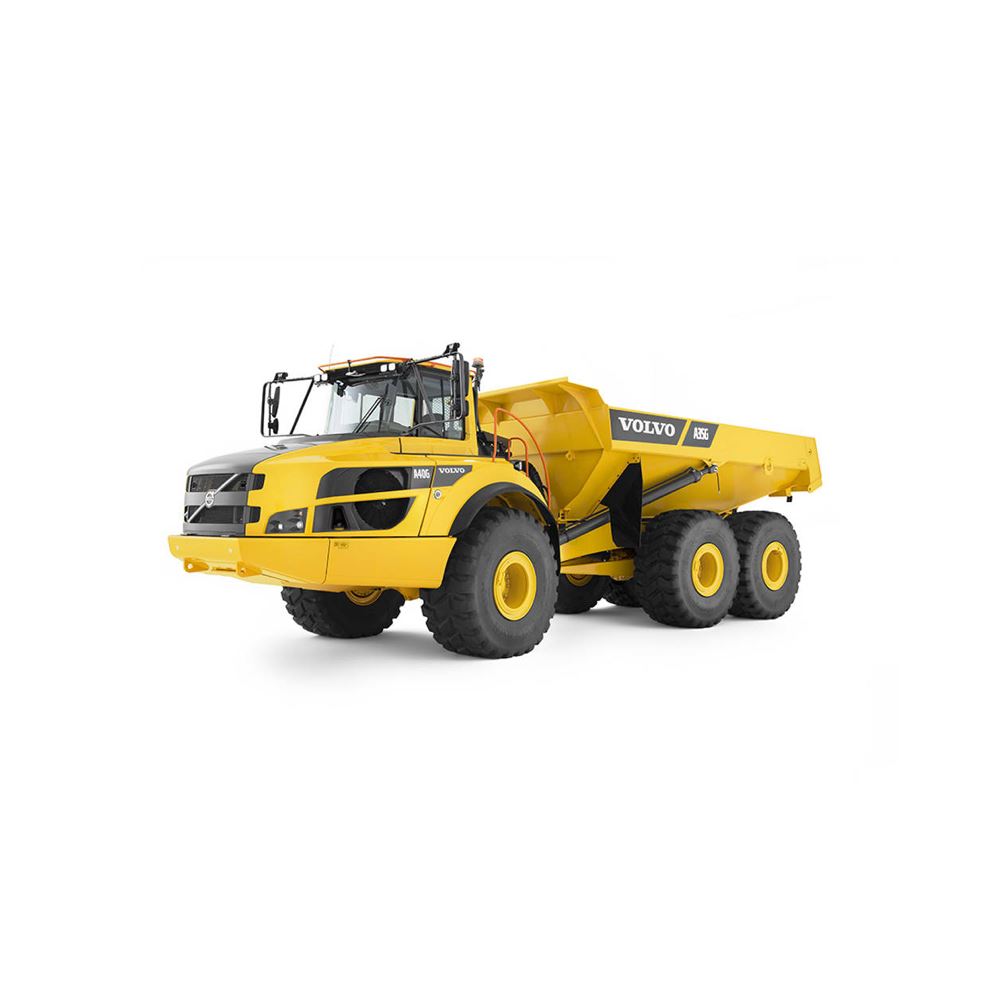

Volvo A35G

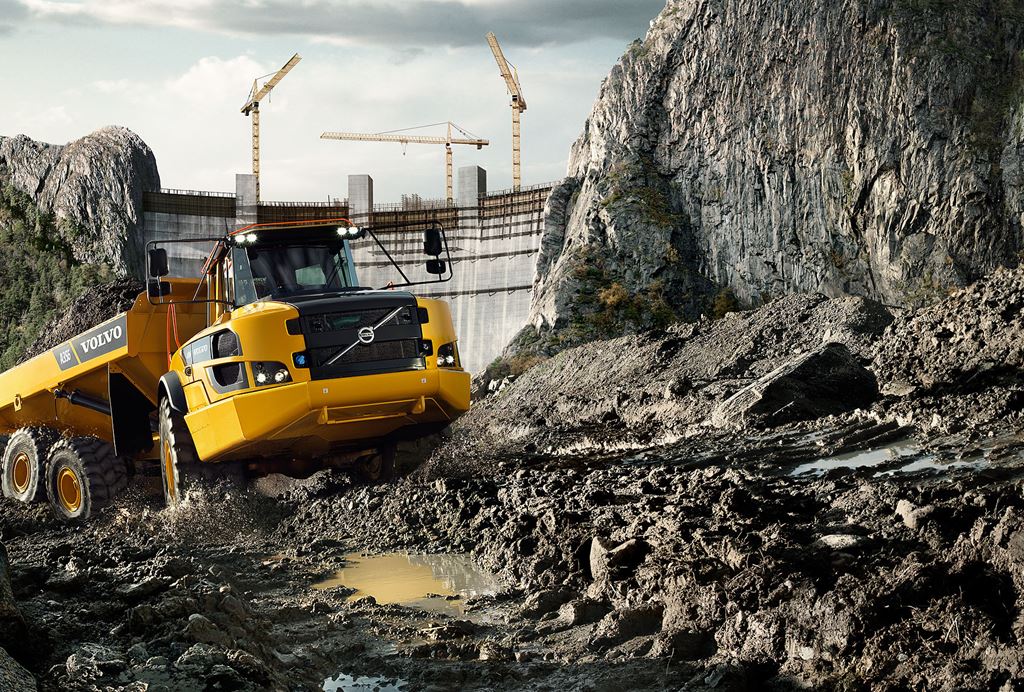

Get ready to work with the new Volvo articulated hauler. Designed for heavy hauling in severe off-road operation, the machines long service life, quality, reliability and durability is everything you expect from a Volvo. Hauling is easier and more efficient.
Features and Benefits
Volvo A35G Articulated Hauler - PROVIDING POWER
All-Volvo drivetrain delivers low fuel consumption and superior reliability.
Articulation and oscillation joint has high ground clearance, maintenance-free rotating hitch design.

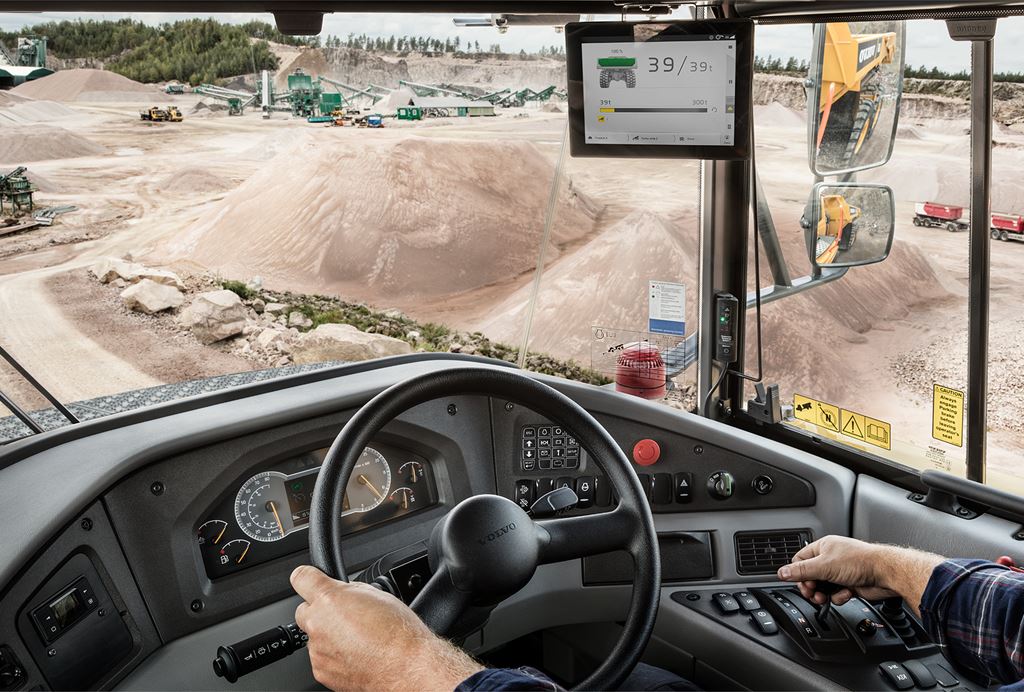

Equipped with Volvo Care Cab, centrally positioned with ideally-placed pedals, controls and switches.
Easy service access with front swing-down grill and 90 degree tilting hood.
CareTrack telematics system.
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
DRIVELINE
| Second Axle Differential | Locking |
| Transmission Type | Powershift |
| Rear Suspension - Type | 3 Point Bogie Beam |
| Front Suspension - Type | 3 Point |
| Centre Transfer Differential | Locking |
| Final Drive | Planetary |
| Third Axle Differential | Locking |
| Traction Control | Yes |
| Torque | 1,775 lbf / ft (2407 Nm) |
| Tire Type - Standard | Radial |
| Displacement | 781 Inches³ (12.8 ltr) |
| Rated Speed | 1,900 |
| Front Suspension | Rubber Bushing / Shock Absorber |
| After Treatment System 3 | Selective Catalytic Reduction |
| Service Brake - Type | Wet Multi Disc |
| Drive Configuration | 6 x 6 |
| Transmission Model | PT 2,529 |
| Engine Manufacturer | Volvo |
| Engine Output - Net | 447 hp (333 kW) |
| Rear Suspension | 3 Point |
| Engine Model | D13J |
| Front Differential | Locking |
| Emission Rating | Tier 4 |
| Number Of Cylinders | 6 |
| Transmission Manufacturer | Volvo |
| Engine Output - Gross | 451 hp (336 kW) |
| Tire size - Standard | 27 R25 |
CAPACITIES
| Heaped Capacity | 28 yd³ (21.2 m³) |
| Fuel Tank | 127 gallons (US) (480 ltr) |
DIMENSIONS
| Approach Angle | 24 |
| Dump Angle | 72 |
| Width over Tires | 10 ft 7 in ft/in (3221 mm) |
| Turning Radius - Outside | 29 ft 1 in ft/in (8866 mm) |
| Ground Clearance | 20 inches (500 mm) |
| Loading Height | 9 ft 11 in ft/in (3014 mm) |
| Length - Body | 18 ft 3 in ft/in (5568 mm) |
| Width - Operating | 10 ft 7 in ft/in (3221 mm) |
| Hoist - Type | Twin, 1-Stage |
| Width - Transport | 10 ft 7 in ft/in (3221 mm) |
| Wheelbase | 17 ft 11 in ft/in (5488 mm) |
| Turning Radius - Inside | 14 ft 6 in ft/in (4416 mm) |
| Full Dump Height | 23 ft 9 in ft/in (7236 mm) |
| Height - Max | 11 ft 8 in ft/in (3547 mm) |
| Articulation Angle | 45 |
| Length - Overall | 36 ft 8 in ft/in (11180 mm) |
| Height - Over Cab | 11 ft 8 in ft/in (3547 mm) |
| Width - Cab | 70 inches (1772 mm) |
WEIGHTS
| Payload | 76,059 lbs (34500 kg) |
| Gross Weight | 140,655 lbs (63800 kg) |
| Net Weight | 64,595 lbs (29300 kg) |
PERFORMANCE
| Front - Unladen | 19 PSI (132 kPa) |
| Unladen Axle Load - Front | 34,613 lbs (15700 kg) |
| Laden Axle Load - Rear | 49,163 lbs (22300 kg) |
| Laden Axle Load - Centre | 49,163 lbs (22300 kg) |
| Cycle Time - Raise | 12 |
| Speed - Forward Maximum | 35 mph (57 kph) |
| Speed - Forward Maximum | 35 mph (57 kph) |
| Laden Axle Load - Centre + Rear | 98,326 lbs (44600 kg) |
| Rear - Laden | 27 PSI (183 kPa) |
| Unladen Axle Load - Centre + Rear | 29,983 lbs (13600 kg) |
| Speed - Reverse Maximum | 11 mph (18 kph) |
| Front - Laden | 23 PSI (158 kPa) |
| Unladen Axle Load - Centre | 14,992 lbs (6800 kg) |
| Rear - Unladen | 8 PSI (54 kPa) |
| Unladen Axle Load - Rear | 14,992 lbs (6800 kg) |
| Laden Axle Load - Front | 42,329 lbs (19200 kg) |
