Articulated Haulers

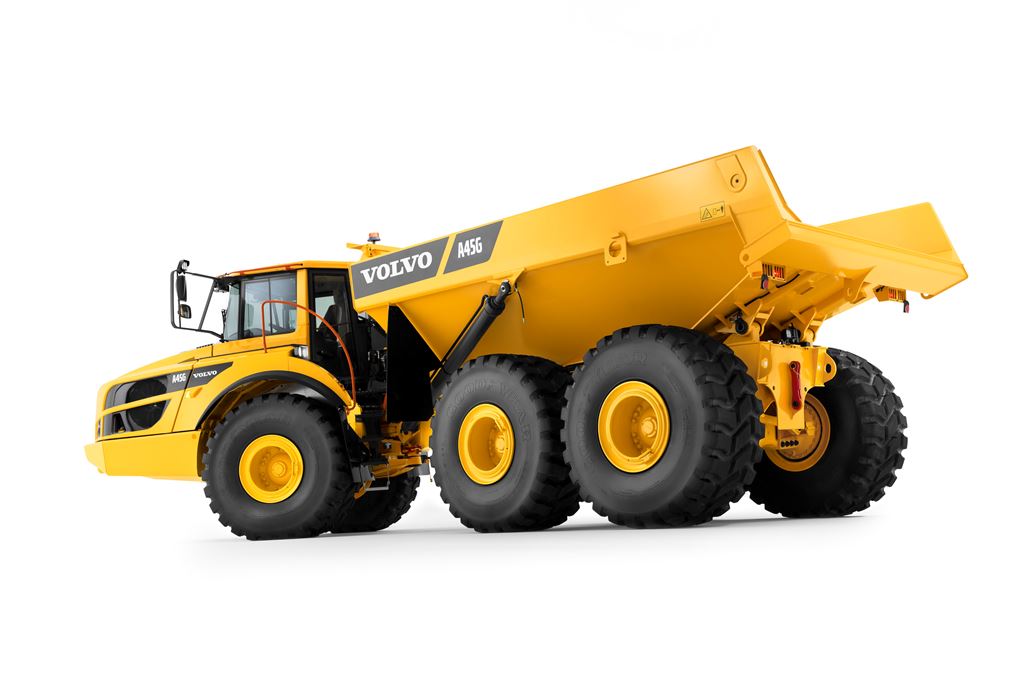

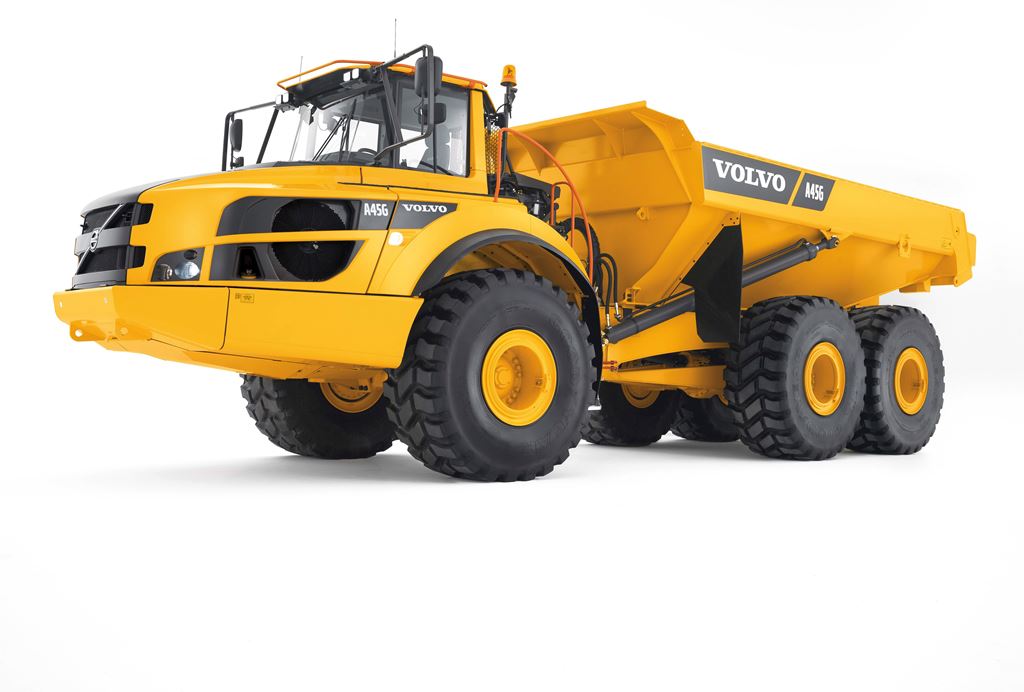

Volvo A45G
Always available to work, the bigger, more durable and superior A45G articulated hauler from Volvo CE provides endless production and unbeatable reliability thanks to its robust design, easy service access and outstanding Volvo dealer network. Smash your productivity targets and increase your profitability with the Volvo A45G.
Features and Benefits
Volvo A45G Articulated Hauler - Get Up And Go
All-Volvo drivetrain delivers low fuel consumption and superior reliability.
Articulation and oscillation joint has high ground clearance, maintenance-free rotating hitch design.
Equipped with Volvo Care Cab, centrally positioned with ideally-placed pedals, controls and switches.
Easy service access with front swing-down grill and 90 degree tilting hood.
CareTrack telematics system.
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
DRIVELINE
| Second Axle Differential | Locking |
| Transmission Type | PowerTronic |
| Rear Suspension - Type | - |
| Tire size - Standard | 30 R25 |
| Engine Output - Gross | 469 hp (350 kW) |
| Front Suspension - Type | - |
| Transmission Manufacturer | Volvo |
| Number Of Cylinders | 6 |
| Emission Rating | Tier 4 |
| Front Differential | Locking |
| Centre Transfer Differential | Locking |
| Engine Model | D16J |
| Rear Suspension | - |
| Engine Output - Net | 465 hp (347 kW) |
| Engine Manufacturer | Volvo |
| Final Drive | Planetary |
| Transmission Model | PT 2,519 |
| Drive Configuration | 6 x 6 |
| Service Brake - Type | Wet Multi Disc |
| After Treatment System 3 | Selective Catalytic Reduction |
| Front Suspension | - |
| Third Axle Differential | Locking |
| Rated Speed | 1,800 |
| Displacement | 982 Inches³ (16.1 ltr) |
| Tire Type - Standard | Radial |
| Torque | 1,862 lbf / ft (2525 Nm) |
| Traction Control | Yes |
DIMENSIONS
| Width - Cab | 70 inches (1772 mm) |
| Height - Over Cab | 11 ft 10 in ft/in (3599 mm) |
| Length - Overall | 36 ft 11 in ft/in (11263 mm) |
| Articulation Angle | 45 |
| Approach Angle | 24 |
| Height - Max | 11 ft 10 in ft/in (3599 mm) |
| Full Dump Height | 23 ft 10 in ft/in (7265 mm) |
| Turning Radius - Inside | 14 ft 2 in ft/in (4327 mm) |
| Wheelbase | 18 ft ft/in (5488 mm) |
| Width - Transport | 11 ft 3 in ft/in (3430 mm) |
| Hoist - Type | Twin, 1-Stage |
| Width - Operating | 11 ft 3 in ft/in (3430 mm) |
| Dump Angle | 70 |
| Length - Body | 19 ft 2 in ft/in (5844 mm) |
| Loading Height | 10 ft 6 in ft/in (3200 mm) |
| Ground Clearance | 22 inches (553 mm) |
| Width over Tires | 11 ft 2 in ft/in (3403 mm) |
| Turning Radius - Outside | 29 ft 5 in ft/in (8957 mm) |
PERFORMANCE
| Laden Axle Load - Front | 45,415 lbs (20600 kg) |
| Unladen Axle Load - Rear | 15,102 lbs (6850 kg) |
| Rear - Unladen | 7 PSI (47 kPa) |
| Unladen Axle Load - Centre | 15,102 lbs (6850 kg) |
| Front - Laden | 21 PSI (142 kPa) |
| Speed - Reverse Maximum | 11 mph (18 kph) |
| Unladen Axle Load - Centre + Rear | 30,203 lbs (13700 kg) |
| Rear - Laden | 25 PSI (174 kPa) |
| Laden Axle Load - Centre + Rear | 111,333 lbs (50500 kg) |
| Speed - Forward Maximum | 35 mph (57 kph) |
| Speed - Forward Maximum | 35 mph (57 kph) |
| Cycle Time - Raise | 12 |
| Laden Axle Load - Centre | 55,667 lbs (25250 kg) |
| Laden Axle Load - Rear | 55,667 lbs (25250 kg) |
| Unladen Axle Load - Front | 36,156 lbs (16400 kg) |
| Front - Unladen | 16 PSI (113 kPa) |
CAPACITIES
| Heaped Capacity | 33 yd³ (25.1 m³) |
| Fuel Tank | 127 gallons (US) (480 ltr) |
WEIGHTS
| Net Weight | 66,539 lbs (30100 kg) |
| Gross Weight | 156,749 lbs (71100 kg) |
| Payload | 90,390 lbs (41000 kg) |
