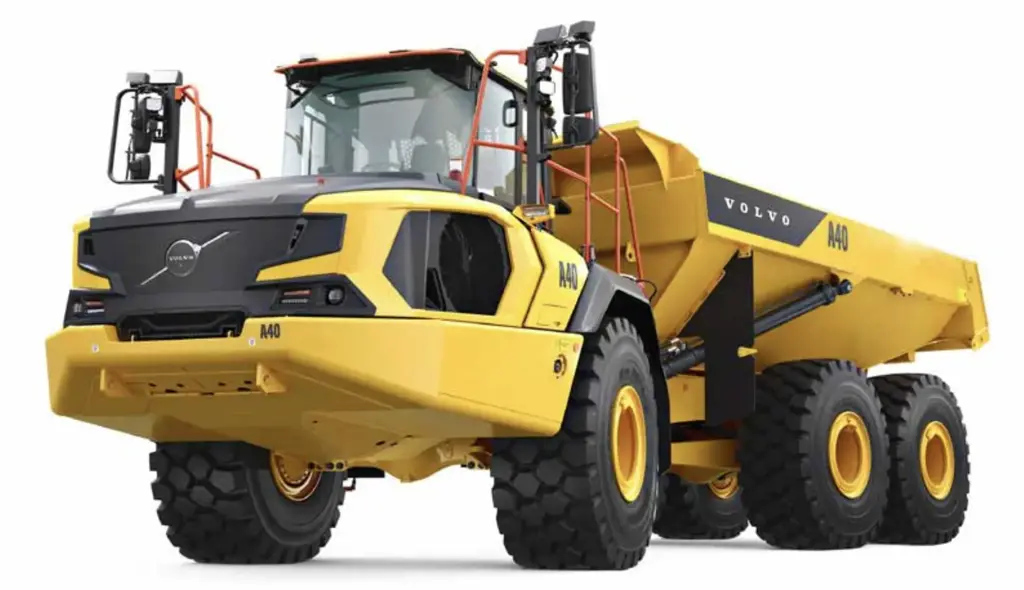

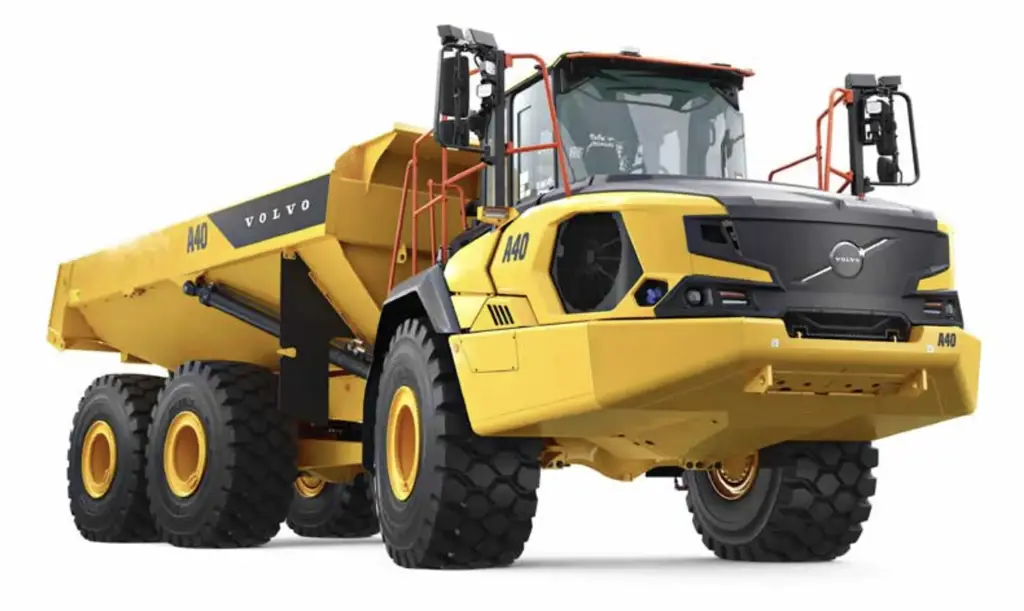

Volvo A40
The ultimate in performance, comfort and uptime.
The Volvo A40 is designed for unbeatable off-road performance, operator comfort and maximum uptime. With features including Volvo drivetrain with Terrain Memory, intuitive operator interface, superior visibility, outstanding durability and reduced service costs, the A40 ensures maximum productivity, profitability and performance across the toughest of terrains.
Purchase this machine
Reach out to our team to learn more.
Rent this machine
Get a free rental quote.
Downloads
Features and Benefits
Volvo A40 Articulated Hauler -
- Intuitive in-cab interface
- A new level in operator comfort
- Unbeatable off-road performance
- Reduction in service costs
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
Driveline
| Engine Manufacturer | Volvo |
| Engine Model | D13J |
| Number Of Cylinders | 6 |
| After Treatment System 3 | Selective Catalytic Reduction |
| Displacement | 781 Inches³ (12.8 ltr) |
| Rated Speed | 1,800 rpm |
| Engine Output - Gross | 469 hp (350 kW) |
| Torque | 1,862 lbf / ft (2525 Nm) |
| Drive Configuration | 6 x 6 |
| Final Drive | Planetary |
| Transmission Type | PowerTronic |
| Traction Control | Yes |
| Front Differential | Locking |
| Second Axle Differential | Locking |
| Third Axle Differential | Locking |
| Centre Transfer Differential | Locking |
| Tire Size - Standard | 30 R25 |
| Tire Type - Standard | Radial |
| Front Suspension - Type | 3 Point |
| Front Suspension | Rubber Bushing / Shock Absorber |
| Rear Suspension - Type | 3 Point Bogie Beam |
| Rear Suspension | Rubber Suspension Blocks |
| Service Brake - Type | Wet Multi Disc |
Dimensions
| Length - Overall | 36 ft 11 in (11261 mm) |
| Height - Over Cab | 11 ft 11 in (3626 mm) |
| Height - Max | 11 ft 11 in (3626 mm) |
| Ground Clearance | 26 inches (652 mm) |
| Width Over Tires | 11 ft 2 in (3401 mm) |
| Width - Transport | 11 ft 2 in (3401 mm) |
| Width - Operating | 11 ft 2 in (3401 mm) |
| Wheelbase | 18 ft 4 in (5598 mm) |
| Length - Body | 19 ft 2 in (5861 mm) |
| Loading Height | 10 ft 4 in (3142 mm) |
| Full Dump Height | 24 ft 3 in (7400 mm) |
| Hoist - Type | Twin, 1-Stage |
| Dump Angle | 69 ° |
| Approach Angle | 25 ° |
| Articulation Angle | 45 ± ° |
| Turning Radius - Outside | 30 ft (9144 mm) |
| Turning Radius - Inside | 14 ft 6 in (4429 mm) |
Capacities
| Fuel Tank | 149 gallons (US) (563 ltr) |
| Heaped Capacity | 31 yd³ (24 m³) |
Performance
| Cycle Time - Raise | 12 s |
| Unladen Axle Load - Front | 37,611 lbs (17060 kg) |
| Unladen Axle Load - Rear | 31,614 lbs (14340 kg) |
| Laden Axle Load - Front | 47,796 lbs (21680 kg) |
| Laden Axle Load - Rear | 107,211 lbs (48630 kg) |
| Front - Unladen | 18 PSI (122 kPa) |
| Rear - Unladen | 7 PSI (51 kPa) |
| Front - Laden | 22 PSI (155 kPa) |
| Rear - Laden | 25 PSI (174 kPa) |
| Speed - Forward Maximum | 35 mph (57 kph) |
| Speed - Reverse Maximum | 11 mph (18 kph) |
Weights
| Net Weight | 69,225 lbs (31400 kg) |
| Payload | 85,980 lbs (39000 kg) |
| Gross Weight | 155,007 lbs (70310 kg) |
