Articulated Haulers

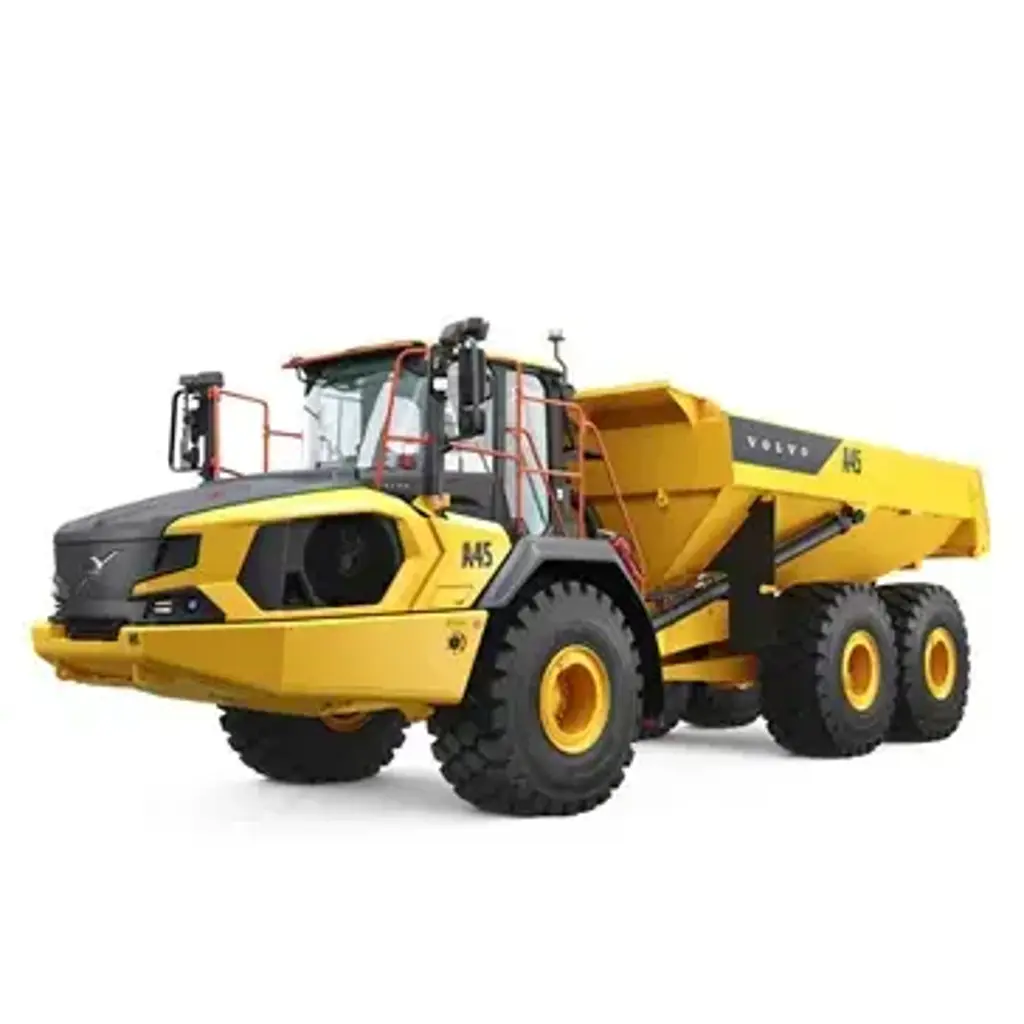

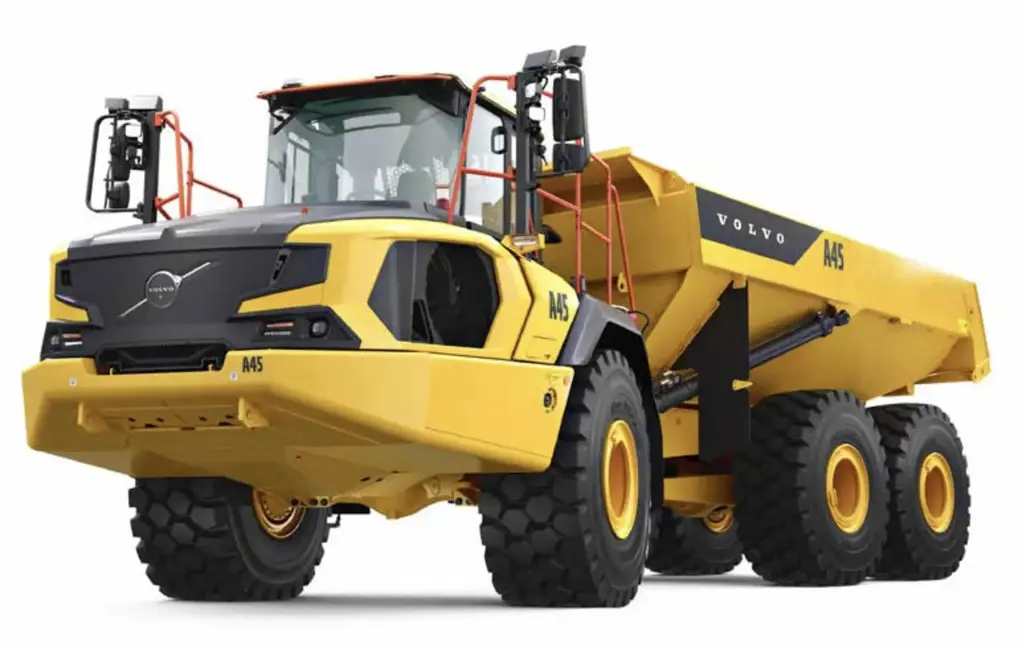

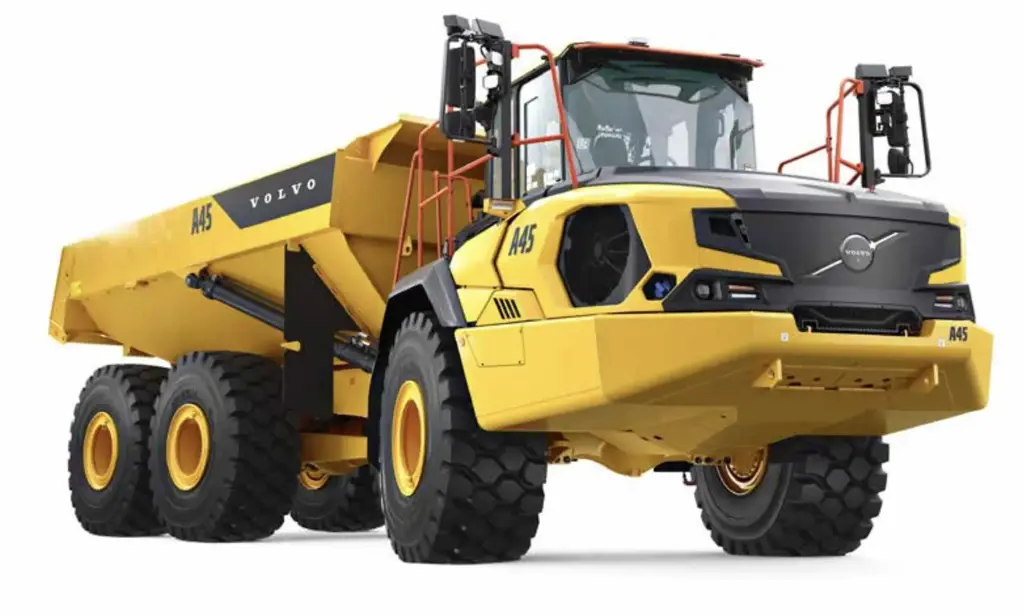

Volvo A45
Featuring a new Volvo drivetrain and 92,594-Pounds payload, the Volvo A45 is engineered for unrivalled off-road performance, operator comfort and maximum uptime. Combine this with features such as intuitive operator interface, superior visibility, and exceptional durability, and you can count on the A45 to deliver enhanced productivity, profitability, and reliability to your operation.
Purchase this machine
Reach out to our team to learn more.
Rent this machine
Get a free rental quote.
Downloads
Features and Benefits
Volvo A45 Articulated Hauler -
- Enhanced visibility
- Haul Assist with On-Board Weighing
- 42-tonne payload
- Intuitive operator interface
- Unbeatable off-road performance
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
Driveline
| Engine Manufacturer | Volvo |
| Engine Model | D16J |
| Number Of Cylinders | 6 |
| After Treatment System 3 | Selective Catalytic Reduction |
| Displacement | 982 Inches³ (16.1 ltr) |
| Rated Speed | 1,900 rpm |
| Engine Output - Gross | 490 hp (365 kW) |
| Torque | 1,918 lbf / ft (2600 Nm) |
| Drive Configuration | 6 x 6 |
| Final Drive | Planetary |
| Transmission Type | PowerTronic |
| Traction Control | Yes |
| Front Differential | Locking |
| Second Axle Differential | Locking |
| Third Axle Differential | Locking |
| Centre Transfer Differential | Locking |
| Tire Size - Standard | 30 R25 |
| Tire Type - Standard | Radial |
| Front Suspension - Type | 3 Point |
| Front Suspension | Rubber Bushing / Shock Absorber |
| Rear Suspension - Type | 3 Point Bogie Beam |
| Rear Suspension | Rubber Suspension Blocks |
| Service Brake - Type | Wet Multi Disc |
Dimensions
| Length - Overall | 36 ft 11 in (11261 mm) |
| Height - Over Cab | 11 ft 11 in (3626 mm) |
| Height - Max | 11 ft 11 in (3626 mm) |
| Ground Clearance | 26 inches (652 mm) |
| Width Over Tires | 11 ft 2 in (3401 mm) |
| Width - Transport | 11 ft 2 in (3401 mm) |
| Width - Operating | 11 ft 2 in (3401 mm) |
| Wheelbase | 18 ft 4 in (5598 mm) |
| Length - Body | 19 ft 2 in (5861 mm) |
| Loading Height | 10 ft 9 in (3272 mm) |
| Full Dump Height | 24 ft 3 in (7400 mm) |
| Hoist - Type | Twin, 1-Stage |
| Dump Angle | 69 ° |
| Approach Angle | 25 ° |
| Articulation Angle | 45 ± ° |
| Turning Radius - Outside | 30 ft (9144 mm) |
| Turning Radius - Inside | 14 ft 6 in (4429 mm) |
Capacities
| Fuel Tank | 149 gallons (US) (563 ltr) |
| Heaped Capacity | 33 yd³ (25.5 m³) |
Performance
| Cycle Time - Raise | 12 s |
| Unladen Axle Load - Front | 39,485 lbs (17910 kg) |
| Unladen Axle Load - Rear | 31,725 lbs (14390 kg) |
| Laden Axle Load - Front | 50,530 lbs (22920 kg) |
| Laden Axle Load - Rear | 113,251 lbs (51370 kg) |
| Front - Unladen | 19 PSI (128 kPa) |
| Rear - Unladen | 7 PSI (51 kPa) |
| Front - Laden | 24 PSI (164 kPa) |
| Rear - Laden | 27 PSI (183 kPa) |
| Speed - Forward Maximum | 35 mph (57 kph) |
| Speed - Reverse Maximum | 10 mph (16.3 kph) |
Weights
| Net Weight | 71,209 lbs (32300 kg) |
| Payload | 92,594 lbs (42000 kg) |
| Gross Weight | 163,781 lbs (74290 kg) |
