Articulated Haulers

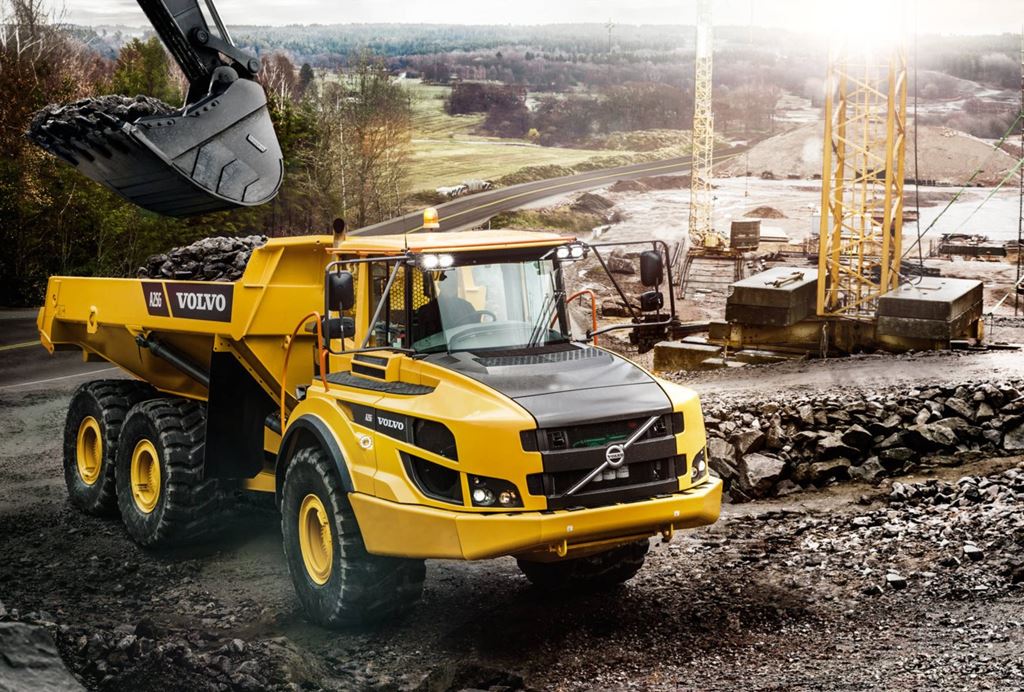

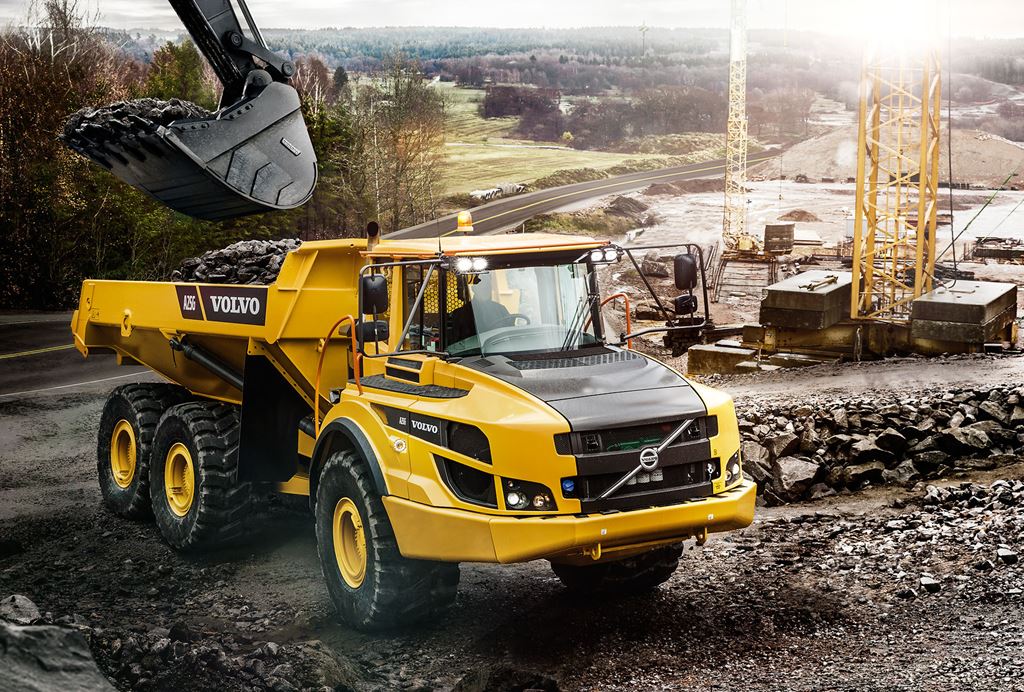

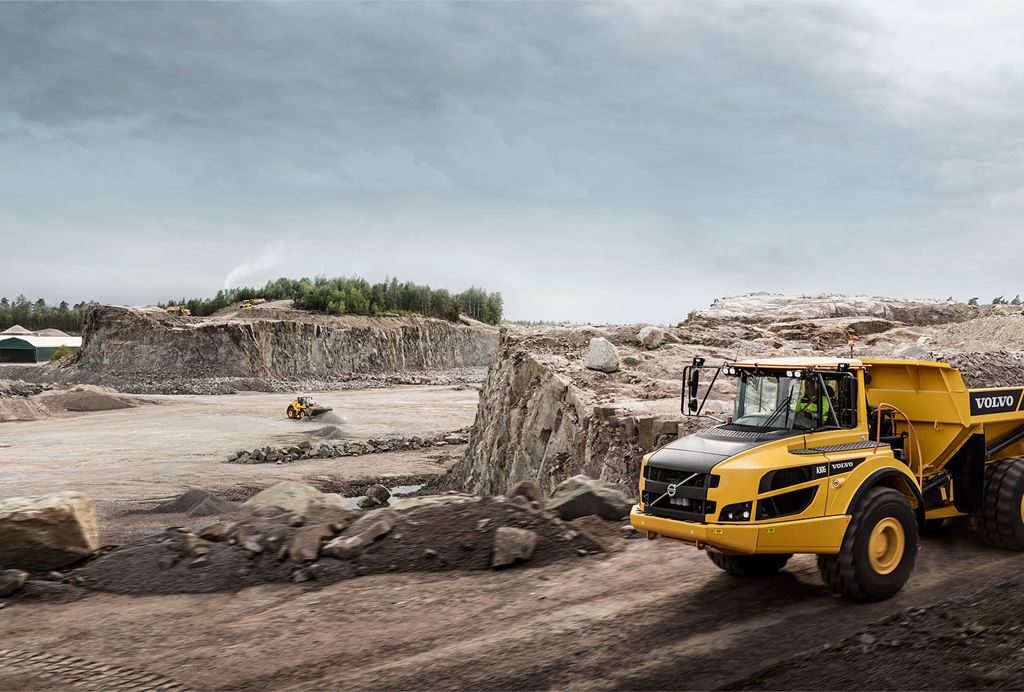

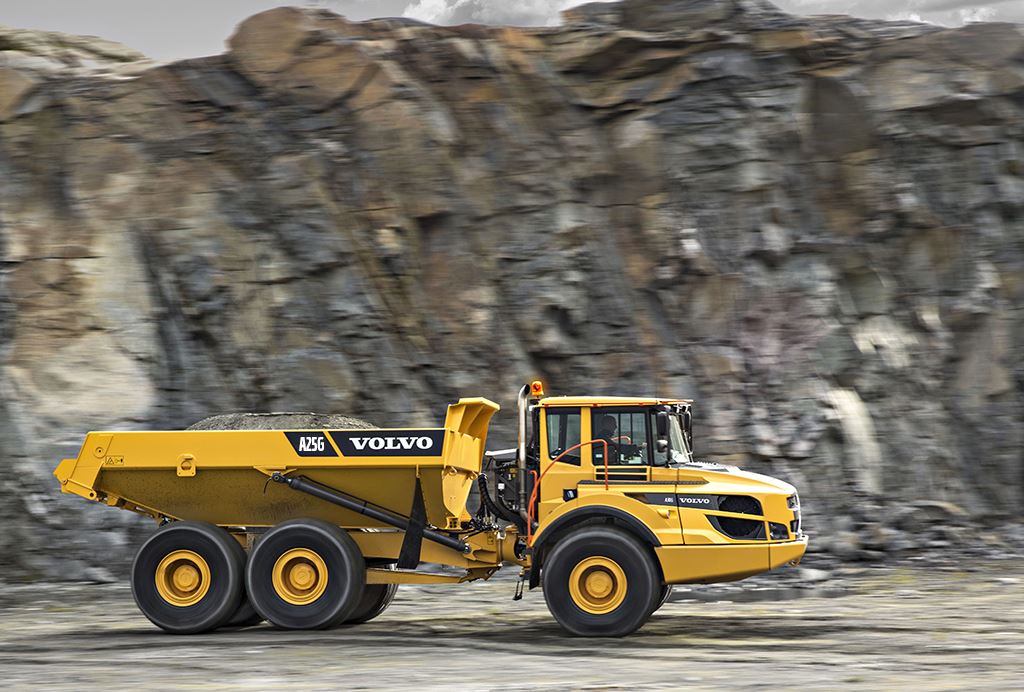

Volvo A25G

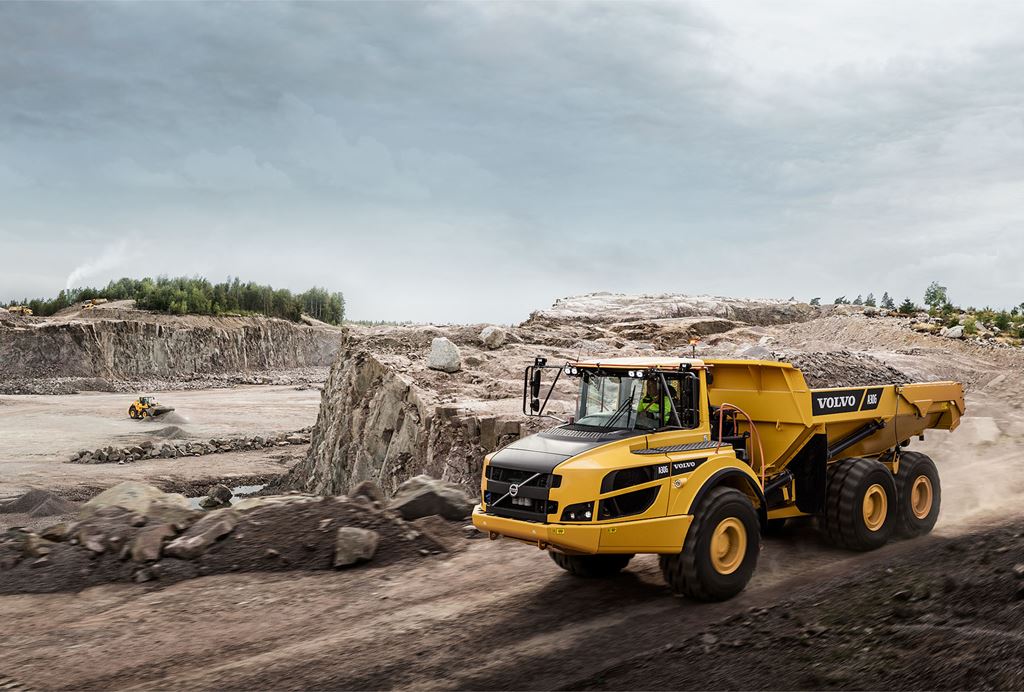

With state-of-the-art technology and innovative features, the new A25G haulers manoeuvre, travel and dump in the most efficient and safest way, increasing your productivity on tough job sites.
Features and Benefits
Volvo A25G Articulated Hauler - LOAD UP

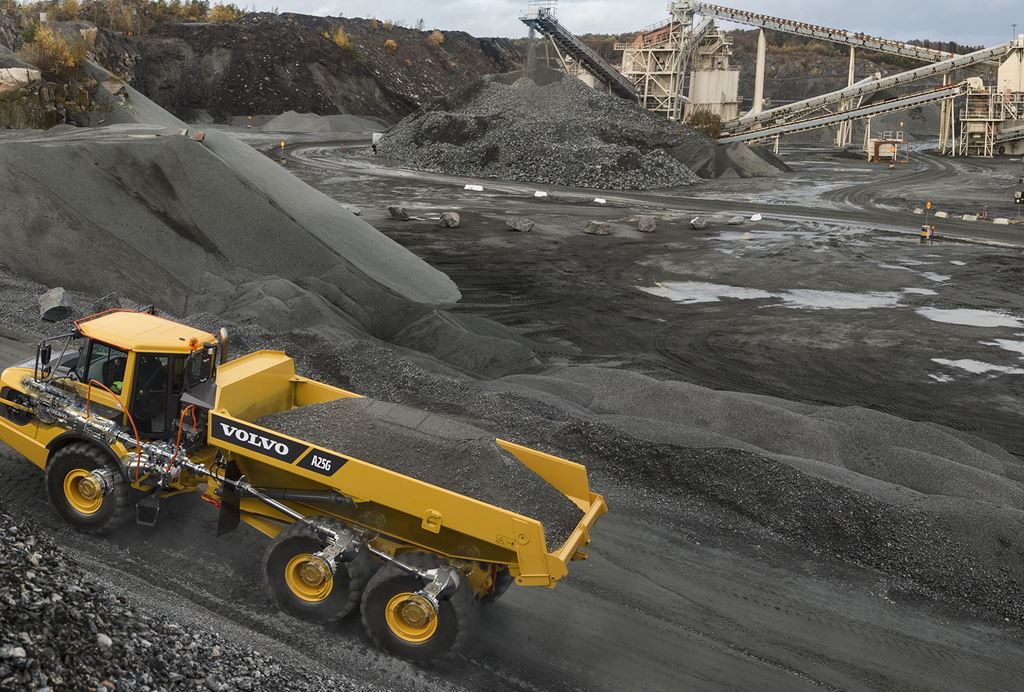

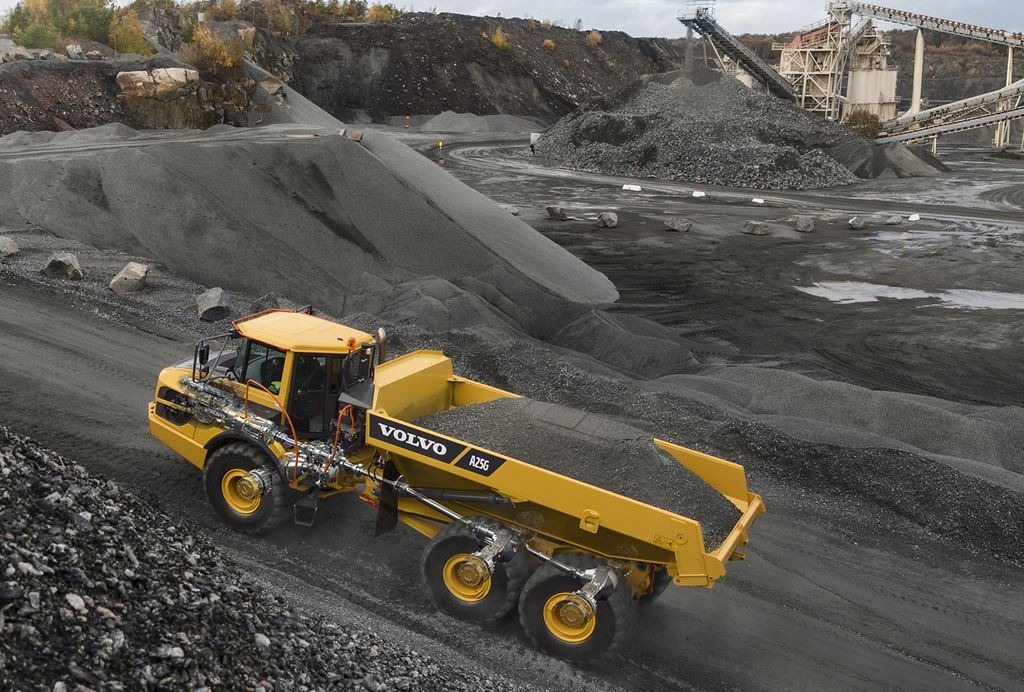

All-Volvo drivetrain delivers low fuel consumption and superior reliability.

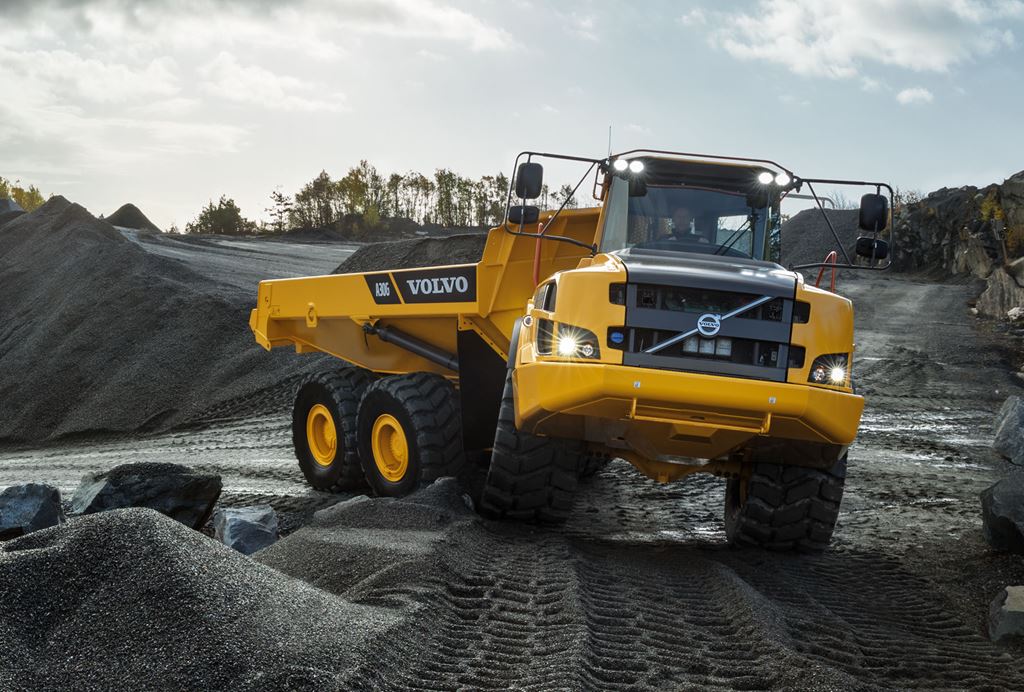

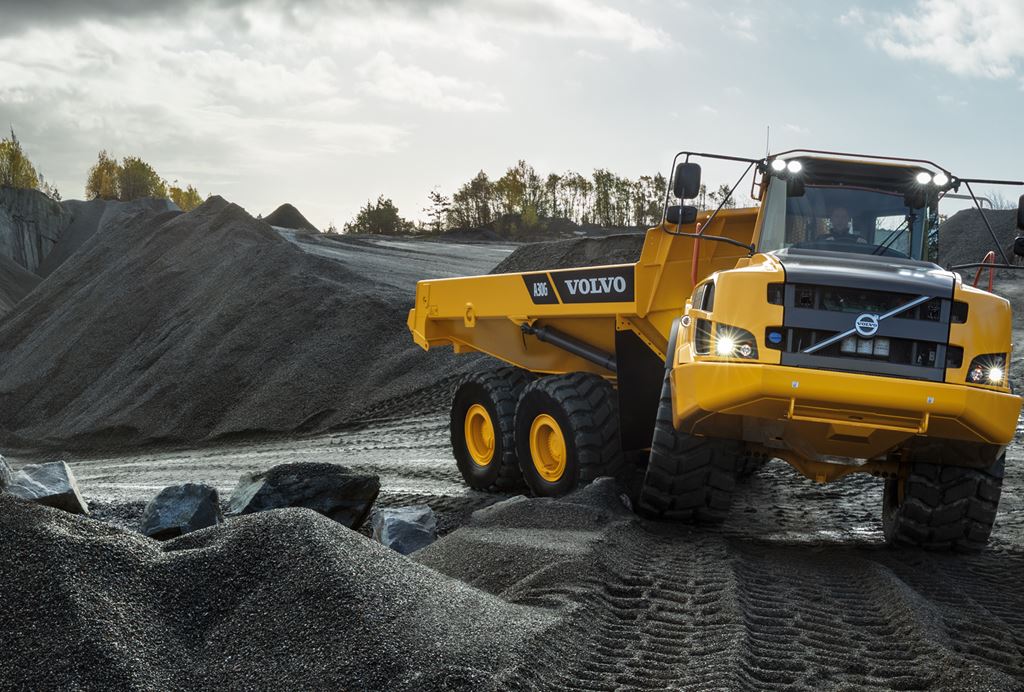

Articulation and oscillation joint has high ground clearance, maintenance-free rotating hitch design.

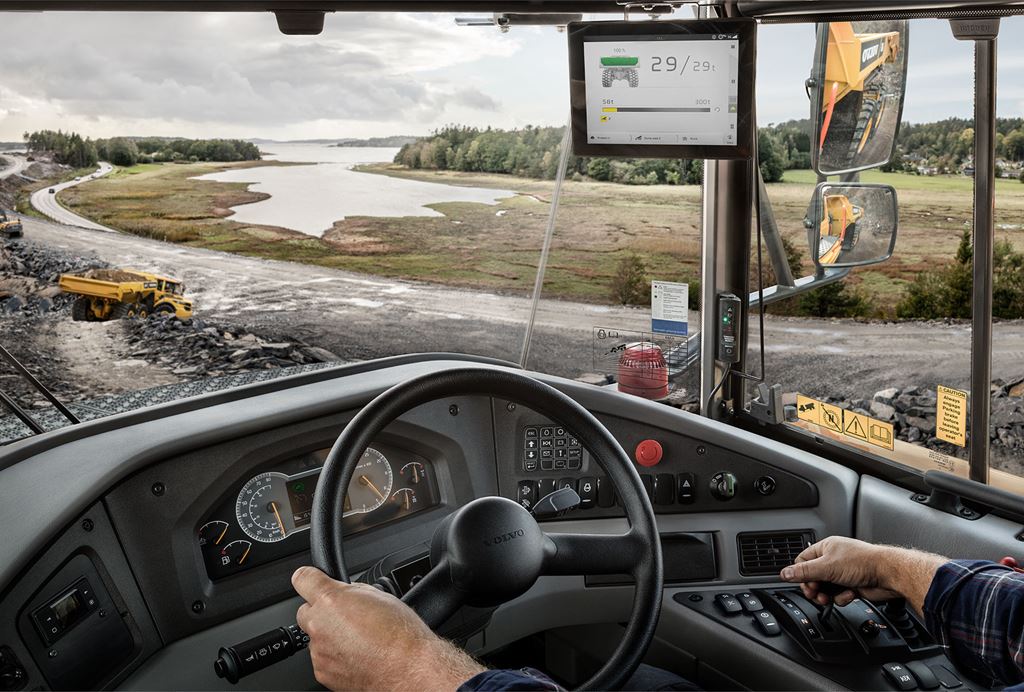

Equipped with Volvo Care Cab, centrally positioned with ideally-placed pedals, controls and switches.
Easy service access with front swing-down grill and 90 degree tilting hood.
CareTrack telematics system.
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
DRIVELINE
| Second Axle Differential | Locking |
| Transmission Type | Powershift |
| Rear Suspension - Type | 3 Point Bogie Beam |
| Tire size - Standard | 24 R25 |
| Engine Output - Gross | 315 hp (235 kW) |
| Front Suspension - Type | 3 Point |
| Transmission Manufacturer | Volvo |
| Number Of Cylinders | 6 |
| Emission Rating | Tier 4 |
| Front Differential | Locking |
| Centre Transfer Differential | Locking |
| Engine Model | D11M |
| Rear Suspension | 3 Point |
| Engine Output - Net | 314 hp (234 kW) |
| Engine Manufacturer | Volvo |
| Final Drive | Planetary |
| Transmission Model | PT 2,116 |
| Drive Configuration | 6 x 6 |
| Service Brake - Type | Wet Multi Disc |
| After Treatment System 3 | - |
| Front Suspension | Gas-Hydraulic Strut |
| Third Axle Differential | Locking |
| Rated Speed | 2,100 |
| Displacement | 659 Inches³ (10.8 ltr) |
| Tire Type - Standard | Radial |
| Torque | 1,432 lbf / ft (1950 Nm) |
| Traction Control | Yes |
DIMENSIONS
| Width - Cab | 70 inches (1772 mm) |
| Height - Over Cab | 11 ft ft/in (3356 mm) |
| Length - Overall | 33 ft 6 in ft/in (10218 mm) |
| Articulation Angle | 45 |
| Approach Angle | 24 |
| Height - Max | 11 ft ft/in (3356 mm) |
| Full Dump Height | 21 ft 5 in ft/in (6529 mm) |
| Turning Radius - Inside | 13 ft 5 in ft/in (4092 mm) |
| Wheelbase | 16 ft 5 in ft/in (5020 mm) |
| Width - Transport | 9 ft 7 in ft/in (2915 mm) |
| Hoist - Type | Twin, 1-Stage |
| Width - Operating | 9 ft 7 in ft/in (2915 mm) |
| Dump Angle | 74 |
| Length - Body | 16 ft 11 in ft/in (5162 mm) |
| Loading Height | 9 ft 2 in ft/in (2791 mm) |
| Ground Clearance | 18 inches (455 mm) |
| Width over Tires | 9 ft 7 in ft/in (2915 mm) |
| Turning Radius - Outside | 26 ft 7 in ft/in (8109 mm) |
PERFORMANCE
| Laden Axle Load - Front | 32,959 lbs (14950 kg) |
| Unladen Axle Load - Rear | 10,610 lbs (4950 kg) |
| Rear - Unladen | 7 PSI (49 kPa) |
| Unladen Axle Load - Centre | 10,610 lbs (4950 kg) |
| Front - Laden | 23 PSI (157 kPa) |
| Speed - Reverse Maximum | 9 mph (13.7 kph) |
| Unladen Axle Load - Centre + Rear | 21,219 lbs (9900 kg) |
| Rear - Laden | 24 PSI (166 kPa) |
| Laden Axle Load - Centre + Rear | 72,201 lbs (32750 kg) |
| Speed - Forward Maximum | 33 mph (52.7 kph) |
| Speed - Forward Maximum | 33 mph (52.7 kph) |
| Cycle Time - Raise | 12 |
| Laden Axle Load - Centre | 36,101 lbs (16375 kg) |
| Laden Axle Load - Rear | 36,101 lbs (16375 kg) |
| Unladen Axle Load - Front | 28,219 lbs (12800 kg) |
| Front - Unladen | 19 PSI (130 kPa) |
CAPACITIES
| Heaped Capacity | 20 yd³ (15.3 m³) |
| Fuel Tank | 100 gallons (US) (380 ltr) |
WEIGHTS
| Net Weight | 50,045 lbs (22700 kg) |
| Gross Weight | 105,160 lbs (47700 kg) |
| Payload | 55,116 lbs (25000 kg) |
