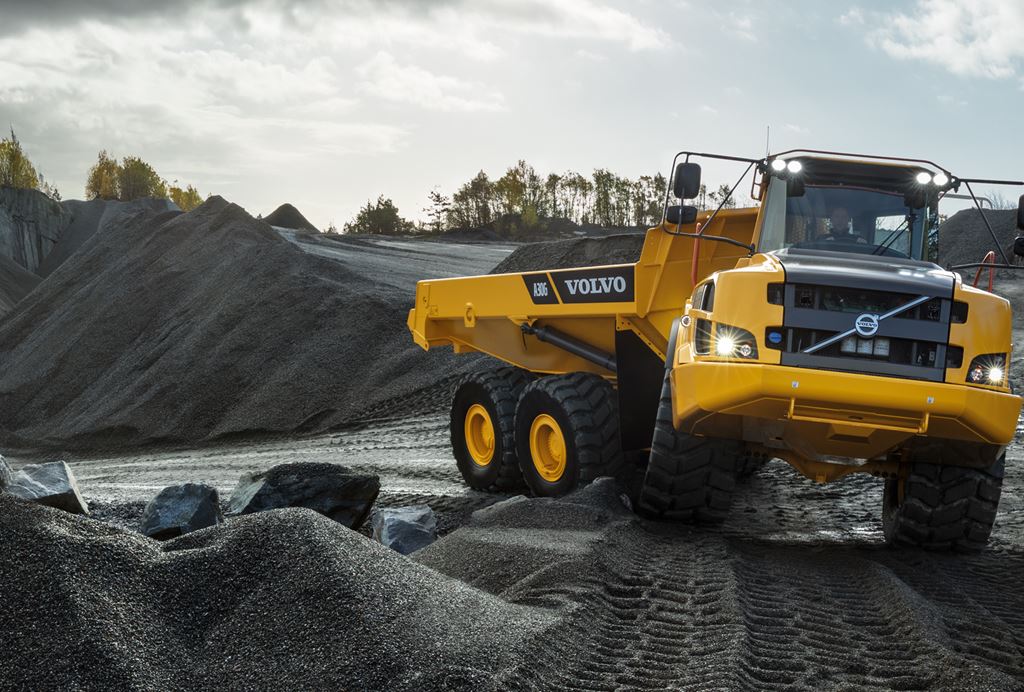

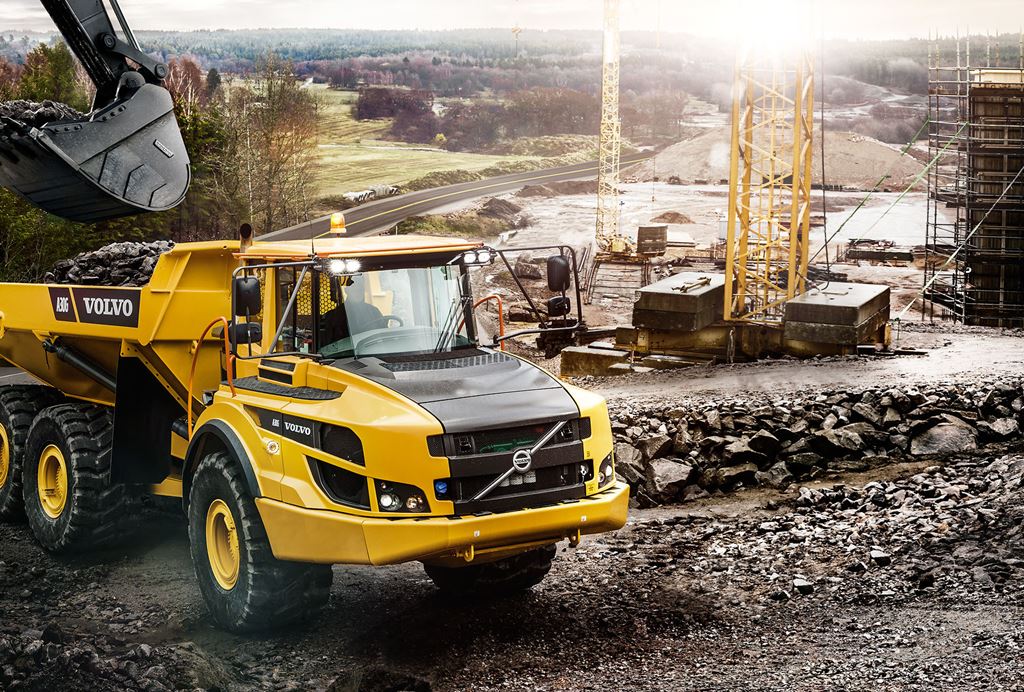

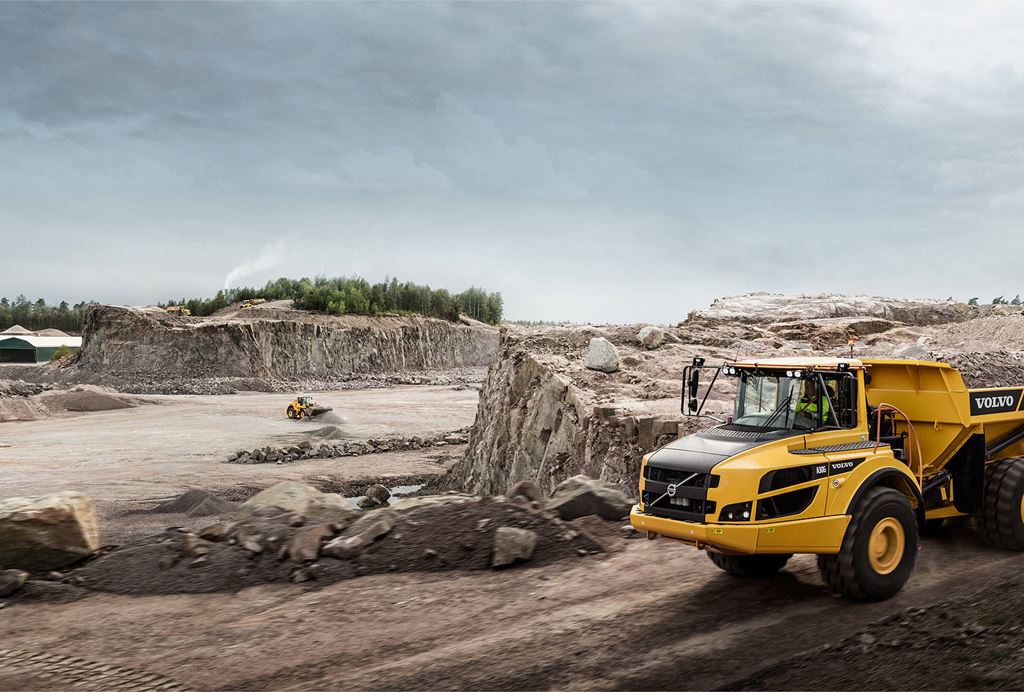

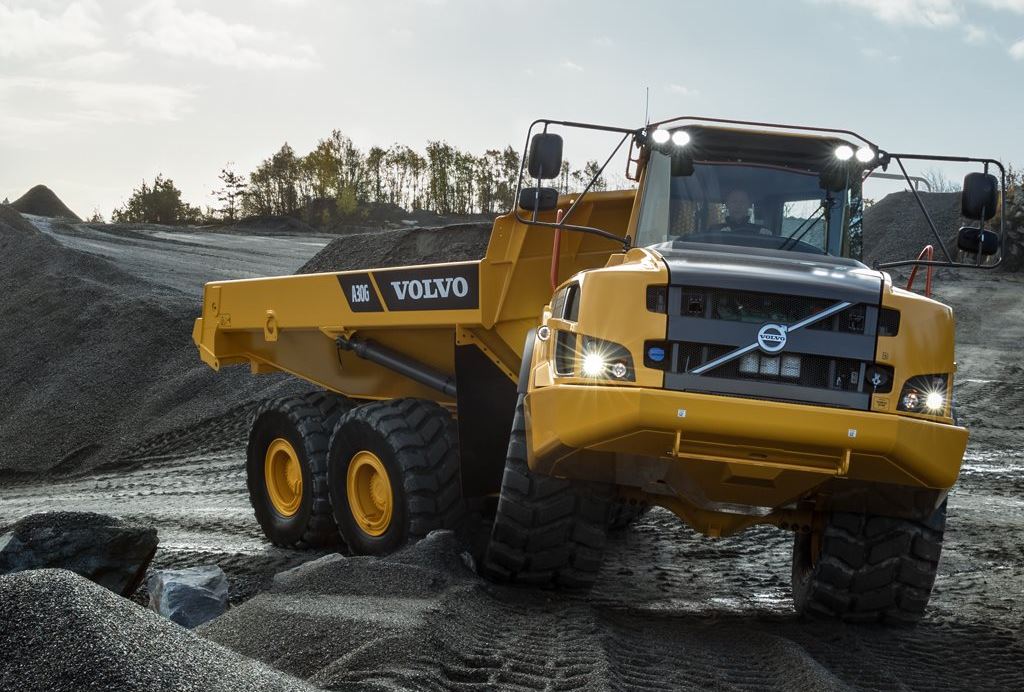

Volvo A30G
The A30G is a robust, reliable machine that excels in a variety of ground conditions from deep mud to dusty haul roads delivering durability you can count on. Experience outstanding machine control and precise, stable movement.
Features and Benefits
Volvo A30G Articulated Hauler - UNRIVALED HAULER
All-Volvo drivetrain delivers low fuel consumption and superior reliability.
Articulation and oscillation joint has high ground clearance, maintenance-free rotating hitch design.
Equipped with Volvo Care Cab, centrally positioned with ideally-placed pedals, controls and switches.
Easy service access with front swing-down grill and 90 degree tilting hood.
CareTrack telematics system.
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
PERFORMANCE
| Laden Axle Load - Front | 35,613 lbs (15600 kg) |
| Laden Axle Load - Rear | 40,676 lbs (18450 kg) |
| Front - Unladen | 16 PSI (108 kPa) |
| Unladen Axle Load - Front | 28,440 lbs (12900 kg) |
| Laden Axle Load - Centre | 40,676 lbs (18450 kg) |
| Cycle Time - Raise | 12 |
| Speed - Forward Maximum | 33 mph (52.7 kph) |
| Speed - Forward Maximum | 33 mph (52.7 kph) |
| Laden Axle Load - Centre + Rear | 81,351 lbs (36900 kg) |
| Rear - Laden | 22 PSI (152 kPa) |
| Unladen Axle Load - Centre + Rear | 23,589 lbs (10700 kg) |
| Speed - Reverse Maximum | 9 mph (13.7 kph) |
| Front - Laden | 19 PSI (130 kPa) |
| Unladen Axle Load - Centre | 11,795 lbs (5350 kg) |
| Rear - Unladen | 6 PSI (43 kPa) |
| Unladen Axle Load - Rear | 11,795 lbs (5350 kg) |
DRIVELINE
| Emission Rating | Tier 4 |
| Final Drive | Planetary |
| Traction Control | Yes |
| Torque | 1,432 lbf / ft (1950 Nm) |
| Tire Type - Standard | Radial |
| Displacement | 659 Inches³ (10.8 ltr) |
| Rated Speed | 2,000 |
| Third Axle Differential | Locking |
| Front Suspension | Gas-Hydraulic Strut |
| After Treatment System 3 | - |
| Service Brake - Type | Wet Multi Disc |
| Drive Configuration | 6 x 6 |
| Transmission Model | PT 2,116 |
| Engine Manufacturer | Volvo |
| Engine Output - Net | 357 hp (264 kW) |
| Rear Suspension | 3 Point |
| Engine Model | D11M |
| Centre Transfer Differential | Locking |
| Front Differential | Locking |
| Number Of Cylinders | 6 |
| Transmission Manufacturer | Volvo |
| Front Suspension - Type | 3 Point |
| Engine Output - Gross | 355 hp (265 kW) |
| Tire size - Standard | 750 / 65 R25 |
| Rear Suspension - Type | 3 Point Bogie Beam |
| Transmission Type | Powershift |
| Second Axle Differential | Locking |
CAPACITIES
| Heaped Capacity | 23 yd³ (17.8 m³) |
| Fuel Tank | 100 gallons (US) (380 ltr) |
WEIGHTS
| Payload | 63,934 lbs (29000 kg) |
| Gross Weight | 115,963 lbs (52600 kg) |
| Net Weight | 52,029 lbs (23600 kg) |
DIMENSIONS
| Width over Tires | 9 ft 8 in ft/in (2954 mm) |
| Turning Radius - Outside | 26 ft 7 in ft/in (8109 mm) |
| Ground Clearance | 18 inches (466 mm) |
| Loading Height | 9 ft 5 in ft/in (2866 mm) |
| Length - Body | 17 ft 8 in ft/in (5384 mm) |
| Dump Angle | 70 |
| Width - Operating | 9 ft 8 in ft/in (2954 mm) |
| Hoist - Type | Twin, 1-Stage |
| Width - Transport | 9 ft 8 in ft/in (2954 mm) |
| Wheelbase | 16 ft 5 in ft/in (5010 mm) |
| Turning Radius - Inside | 13 ft 3 in ft/in (4048 mm) |
| Full Dump Height | 21 ft 6 in ft/in (6562 mm) |
| Height - Max | 11 ft 1 in ft/in (3366 mm) |
| Approach Angle | 23 |
| Articulation Angle | 45 |
| Length - Overall | 33 ft 9 in ft/in (10296 mm) |
| Height - Over Cab | 11 ft 1 in ft/in (3366 mm) |
| Width - Cab | 70 inches (1772 mm) |
