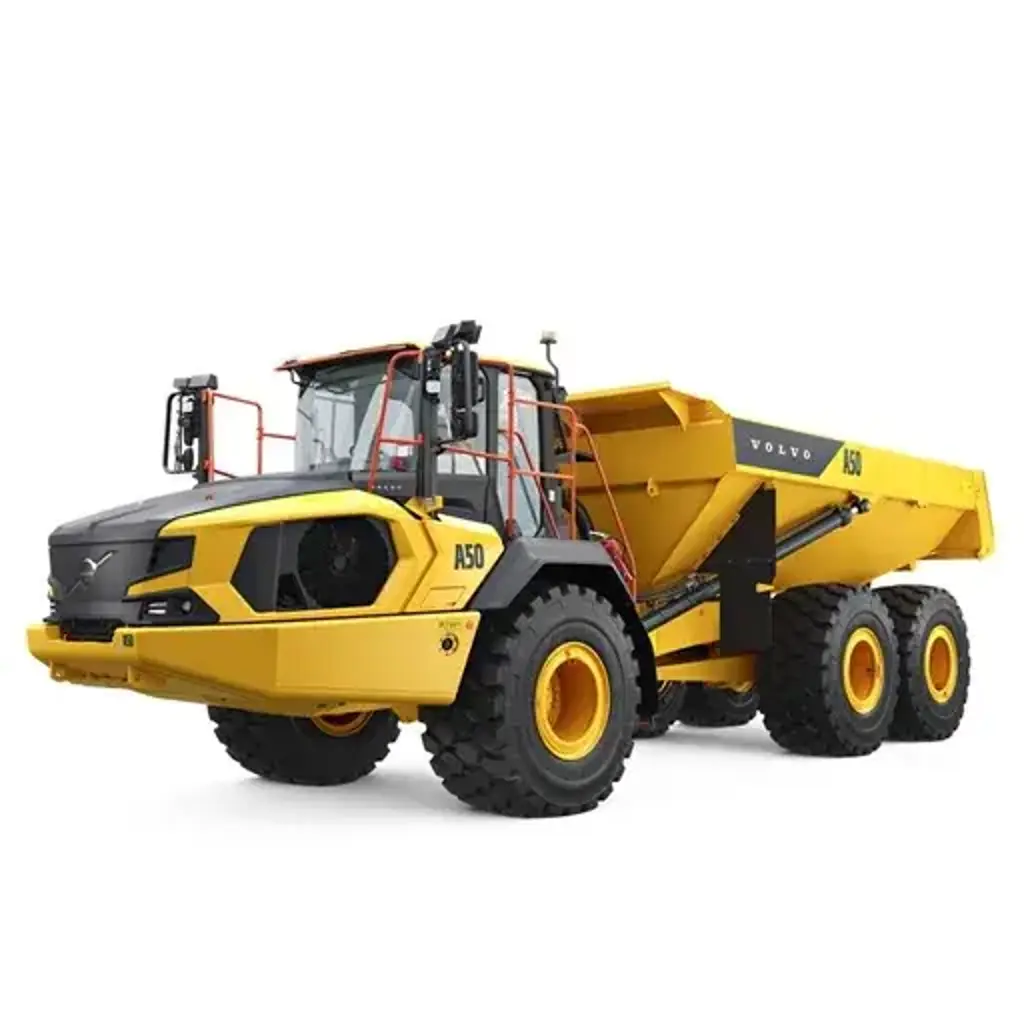

Volvo A50
The A50 takes the proven Volvo full suspension concept to new heights with a 45-tonne (99.210 lb) payload, adding a completely new class of machine to the Volvo Articulated Hauler range. When working over rough terrain such as quarries, mines and large constructions sites, look no further than the A50 for faster cycle times, optimum efficiency and superior operator comfort.
Purchase this machine
Reach out to our team to learn more.
Rent this machine
Get a free rental quote.
Downloads
Features and Benefits
Volvo A50 Articulated Hauler -
- Intuitive in-cab interface
- A new level in operator comfort
- 5% reduction in service costs
- New Volvo transmission
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
Driveline
| Engine Manufacturer | Volvo |
| Engine Model | D16J |
| Number Of Cylinders | 6 |
| After Treatment System 3 | Selective Catalytic Reduction |
| Displacement | 982 Inches³ (16.1 ltr) |
| Rated Speed | 1,900 rpm |
| Engine Output - Gross | 516 hp (385 kW) |
| Torque | 2,028 lbf / ft (2750 Nm) |
| Drive Configuration | 6 x 6 |
| Final Drive | Planetary |
| Transmission Type | PowerTronic |
| Traction Control | Yes |
| Front Differential | Locking |
| Second Axle Differential | Locking |
| Third Axle Differential | Locking |
| Centre Transfer Differential | Locking |
| Tire Size - Standard | 875 / 65 R29 |
| Front Suspension - Type | Fully Hydraulic |
| Front Suspension | Nitrogen/Oil-Filled Struts - Auto Levelling |
| Rear Suspension - Type | Fully Hydraulic |
| Rear Suspension | Nitrogen/Oil-Filled Struts |
| Service Brake - Type | Wet Multi Disc |
Dimensions
| Length - Overall | 37 ft 5 in (11399 mm) |
| Height - Over Cab | 11 ft 11 in (3624 mm) |
| Height - Max | 11 ft 11 in (3624 mm) |
| Ground Clearance | 25 inches (627 mm) |
| Width Over Tires | 11 ft 9 in (3570 mm) |
| Width - Transport | 11 ft 9 in (3570 mm) |
| Width - Operating | 11 ft 9 in (3570 mm) |
| Wheelbase | 18 ft 9 in (5738 mm) |
| Length - Body | 19 ft 8 in (5998 mm) |
| Loading Height | 10 ft 8 in (3249 mm) |
| Full Dump Height | 24 ft 8 in (7525 mm) |
| Hoist - Type | Twin, 1-Stage |
| Dump Angle | 69 ° |
| Approach Angle | 26 ° |
| Articulation Angle | 45 ± ° |
| Turning Radius - Outside | 30 ft 10 in (9394 mm) |
| Turning Radius - Inside | 14 ft 8 in (4480 mm) |
Capacities
| Fuel Tank | 149 gallons (US) (563 ltr) |
| Heaped Capacity | 36 yd³ (27.8 m³) |
Performance
| Cycle Time - Raise | 12 s |
| Unladen Axle Load - Front | 38,427 lbs (17430 kg) |
| Unladen Axle Load - Rear | 35,649 lbs (16170 kg) |
| Laden Axle Load - Front | 51,390 lbs (23310 kg) |
| Laden Axle Load - Rear | 121,872 lbs (55280 kg) |
| Front - Unladen | 15 PSI (103 kPa) |
| Rear - Unladen | 7 PSI (48 kPa) |
| Front - Laden | 20 PSI (138 kPa) |
| Rear - Laden | 24 PSI (163 kPa) |
| Speed - Forward Maximum | 35 mph (57 kph) |
| Speed - Reverse Maximum | 10 mph (16.3 kph) |
Weights
| Net Weight | 74,075 lbs (33600 kg) |
| Payload | 99,208 lbs (45000 kg) |
| Gross Weight | 173,261 lbs (78590 kg) |
