Excavators

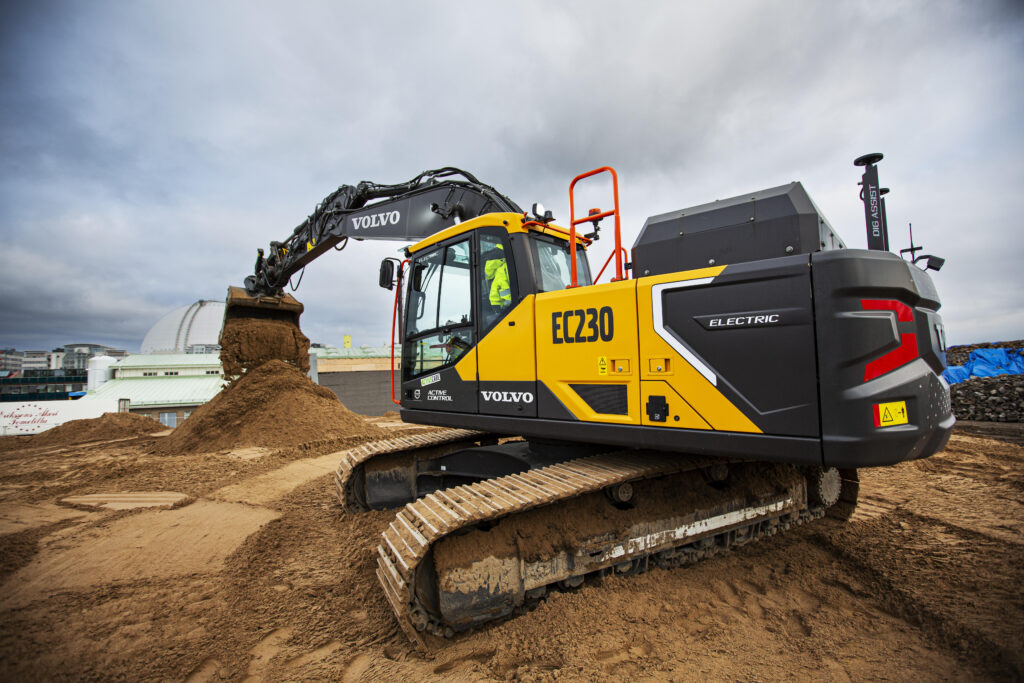

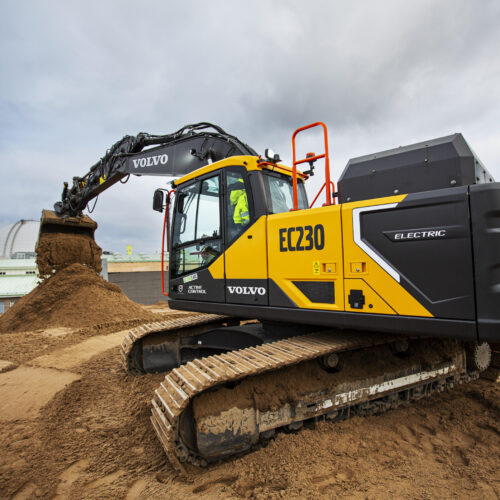

Volvo EC230 Electric
This is a general-purpose machine designed for extraction, earthmoving and grading for site preparation as well as waste- and scrap handling. The EC230 Electric is based on the conventional diesel-powered EC230, and will deliver the same performance, if not better, with the added benefits of zero emissions, low noise, and low total cost of ownership.
Purchase this machine
Reach out to our team to learn more.
Rent this machine
Get a free rental quote.
Downloads
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
Description
| Operating Weight | 50,600 lbs (22950 kg) |
| Standard Arm Length | 9 ft 6 in (2900 mm) |
Telematics
| Telematics Available | Yes |
Driveline
| Number Of Track Rollers - Each Side | 8 |
| Track Shoe Width | 24 inches (600 mm) |
| Battery Capacity | 450 kWh |
Dimensions
| Bucket Capacity | 0.63-1.73 yd³ (0.48-1.32 m³) |
| Bucket Weight | 1468-2296 lbs (666-1041 kg) |
| Transport Length Mono Boom | 32 ft (9745 mm) |
| Max Transport Height | 10 ft 11 in (3320 mm) |
| Max Machine Width | 9 ft 10 in (2990 mm) |
| Track Length On Ground | 12 ft (3660 mm) |
| Zero Tailswing | No |
| Heaped Bucket Capacity | 1 yd³ (1.09 m³) |
| Variable Undercarriage Availability | No |
| Ground Level Reach | 32 ft 3 in (9835 mm) |
| Dig Height | 31 ft (9445 mm) |
| Dump Height - Mono Boom | 21 ft 6 in (6555 mm) |
| Dig Depth | 22 ft 5 in (6825 mm) |
Performance
| Ground Bearing Pressure | 7 PSI (48 kPa) |
| Arm Tearout | 24,730 lbf (110 kN) |
| Bucket Breakout | 33,500 lbf (149 kN) |
| Number Of Main Pumps | 2 |
| Main Pump - Flow | 110 gallons (US) / min (416 lt/min) |
