Compactors

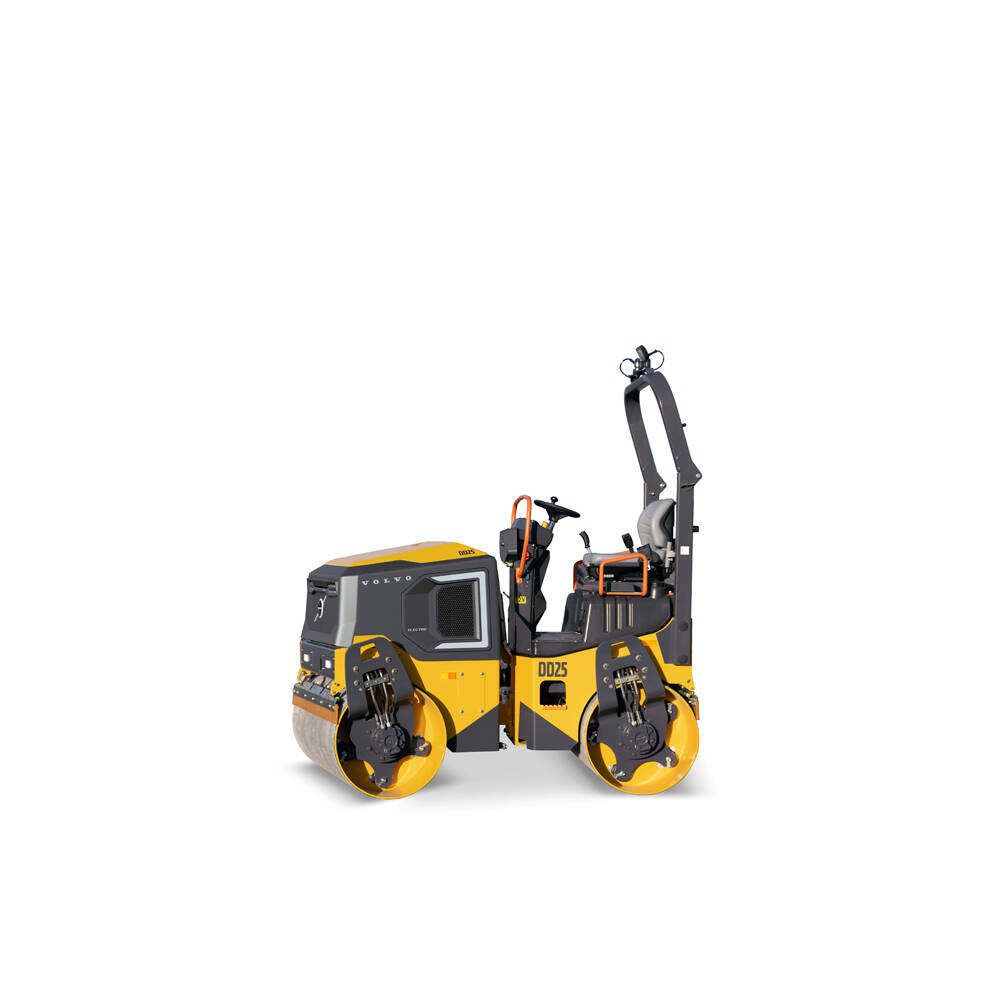

Volvo DD25 Electric
We are expanding our portfolio of electric machines to the road segment with the Volvo DD25 Electric asphalt compactor. It is a zero-exhaust emission solution for small scale compaction projects including street repairs and patching, parking lots, driveways, municipalities and rental houses.
With the introduction of this electric compact double-drum roller, we continue to lead the way with innovations that help customers reduce their total cost of ownership and carbon footprint – while maintaining high productivity and uptime.
Downloads
Features and Benefits
Volvo DD25 Electric Compactor - New Electric Compactors Help You Earn More
- Ideal for sensitive or urban environments with strict emission regulations and for organizations which are looking to meet their own sustainability goals.
- Cleaner and more enjoyable work environment for operators, site teams and passers-by.Opportunity for a completely zero-emission workplace if used alongside other Volvo electric powered equipment – such as the EC18 Electric, ECR18 Electric and the ECR25 Electric compact excavators, or the L25 Electric and L20 Electric compact wheel loaders.
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
Driveline
| Transmission | Hydrostatic |
| Power | 33 hp (24.5 kW) |
| Capacity | 20 kW-h |
Dimensions
| Overall Length | 95 inches (2420 mm) |
| Height - With ROPS | 104 inches (2650 mm) |
| Height - Without ROPS | 80 inches (2020 mm) |
| Overall Width | 43 inches (1090 mm) |
| Wheelbase | 68 inches (1720 mm) |
| Drum Offset ± | 2 inches (50 mm) |
| Drum Width - Front | 39 inches (1000 mm) |
| Drum Width - Rear | 39 inches (1000 mm) |
| Rolling Width | 39 inches (1000 mm) |
| Drum Diameter - Front | 28 inches (700 mm) |
| Drum Diameter - Rear | 28 inches (700 mm) |
| Drum Shell Thickness | 1 inches (13 mm) |
Capacities
| Tank Capacity For Drum | 69 gallons (US) (260 ltr) |
Performance
| Drive To Drums | Both |
| Travel Speed 1 | 6 mph (10.3 kph) |
| Max. Travel Speed | 6 mph (10.3 kph) |
| Number Of Frequency/Amplitude Settings | 2 |
| Frequency - Stage 1 - Front | 55 Hz |
| Frequency - Stage 2 - Front | 67 Hz |
| Frequency - Stage 1 - Rear | 55 Hz |
| Frequency - Stage 2 - Rear | 67 Hz |
| Amplitude Stage 1 - Front | 0 inches (0.53 mm) |
| Amplitude Stage 1 - Rear | 0 inches (0.53 mm) |
| Centrifugal Force 1 - Front | 8,430 lbf (38 kN) |
| Centrifugal Force 2 - Front | 5,732 lbf (26 kN) |
| Centrifugal Force 1 - Rear | 8,430 lbf (38 kN) |
| Centrifugal Force 2 - Rear | 5,732 lbf (26 kN) |
| Max Amplitude | 0 inches (0.53 mm) |
| Min Amplitude | 0 inches (0.53 mm) |
| Max Frequency | 67 Hz |
| Min Frequency | 55 Hz |
| Max Centrifugal Force | 8,430 lbf (38 kN) |
| Min Centrifugal Force | 5,732 lbf (26 kN) |
Weights
| Operating Weight | 5,899 lbs (2676 kg) |
| Weight - Front | 2,985 lbs (1353 kg) |
| Weight - Rear | 2,915 lbs (1323 kg) |
