Wheel Loaders

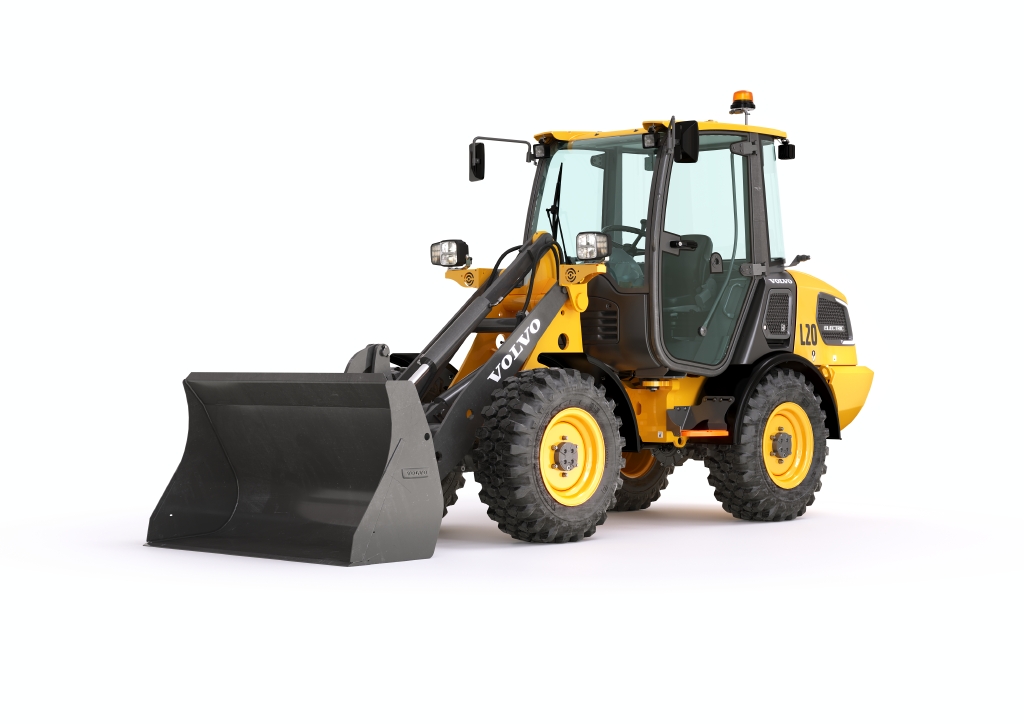

Volvo L20 Electric
Not only benefiting communities as a whole, the L20 Electric and L25 Electric also create new opportunities for your business. The low noise level means the machines can operate anytime, anywhere – even at night in populated areas. Zero emissions mean that there is no need for costly fume extraction systems when working indoors.
Downloads
Features and Benefits
Volvo L20 Electric Wheel Loader - MORE ELECTRIC TO CHOOSE FROM
- Experience the same performance levels but with zero exhaust emissions, so you can meet emissions targets while opening up all-new applications.
- Reduce noise pollution and vibrations, which aren’t just disturbing but have an often- neglected effect on health.
- Get more work done at night, reducing daytime congestion.
- Realize energy efficiency way beyond its predecessor.
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
Driveline
| Engine Manufacturer | Volvo |
| Engine Model | Electric Drive |
| Transmission Type | Electronic - Direct |
| Tire Size - Standard | 405 / 70 R18 |
| Service Brake - Type | Wet Disc |
| Battery Capacity | 40 kWh |
| Rated Output | 30 hp (22 kW) |
Dimensions
| Wheelbase | 6 ft 9 in (2050 mm) |
| Length With Bucket On Ground | 17 ft 11 in (5195 mm) |
| Height - Over Cab | 8 ft 2 in (2499 mm) |
| Ground Clearance | 12 inches (310 mm) |
| Width Over Tires - Std | 5 ft 8 in (1725 mm) |
| Bucket Type | GP w/Edge |
| Bucket Width | 5 ft 11 in (1800 mm) |
| Full Lift Dump Height | 8 ft (2430 mm) |
| Full Lift Reach | 2 ft 6 in (750 mm) |
| Loader - Geometry | Parallel |
| Dump Angle - At Dump | 45 ° |
| Dump Angle - Maximum | 43 ° |
| Height - Pivot Pin | 10 ft 4 in (3160 mm) |
| Height - Maximum | 13 ft 9 in (4193 mm) |
| Turn Radius Over Bucket - Std. | 14 ft (4270 mm) |
Capacities
| Heaped Capactiy | 1 yd³ (0.8 m³) |
| Bucket Capacity - Smallest | 1 yd³ (0.8 m³) |
| Largest Bucket Capacity | 1 yd³ (0.95 m³) |
Performance
| Straight Tipping Load | 7,496 lbs (3400 kg) |
| Full Turn Tipping Load | 6,724 lbs (3050 kg) |
| Breakout - Bucket | 6,969 lbf (3161 kgf) |
| Bucket Breakout | 6,969 lbf (31 kN) |
Weights
| Bucket Capacity | 1.05-1.24 yd³ (0.8-0.95 m³) |
| Operating Weight | 10,251 lbs (4650 kg) |
