Excavators

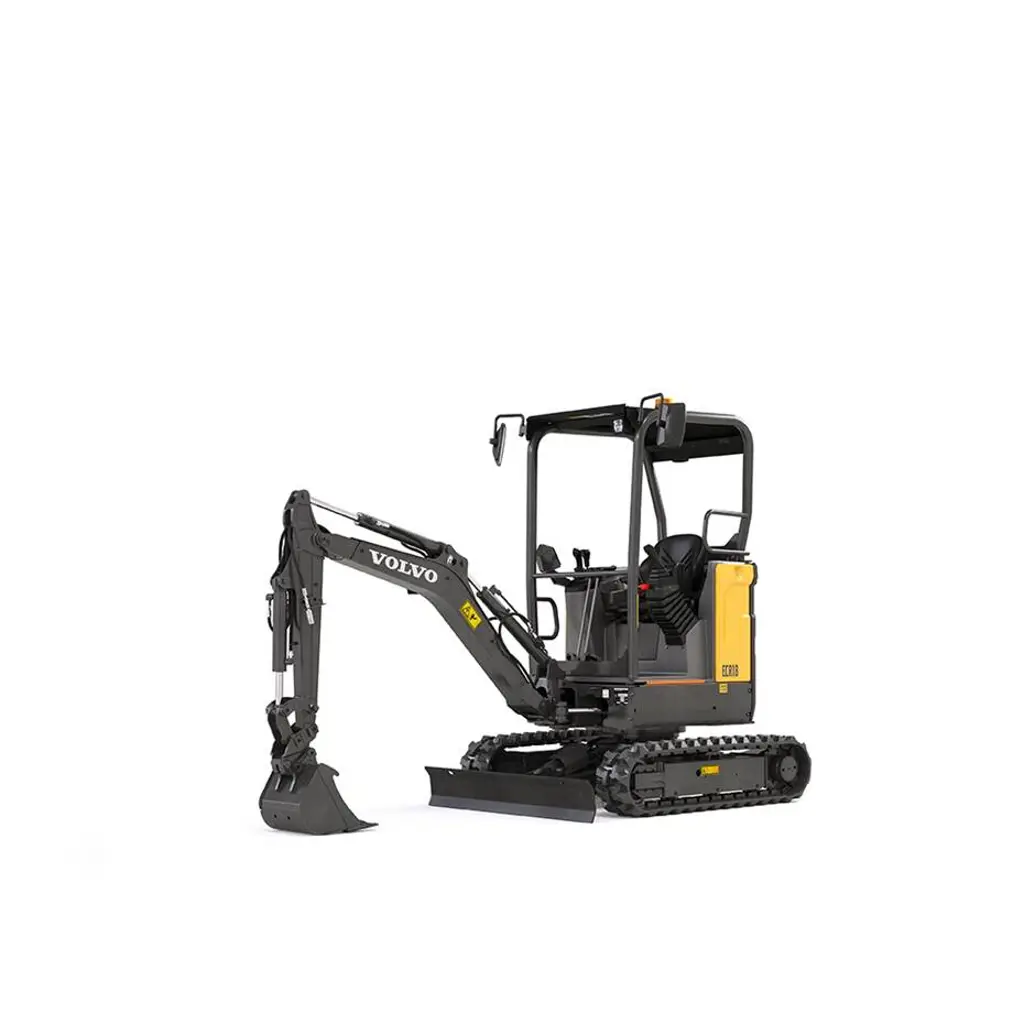

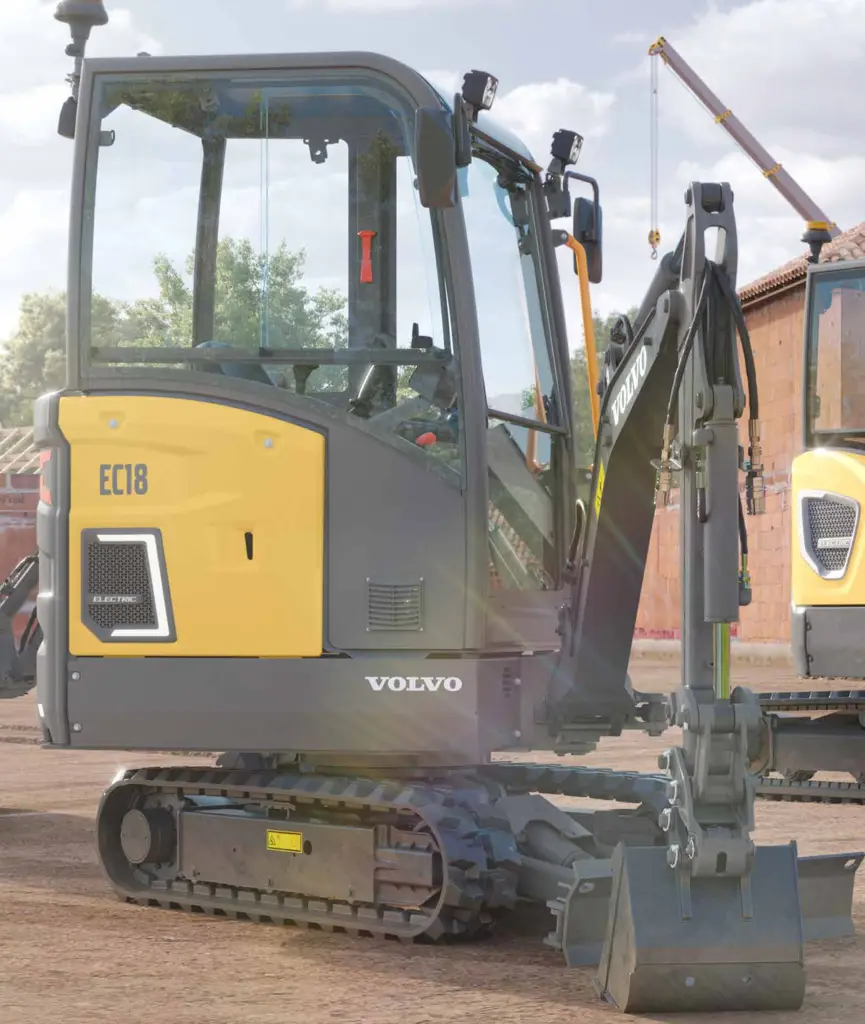

Volvo EC18 Electric
The EC18 Electric and ECR18 Electric boast both low noise and zero-tailpipe emissions, creating new opportunities for your business. Operate in noise sensitive areas and out of standard hours, as well as on low-carbon projects and indoors, without the need for costly fume extraction systems or being restricted by operator time limits.
Purchase this machine
Reach out to our team to learn more.
Rent this machine
Get a free rental quote.
Build & Quote This Machine
Downloads
Features and Benefits
Volvo EC18 Electric Excavator - A PROVEN PAST, AN ELECTRIC FUTURE
- Experience the same performance levels but with zero exhaust emissions, so you can meet emissions targets while opening up all-new applications.
- Reduce noise pollution and vibrations, which aren’t just disturbing but have an often- neglected effect on health.
- Get more work done at night, reducing daytime congestion.
- Realise energy efficiency way beyond its predecessor.
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
Description
| Standard Arm Length | 3 ft 1 in (950 mm) |
Driveline
| Number Of Track Rollers - Each Side | 3 |
| Track Shoe Width | 9 inches (230 mm) |

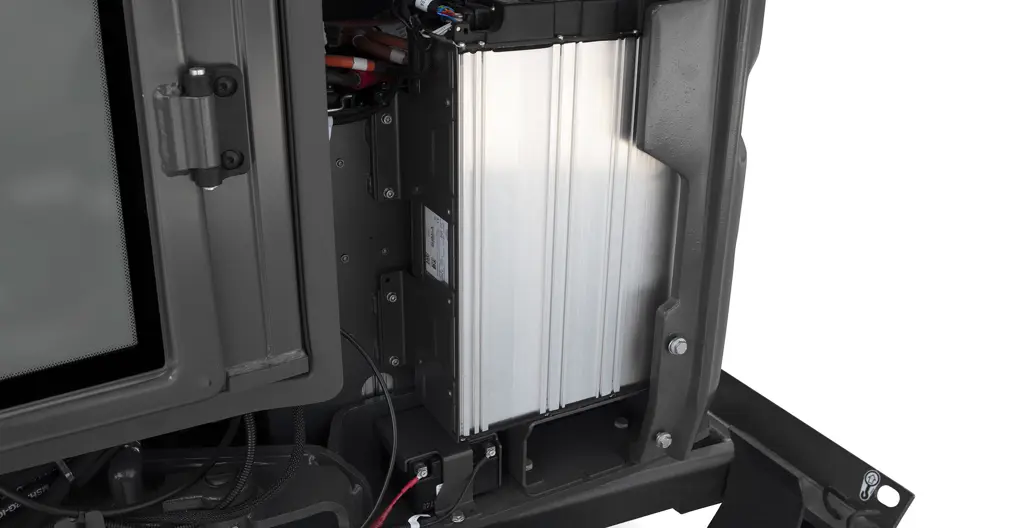

| Battery Capacity | 20 kWh |
Dimensions
| Bucket Capacity | 0 yd³ (0.36 m³) |
| Bucket Weight | 73 lbs (33 kg) |
| Transport Length Mono Boom | 12 ft 6 in (3810 mm) |
| Max Transport Height | 7 ft 8 in (2334 mm) |
| Max Machine Width | 4 ft 5 in (1352 mm) |
| Zero Tailswing | No |
| Heaped Bucket Capacity | 0 yd³ (0.36 m³) |
| Variable Undercarriage Availability | Yes |
| Ground Level Reach | 12 ft 6 in (3800 mm) |
| Dig Height | 11 ft 3 in (3439 mm) |
| Dump Height - Mono Boom | 8 ft (2444 mm) |
| Dig Depth | 8 ft 2 in (2500 mm) |
Performance
| Ground Bearing Pressure | 4 PSI (28.9 kPa) |
| Arm Tearout | 1,787 lbf (7.95 kN) |
| Bucket Breakout | 2,900 lbf (12.9 kN) |
Weights
| Operating Weight | 4,310 lbs (1955 kg) |
