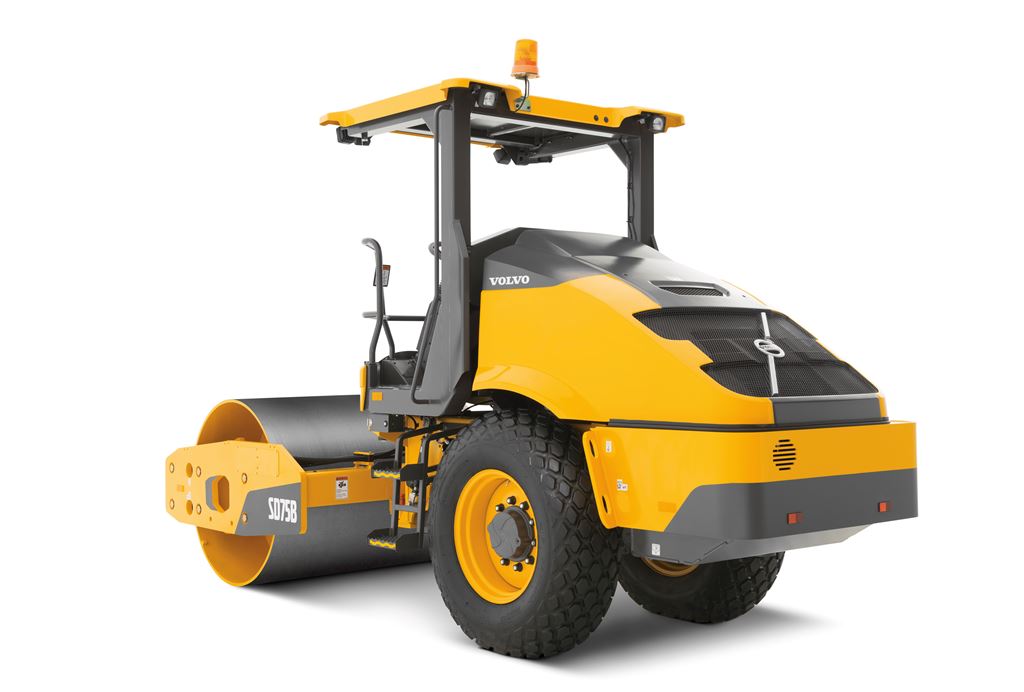

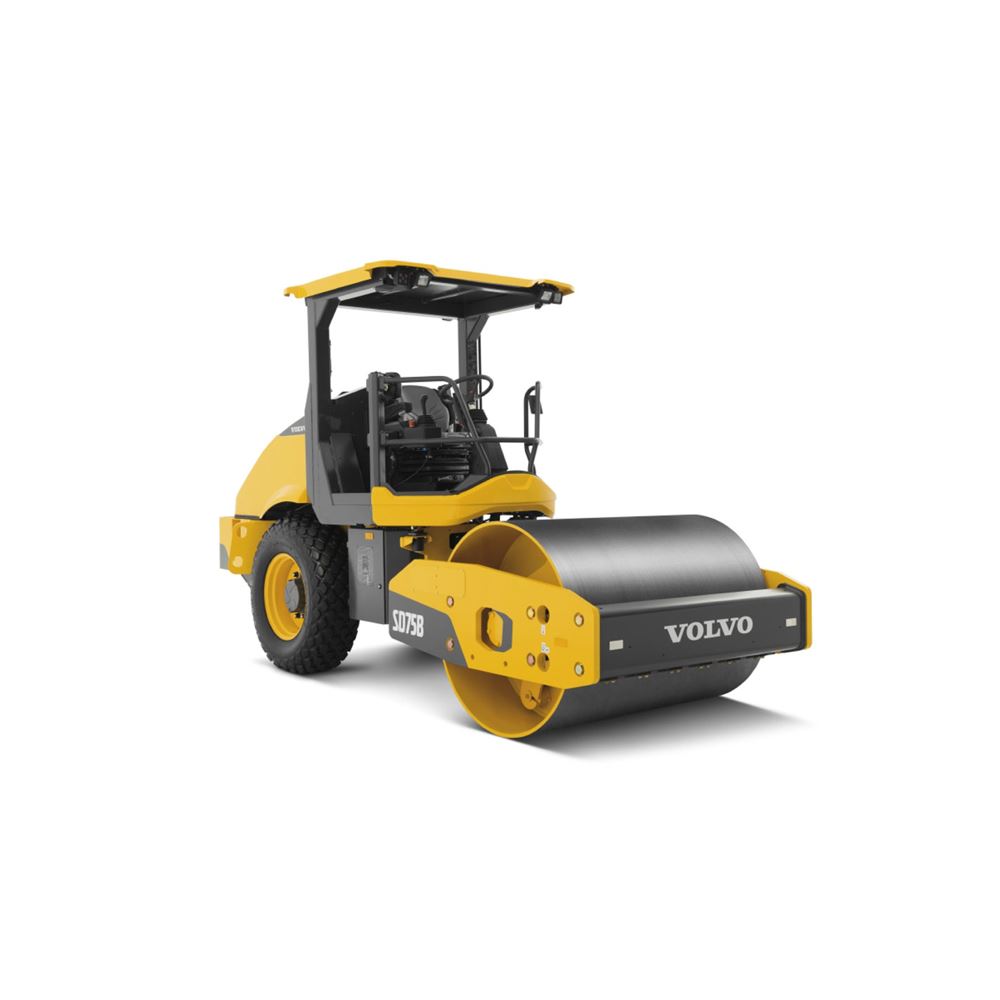

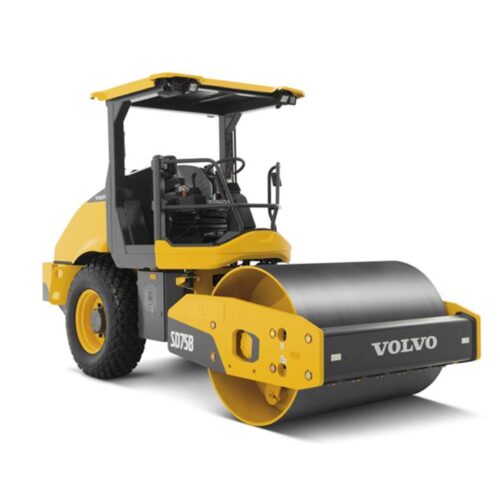

Volvo SD75B
The new SD75B soil compactor from Volvo is packed with advanced technology – the drum is configured with ease while the engine controls itself. The intelligent compactor adapts to your application and job site to provide maximum versatility and performance.
Downloads
Features and Benefits
Volvo SD75B Compactor - POWER UP, FUEL DOWN
Frequency and amplitude choices
Adaptive power
Application versatility
ECO Mode
Lifetime Frame & Structure Guarantee (Frame, Articulation Joint)
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
PERFORMANCE
| Centrifugal Force - Stage 1 | 23,625 lbf (105 kN) |
| Linear Drum Load | - |
| Travel speed 1 | 5 mph (7.5 kph) |
| Gradeability - With Vibration | - |
| Travel speed 3 | - |
| Frequency - Stage 2 | 34 |
| Number of Batteries | - |
| System Voltage | - |
| Alternator Output | - |
| Battery Capacity | - |
| Travel speed 2 | 8 mph (13 kph) |
| Battery Voltage | - |
| Amplitude - Stage 2 | 0 inches (0.89 mm) |
| Frequency - Stage 1 | 31 |
| Amplitude - Stage 1 | 0 inches (1.49 mm) |
| Travel speed 4 | - |
| Drive To Drum / Wheel | Yes / Yes |
| Travel speed 5 | - |
DIMENSIONS
| Overhang - Right | 3 inches (77 mm) |
| Overall Width | 72 inches (1830 mm) |
| Drum Shell Thickness | 1 inches (22 mm) |
| Overall Length | 199 inches (5044 mm) |
| Turning Radius - Inside | - |
| Height - With ROPS | 118 inches (2993 mm) |
| Steering Angle | 38 |
| Overhang - Left | 3 inches (77 mm) |
| Drum Width | 66 inches (1676 mm) |
| Height - Without ROPS | - |
| Drum Diameter | 48 inches (1219 mm) |
| Wheelbase | 105 inches (2677 mm) |
| Ground Clearance | - |
| Rolling Width | 66 inches (1676 mm) |
DRIVELINE
| Engine Rated Output | 74 hp (55.4 kW) |
| Rated Speed | 2,200 |
| Tire Size | 15 - 24 |
| Diesel Oxidation Catalyst | - |
| Steering | Articulation |
| Exhaust Gas Recirculation | - |
| Torque Rated Speed | - |
| Aspiration | - |
| Displacement | 232 Inches³ (3.8 ltr) |
| Engine Manufacturer | Volvo |
| Engine Manufacturer | Volvo |
| Selective Catalytic Reduction | - |
| Charged Air Cooling | - |
| Diesel Particulate Filter | - |
| Transmission | Hydrostatic |
| Engine Model | D3.8 |
| Rated Torque | - |
WEIGHTS
| Operating Weight | 15,952 lbs (7251 kg) |
| Weight - Rear | 7,454 lbs (3388 kg) |
| Weight - Front | 8,499 lbs (3863 kg) |
CAPACITIES
| Fuel Tank | 30 gallons (US) (115 ltr) |
| Engine Coolant | - |
| DEF Tank | - |
| Hydraulic Tank | - |
| Engine Oil | - |
DESCRIPTION
| Platform | CareTrack |
| Telematics Available | Yes |
