Compactors

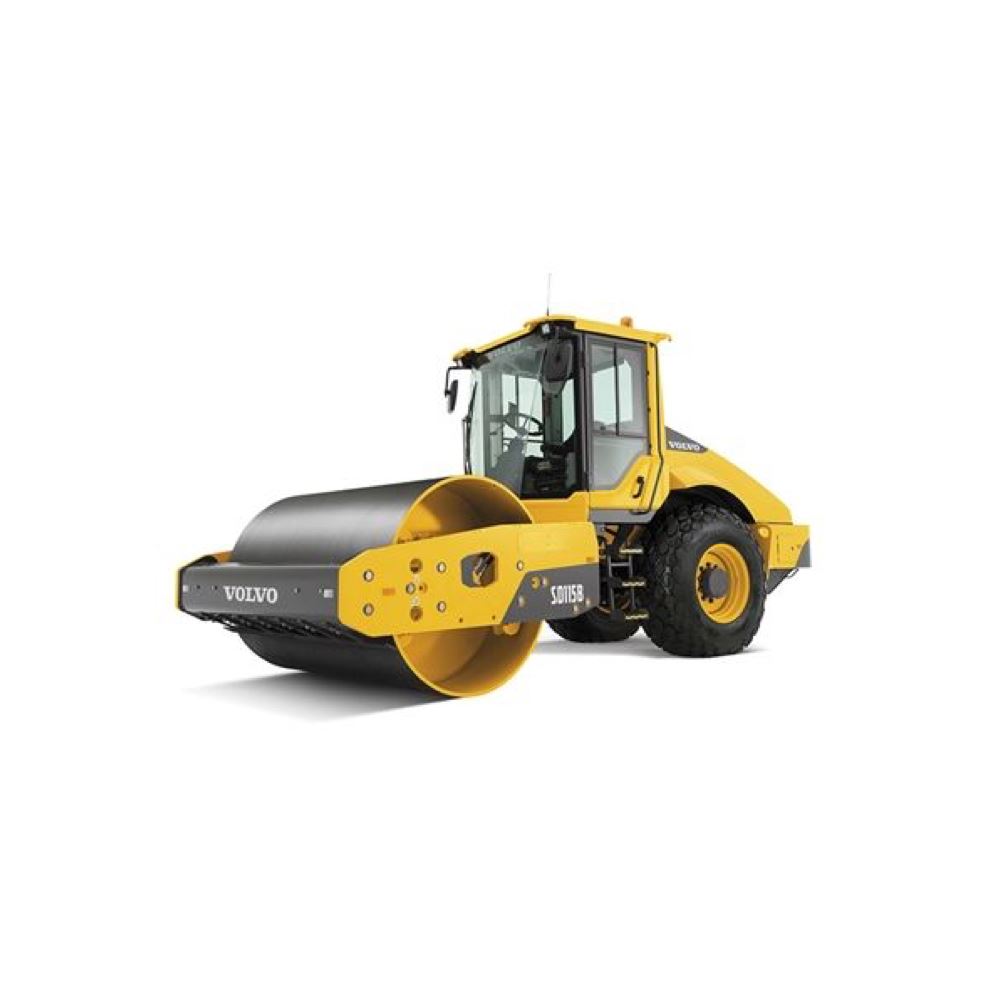

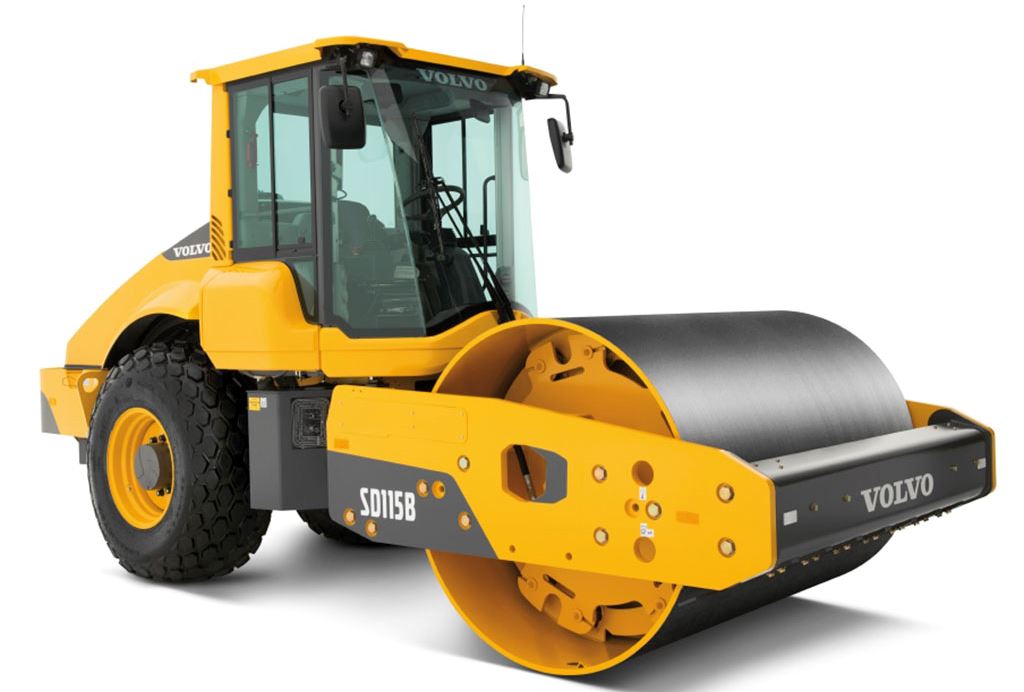

Volvo SD115B
The SD115B soil compactor separates itself from competition due to its advanced technology and maximum performance. The drum is configured with ease while the engine controls itself, keeping productivity and versatility high. Step up to the Volvo designed cab and experience industry-leading low noise levels, ultimate comfort and a productive working environment.
Downloads
Features and Benefits
Volvo SD115B Compactor - PACKED WITH TECHNOLOGY
Frequency and amplitude choices
Adaptive power
Application versatility
ECO Mode
Lifetime Frame & Structure Guarantee (Frame, Articulation Joint)
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
PERFORMANCE
| Centrifugal Force - Stage 1 | 58,050 lbf (258 kN) |
| Travel speed 1 | 3 mph (4.3 kph) |
| Linear Drum Load | - |
| Gradeability - With Vibration | - |
| Travel speed 3 | - |
| Frequency - Stage 2 | 34 |
| Number of Batteries | - |
| System Voltage | - |
| Alternator Output | - |
| Battery Capacity | - |
| Travel speed 2 | 6 mph (10 kph) |
| Travel speed 5 | - |
| Battery Voltage | - |
| Amplitude - Stage 2 | 0 inches (1.13 mm) |
| Frequency - Stage 1 | 31 |
| Amplitude - Stage 1 | 0 inches (1.68 mm) |
| Travel speed 4 | - |
| Drive To Drum / Wheel | Yes / Yes |
DRIVELINE
| Engine Rated Output | 147 hp (110 kW) |
| Torque Rated Speed | - |
| Rated Speed | 2,200 |
| Tire Size | 23 - 26 |
| Diesel Oxidation Catalyst | - |
| Steering | Articulation |
| Exhaust Gas Recirculation | - |
| Aspiration | - |
| Displacement | 244 Inches³ (4 ltr) |
| Engine Manufacturer | Volvo |
| Engine Manufacturer | Volvo |
| Selective Catalytic Reduction | - |
| Charged Air Cooling | - |
| Diesel Particulate Filter | - |
| Transmission | Hydrostatic |
| Engine Model | D4 |
| Rated Torque | - |
WEIGHTS
| Operating Weight | 25,960 lbs (11800 kg) |
| Weight - Rear | 11,880 lbs (5400 kg) |
| Weight - Front | 14,080 lbs (6400 kg) |
CAPACITIES
| Fuel Tank | 34 gallons (US) (130 ltr) |
| Engine Coolant | - |
| DEF Tank | - |
| Hydraulic Tank | - |
| Engine Oil | - |
DIMENSIONS
| Drum Shell Thickness | 1 inches (25 mm) |
| Overall Length | 240 inches (6091 mm) |
| Turning Radius - Inside | - |
| Height - With ROPS | 119 inches (3020 mm) |
| Steering Angle | 35 |
| Rolling Width | 84 inches (2134 mm) |
| Overhang - Left | 3 inches (76 mm) |
| Drum Width | 84 inches (2134 mm) |
| Height - Without ROPS | - |
| Drum Diameter | 51 inches (1295 mm) |
| Overhang - Right | 3 inches (76 mm) |
| Wheelbase | 122 inches (3095 mm) |
| Ground Clearance | - |
| Overall Width | 90 inches (2286 mm) |
DESCRIPTION
| Platform | CareTrack |
| Telematics Available | Yes |
