Compactors

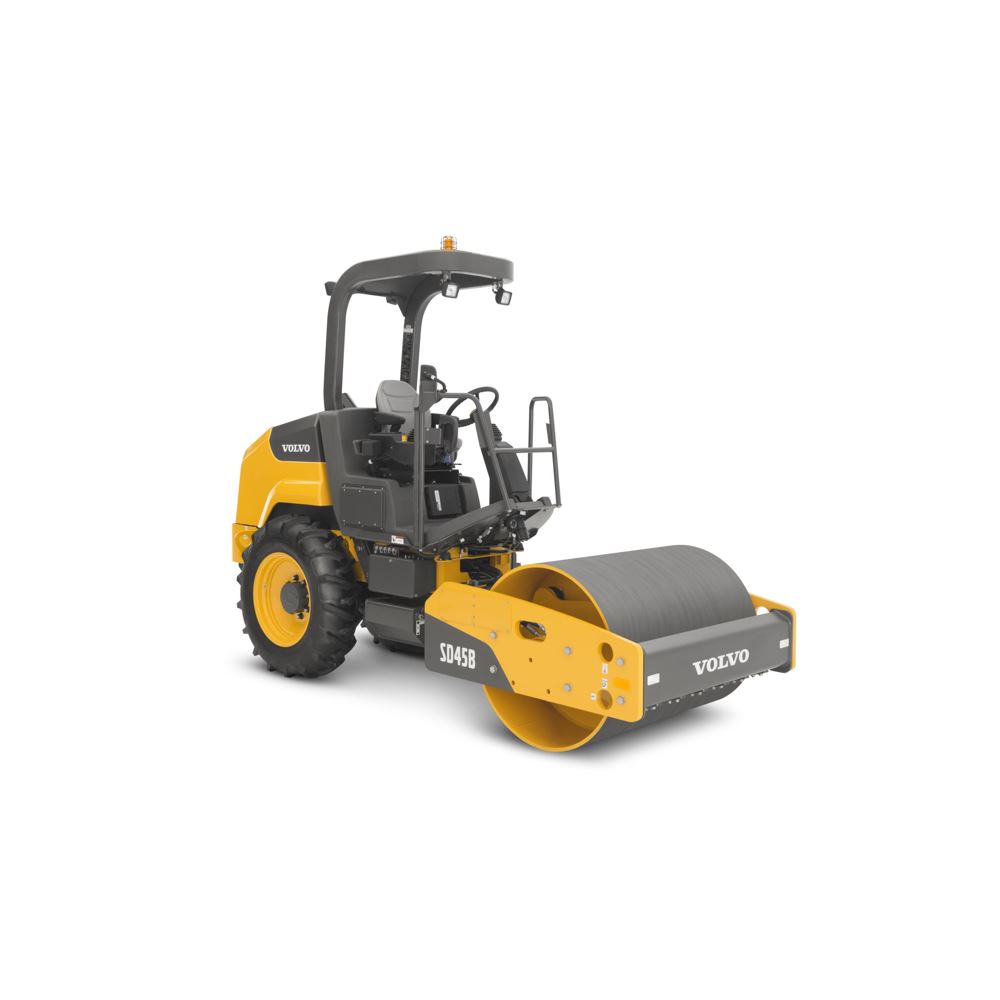

Volvo SD 45 B
Do more with the SD45B single drum soil compactor from Volvo, designed to propel the profitability of your business and maximize return on your investment. Combining versatility with ease of maintenance, the compactor delivers unmatched performance and optimum machine uptime across a variety of applications and terrain.
Downloads
Features and Benefits

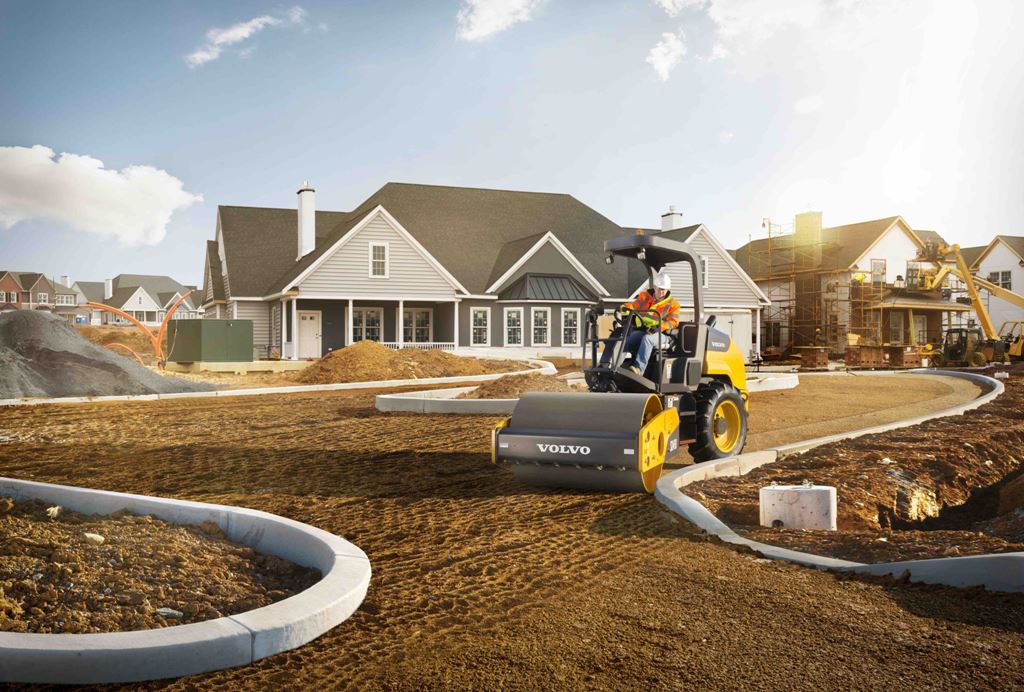

Volvo SD 45 B Compactor - QUALITY COMPACTION IN ACTION
Ground-level service access
Easy transportability
Lifetime Frame & Structure Guarantee (Frame, Articulation Joint)
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
PERFORMANCE
| Centrifugal Force - Stage 1 | 21,000 lbf (93 kN) |
| Battery Voltage | 12 |
| Travel speed 5 | - |
| Travel speed 2 | - |
| System Voltage | 12 |
| Number of Batteries | - |
| Travel speed 3 | - |
| Gradeability - With Vibration | - |
| Drive To Drum / Wheel | Yes / Yes |
| Travel speed 1 | 6 mph (9.1 kph) |
| Linear Drum Load | - |
| Frequency - Stage 2 | 31 |
| Frequency - Stage 1 | 28 |
| Max. Travel Speed | 6 mph (9.1 kph) |
| Amplitude - Stage 1 | 0 inches (1.71 mm) |
| Travel speed 4 | - |
| Alternator Output | 90 |
| Battery Capacity | 750 |
| Amplitude - Stage 2 | 0 inches (1.71 mm) |
DIMENSIONS
| Overhang - Right | - |
| Overhang - Left | - |
| Rolling Width | 54 inches (1372 mm) |
| Turning Radius - Inside | 101 inches (2569 mm) |
| Drum Diameter | 39 inches (1001 mm) |
| Wheelbase | 95 inches (2400 mm) |
| Ground Clearance | 12 inches (292.1 mm) |
| Overall Width | 61 inches (1550 mm) |
| Drum Shell Thickness | 1 inches (20 mm) |
| Height - Without ROPS | - |
| Overall Length | 165 inches (4181 mm) |
| Height - With ROPS | 115 inches (2919 mm) |
| Steering Angle | 41 |
| Drum Width | 54 inches (1372 mm) |
DRIVELINE
| Engine Rated Output | 74 hp (55 kW) |
| Selective Catalytic Reduction | - |
| Aspiration | Turbocharged |
| Torque Rated Speed | - |
| Rated Speed | 2,600 |
| Rated Torque | - |
| Emission Rating | - |
| Diesel Particulate Filter | - |
| Transmission | Hydrostatic |
| Engine Model | D3.3H |
| Tire Size | 12 - 24 |
| Diesel Oxidation Catalyst | - |
| Steering | Articulation |
| Exhaust Gas Recirculation | Yes - Cooled |
| Displacement | 201 Inches³ (3.3 ltr) |
| Engine Manufacturer | Volvo |
| Engine Manufacturer | Volvo |
| Charged Air Cooling | - |
WEIGHTS
| Weight - Rear | 5,510 lbs (2497 kg) |
| Operating Weight | 11,660 lbs (5288 kg) |
| Weight - Front | 6,150 lbs (2789 kg) |
CAPACITIES
| DEF Tank | - |
| Engine Coolant | - |
| Engine Oil | - |
| Fuel Tank | 27 gallons (US) (101.3 ltr) |
| Hydraulic Tank | 25 gallons (US) (96.1 ltr) |
DESCRIPTION
| Telematics Available | - |
| Platform | - |
Service Available
Our service agreements gives you added peace of mind, allowing you to focus more on your business.
Need Parts?
Genuine Volvo parts are available from us to keep your equipment running like new.
