Rigid Haulers

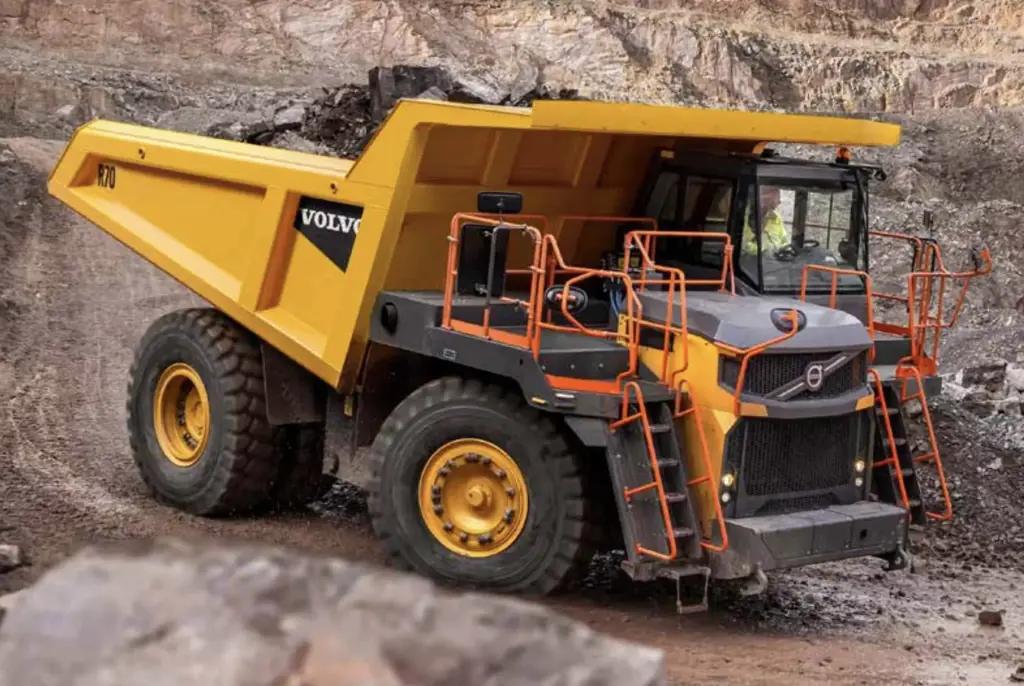

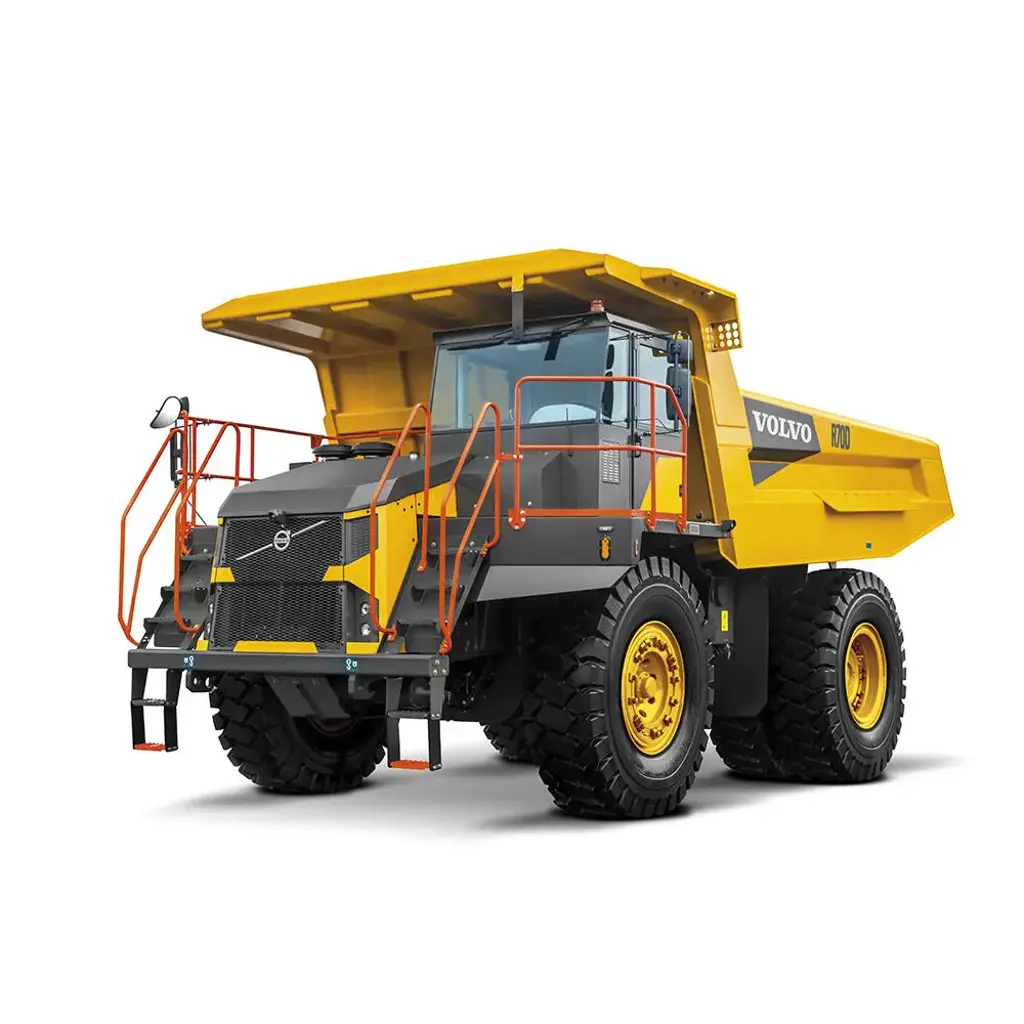

Volvo R70
The R70 rigid hauler thrives on quarrying and mining sites, where it moves large quantity of material at high speed over long distances, reliably and cost efficiently.
Big on productivity but low on cost of operation, the R70 is the perfect partner for quarrying and mining duties. This Volvo Rigid Hauler delivers outstanding performance, reliability and serviceability – not to mention safety and comfort.
Downloads
Features and Benefits
Volvo R70 Rigid Hauler -
- 65 tonnes (71.6 ton) payload, 42.4 m³ (55.46 yd³) volume
- V-shape body for optimum load retention
- Fast body-tipping system
- High drive axle multiplication: excellent tractive effort and incline performance
- 61 km/h (37.9 mph) top speed
- 10/10/20 payload policy, supported by On-Board Weighing system (option)
- A match to EC950F and L350H
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
Description
| Passenger Seat | Yes |
| Air Conditioning | Yes |
| Descent Control | No |
| Camera Platform | Option |
| Camera Platform - System | Volvo Smart View |
| Telematics Available | Optional |
| Platform | CareTrack |
Driveline
| Engine Manufacturer | Cummins |
| Engine Model | QSK 19 |
| Aspiration | Turbo - Charge Air Cooled |
| Cooling | Water |
| Displacement | 1,159 Inches³ (19 ltr) |
| Engine Output - Net | 705 hp (526 kW) |
| Engine Output - Gross | 761 hp (567 kW) |
| Drive Configuration | 4 x 2 |
| Transmission Type | Automatic |
| Final Drive | Planetary |
| Speeds - Forward | 6 |
| Speeds - Reverse | 2 |
| Tire Size - Standard | 24.00-35 |
| Retarder - Type | Transmission |
| Retarder - Type 2 | Service Brakes - Rear |
Dimensions
| Length - Overall | 394 inches (10005 mm) |
| Height - Max | 186 inches (4734 mm) |
| Height - Over Canopy / Rock Guard Rail | 186 inches (4734 mm) |
| Ground Clearance | 26 inches (662 mm) |
| Width Over Tires | 172 inches (4381 mm) |
| Width - Transport | 233 inches (5921 mm) |
| Width - Operating | 233 inches (5921 mm) |
| Wheelbase | 164 inches (4170 mm) |
| Loading Height | 156 inches (3975 mm) |
| Full Dump Height | 339 inches (8617 mm) |
| Width - Over Body | 177 inches (4506 mm) |
Capacities
| Fuel Tank | 203 gallons (US) (770 ltr) |
| Engine Oil | 17 gallons (US) (65 ltr) |
| Cooling System | 42 gallons (US) (160 ltr) |
| Body Type | V Shape |
| Struck Capacity | 41 yd³ (31.6 m³) |
| Heaped Capacity | 56 yd³ (42.5 m³) |
Performance
| Gears - Forward / Reverse | 6F - 2R |
| Speed - Forward Maximum | 37 mph (59 kph) |
Weights
| Chassis With Hoist | 78,502 lbs (35608 kg) |
| Body Weight | 24,286 lbs (11016 kg) |
| Net Weight | 102,788 lbs (46624 kg) |
| Payload | 143,300 lbs (65000 kg) |
| Gross Weight | 246,089 lbs (111624 kg) |
