Rigid Haulers

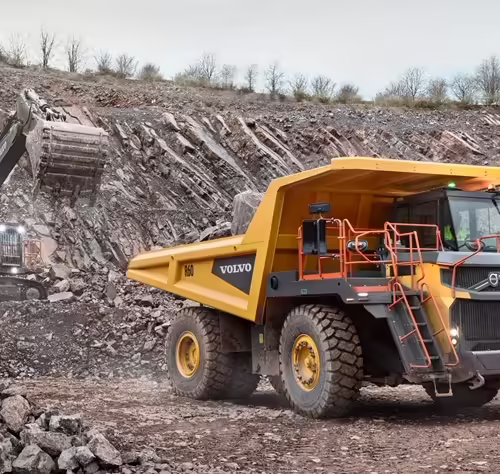

Volvo R60
Intended for quarrying and mining applications, the R60 rigid hauler is designed to maximize tons of material moved per hour at the lowest possible cost.
Boost your profits in the Volvo R60. The hardworking and hardwearing rigid hauler is packed with high productivity, low maintenance requirements and long service life. These, combined with a comfortable cab environment and a host of safety-focused features, make this machine your best choice for quarrying and mining operations.
Downloads
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
Description
| Passenger Seat | Yes |
| Air Conditioning | Yes |
| Descent Control | No |
| Camera Platform | Option |
| Camera Platform - System | Volvo Smart View |
| Telematics Available | Optional |
| Platform | CareTrack |
Driveline
| Engine Manufacturer | Cummins |
| Engine Model | QSK 19 |
| Aspiration | Turbo - Charge Air Cooled |
| Cooling | Water |
| Displacement | 1,159 Inches³ (19 ltr) |
| Engine Output - Net | 705 hp (526 kW) |
| Engine Output - Gross | 761 hp (567 kW) |
| Drive Configuration | 4 x 2 |
| Transmission Type | Automatic |
| Final Drive | Planetary |
| Speeds - Forward | 6 |
| Tire Size - Standard | 24.00-35 |
| Retarder - Type | Transmission |
| Retarder - Type 2 | Service Brakes - Rear |
Dimensions
| Length - Overall | 393 inches (9992 mm) |
| Height - Max | 181 inches (4606 mm) |
| Height - Over Canopy / Rock Guard Rail | 181 inches (4606 mm) |
| Ground Clearance | 26 inches (662 mm) |
| Width Over Tires | 172 inches (4381 mm) |
| Width - Transport | 233 inches (5921 mm) |
| Width - Operating | 233 inches (5921 mm) |
| Wheelbase | 164 inches (4170 mm) |
| Loading Height | 145 inches (3675 mm) |
| Full Dump Height | 338 inches (8591 mm) |
| Width - Over Body | 177 inches (4496 mm) |
Capacities
| Fuel Tank | 203 gallons (US) (770 ltr) |
| Engine Oil | 17 gallons (US) (65 ltr) |
| Cooling System | 42 gallons (US) (160 ltr) |
| Body Type | V Shape |
| Struck Capacity | 33 yd³ (25 m³) |
| Heaped Capacity | 47 yd³ (36 m³) |
Performance
| Gears - Forward / Reverse | 6F |
| Speed - Forward Maximum | 38 mph (60.6 kph) |
Weights
| Chassis With Hoist | 78,196 lbs (35469 kg) |
| Body Weight | 22,026 lbs (9991 kg) |
| Net Weight | 100,222 lbs (45460 kg) |
| Payload | 121,254 lbs (55000 kg) |
| Gross Weight | 221,475 lbs (100460 kg) |
