Rigid Haulers

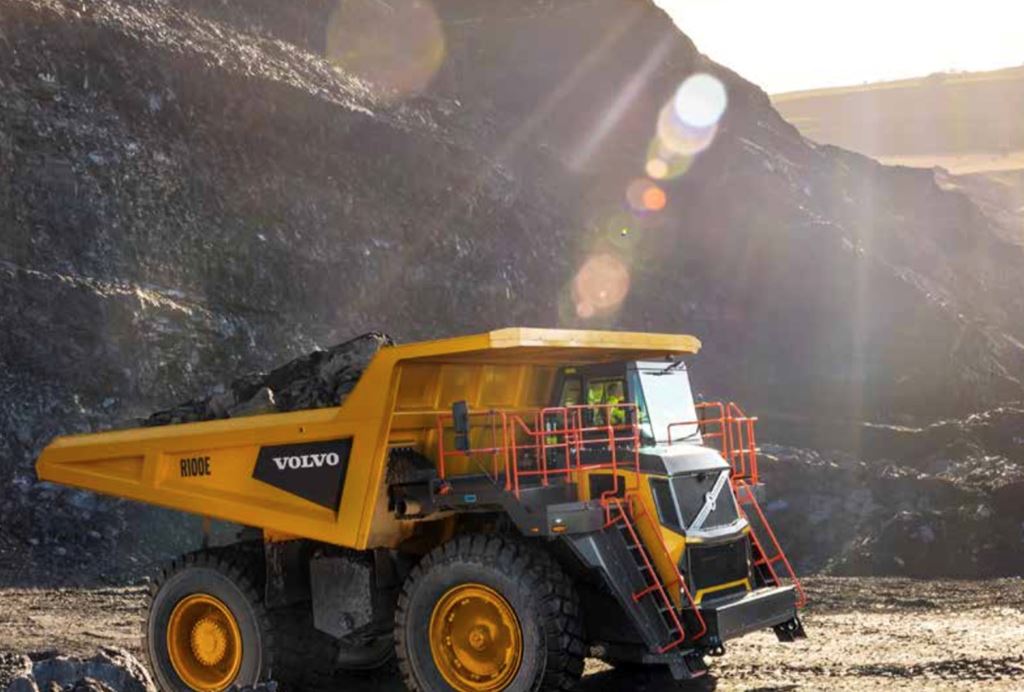

Volvo R 100
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
Description
| Passenger Seat | Yes |
| Air Conditioning | Yes |
| Descent Control | No |
| Camera Platform | Yes |
| Camera Platform - System | Volvo Smart View |
| Telematics Available | Yes |
| Platform | CareTrack |
Driveline
| Engine Manufacturer | Cummins |
| Engine Model | QST 30 |
| Aspiration | Turbo - Charge Air Cooled |
| Cooling | Water |
| Displacement | 1,861 Inches³ (30.5 ltr) |
| Engine Output - Net | 974 hp (726 kW) |
| Engine Output - Gross | 1,050 hp (783 kW) |
| Drive Configuration | 4 x 2 |
| Transmission Type | Automatic |
| Final Drive | Planetary |
| Speeds - Forward | 6 |
| Speeds - Reverse | 1 |
| Tire Size - Standard | 27 - 49 |
| Retarder - Type | Transmission - Hydraulic |
| Retarder - Type 2 | Service Brakes - Rear |
Dimensions
| Length - Overall | 430 inches (10922 mm) |
| Height - Max | 200 inches (5070 mm) |
| Height - Over Canopy / Rock Guard Rail | 200 inches (5070 mm) |
| Ground Clearance | 32 inches (806 mm) |
| Width Over Tires | 199 inches (5042 mm) |
| Width - Transport | 275 inches (6986 mm) |
| Width - Operating | 275 inches (6986 mm) |
| Wheelbase | 191 inches (4850 mm) |
| Loading Height | 172 inches (4380 mm) |
| Full Dump Height | 377 inches (9576 mm) |
| Width - Over Body | 225 inches (5706 mm) |
| Hoist - Angle | 47 ° |
Capacities
| Fuel Tank | 311 gallons (US) (1180 ltr) |
| Engine Oil | 35 gallons (US) (132 ltr) |
| Transmission - System | 24 gallons (US) (91 ltr) |
| Cooling System | 91 gallons (US) (344 ltr) |
| Body Type | Double V-Type |
| Struck Capacity | 54 yd³ (41.1 m³) |
| Heaped Capacity | 79 yd³ (60.4 m³) |
Performance
| Gears - Forward / Reverse | 6F - 1R |
| Speed - Forward Maximum | 31 mph (50 kph) |
Weights
| Chassis With Hoist | 121,430 lbs (55080 kg) |
| Body Weight | 35,715 lbs (16200 kg) |
| Net Weight | 157,145 lbs (71280 kg) |
| Payload | 209,439 lbs (95000 kg) |
| Gross Weight | 366,584 lbs (166280 kg) |
