Compactors

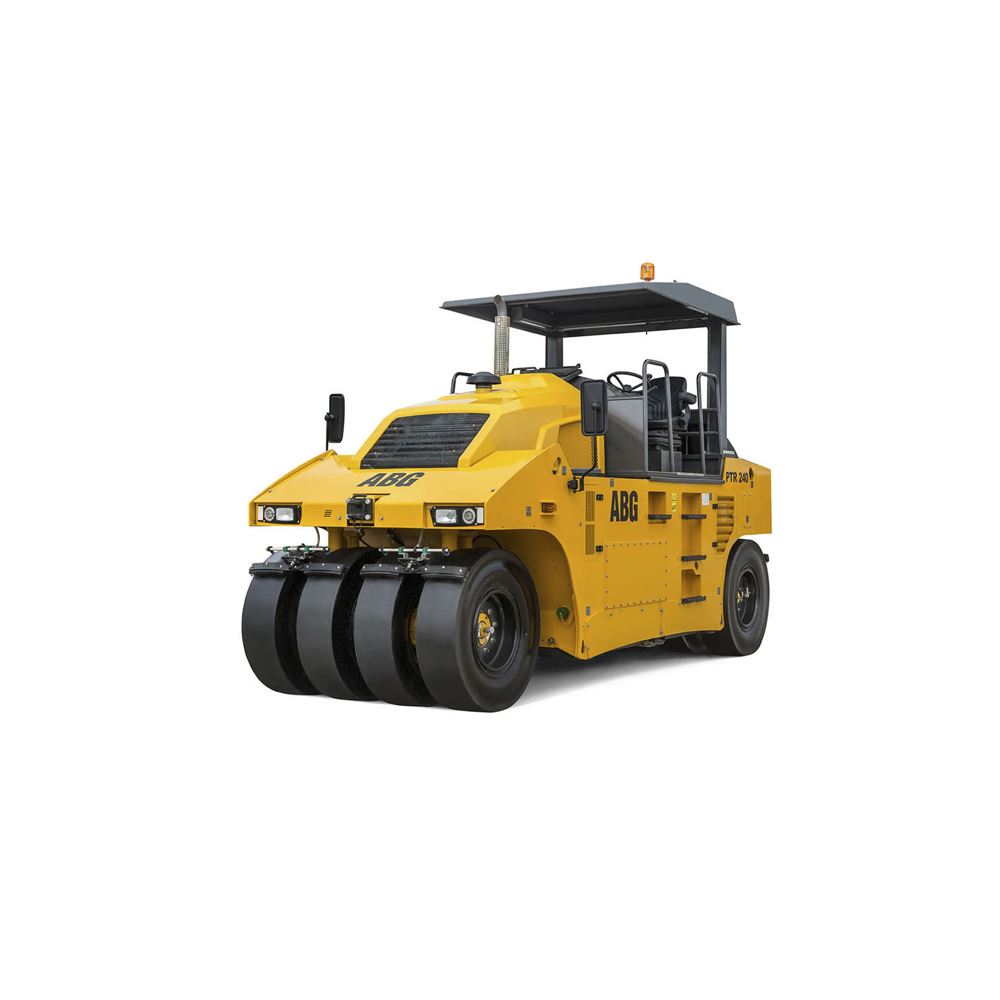

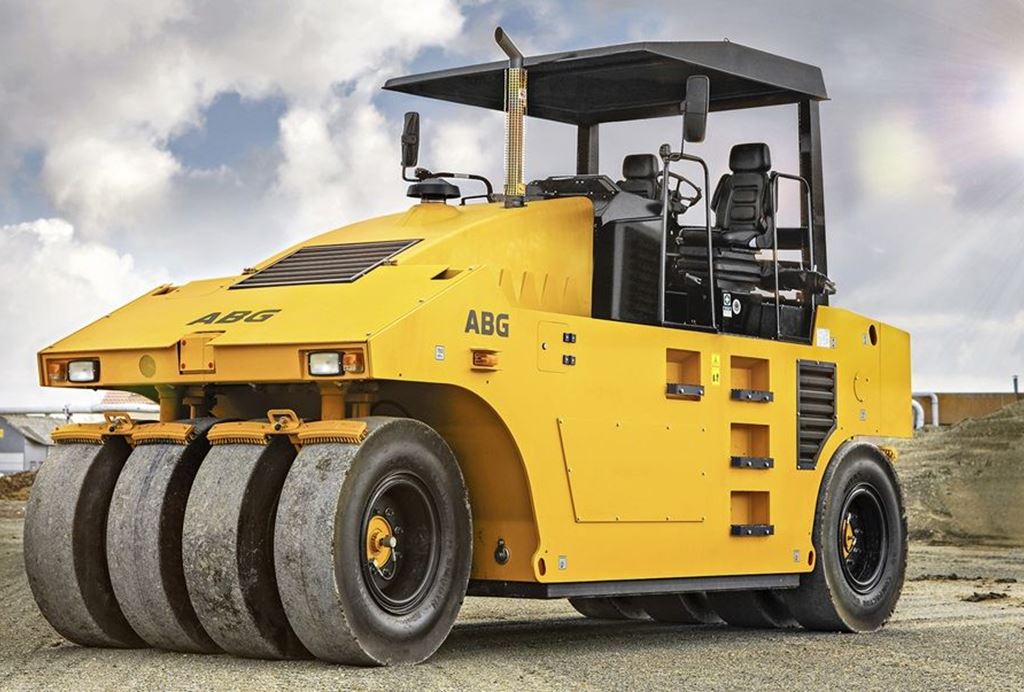

Volvo PTR240

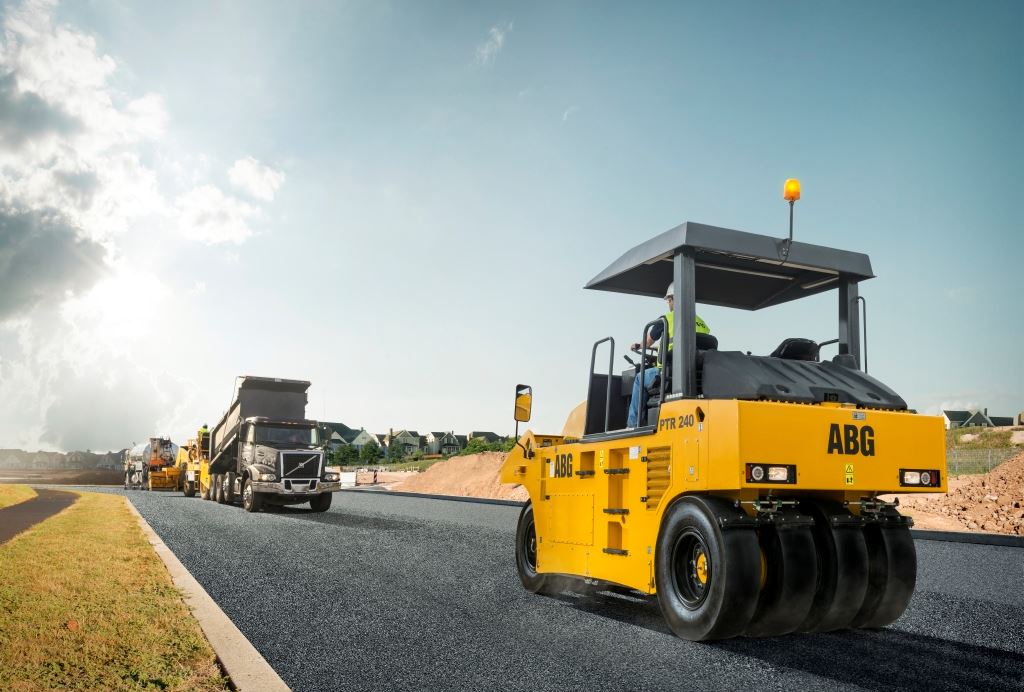

Enjoy ease of operation and high efficiency with the ABG PTR240, built to finish the job on time and under budget. Designed for roadway construction and resurfacing applications, the eight-wheeled pneumatic tire roller utilizes kneading action for the compaction of hot and warm mix asphalt. For chip seal applications, the pneumatic tires press the aggregate into the binder without fracturing.
Downloads
Features and Benefits
Volvo PTR240 Compactor - HIGH-PERFORMANCE COMPACTION
Lifetime Frame & Structure Guarantee (Frame, Articulation Joint)
High-performance compaction in all terrain
Easy maintenance
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
DRIVELINE
| Fuel Consumption | - |
| Engine Output | 100 hp (74.4 kW) |
| Emissions | - |
| Engine Manufacturer | Deutz |
| Engine Manufacturer | Deutz |
| Engine Model | TCD 4 L4 |
| Transmission Type | Powershift |
| Rated Speed | 2,200 |
| Exhaust Gas Recirculation | Yes |
| Displacement | 220 Inches³ (3.6 ltr) |
| Number Of Cylinders | 4 |
| Tire Size | 11 - 20 |
| Number of tires | 4 + 4 |
| Diesel Oxidation Catalyst | Yes |
| Diesel Particulate Filter | Yes |
| Selective Catalytic Reduction | No |
WEIGHTS
| Maximum Weight | 52,910 lbs (24000 kg) |
| Operating Weight | 21,385 lbs (9700 kg) |
| Weight - Front | - |
| Ballast Weight | 31,525 lbs (14300 kg) |
| Weight - Rear | - |
PERFORMANCE
| Travel Speed 2 | - |
| Drive Configuration | Rear |
| Ballast Volume | - |
| Ballast Type | Water / Sand / Steel |
| Travel Speed 4 | - |
| Linear Load - Front | - |
| Linear Load - Rear | - |
| Travel Speed 1 | 12 mph (19 kph) |
| Travel Speed 5 | - |
| Travel Speed 3 | - |
DIMENSIONS
| Rolling Width | 83 inches (2100 mm) |
| Wheelbase | 149 inches (3780 mm) |
| Overall Width | 83 inches (2100 mm) |
| Turning Radius - Inside | 239 inches (6070.61 mm) |
| Ground Clearance | - |
| Overall Length | 198 inches (5030 mm) |
| Turning Radius - Outside | 344 inches (8737.62 mm) |
| Height - Without ROPS | - |
| Height - ROPS | 123 inches (3130 mm) |
CAPACITIES
| Fuel Tank | 66 gallons (US) (250 ltr) |
| Diesel Exhaust Fluid | - |
DESCRIPTION
| Telematics Available | - |
| Platform | - |
