Compactors

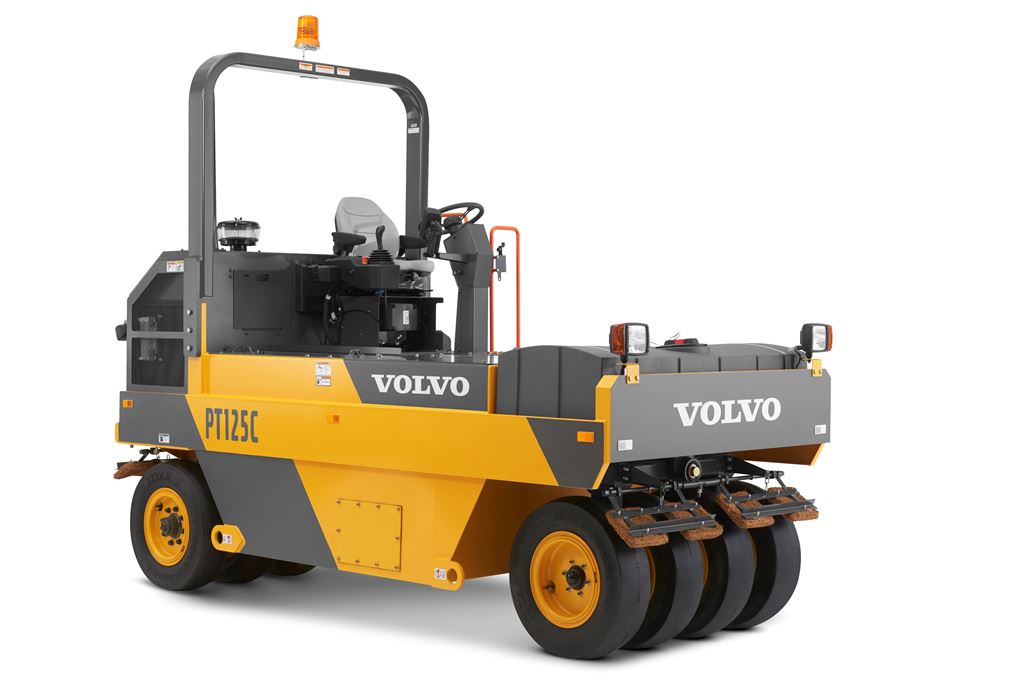

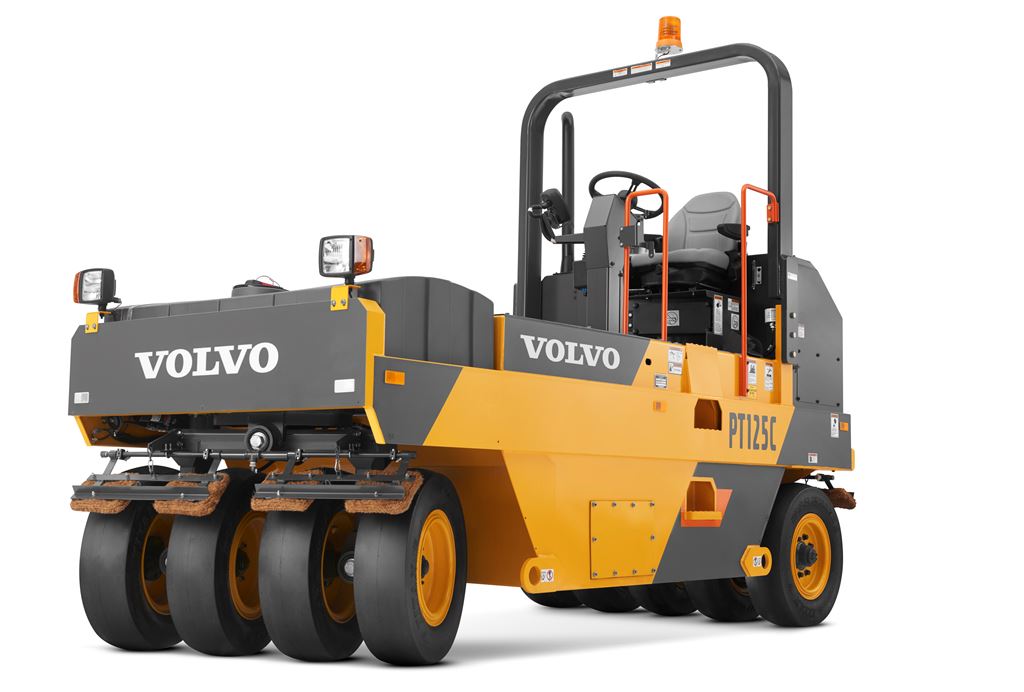

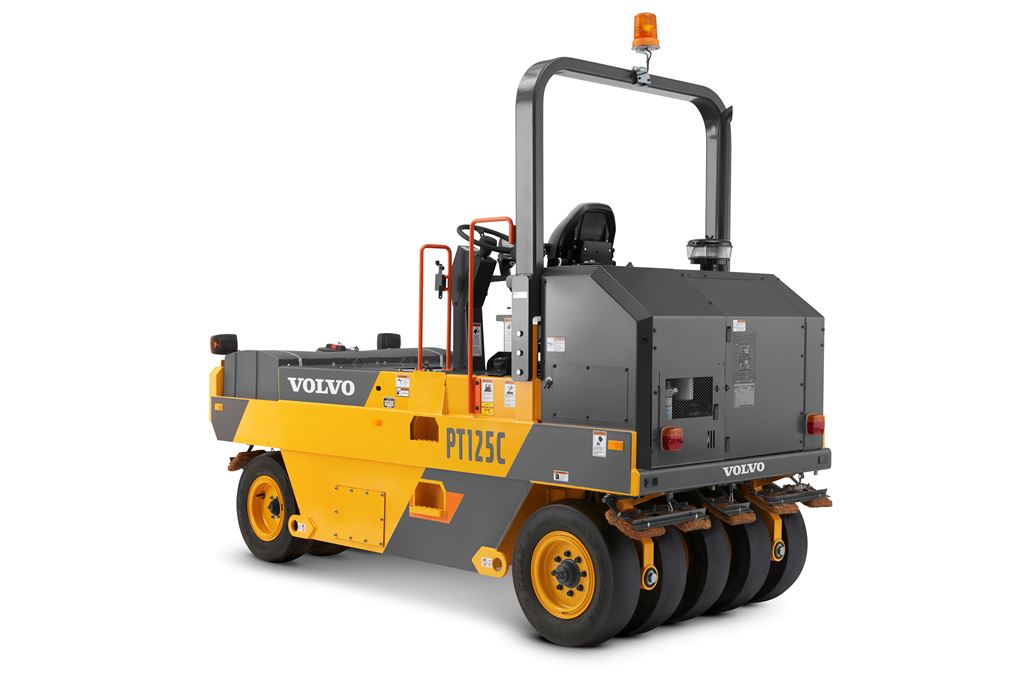

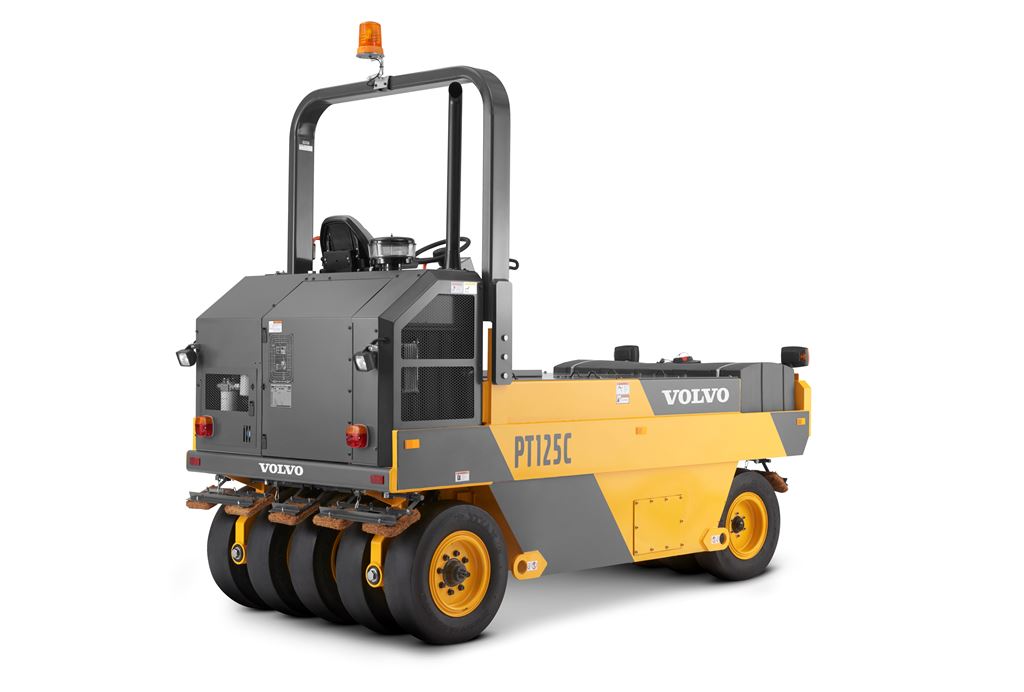

Volvo PT125C

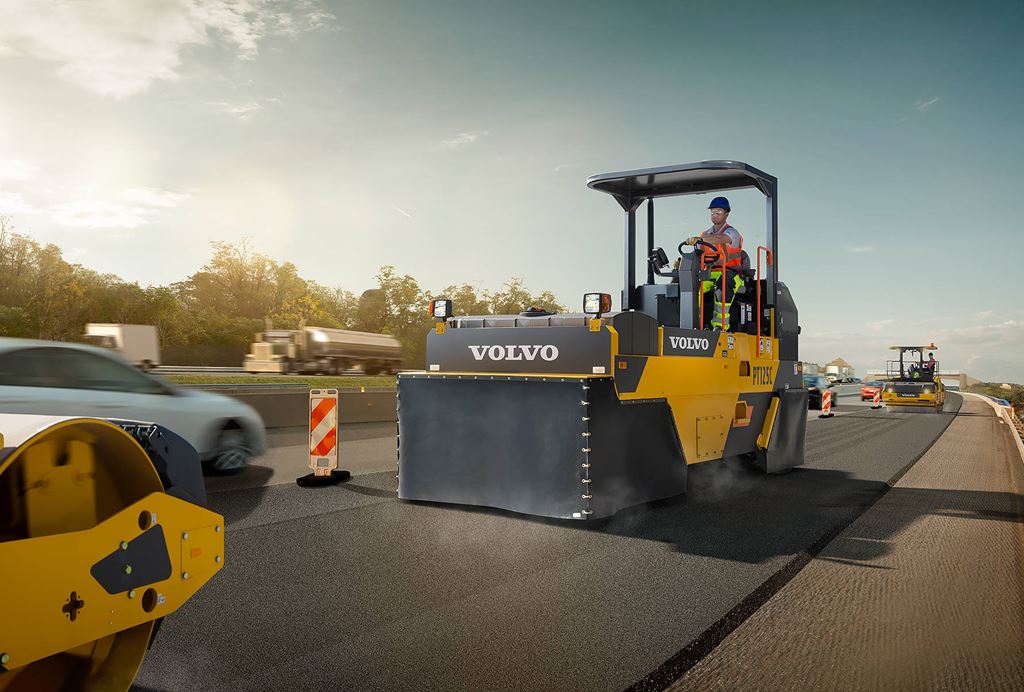

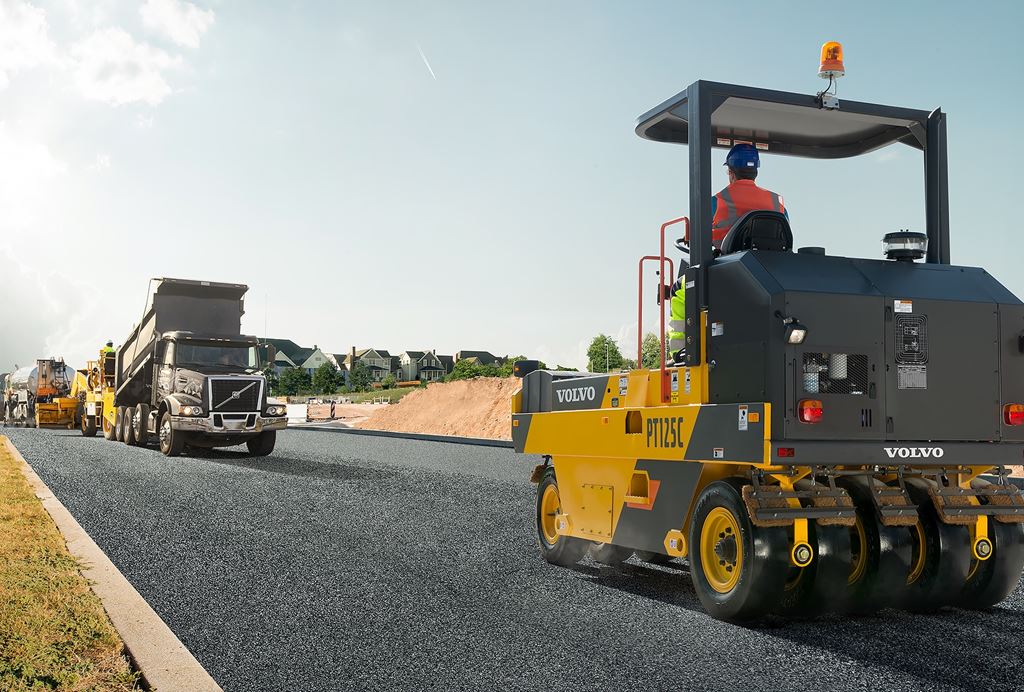

Take on tough terrain in the PT125C asphalt roller from Volvo. Combining versatility with uptime-enhancing features, the robust roller ensures high quality compaction that lasts. And, with a comfortably productive work environment, fuel efficient engine and simple serviceability, you can get ready to roll right away.
Downloads
Features and Benefits
Volvo PT125C Compactor - READY TO ROLL
Lifetime Frame & Structure Guarantee (Frame, Articulation Joint)
High-performance compaction in all terrain

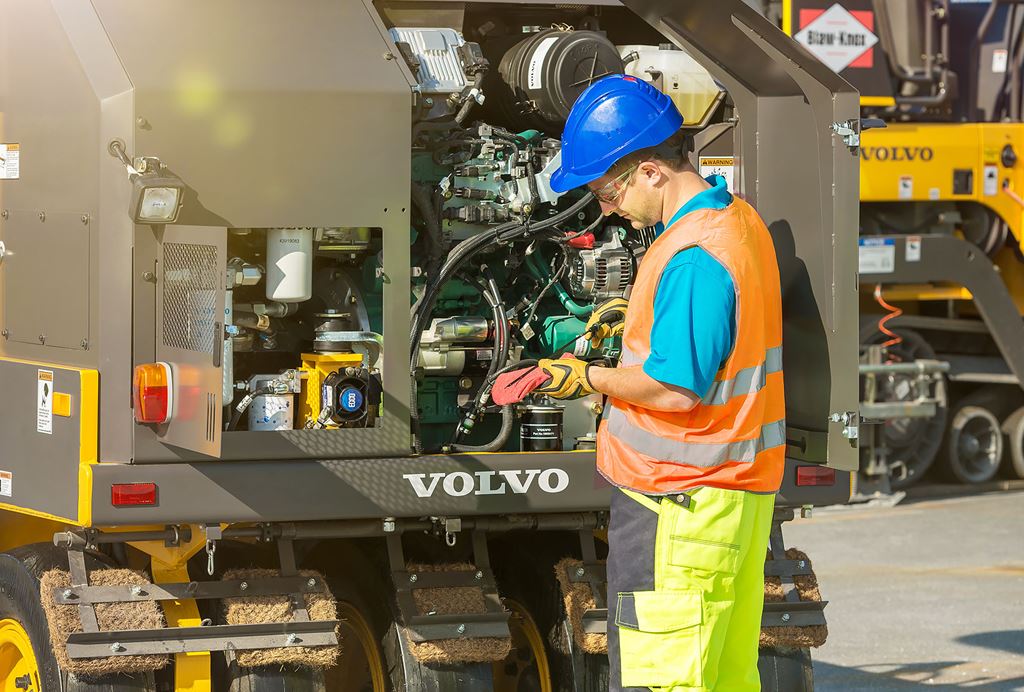

Easy maintenance
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
DRIVELINE
| Selective Catalytic Reduction | - |
| Diesel Particulate Filter | - |
| Fuel Consumption | - |
| Diesel Oxidation Catalyst | - |
| Number Of Cylinders | - |
| Engine Output | 74 hp (55.4 kW) |
| Exhaust Gas Recirculation | - |
| Rated Speed | 2,200 |
| Engine Model | D3.3H |
| Emissions | - |
| Engine Manufacturer | Volvo |
| Engine Manufacturer | Volvo |
| Transmission Type | Hydrostatic |
| Displacement | 201 Inches³ (3.3 ltr) |
| Tire Size | 8 - 15 |
| Number of tires | 4 + 5 |
DESCRIPTION
| Platform | - |
| Telematics Available | - |
WEIGHTS
| Maximum Weight | 25,000 lbs (11340 kg) |
| Weight - Rear | - |
| Ballast Weight | - |
| Operating Weight | 9,826 lbs (4457 kg) |
| Weight - Front | - |
PERFORMANCE
| Travel Speed 2 | - |
| Travel Speed 3 | - |
| Travel Speed 5 | - |
| Linear Load - Rear | - |
| Travel Speed 4 | - |
| Ballast Volume | - |
| Ballast Type | - |
| Drive Configuration | Rear |
| Linear Load - Front | - |
| Travel Speed 1 | 12 mph (19.6 kph) |
CAPACITIES
| Diesel Exhaust Fluid | - |
| Fuel Tank | 27 gallons (US) (102.2 ltr) |
DIMENSIONS
| Overall Length | 153 inches (3880 mm) |
| Ground Clearance | 11 inches (273 mm) |
| Turning Radius - Inside | 167 inches (4241.81 mm) |
| Rolling Width | 68 inches (1732 mm) |
| Wheelbase | 116 inches (2942 mm) |
| Overall Width | 72 inches (1831 mm) |
| Turning Radius - Outside | 261 inches (6616.71 mm) |
| Height - Without ROPS | - |
| Height - ROPS | 119 inches (3018 mm) |
