Pipelayers

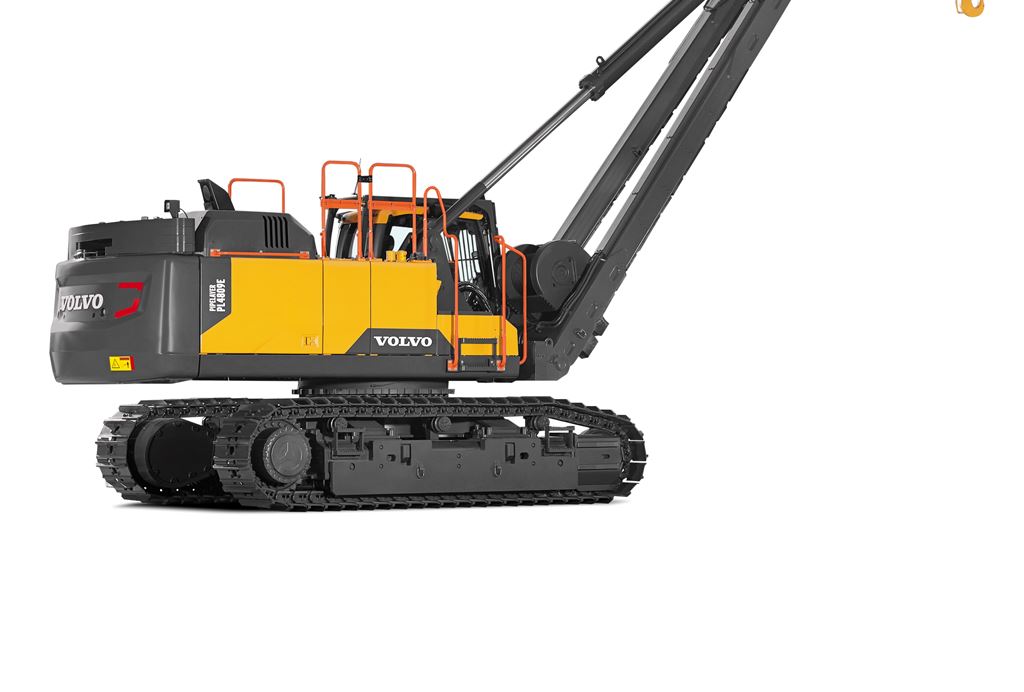

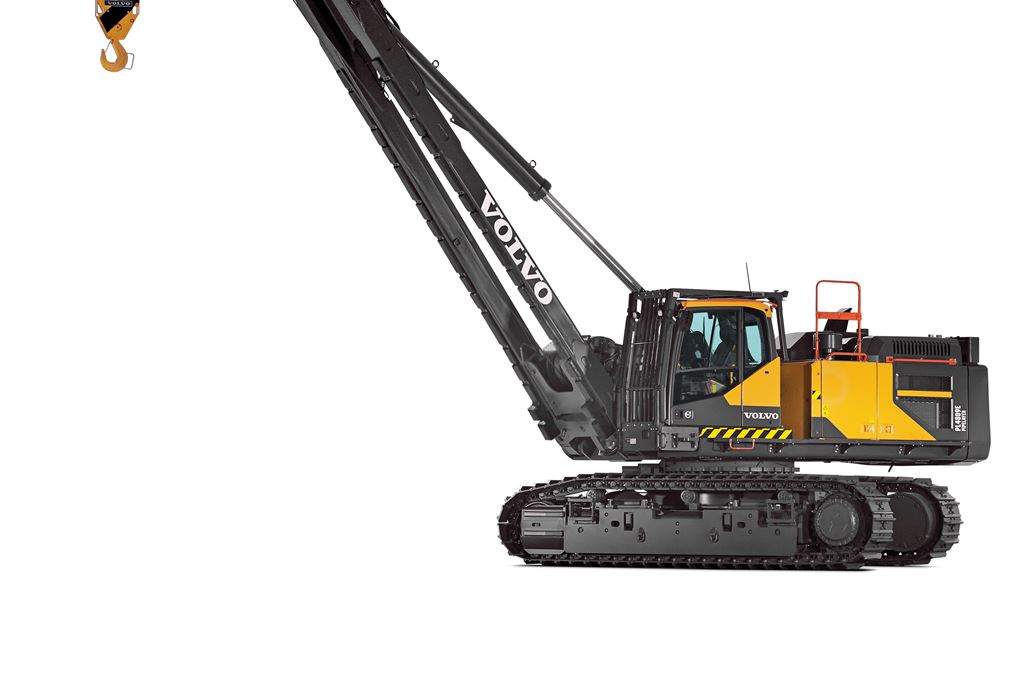

Volvo PL4809E

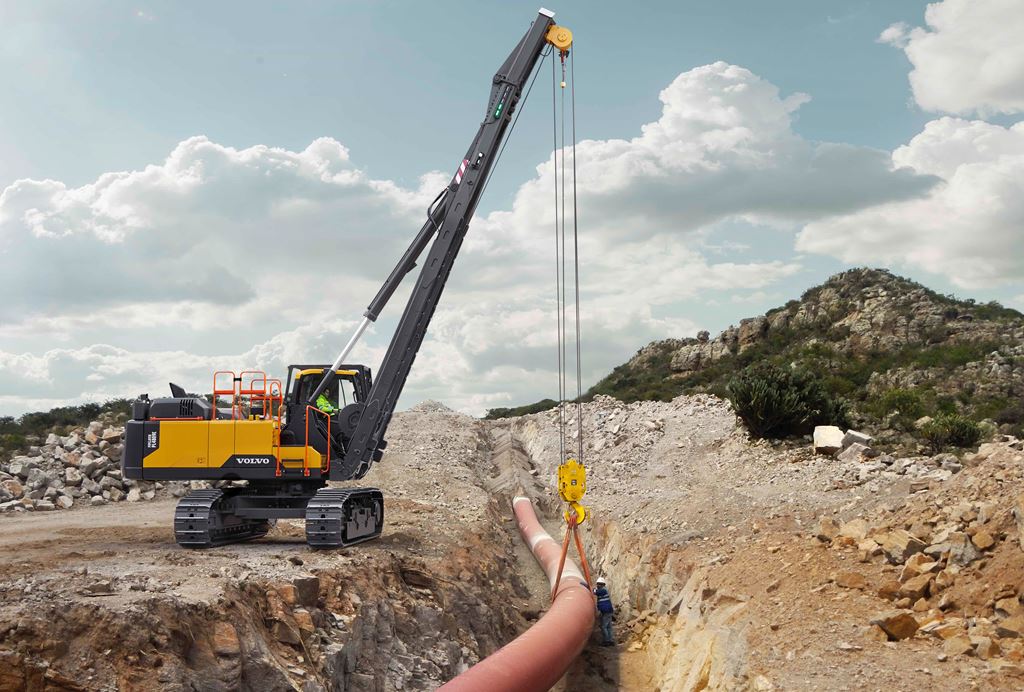

Experience superior capabilities in Volvo’s PL4809E rotating pipelayer, raising the bar in safety productivity and performance. Thanks to an intelligent design combined with high-tech features and solid stability, the versatile PL4809E pipelayer can take on many jobs, ensuring maximum uptime and return on investment.
Downloads
Features and Benefits
Volvo PL4809E Pipelayer - LIFTING PERFORMANCE TO NEW HEIGHTS
ROPS safety cab
360 degree swing
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
DRIVELINE
| Aspiration | Turbocharged |
| Engine Output - Net 1 | 371 hp (277 kW) |
| Number Of Speeds - Forward | 10 |
| Selective Catalytic Reduction | Yes |
| Diesel Oxidation Catalyst | - |
| Transmission Type | Hydraulic |
| Engine Manufacturer | Volvo |
| Engine Manufacturer | Volvo |
| Engine Torque | 1,394 lbf / ft (1890 Nm) |
| Engine Model | D 13 J |
| Charged Air Cooling | Intercooler |
| Diesel Particulate Filter | - |
| Raised Sprocket | No |
| Exhaust Gas Recirculation | - |
| Rated Speed | 1,800 |
| Transmission Type | Hydrostatic |
| Track Shoe Width | 30 inches (750 mm) |
| Torque Rated Speed | 1,350 |
| Steering Clutches & Brakes | - |
| Service Brake Type | - |
WEIGHTS
| Operating Weight | 142,400 lbs (64600 kg) |
| Maximum Weight | - |
DIMENSIONS
| Cable Size - Hook Winch | 1 inches (22 mm) |
| Track Length On Ground | 14 ft 4 in ft/in (4370 mm) |
| Ground Clearance | 24 inches (600 mm) |
| Cable Length - Hook Winch | 394 ft ft/in (120 m) |
| Differential Steering | - |
| Boom Length | 30 ft 4 in ft/in (9250 mm) |
| Width - Weights Retracted | - |
| Overall Height | 12 ft 1 in ft/in (3680 mm) |
| Overall Length | 50 ft 1 in ft/in (15260 mm) |
| Width - Weights Extended | - |
| Overall Height - Boom Removed | 12 ft 1 in ft/in (3680 mm) |
| Transport Width - Side Frames Removed | 11 ft 11 in ft/in (3640 mm) |
PERFORMANCE
| Lift Capacity - Tipping | 242,000 lbs (110000 kg) |
| Load Capacity | 110,000 lbs (50000 kg) |
| Slew Speed | - |
| Ground Bearing Pressure | 12 PSI (82.3 kPa) |
| Maximum Operating Slope | - |
| Speed - Forward 1 | - |
DESCRIPTION
| Security | Yes |
| Telematics Available | Yes |
| Platform | CareTrack |
| Boom Type | Asymmetric |
| Fleet Management | Yes |
| Health Monitoring | Yes |
CAPACITIES
| Fuel Tank | 180 gallons (US) (680 ltr) |
| After Treatment Fluid | - |
