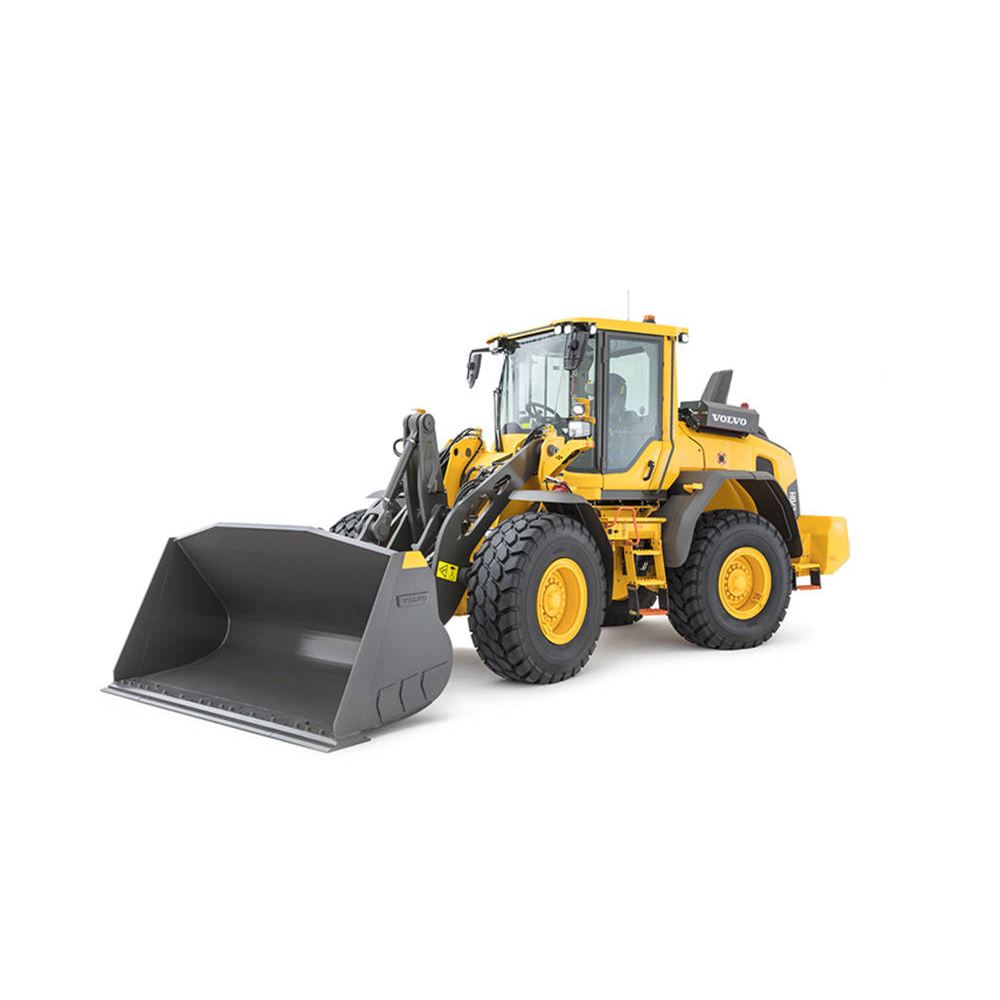

Technical Specifications

Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.

PERFORMANCE

Straight Tipping Load 21,320 lbs (9670 kg)
Straight Tipping Load - Deflection -
Full Turn Tipping Load - Deflection -
Breakout - Bucket 19,690 lbf (8931.23 kgf)
Breakout - Bucket 19,690 lbf (8931.23 kgf)
Full Turn Tipping Load 18,380 lbs (8340 kg)
Load Sensing Yes
Ride Control System Yes
Oscillation - Rear Axle 26
Bucket Breakout 19,690 lbf (87.6 kN)

CAPACITIES

Heaped Capacity 3 yd³ (2.3 m³)
Fuel Tank 59 gallons (US) (222 ltr)

DRIVELINE

Engine Output - Gross 170 hp (127 kW)
Tire size - Standard 21 R25
Generator - Type -
Emissions Technology Cooled Exhaust Gas Recirculation
After Treatment System Selective Catalytic Reduction
Inverter - Type -
Torque 629 lbf / ft (853 Nm)
Engine Output - Net 170 hp (127 kW)
Hydrostatic Brake - Actuation -
Displacement 348 Inches³ (5.7 ltr)
Brake Resistor -
Service Brake - Location Axle Outboard
Engine Model D6J
Tyre - Model XHA 2
Tire - Model XHA 2
Aspiration Turbo. aftercooled
Traction Control Yes
Motor - Type -
Transmission Model HTE 125 C
Transmission Manufacturer Volvo
Transmission Manufacturer Volvo
Engine Manufacturer Volvo
Engine Manufacturer Volvo
Transmission Type Powershift
Emission Rating Tier 4 / Stage IV
Tire - Manufacturer Michelin
Service Brake - Type Wet Disc
Hydrostatic System Braking -
Rated Speed 1,500

WEIGHTS

Operating Weight 30,880 lbs (14000 kg)

DIMENSIONS

Full Lift Reach 3 ft 10 in ft/in (1160 mm)
Height - Maximum 19 ft ft/in (5790 mm)
Ground clearance 18 inches (450 mm)
Dig Depth 4 inches (106 mm)
Dump Angle - At Dump 45
Loader - Arm Type Double Arm
Turn radius over bucket - std. 19 ft 4 in ft/in (5900 mm)
Dump Angle - Maximum 46
Wheelbase 9 ft 10 in ft/in (3000 mm)
Height - Over Cab 10 ft 9 in ft/in (3280 mm)
Width Over tires - Std 8 ft 1 in ft/in (2460 mm)
Length with bucket on ground 24 ft 8 in ft/in (7520 mm)
Full Lift Dump Height 9 ft ft/in (2740 mm)
Height - Pivot Pin 12 ft 8 in ft/in (3870 mm)
Bucket Type GP w/Bolt-On Edge - Hook On
Bucket Width 8 ft 8 in ft/in (2650 mm)
Loader - Geometry Torque Parallel
Full Lift Dump Height - Maximum 9 ft 2 in ft/in (2790 mm)
