Wheel Loaders

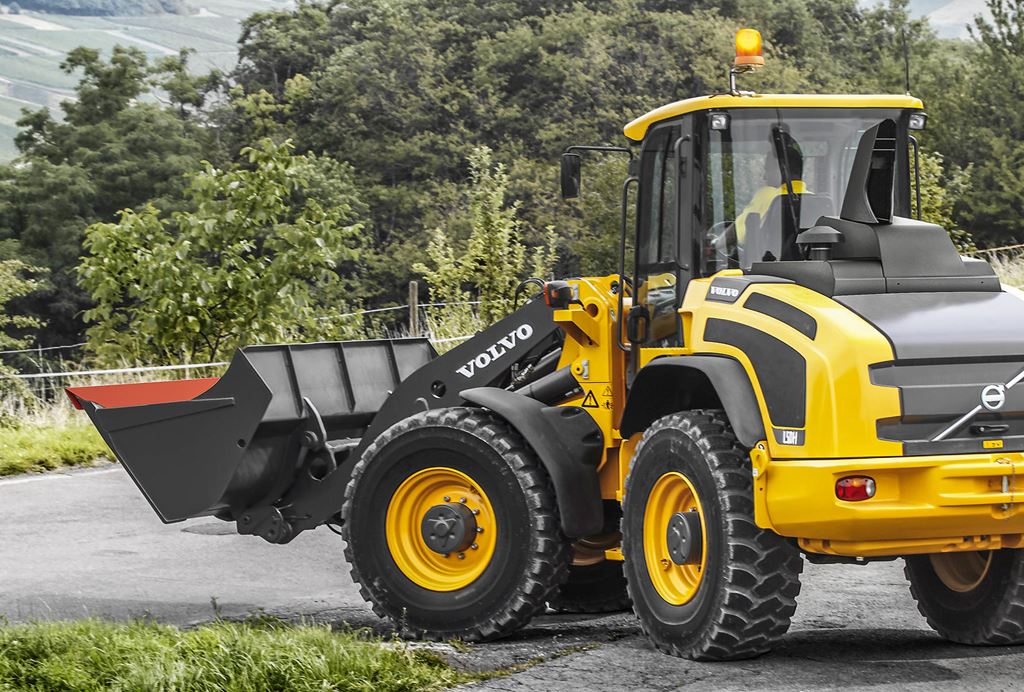

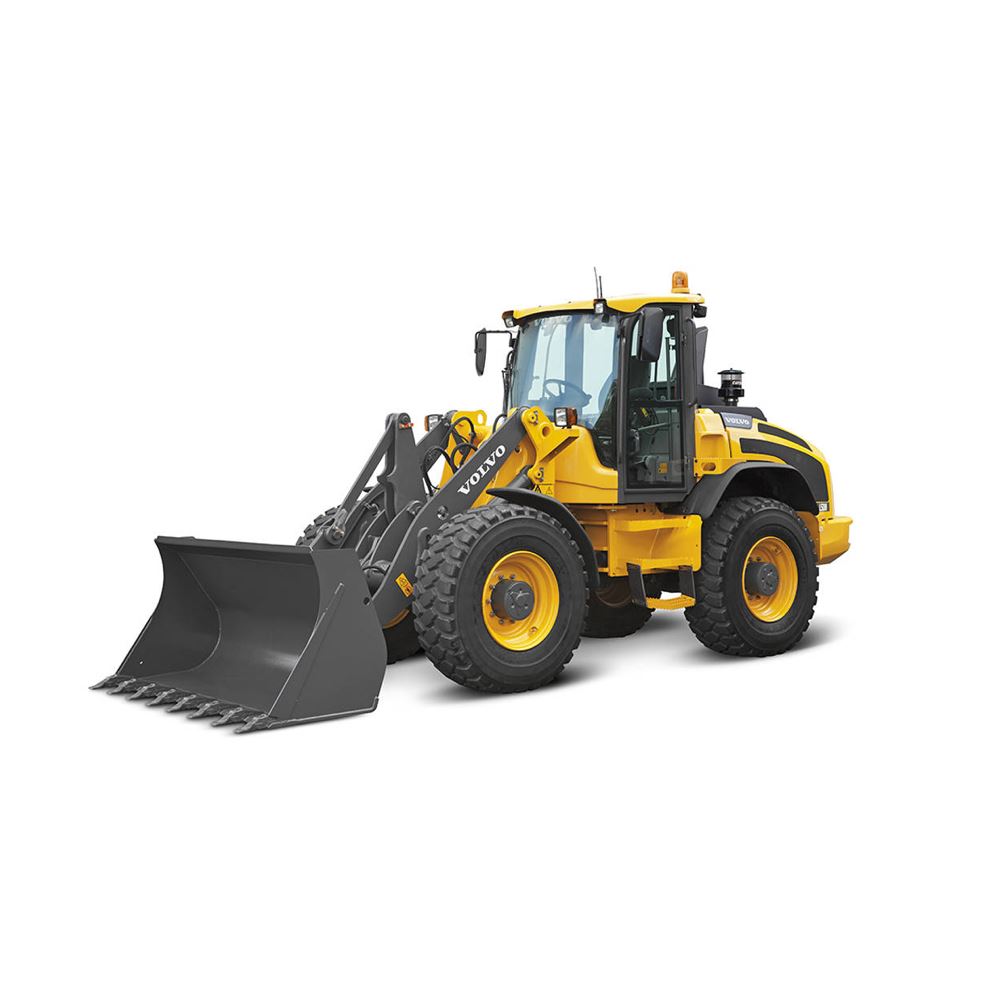

Volvo L50H
Whether working on rough terrain or smooth concrete, Volvo’s L50H loaders give you top performance. Quality is built into every inch of the machines, from the differential lock that transfers 100% power to all wheels, to the hydrostatic transmission which offers smooth speed increase.
Features and Benefits
Volvo L50H Wheel Loader - ALL-ROUND INTELLIGENCE

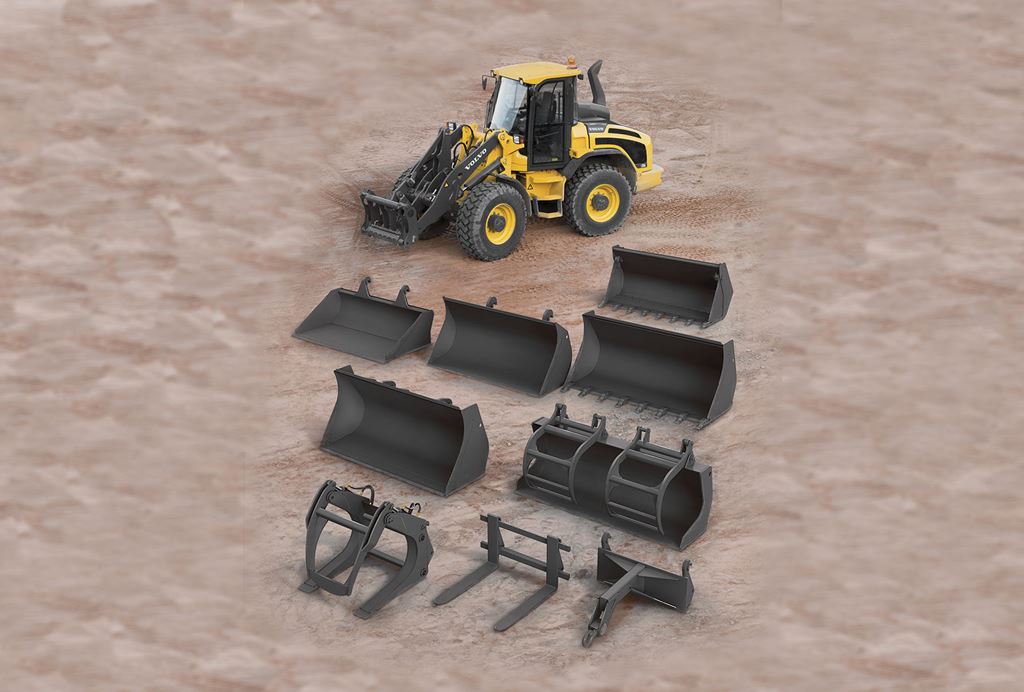

Wide range of attachments
Comfortable cab
Excellent hydraulics
Easy-to-use controls

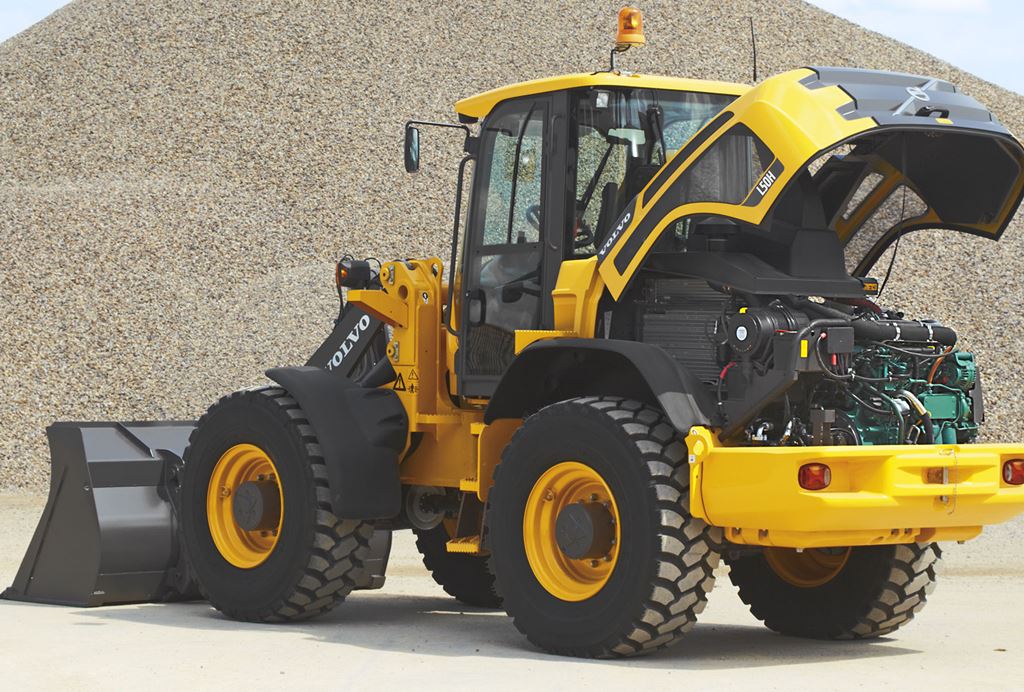

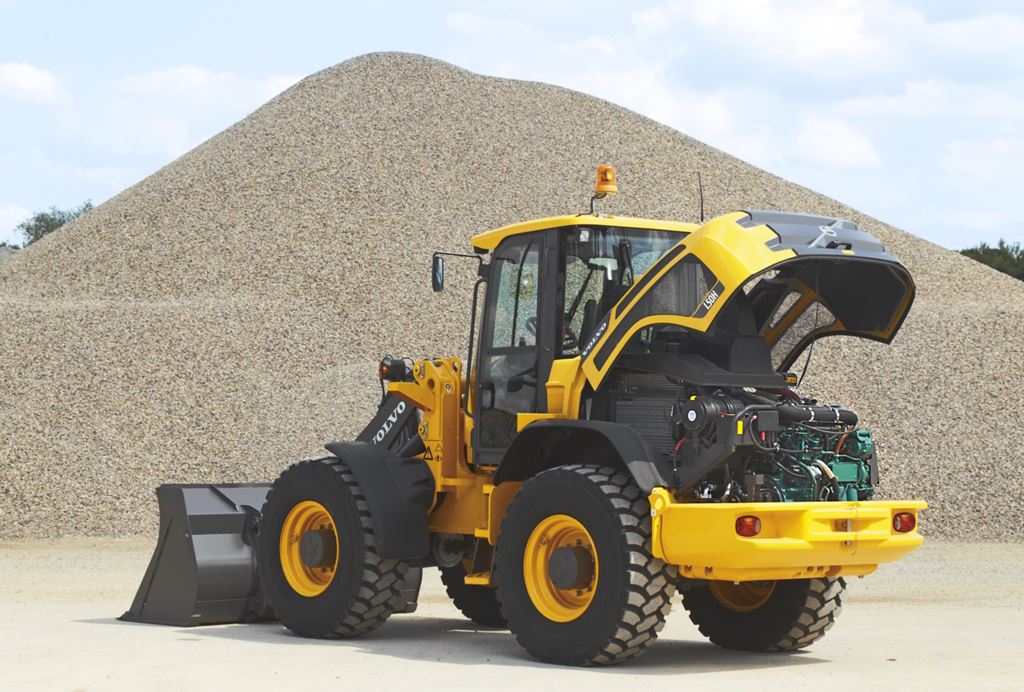

Outstanding serviceability
Lifetime Frame & Structure Guarantee Frame (Articulation Joint, Loader Arm)
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
DIMENSIONS
| Full Lift Dump Height - Maximum | 14 ft 2 in ft/in (4330 mm) |
| Loader - Geometry | Torque Parallel |
| Bucket Width | 7 ft 4 in ft/in (2250 mm) |
| Bucket Type | GP w/Teeth - Quickhitch |
| Height - Pivot Pin | 12 ft 4 in ft/in (3780 mm) |
| Full Lift Dump Height | 9 ft 4 in ft/in (2865 mm) |
| Length with bucket on ground | 21 ft 2 in ft/in (6460 mm) |
| Width Over tires - Std | 7 ft 2 in ft/in (2190 mm) |
| Height - Over Cab | 9 ft 9 in ft/in (2980 mm) |
| Dump Angle - Maximum | 45 |
| Turn radius over bucket - std. | 16 ft 11 in ft/in (5180 mm) |
| Dump Angle - At Dump | 45 |
| Dig Depth | 4 inches (95 mm) |
| Ground clearance | 17 inches (435 mm) |
| Height - Maximum | 19 ft 4 in ft/in (5915 mm) |
| Full Lift Reach | 3 ft 2 in ft/in (965 mm) |
| Wheelbase | 8 ft 8 in ft/in (2650 mm) |
| Loader - Arm Type | Double Arm |
DRIVELINE
| Rated Speed | 1,800 |
| Hydrostatic System Braking | Yes |
| Service Brake - Type | Wet Disc |
| Tire - Manufacturer | - |
| Emission Rating | Tier 4 / Stage IV |
| Transmission Type | Hydrostatic |
| Engine Manufacturer | Volvo |
| Engine Manufacturer | Volvo |
| Transmission Manufacturer | Volvo |
| Transmission Manufacturer | Volvo |
| Motor - Type | - |
| Aspiration | Turbo |
| Engine Model | D4J |
| Service Brake - Location | Axle - Rear |
| Brake Resistor | - |
| Hydrostatic Brake - Actuation | - |
| Engine Output - Gross | 117 hp (87 kW) |
| Engine Output - Net | 114 hp (85 kW) |
| Torque | 361 lbf / ft (490 Nm) |
| Generator - Type | - |
| Tire size - Standard | 16 - 25 |
| Emissions Technology | Exhaust Gas Recirculation - Cooled |
| Traction Control | No |
| Transmission Model | - |
| After Treatment System | Diesel Particulate Filter |
| Displacement | 244 Inches³ (4 ltr) |
| Tyre - Model | - |
| Tire - Model | - |
| Inverter - Type | - |
PERFORMANCE
| Oscillation - Rear Axle | 24 |
| Ride Control System | Optional |
| Straight Tipping Load | 14,462 lbs (6560 kg) |
| Load Sensing | Yes |
| Breakout - Bucket | 16,186 lbf (7341.8 kgf) |
| Breakout - Bucket | 16,186 lbf (7341.8 kgf) |
| Full Turn Tipping Load - Deflection | - |
| Straight Tipping Load - Deflection | - |
| Bucket Breakout | 16,186 lbf (72 kN) |
| Full Turn Tipping Load | 12,808 lbs (5810 kg) |
CAPACITIES
| Fuel Tank | 40 gallons (US) (150 ltr) |
| Heaped Capacity | 2 yd³ (1.5 m³) |
WEIGHTS
| Operating Weight | 20,900 lbs (9480 kg) |
