Wheel Loaders

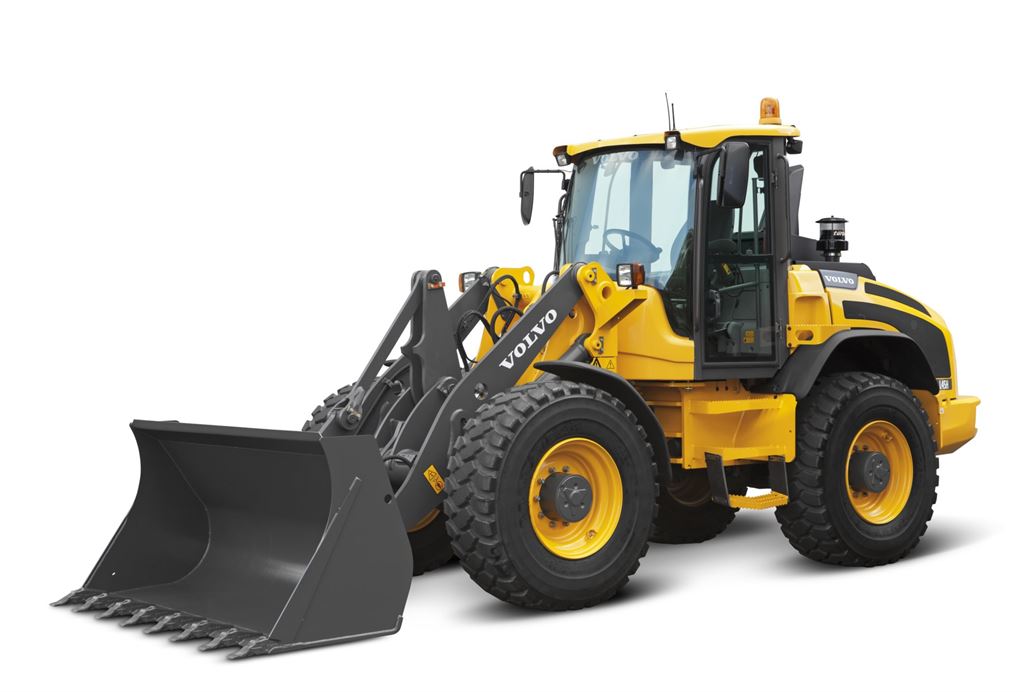

Volvo L45H
Whether working on rough terrain or smooth concrete, Volvo’s L45H loaders give you top performance. Quality is built into every inch of the machines, from the differential lock that transfers 100% power to all wheels, to the hydrostatic transmission which offers smooth speed increase.
Features and Benefits

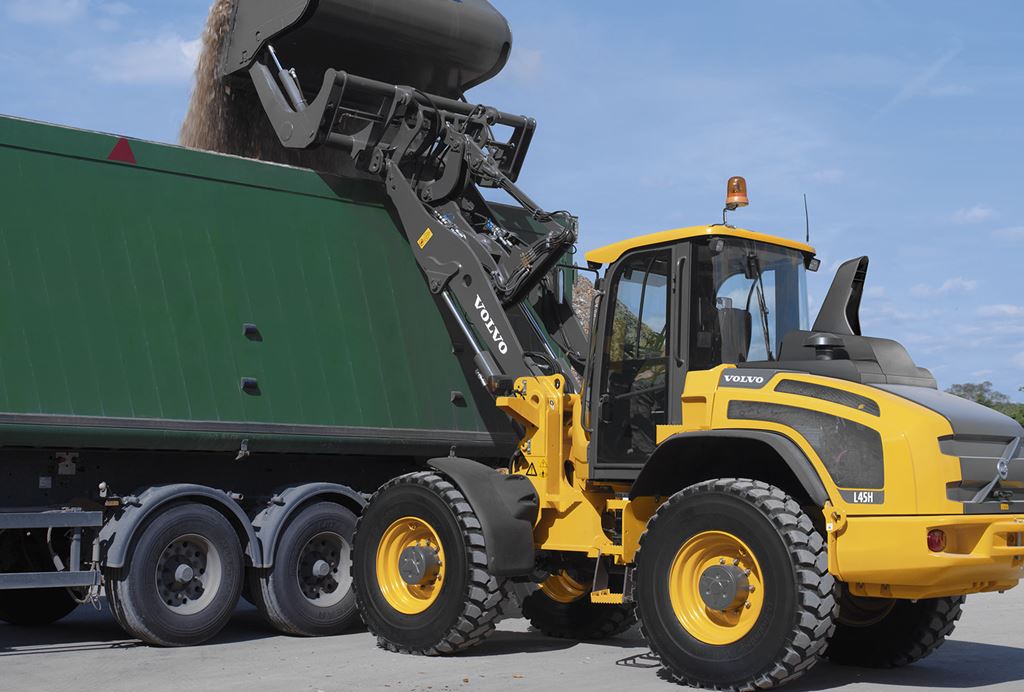

Volvo L45H Wheel Loader - ANY JOB, ANY TIME
Wide range of attachments
Comfortable cab
Excellent hydraulics
Easy-to-use controls
Outstanding serviceability
Lifetime Frame & Structure Guarantee Frame (Articulation Joint, Loader Arm)
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
PERFORMANCE
| Straight Tipping Load | 13,095 lbs (5940 kg) |
| Bucket Breakout | 15,961 lbf (71 kN) |
| Straight Tipping Load - Deflection | - |
| Full Turn Tipping Load - Deflection | - |
| Breakout - Bucket | 15,961 lbf (7239.7 kgf) |
| Breakout - Bucket | 15,961 lbf (7239.7 kgf) |
| Full Turn Tipping Load | 11,574 lbs (5250 kg) |
| Load Sensing | Yes |
| Ride Control System | Optional |
| Oscillation - Rear Axle | 24 |
CAPACITIES
| Heaped Capacity | 2 yd³ (1.4 m³) |
| Fuel Tank | 40 gallons (US) (150 ltr) |
DRIVELINE
| Engine Output - Gross | 100 hp (75 kW) |
| Tire size - Standard | 16 - 25 |
| Generator - Type | - |
| Emissions Technology | Exhaust Gas Recirculation - Cooled |
| After Treatment System | Diesel Particulate Filter |
| Inverter - Type | - |
| Torque | 314 lbf / ft (425 Nm) |
| Engine Output - Net | 98 hp (73 kW) |
| Hydrostatic Brake - Actuation | All Wheels |
| Displacement | 244 Inches³ (4 ltr) |
| Brake Resistor | - |
| Service Brake - Location | Axle - Rear |
| Engine Model | D4J |
| Tyre - Model | - |
| Tire - Model | - |
| Aspiration | Turbo |
| Traction Control | No |
| Motor - Type | - |
| Transmission Model | - |
| Transmission Manufacturer | Volvo |
| Transmission Manufacturer | Volvo |
| Engine Manufacturer | Volvo |
| Engine Manufacturer | Volvo |
| Transmission Type | Hydrostatic |
| Emission Rating | Tier 4 / Stage IV |
| Tire - Manufacturer | - |
| Service Brake - Type | Wet Disc |
| Hydrostatic System Braking | Yes |
| Rated Speed | 1,800 |
WEIGHTS
| Operating Weight | 19,334 lbs (8770 kg) |
DIMENSIONS
| Full Lift Reach | 3 ft 1 in ft/in (940 mm) |
| Height - Maximum | 18 ft 8 in ft/in (5695 mm) |
| Ground clearance | 16 inches (395 mm) |
| Dig Depth | 3 inches (85 mm) |
| Loader - Arm Type | Double Arm |
| Turn radius over bucket - std. | 16 ft 10 in ft/in (5155 mm) |
| Dump Angle - Maximum | 45 |
| Wheelbase | 8 ft 8 in ft/in (2650 mm) |
| Height - Over Cab | 9 ft 8 in ft/in (2950 mm) |
| Width Over tires - Std | 7 ft ft/in (2150 mm) |
| Length with bucket on ground | 20 ft 10 in ft/in (6370 mm) |
| Full Lift Dump Height | 9 ft 2 in ft/in (2800 mm) |
| Height - Pivot Pin | 12 ft 1 in ft/in (3685 mm) |
| Bucket Type | GP w/Teeth - Quickhitch |
| Bucket Width | 7 ft 4 in ft/in (2250 mm) |
| Loader - Geometry | Torque Parallel |
| Full Lift Dump Height - Maximum | 13 ft 10 in ft/in (4230 mm) |
| Dump Angle - At Dump | 45 |
