Wheel Loaders

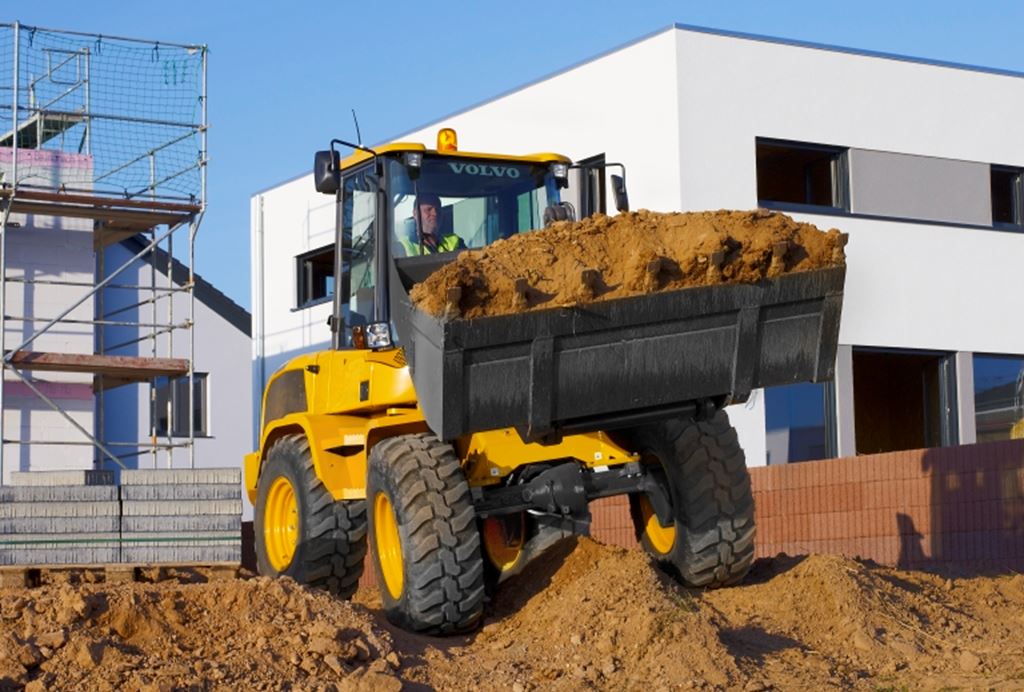

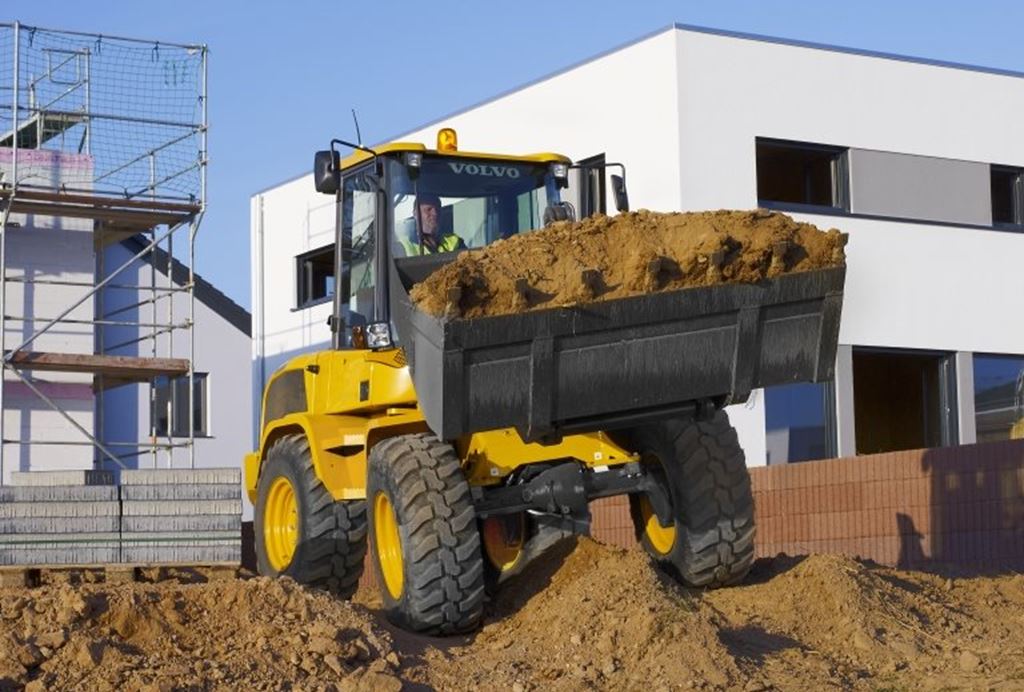

Volvo L35G
This robust machine delivers peak performance thanks to the winning combination of power and precision. Improve safety and performance in all applications in the robust L35G, equipped with a comfortable cab, state-of-the-art hydraulics, high quality attachments, easy-to-use controls and simple serviceability.
Features and Benefits
Volvo L35G Wheel Loader - THE PERFECT COMBINATION
Comfortable cab
Excellent hydraulics
Easy-to-use controls
Outstanding serviceability
Wide range of attachments
Lifetime Frame & Structure Guarantee Frame (Articulation Joint, Loader Arm)
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
DRIVELINE
| Service Brake - Type | Disc |
| Tire - Manufacturer | - |
| Transmission Model | - |
| Motor - Type | - |
| Traction Control | No |
| Service Brake - Location | Driveline |
| Brake Resistor | - |
| Hydrostatic Brake - Actuation | All Wheels |
| Engine Output - Gross | 74 hp (55.4 kW) |
| Engine Output - Net | - |
| Torque | 195 lbf / ft (265 Nm) |
| Inverter - Type | - |
| Generator - Type | - |
| Tire size - Standard | 405 / 70 R20 |
| Emissions Technology | Exhaust Gas Recirculation - Cooled |
| After Treatment System | Diesel Particulate Filter |
| Displacement | 203 Inches³ (3.3 ltr) |
| Engine Model | D3.3H |
| Tyre - Model | - |
| Tire - Model | - |
| Aspiration | Turbo |
| Transmission Manufacturer | Volvo |
| Transmission Manufacturer | Volvo |
| Engine Manufacturer | Volvo |
| Engine Manufacturer | Volvo |
| Transmission Type | Hydrostatic |
| Emission Rating | Tier 4 |
| Hydrostatic System Braking | Yes |
| Rated Speed | 2,600 |
DIMENSIONS
| Bucket Width | 6 ft 11 in ft/in (2100 mm) |
| Height - Pivot Pin | 11 ft ft/in (3345 mm) |
| Length with bucket on ground | 17 ft 9 in ft/in (5420 mm) |
| Height - Over Cab | 9 ft ft/in (2745 mm) |
| Turn radius over bucket - std. | 14 ft 4 in ft/in (4380 mm) |
| Dig Depth | 4 inches (95 mm) |
| Full Lift Reach | 2 ft 5 in ft/in (750 mm) |
| Height - Maximum | 14 ft 9 in ft/in (4500 mm) |
| Ground clearance | 24 inches (610 mm) |
| Dump Angle - At Dump | 45 |
| Loader - Arm Type | Double Arm |
| Dump Angle - Maximum | 45 |
| Wheelbase | 7 ft 1 in ft/in (2150 mm) |
| Width Over tires - Std | 6 ft 4 in ft/in (1932 mm) |
| Full Lift Dump Height | 8 ft 9 in ft/in (2670 mm) |
| Bucket Type | GP w/Teeth - Quickhitch |
| Loader - Geometry | Z-Bar |
| Full Lift Dump Height - Maximum | 8 ft 9 in ft/in (2670 mm) |
PERFORMANCE
| Ride Control System | No |
| Straight Tipping Load | 10,913 lbs (4950 kg) |
| Breakout - Bucket | 13,601 lbf (6169.3 kgf) |
| Breakout - Bucket | 13,601 lbf (6169.3 kgf) |
| Full Turn Tipping Load - Deflection | - |
| Bucket Breakout | 13,601 lbf (60.5 kN) |
| Straight Tipping Load - Deflection | - |
| Full Turn Tipping Load | 9,590 lbs (4350 kg) |
| Load Sensing | No |
| Oscillation - Rear Axle | - |
CAPACITIES
| Heaped Capacity | 2 yd³ (1.2 m³) |
| Fuel Tank | 22 gallons (US) (84 ltr) |
WEIGHTS
| Operating Weight | 13,448 lbs (6100 kg) |
