Wheel Loaders

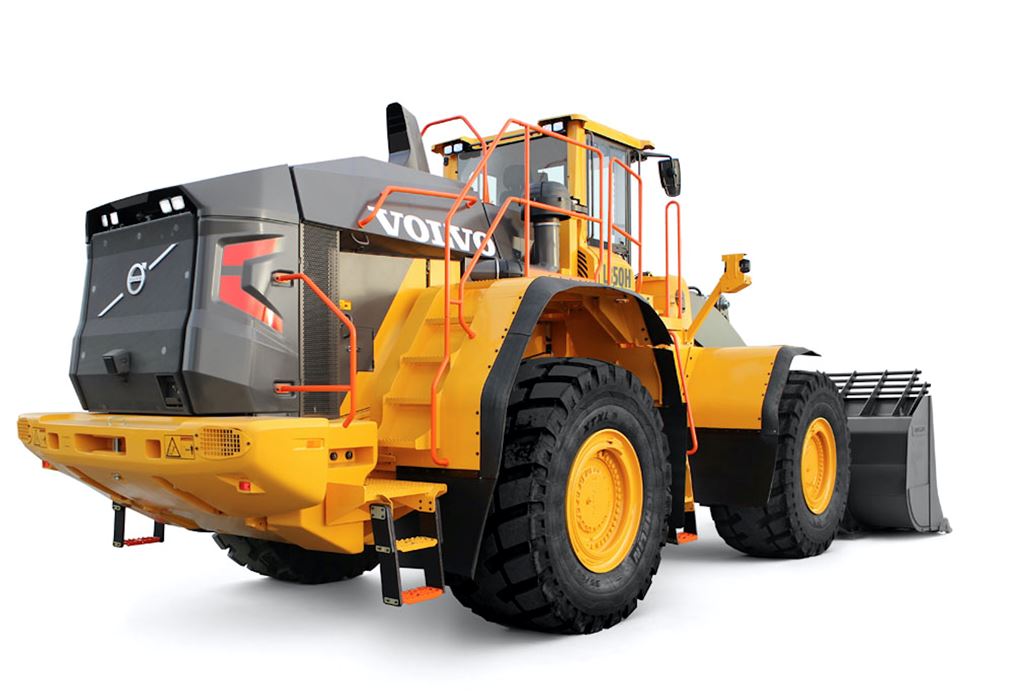

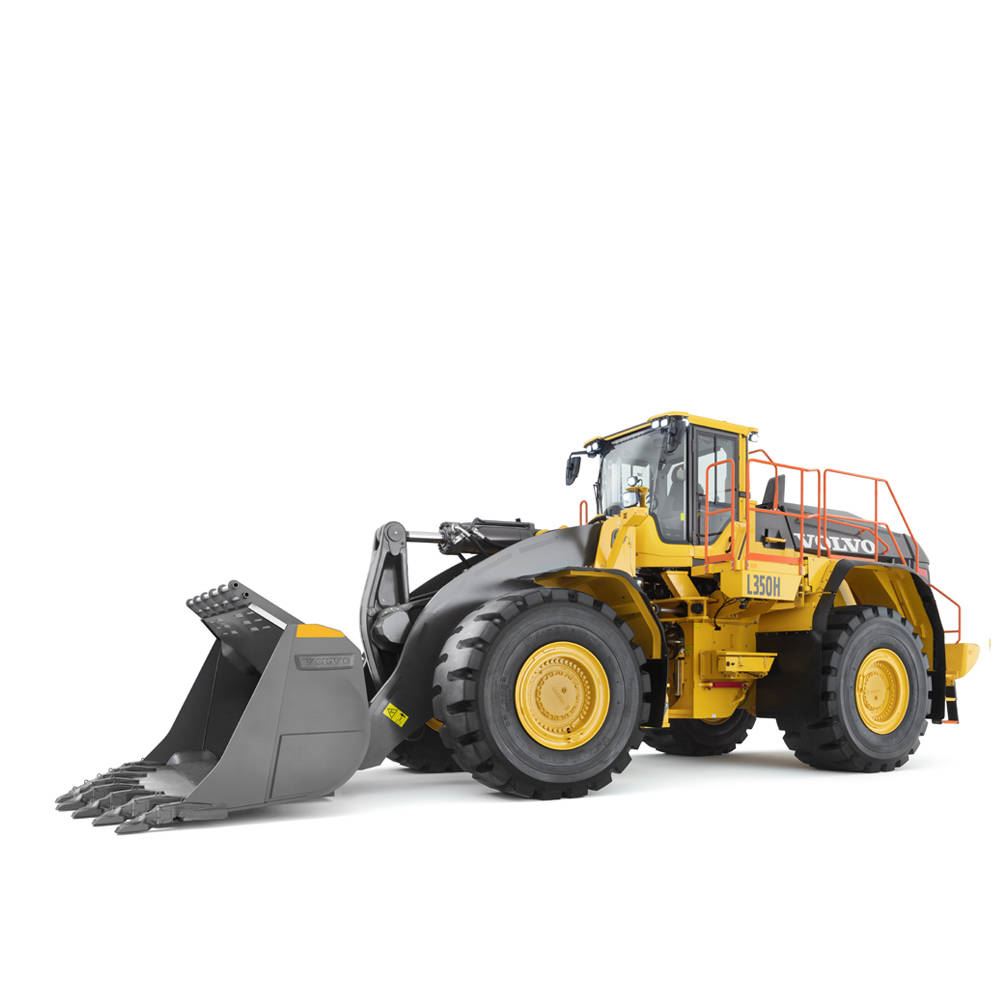

Volvo L350H

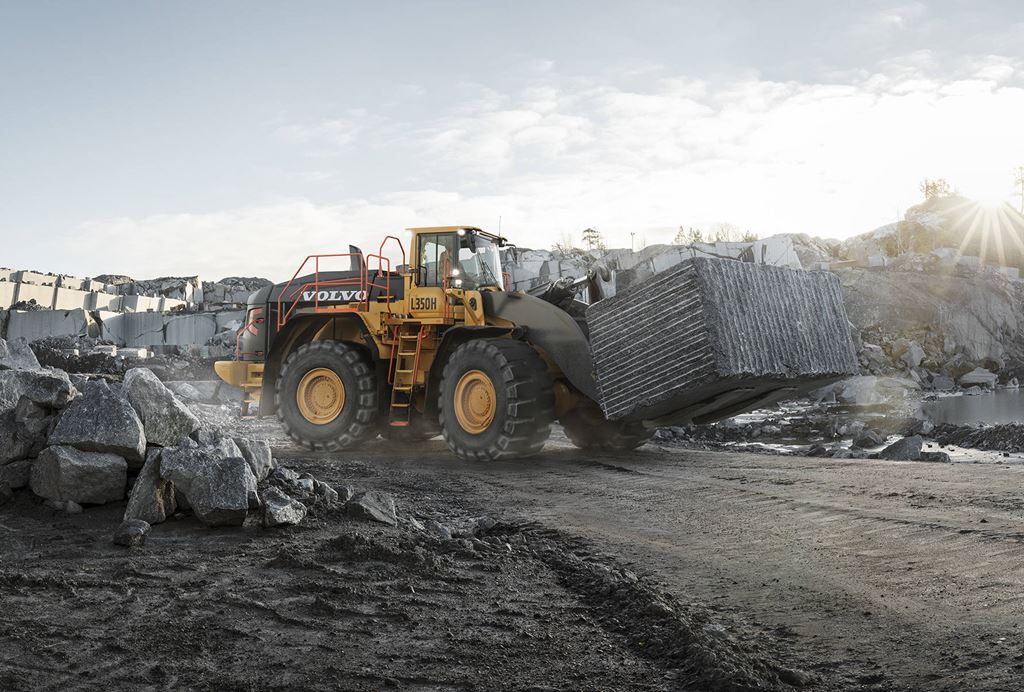

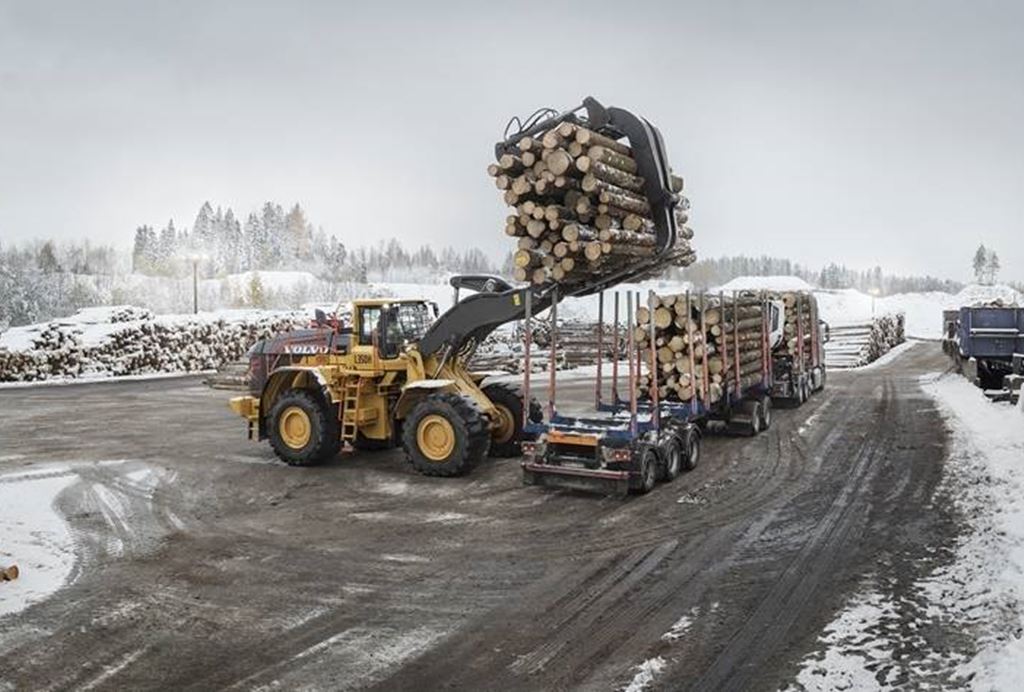

Smarter, faster and tougher than the L350F, the L350H has been built on the success of its forerunner, first introduced to the market in 2007. Upgraded with the latest innovative technology, the L350H is ready to tackle a range of applications, from mining and quarrying to heavy infrastructure.
Features and Benefits
Volvo L350H Wheel Loader - LOADED WITH EXCELLENCE
Lifetime Frame & Structure Guarantee Frame (Articulation Joint, Loader Arm)
Comfortable cab
Excellent hydraulics
Easy-to-use controls
Outstanding serviceability
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
DIMENSIONS
| Full Lift Dump Height - Maximum | 12 ft 8 in ft/in (3860 mm) |
| Loader - Geometry | Z-Bar |
| Bucket Width | 13 ft 5 in ft/in (4110 mm) |
| Bucket Type | Rock Spade w/Teeth & Segments - Pin On |
| Height - Pivot Pin | 17 ft 6 in ft/in (5320 mm) |
| Full Lift Dump Height | 10 ft 10 in ft/in (3300 mm) |
| Length with bucket on ground | 38 ft 4 in ft/in (11700 mm) |
| Width Over tires - Std | 11 ft 11 in ft/in (3630 mm) |
| Height - Over Cab | 13 ft 8 in ft/in (4170 mm) |
| Wheelbase | 14 ft 1 in ft/in (4300 mm) |
| Dump Angle - Maximum | 44 |
| Turn radius over bucket - std. | 30 ft 10 in ft/in (9400 mm) |
| Loader - Arm Type | Double Arm |
| Dump Angle - At Dump | 45 |
| Dig Depth | 3 inches (87 mm) |
| Ground clearance | 21 inches (540 mm) |
| Height - Maximum | 25 ft 2 in ft/in (7680 mm) |
| Full Lift Reach | 7 ft 4 in ft/in (2250 mm) |
DRIVELINE
| Rated Speed | 1,700 |
| Hydrostatic System Braking | - |
| Service Brake - Type | Wet Multi Disc |
| Tire - Manufacturer | Goodyear |
| Emission Rating | Tier 4 / Stage IV |
| Transmission Type | Powershift |
| Engine Manufacturer | Volvo |
| Engine Manufacturer | Volvo |
| Transmission Manufacturer | Volvo |
| Transmission Manufacturer | Volvo |
| Transmission Model | HTE 400 |
| Motor - Type | - |
| Traction Control | Yes |
| Aspiration | Var. Geometry Turbo |
| Tyre - Model | RL5K |
| Tire - Model | RL5K |
| Engine Model | D16J |
| Service Brake - Location | All Wheels |
| Brake Resistor | - |
| Displacement | 982 Inches³ (16.1 ltr) |
| Hydrostatic Brake - Actuation | - |
| Engine Output - Gross | 532 hp (397 kW) |
| Engine Output - Net | 528 hp (394 kW) |
| Torque | 1,881 lbf / ft (2550 Nm) |
| Inverter - Type | - |
| After Treatment System | Diesel Particulate Filter |
| Emissions Technology | Cooled Exhaust Gas Recirculation |
| Generator - Type | - |
| Tire size - Standard | 875 / 65 R33 |
PERFORMANCE
| Oscillation - Rear Axle | 24 |
| Ride Control System | Optional |
| Straight Tipping Load | 82,620 lbs (37470 kg) |
| Load Sensing | Yes |
| Full Turn Tipping Load | 72,310 lbs (32790 kg) |
| Breakout - Bucket | 76,940 lbf (34899.4 kgf) |
| Breakout - Bucket | 76,940 lbf (34899.4 kgf) |
| Full Turn Tipping Load - Deflection | - |
| Straight Tipping Load - Deflection | - |
| Bucket Breakout | 76,940 lbf (342 kN) |
CAPACITIES
| Fuel Tank | 143 gallons (US) (540 ltr) |
| Heaped Capacity | 10 yd³ (7.7 m³) |
WEIGHTS
| Operating Weight | 113,980 lbs (51690 kg) |
