Wheel Loaders

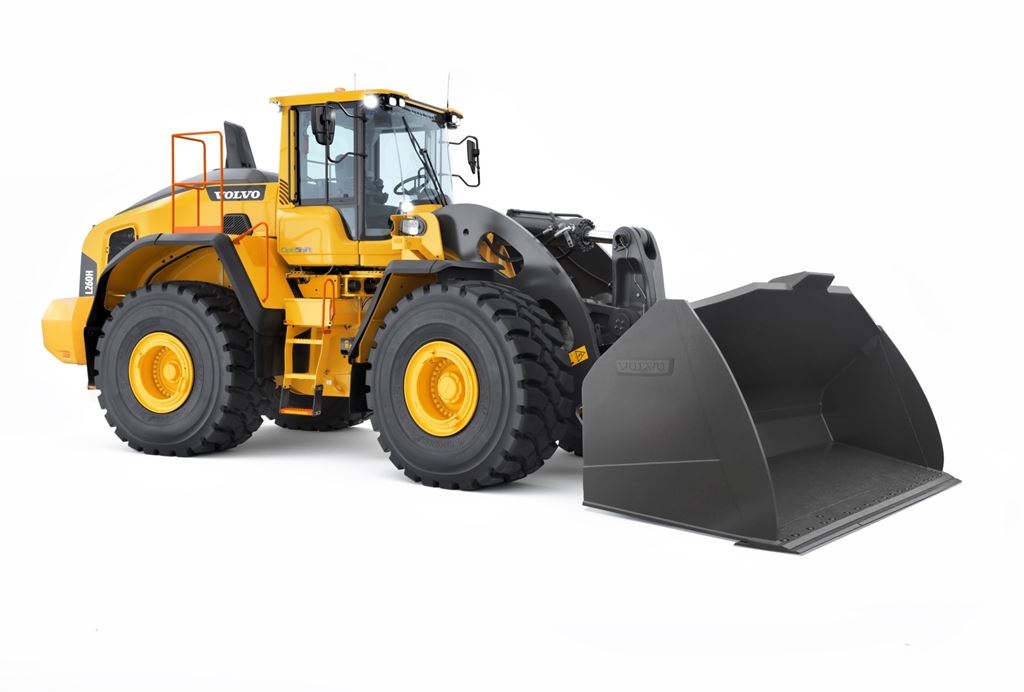

Volvo L260H
Committed to its legacy, Volvo was the first to present a 35 ton wheel loader to the industry in 2011 – with the L250G. Created with the customer for the customer, Volvo brings the next generation wheel loader – the L260H.
Features and Benefits
Volvo L260H Wheel Loader - A CLASS OF ITS OWN
Lifetime Frame & Structure Guarantee Frame (Articulation Joint, Loader Arm)
Comfortable cab
Excellent hydraulics
Easy-to-use controls
Outstanding serviceability
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
PERFORMANCE
| Straight Tipping Load | 60,850 lbs (27600 kg) |
| Bucket Breakout | 63,660 lbf (283.1 kN) |
| Straight Tipping Load - Deflection | - |
| Full Turn Tipping Load - Deflection | - |
| Breakout - Bucket | 63,660 lbf (28875.6 kgf) |
| Breakout - Bucket | 63,660 lbf (28875.6 kgf) |
| Full Turn Tipping Load | 53,130 lbs (24100 kg) |
| Load Sensing | Yes |
| Ride Control System | Optional |
| Oscillation - Rear Axle | 30 |
CAPACITIES
| Heaped Capacity | 10 yd³ (7.3 m³) |
| Fuel Tank | 97 gallons (US) (366 ltr) |
DRIVELINE
| Engine Output - Gross | 416 hp (310 kW) |
| Tire size - Standard | 875 / 65 R29 |
| Generator - Type | - |
| Emissions Technology | Cooled Exhaust Gas Recirculation |
| After Treatment System | Diesel Particulate Filter |
| Inverter - Type | - |
| Torque | 1,728 lbf / ft (2343 Nm) |
| Engine Output - Net | 414 hp (309 kW) |
| Hydrostatic Brake - Actuation | - |
| Displacement | 782 Inches³ (12.8 ltr) |
| Brake Resistor | - |
| Service Brake - Location | All Wheels |
| Engine Model | D13J |
| Tyre - Model | - |
| Tire - Model | - |
| Aspiration | Var. Geometry Turbo w/Intercooler |
| Traction Control | No |
| Motor - Type | - |
| Transmission Model | HTL 310 |
| Transmission Manufacturer | Volvo |
| Transmission Manufacturer | Volvo |
| Engine Manufacturer | Volvo |
| Engine Manufacturer | Volvo |
| Transmission Type | Powershift |
| Emission Rating | Tier 4 / Stage IV |
| Tire - Manufacturer | - |
| Service Brake - Type | Wet Disc |
| Hydrostatic System Braking | - |
| Rated Speed | 1,500 |
WEIGHTS
| Operating Weight | 76,090 lbs (34510 kg) |
DIMENSIONS
| Full Lift Reach | 5 ft 7 in ft/in (1690 mm) |
| Height - Maximum | 22 ft 4 in ft/in (6820 mm) |
| Ground clearance | 21 inches (530 mm) |
| Dig Depth | 5 inches (115 mm) |
| Dump Angle - At Dump | 45 |
| Loader - Arm Type | Double Arm |
| Turn radius over bucket - std. | 26 ft 9 in ft/in (8160 mm) |
| Dump Angle - Maximum | 43 |
| Wheelbase | 12 ft 6 in ft/in (3800 mm) |
| Height - Over Cab | 12 ft 3 in ft/in (3720 mm) |
| Width Over tires - Std | 10 ft 9 in ft/in (3270 mm) |
| Length with bucket on ground | 31 ft 1 in ft/in (9470 mm) |
| Full Lift Dump Height | 10 ft 7 in ft/in (3220 mm) |
| Height - Pivot Pin | 15 ft 2 in ft/in (4630 mm) |
| Bucket Type | Rehandling w/Bolt-On Edge - Pin On |
| Bucket Width | 11 ft 11 in ft/in (3650 mm) |
| Loader - Geometry | Z-Bar |
| Full Lift Dump Height - Maximum | 10 ft 8 in ft/in (3250 mm) |
