Wheel Loaders

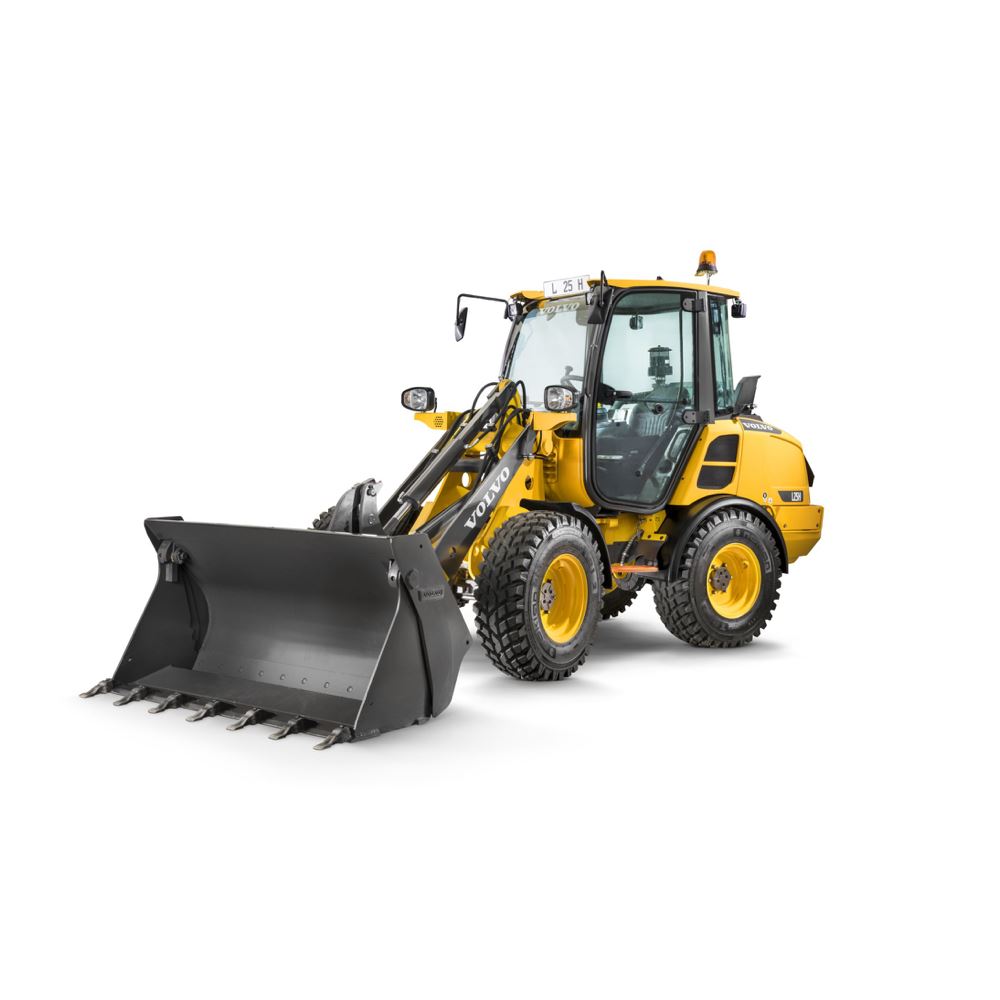

Volvo L25H
Get the job done better and faster with the L25H, bringing you quality as standard and excellent stability. Operate from the comfort of the Volvo Care Cab, offering all-around visibility for efficient and productive work.
Downloads
Features and Benefits
Volvo L25H Wheel Loader - QUALITY PERFORMANCE
Comfortable cab
Excellent hydraulics
Easy-to-use controls
Outstanding serviceability

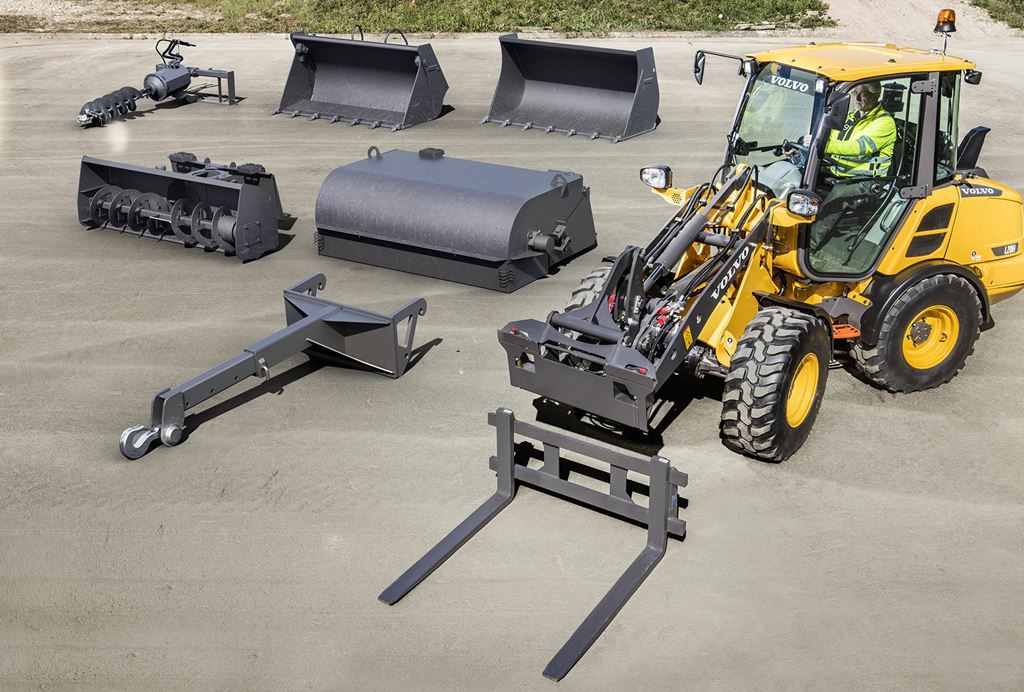

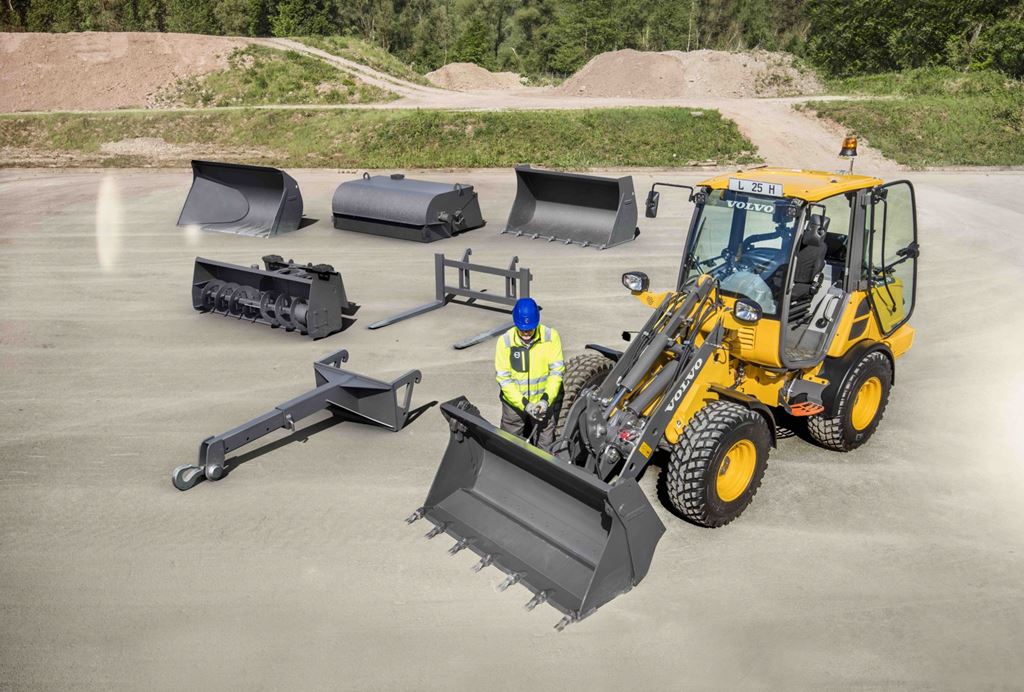

Wide range of attachments
Lifetime Frame & Structure Guarantee Frame (Articulation Joint, Loader Arm)
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
DIMENSIONS
| Full Lift Dump Height - Maximum | 7 ft 11 in ft/in (2415 mm) |
| Bucket Type | GP w/Bolt-On Edge - Quickhitch |
| Width Over tires - Std | 5 ft 9 in ft/in (1740 mm) |
| Full Lift Reach | 2 ft 7 in ft/in (785 mm) |
| Height - Maximum | 14 ft 1 in ft/in (4290 mm) |
| Ground clearance | 11 inches (290 mm) |
| Dig Depth | 3 inches (85 mm) |
| Dump Angle - At Dump | 45 |
| Loader - Arm Type | Double Arm |
| Turn radius over bucket - std. | 13 ft 9 in ft/in (4200 mm) |
| Dump Angle - Maximum | 45 |
| Wheelbase | 6 ft 9 in ft/in (2050 mm) |
| Height - Over Cab | 8 ft 2 in ft/in (2485 mm) |
| Length with bucket on ground | 17 ft ft/in (5190 mm) |
| Full Lift Dump Height | 7 ft 11 in ft/in (2415 mm) |
| Height - Pivot Pin | 10 ft 4 in ft/in (3140 mm) |
| Bucket Width | 5 ft 11 in ft/in (1800 mm) |
| Loader - Geometry | Parallel |
DRIVELINE
| Aspiration | Turbo |
| Tyre - Model | - |
| Tire - Model | - |
| Service Brake - Location | Transmission |
| Engine Output - Gross | 64 hp (48 kW) |
| Engine Output - Net | 63 hp (47.3 kW) |
| Torque | 166 lbf / ft (225 Nm) |
| Emissions Technology | Cooled Exhaust Gas Recirculation |
| Tire size - Standard | 405 / 70 R18 |
| Generator - Type | - |
| After Treatment System | Diesel Oxidation Catalyst |
| Inverter - Type | - |
| Hydrostatic Brake - Actuation | All Wheels |
| Displacement | 160 Inches³ (2.62 ltr) |
| Brake Resistor | - |
| Engine Model | D2.6M |
| Traction Control | No |
| Motor - Type | - |
| Transmission Model | - |
| Transmission Manufacturer | Volvo |
| Transmission Manufacturer | Volvo |
| Engine Manufacturer | Volvo |
| Engine Manufacturer | Volvo |
| Transmission Type | Hydrostatic |
| Emission Rating | Tier 4 / Stage IIIB |
| Tire - Manufacturer | - |
| Service Brake - Type | External Disc |
| Hydrostatic System Braking | Yes |
| Rated Speed | 2,400 |
PERFORMANCE
| Straight Tipping Load | 7,716 lbs (3500 kg) |
| Breakout - Bucket | 7,868 lbf (3568.8 kgf) |
| Breakout - Bucket | 7,868 lbf (3568.8 kgf) |
| Bucket Breakout | 7,868 lbf (35 kN) |
| Straight Tipping Load - Deflection | - |
| Full Turn Tipping Load - Deflection | - |
| Full Turn Tipping Load | 6,834 lbs (3100 kg) |
| Load Sensing | - |
| Ride Control System | Optional |
| Oscillation - Rear Axle | - |
CAPACITIES
| Heaped Capacity | 1 yd³ (0.8 m³) |
| Fuel Tank | 16 gallons (US) (60 ltr) |
WEIGHTS
| Operating Weight | 10,803 lbs (4900 kg) |
