Wheel Loaders

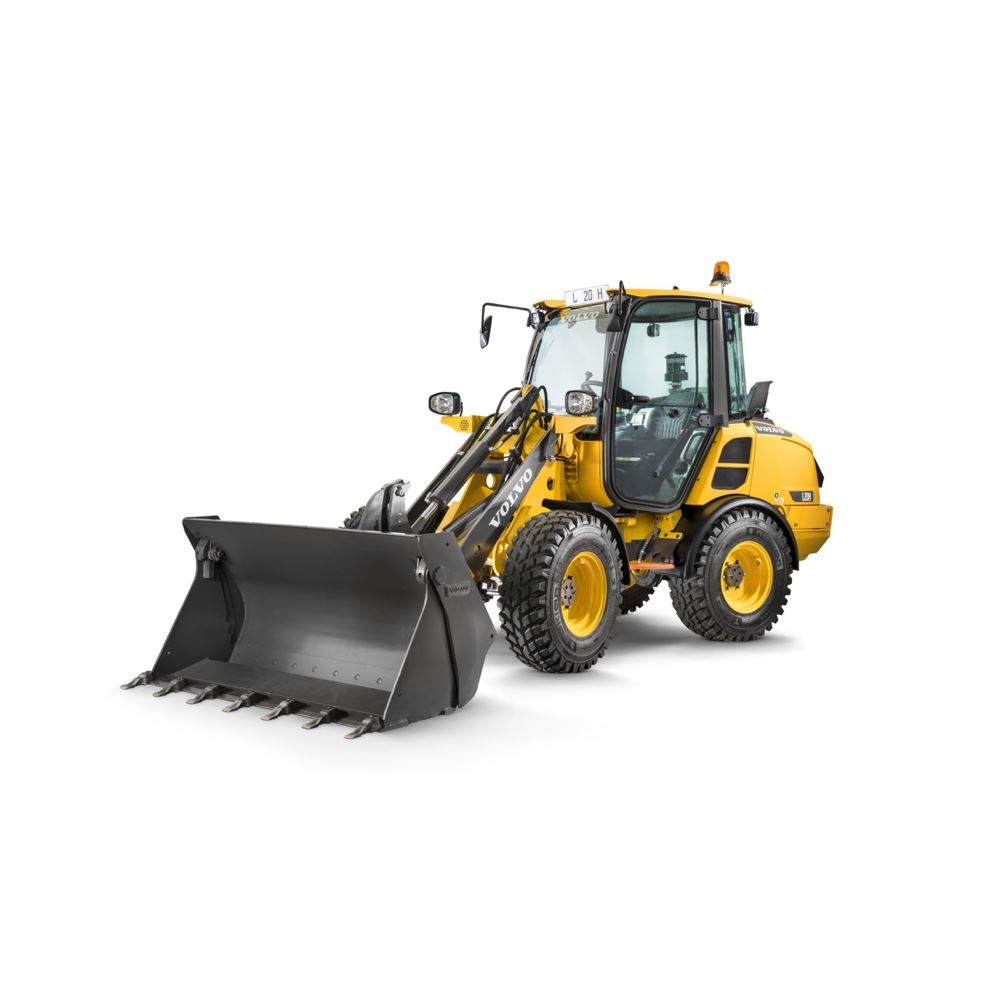

Volvo L20H
Get the job done better and faster with the L20H, bringing you quality as standard and excellent stability. Operate from the comfort of the Volvo Care Cab, offering all-around visibility for efficient and productive work.
Downloads
Features and Benefits
Volvo L20H Wheel Loader - QUALITY PERFORMANCE
2019 EquipmentWatch Highest Retained Value Award
Comfortable cab
Excellent hydraulics
Easy-to-use controls
Outstanding serviceability
Wide range of attachments
Lifetime Frame & Structure Guarantee Frame (Articulation Joint, Loader Arm)
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
DIMENSIONS
| Full Lift Dump Height - Maximum | 8 ft 2 in ft/in (2495 mm) |
| Bucket Type | GP w/Bolt-On Edge - Quickhitch |
| Height - Pivot Pin | 10 ft 4 in ft/in (3140 mm) |
| Width Over tires - Std | 5 ft 4 in ft/in (1630 mm) |
| Height - Over Cab | 8 ft 2 in ft/in (2485 mm) |
| Dump Angle - Maximum | 45 |
| Turn radius over bucket - std. | 13 ft 8 in ft/in (4182.5 mm) |
| Dump Angle - At Dump | 45 |
| Dig Depth | 3 inches (85 mm) |
| Ground clearance | 11 inches (290 mm) |
| Height - Maximum | 14 ft ft/in (4265 mm) |
| Full Lift Reach | 2 ft 5 in ft/in (730 mm) |
| Loader - Arm Type | Double Arm |
| Wheelbase | 6 ft 9 in ft/in (2050 mm) |
| Length with bucket on ground | 16 ft 8 in ft/in (5070 mm) |
| Full Lift Dump Height | 8 ft 2 in ft/in (2495 mm) |
| Bucket Width | 5 ft 5 in ft/in (1650 mm) |
| Loader - Geometry | Parallel |
DRIVELINE
| Hydrostatic System Braking | Yes |
| Service Brake - Type | External Disc |
| Tire - Manufacturer | - |
| Traction Control | No |
| Tyre - Model | - |
| Tire - Model | - |
| Engine Model | D2.6M |
| Service Brake - Location | Transmission |
| Brake Resistor | - |
| Hydrostatic Brake - Actuation | All Wheels |
| Engine Output - Gross | 64 hp (48 kW) |
| Torque | 166 lbf / ft (225 Nm) |
| After Treatment System | Diesel Oxidation Catalyst |
| Emissions Technology | Cooled Exhaust Gas Recirculation |
| Generator - Type | - |
| Tire size - Standard | 405 / 70 R18 |
| Inverter - Type | - |
| Engine Output - Net | 63 hp (47.3 kW) |
| Displacement | 160 Inches³ (2.62 ltr) |
| Aspiration | Turbo |
| Motor - Type | - |
| Transmission Model | - |
| Engine Manufacturer | Volvo |
| Engine Manufacturer | Volvo |
| Emission Rating | Tier 4 / Stage IIIB |
| Rated Speed | 2,400 |
| Transmission Manufacturer | Volvo |
| Transmission Manufacturer | Volvo |
| Transmission Type | Hydrostatic |
PERFORMANCE
| Oscillation - Rear Axle | - |
| Straight Tipping Load | 7,496 lbs (3400 kg) |
| Load Sensing | - |
| Full Turn Tipping Load - Deflection | - |
| Straight Tipping Load - Deflection | - |
| Bucket Breakout | 6,969 lbf (31 kN) |
| Breakout - Bucket | 6,969 lbf (3161 kgf) |
| Breakout - Bucket | 6,969 lbf (3161 kgf) |
| Full Turn Tipping Load | 6,614 lbs (3000 kg) |
| Ride Control System | Optional |
CAPACITIES
| Heaped Capacity | 1 yd³ (0.6 m³) |
| Fuel Tank | 16 gallons (US) (60 ltr) |
WEIGHTS
| Operating Weight | 10,141 lbs (4700 kg) |
