Wheel Loaders

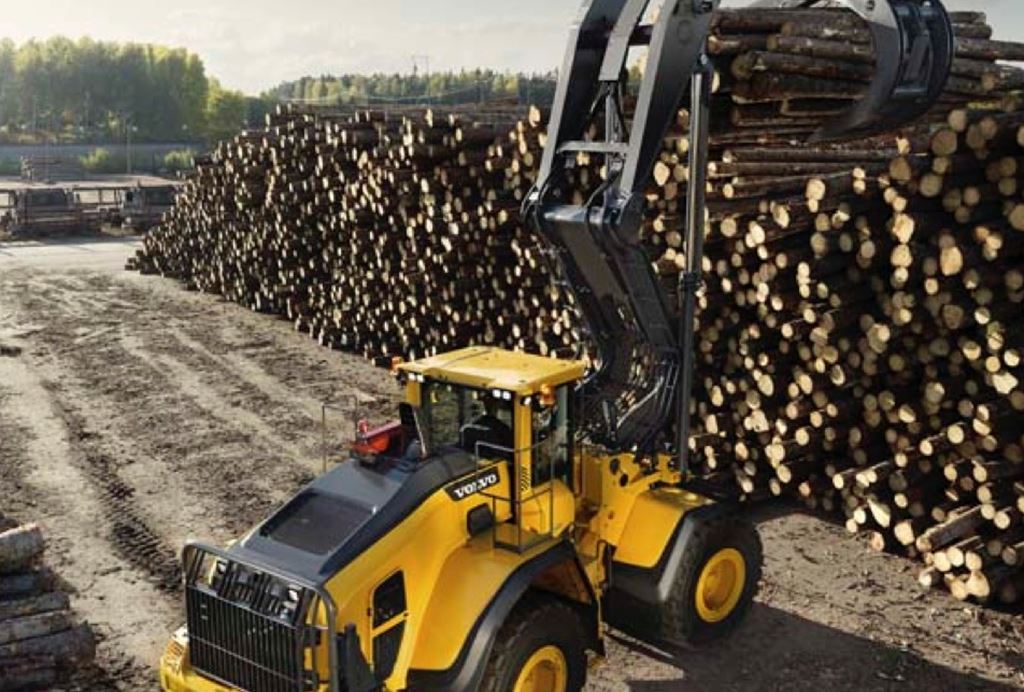

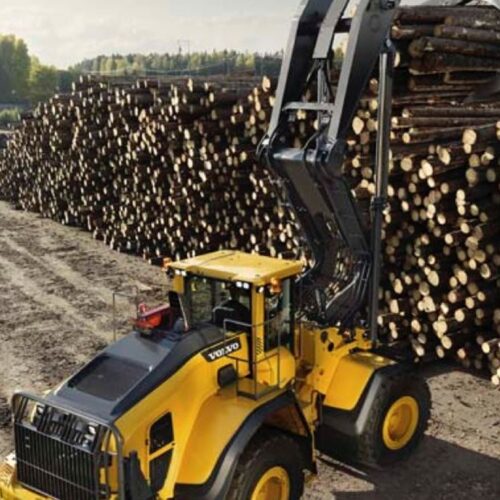

Volvo L180H High Lift
The new H-series L180H High-Lift may boast the same striking design as the former G-Series, but this machine has been updated with the latest innovative technology, promoting greater productivity and fuel efficiency. With a High-Lift ability unique to Volvo, the L180H High-Lift pushes the boundaries of the ordinary wheel loader.
Features and Benefits
Volvo L180H High Lift Wheel Loader - NEW LEVELS OF EFFICIENCY
Wide range of attachments
Comfortable cab
Excellent hydraulics
Easy-to-use controls

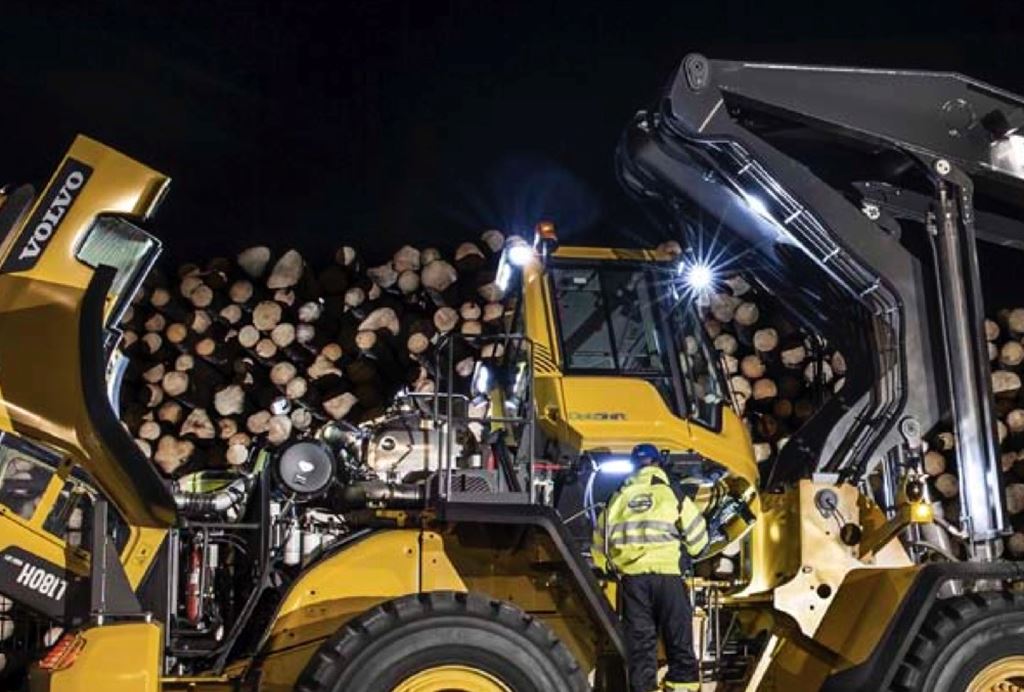

Outstanding serviceability
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
PERFORMANCE
| Straight Tipping Load | - |
| Bucket Breakout | - |
| Straight Tipping Load - Deflection | - |
| Full Turn Tipping Load - Deflection | - |
| Breakout - Bucket | - |
| Breakout - Bucket | - |
| Full Turn Tipping Load | 18,960 - Working Load lbs (8600 - Working Load kg) |
| Load Sensing | Yes |
| Ride Control System | Yes |
| Oscillation - Rear Axle | 26 |
CAPACITIES
| Heaped Capacity | 4 yd³ (3.2 m³) |
| Fuel Tank | 97 gallons (US) (366 ltr) |
DRIVELINE
| Engine Output - Gross | 330 hp (246 kW) |
| Tire size - Standard | 775 / 65 R29 |
| Generator - Type | - |
| Emissions Technology | Cooled Exhaust Gas Recirculation |
| After Treatment System | Diesel Particulate Filter |
| Inverter - Type | - |
| Torque | 1,497 lbf / ft (2030 Nm) |
| Engine Output - Net | 329 hp (245 kW) |
| Hydrostatic Brake - Actuation | - |
| Displacement | 781 Inches³ (12.8 ltr) |
| Brake Resistor | - |
| Service Brake - Location | Axle Outboard |
| Engine Model | D13J |
| Tyre - Model | - |
| Tire - Model | - |
| Aspiration | Var. Geometry Turbo |
| Traction Control | No |
| Motor - Type | - |
| Transmission Model | HTL 221 |
| Transmission Manufacturer | Volvo |
| Transmission Manufacturer | Volvo |
| Engine Manufacturer | Volvo |
| Engine Manufacturer | Volvo |
| Transmission Type | Powershift |
| Emission Rating | Tier 4 / Stage IV |
| Tire - Manufacturer | - |
| Service Brake - Type | Wet Disc |
| Hydrostatic System Braking | - |
| Rated Speed | 1,300 |
WEIGHTS
| Operating Weight | 77,393 lbs (35105 kg) |
DIMENSIONS
| Full Lift Reach | 8 ft 9 in ft/in (2760 mm) |
| Height - Maximum | 29 ft 11 in ft/in (9132 mm) |
| Ground clearance | 24 inches (610 mm) |
| Dig Depth | 52 inches (1330 mm) |
| Dump Angle - At Dump | - |
| Loader - Arm Type | Double Arm - High |
| Turn radius over bucket - std. | 25 ft ft/in (7630 mm) |
| Dump Angle - Maximum | - |
| Wheelbase | 11 ft 8 in ft/in (3550 mm) |
| Height - Over Cab | 16 ft 11 in ft/in (5160 mm) |
| Width Over tires - Std | 10 ft 1 in ft/in (3080 mm) |
| Length with bucket on ground | 31 ft 6 in ft/in (9600 mm) |
| Full Lift Dump Height | 19 ft ft/in (5800 mm) |
| Height - Pivot Pin | 29 ft 3 in ft/in (8930 mm) |
| Bucket Type | Timber Grapple - 5m |
| Bucket Width | 11 ft 10 in - Open Jaws ft/in (3630 - Open Jaws mm) |
| Loader - Geometry | Log Grapple |
| Full Lift Dump Height - Maximum | 19 ft ft/in (5800 mm) |
