Wheel Loaders

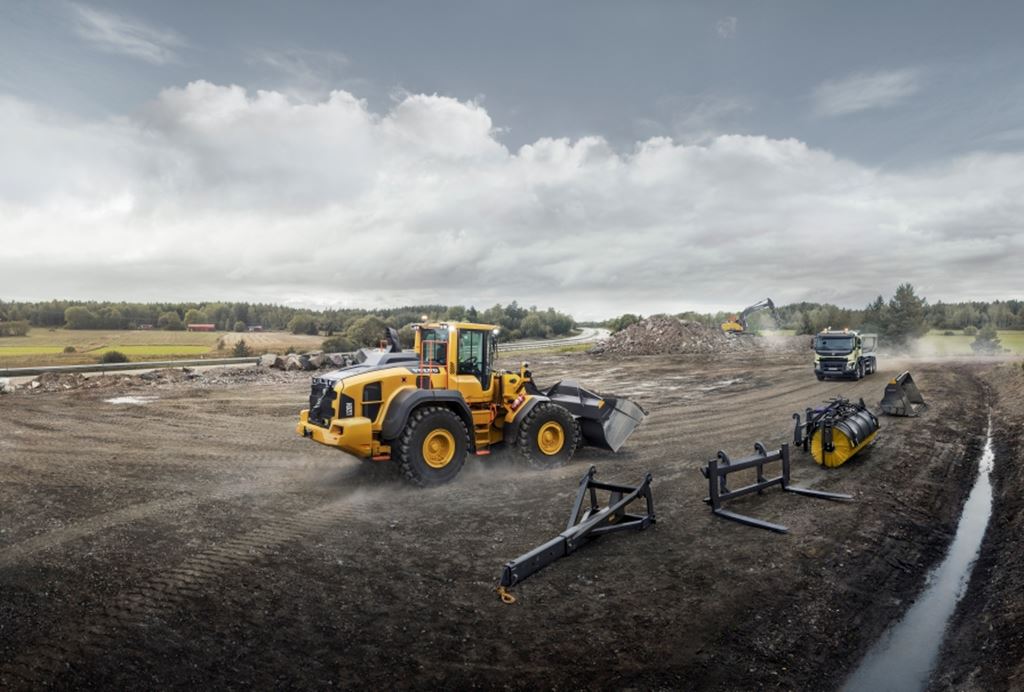

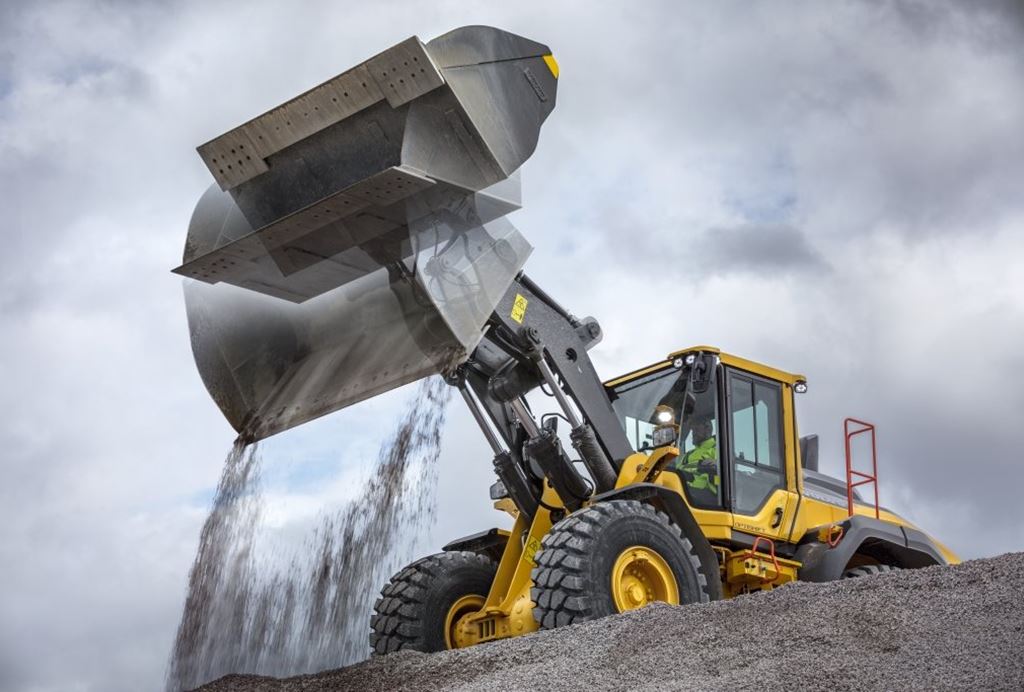

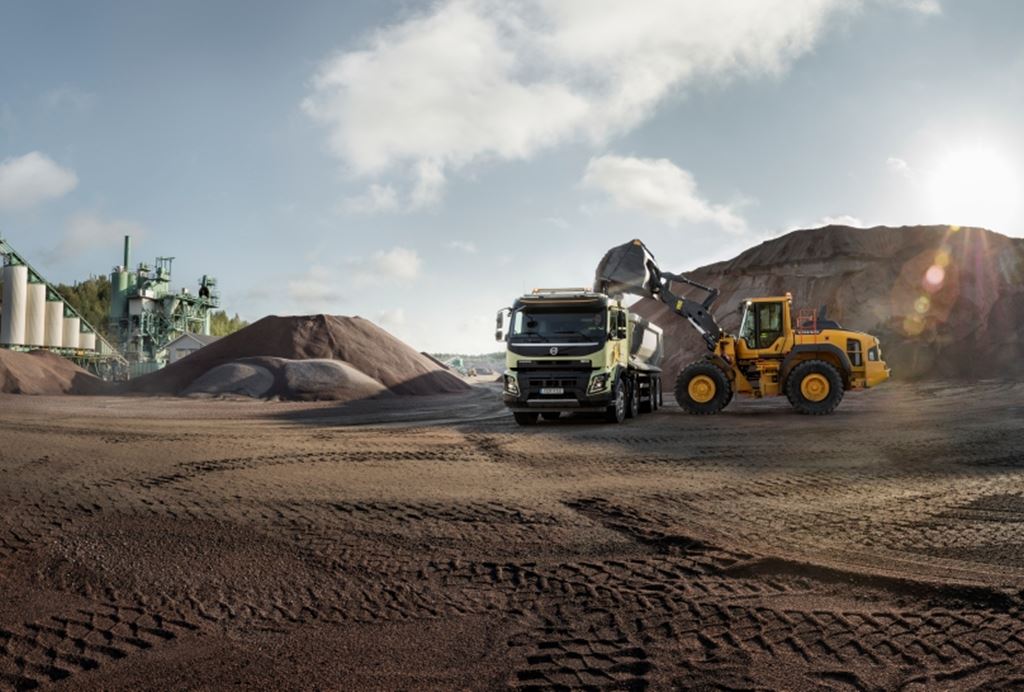

Volvo L120H
The Volvo L120H loader is built with state-of-the-art technology to increase your productivity and profitability. The ideally-matched, all-Volvo powertrain has been built to work together in perfect harmony – delivering the power, performance and reliability you expect from Volvo.
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
DIMENSIONS
| Bucket Type | Rehandling w/Bolt-On Edge - Hook On |
| Full Lift Reach | 4 ft 4 in ft/in (1330 mm) |
| Height - Maximum | 19 ft 11 in ft/in (6070 mm) |
| Ground clearance | 17 inches (440 mm) |
| Dig Depth | 5 inches (119 mm) |
| Dump Angle - At Dump | 45 |
| Loader - Arm Type | Double Arm |
| Turn radius over bucket - std. | 21 ft 2 in ft/in (6450 mm) |
| Dump Angle - Maximum | 50 |
| Wheelbase | 10 ft 6 in ft/in (3200 mm) |
| Height - Over Cab | 11 ft 1 in ft/in (3380 mm) |
| Width Over tires - Std | 8 ft 9 in ft/in (2670 mm) |
| Length with bucket on ground | 27 ft 3 in ft/in (8320 mm) |
| Full Lift Dump Height | 9 ft 1 in ft/in (2770 mm) |
| Height - Pivot Pin | 13 ft 5 in ft/in (4100 mm) |
| Loader - Geometry | Torque Parallel |
| Full Lift Dump Height - Maximum | 9 ft 2 in ft/in (2800 mm) |
| Bucket Width | 9 ft 10 in ft/in (3000 mm) |
PERFORMANCE
| Straight Tipping Load | 32,980 lbs (14960 kg) |
| Bucket Breakout | 34,120 lbf (151.7 kN) |
| Straight Tipping Load - Deflection | - |
| Full Turn Tipping Load - Deflection | - |
| Breakout - Bucket | 34,120 lbf (15476.57 kgf) |
| Breakout - Bucket | 34,120 lbf (15476.57 kgf) |
| Full Turn Tipping Load | 28,000 lbs (12700 kg) |
| Load Sensing | Yes |
| Ride Control System | Yes |
| Oscillation - Rear Axle | 26 |
CAPACITIES
| Heaped Capacity | 5 yd³ (3.8 m³) |
| Fuel Tank | 71 gallons (US) (270 ltr) |
DRIVELINE
| Engine Output - Gross | 272 hp (203 kW) |
| Tire size - Standard | 24 R25 |
| Generator - Type | - |
| Emissions Technology | Cooled Exhaust Gas Recirculation |
| After Treatment System | Diesel Particulate Filter |
| Inverter - Type | - |
| Torque | 974 lbf / ft (1320 Nm) |
| Engine Output - Net | 272 hp (203 kW) |
| Hydrostatic Brake - Actuation | - |
| Displacement | 473 Inches³ (7.8 ltr) |
| Brake Resistor | - |
| Service Brake - Location | All Wheels |
| Engine Model | D8J |
| Tyre - Model | XHA 2 |
| Tire - Model | XHA 2 |
| Aspiration | Turbo. aftercooled |
| Traction Control | No |
| Motor - Type | - |
| Transmission Model | HTE 206C - Optishift |
| Transmission Manufacturer | Volvo |
| Transmission Manufacturer | Volvo |
| Engine Manufacturer | Volvo |
| Engine Manufacturer | Volvo |
| Transmission Type | Powershift |
| Emission Rating | Tier 4 / Stage IV |
| Tire - Manufacturer | Michelin |
| Service Brake - Type | Wet Disc |
| Hydrostatic System Braking | - |
| Rated Speed | 1,500 |
WEIGHTS
| Operating Weight | 44,820 lbs (20330 kg) |
