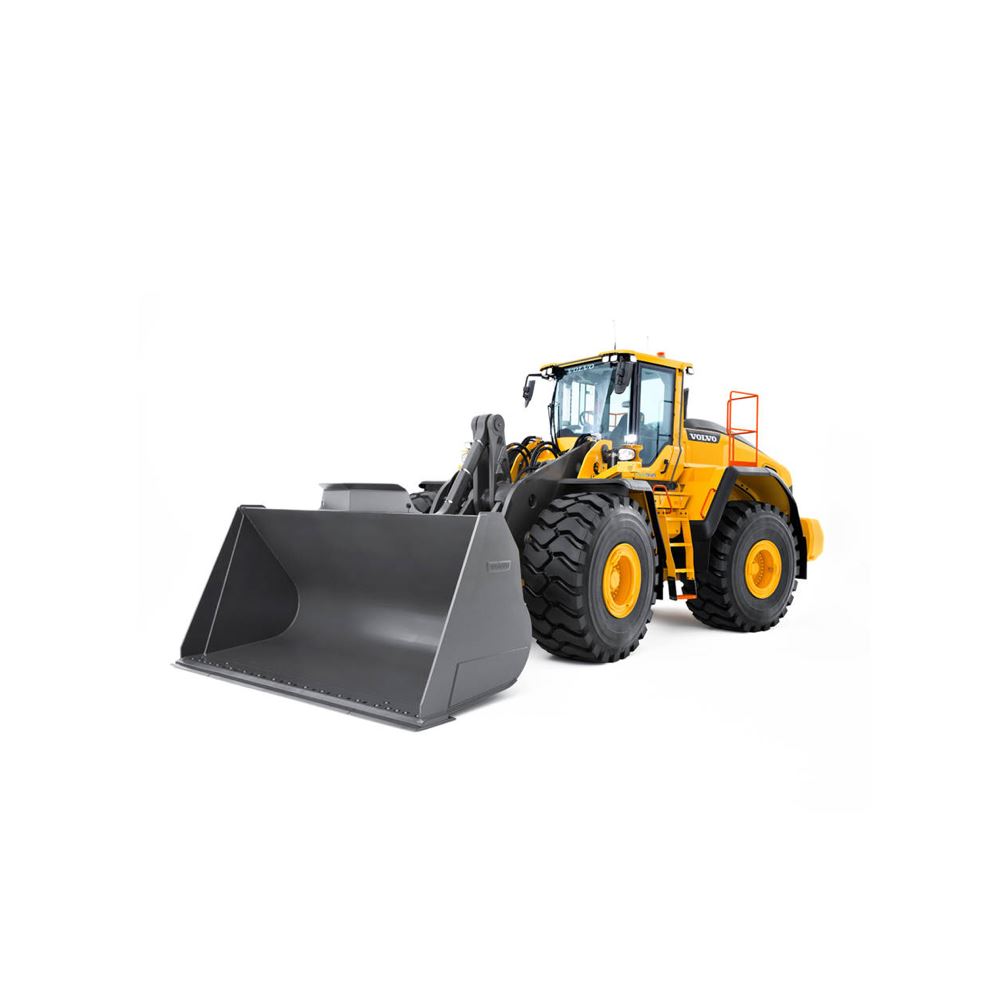

Volvo L 150 H
The new H-series L150 is more efficient, more productive and more intelligent than the former G-series. Achieve up to 15% greater fuel efficiency, thanks to a powerful engine, second generation OptiShift and new dry P-Brake. To boost productivity by up to 10%, the L150H has also been upgraded with a new transmission, new converter and revised gear ratio.
Features and Benefits
Volvo L 150 H Wheel Loader - SMART OPERATION
Wide range of attachments
Comfortable cab
Excellent hydraulics
Easy-to-use controls

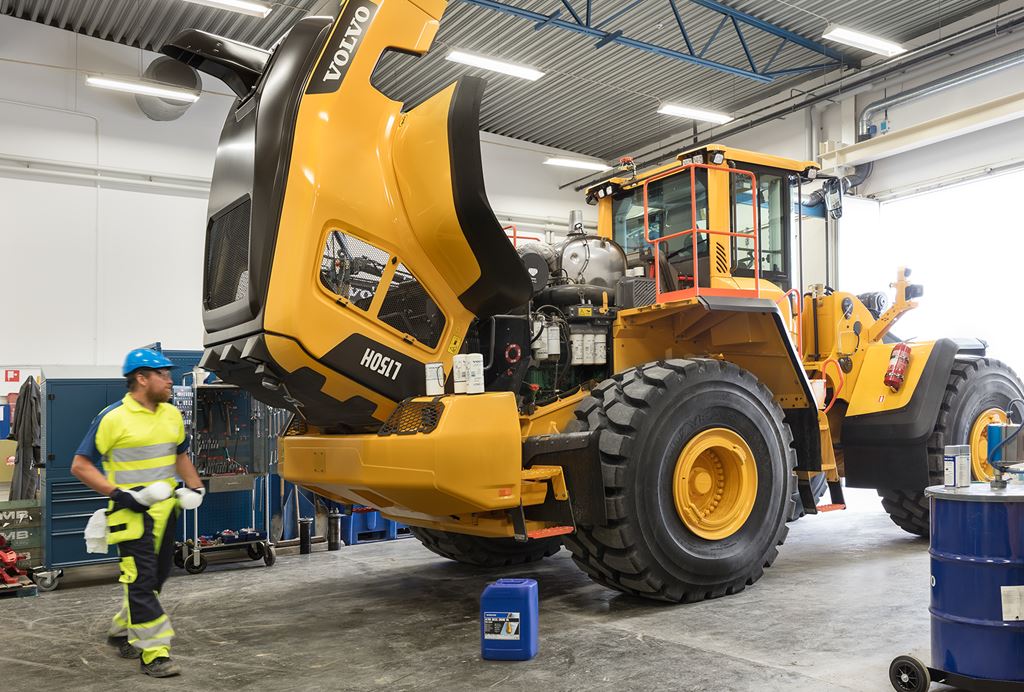

Outstanding serviceability
Lifetime Frame & Structure Guarantee Frame (Articulation Joint, Loader Arm)
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
DIMENSIONS
| Full Lift Dump Height - Maximum | 9 ft 11 in ft/in (3030 mm) |
| Loader - Geometry | Torque Parallel |
| Bucket Width | 10 ft 5 in ft/in (3200 mm) |
| Bucket Type | Rehandling w/Bolt-On Edge - Pin On |
| Height - Pivot Pin | 14 ft 3 in ft/in (4340 mm) |
| Full Lift Dump Height | 9 ft 9 in ft/in (2970 mm) |
| Width Over tires - Std | 9 ft 9 in ft/in (2960 mm) |
| Height - Over Cab | 11 ft 9 in ft/in (3580 mm) |
| Dump Angle - Maximum | 50 |
| Turn radius over bucket - std. | 24 ft 1 in ft/in (7335 mm) |
| Dump Angle - At Dump | 45 |
| Dig Depth | 4 inches (93 mm) |
| Height - Maximum | 20 ft ft/in (6090 mm) |
| Full Lift Reach | 4 ft 2 in ft/in (1270 mm) |
| Ground clearance | 19 inches (480 mm) |
| Loader - Arm Type | Double Arm |
| Wheelbase | 11 ft 8 in ft/in (3550 mm) |
| Length with bucket on ground | 28 ft 5 in ft/in (8660 mm) |
DRIVELINE
| Rated Speed | 1,300 |
| Hydrostatic System Braking | - |
| Service Brake - Type | Wet Disc |
| Tire - Manufacturer | Michelin |
| Emission Rating | Tier 4 / Stage IV |
| Engine Manufacturer | Volvo |
| Engine Manufacturer | Volvo |
| Motor - Type | - |
| Aspiration | Var. Geometry Turbo w/Intercooler |
| Engine Model | D13J |
| Service Brake - Location | All Wheels |
| Brake Resistor | - |
| Hydrostatic Brake - Actuation | - |
| Engine Output - Gross | 295 hp (220 kW) |
| Engine Output - Net | 295 hp (220 kW) |
| Torque | 1,446 lbf / ft (1960 Nm) |
| Generator - Type | - |
| Tire size - Standard | 27 R25 |
| Emissions Technology | Cooled Exhaust Gas Recirculation - Cooled |
| After Treatment System | Diesel Particulate Filter |
| Inverter - Type | - |
| Displacement | 781 Inches³ (12.8 ltr) |
| Tyre - Model | XHA 2 |
| Tire - Model | XHA 2 |
| Traction Control | No |
| Transmission Model | HTL 223 |
| Transmission Manufacturer | Volvo |
| Transmission Manufacturer | Volvo |
| Transmission Type | Powershift |
PERFORMANCE
| Oscillation - Rear Axle | 30 |
| Ride Control System | Optional |
| Straight Tipping Load | 44,100 lbs (20000 kg) |
| Load Sensing | Yes |
| Breakout - Bucket | 43,050 lbf (19527.15 kgf) |
| Breakout - Bucket | 43,050 lbf (19527.15 kgf) |
| Full Turn Tipping Load - Deflection | - |
| Straight Tipping Load - Deflection | - |
| Bucket Breakout | 43,050 lbf (191.5 kN) |
| Full Turn Tipping Load | 38,760 lbs (17580 kg) |
CAPACITIES
| Fuel Tank | 97 gallons (US) (366 ltr) |
| Heaped Capacity | 6 yd³ (4.4 m³) |
WEIGHTS
| Operating Weight | 55,870 lbs (25340 kg) |
