Wheel Loaders

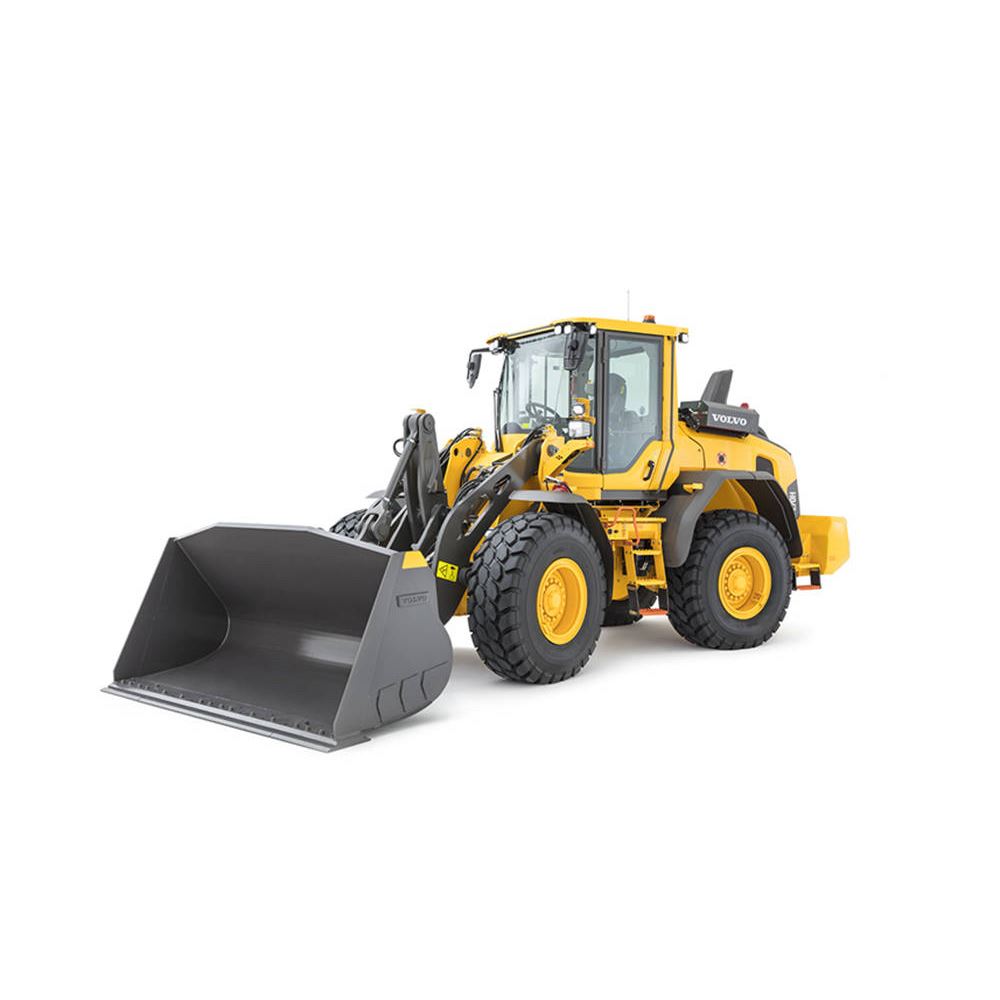

Volvo L 110 H

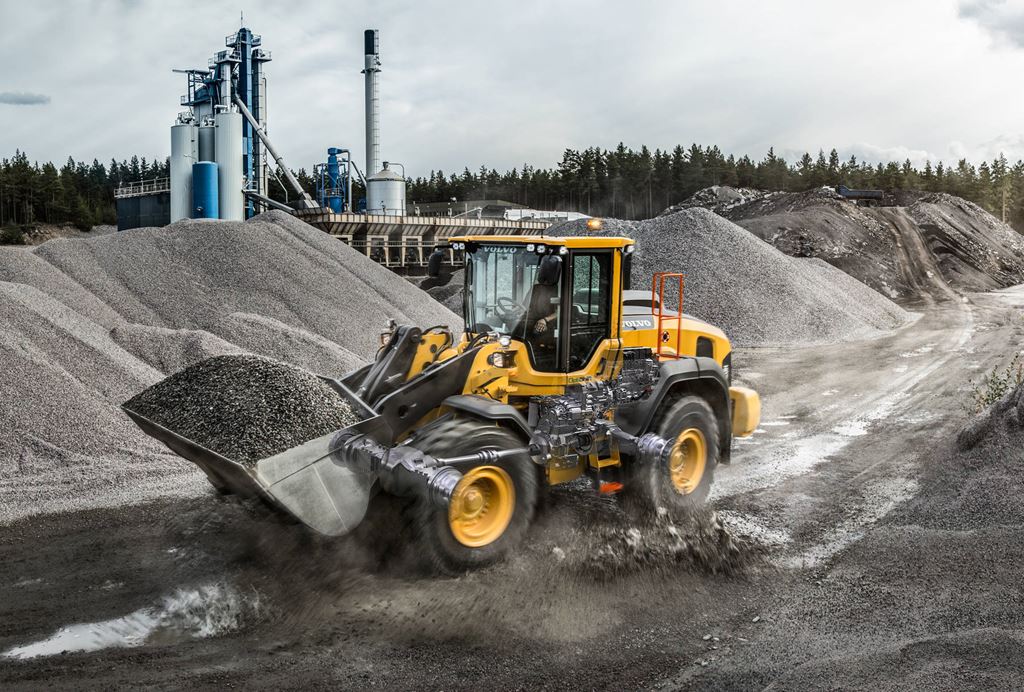

The Volvo L110H loader boasts state-of-the-art technology to increase your productivity and profitability. The ideally-matched, all-Volvo powertrain has been built to work together in perfect harmony – delivering the power, performance and reliability you expect from Volvo.
Features and Benefits
Volvo L 110 H Wheel Loader - COMFORT UNLOCKS PRODUCTIVITY

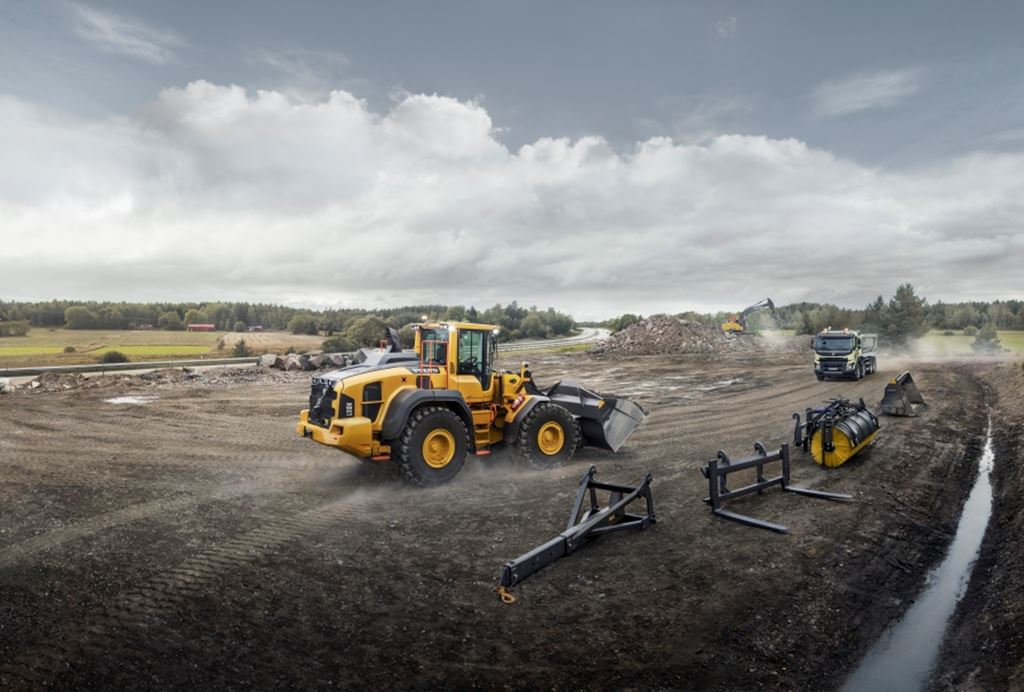

Wide range of attachments

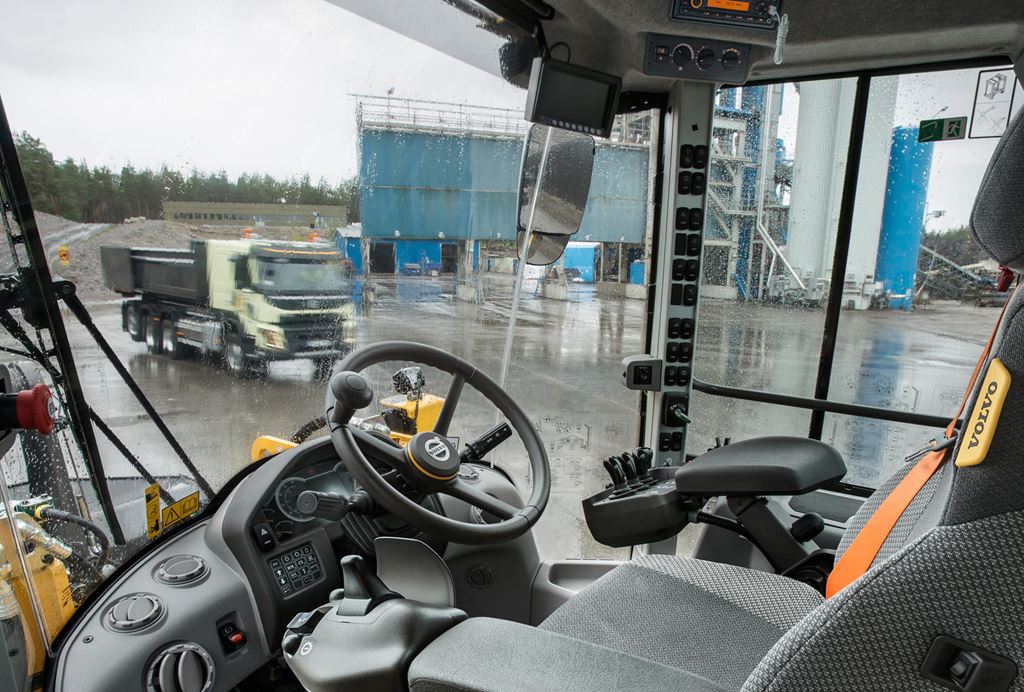

Comfortable cab
Excellent hydraulics
Easy-to-use controls
Outstanding serviceability
Lifetime Frame & Structure Guarantee Frame (Articulation Joint, Loader Arm)
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
PERFORMANCE
| Oscillation - Rear Axle | 26 |
| Straight Tipping Load | 31,020 lbs (14070 kg) |
| Straight Tipping Load - Deflection | - |
| Bucket Breakout | 33,670 lbf (149.7 kN) |
| Full Turn Tipping Load - Deflection | - |
| Breakout - Bucket | 33,670 lbf (15272.46 kgf) |
| Breakout - Bucket | 33,670 lbf (15272.46 kgf) |
| Full Turn Tipping Load | 26,470 lbs (12000 kg) |
| Load Sensing | Yes |
| Ride Control System | Yes |
CAPACITIES
| Heaped Capacity | 5 yd³ (3.5 m³) |
| Fuel Tank | 71 gallons (US) (270 ltr) |
DRIVELINE
| Engine Output - Gross | 256 hp (191 kW) |
| Generator - Type | - |
| Tire size - Standard | 24 R25 |
| Emissions Technology | Cooled Exhaust Gas Recirculation - Cooled |
| After Treatment System | Diesel Particulate Filter |
| Inverter - Type | - |
| Torque | 926 lbf / ft (1255 Nm) |
| Engine Output - Net | 256 hp (191 kW) |
| Hydrostatic Brake - Actuation | - |
| Brake Resistor | - |
| Service Brake - Location | Axle Outboard |
| Engine Model | D8J |
| Tyre - Model | XHA 2 |
| Tire - Model | XHA 2 |
| Aspiration | Turbo. aftercooled |
| Traction Control | Yes |
| Motor - Type | - |
| Transmission Model | HTE 206C - Optishift |
| Transmission Manufacturer | Volvo |
| Transmission Manufacturer | Volvo |
| Engine Manufacturer | Volvo |
| Engine Manufacturer | Volvo |
| Transmission Type | Powershift |
| Emission Rating | Tier 4 / Stage IV |
| Tire - Manufacturer | Michelin |
| Service Brake - Type | Wet Disc |
| Hydrostatic System Braking | - |
| Rated Speed | 1,800 |
| Displacement | 473 Inches³ (7.8 ltr) |
WEIGHTS
| Operating Weight | 43,030 lbs (19510 kg) |
DIMENSIONS
| Full Lift Reach | 4 ft 1 in ft/in (1250 mm) |
| Height - Maximum | 17 ft 10 in ft/in (5450 mm) |
| Ground clearance | 17 inches (430 mm) |
| Dig Depth | 4 inches (98 mm) |
| Dump Angle - At Dump | 45 |
| Loader - Arm Type | Double Arm |
| Turn radius over bucket - std. | 21 ft ft/in (6400 mm) |
| Dump Angle - Maximum | 50 |
| Wheelbase | 10 ft 6 in ft/in (3200 mm) |
| Height - Over Cab | 11 ft 1 in ft/in (3380 mm) |
| Width Over tires - Std | 8 ft 9 in ft/in (2670 mm) |
| Length with bucket on ground | 26 ft 9 in ft/in (8150 mm) |
| Full Lift Dump Height | 9 ft ft/in (2750 mm) |
| Height - Pivot Pin | 13 ft 3 in ft/in (4030 mm) |
| Bucket Type | Rehandling w/Bolt-On Edge - Hook On |
| Bucket Width | 9 ft 10 in ft/in (3000 mm) |
| Loader - Geometry | Torque Parallel |
| Full Lift Dump Height - Maximum | 9 ft ft/in (2750 mm) |
