Excavators

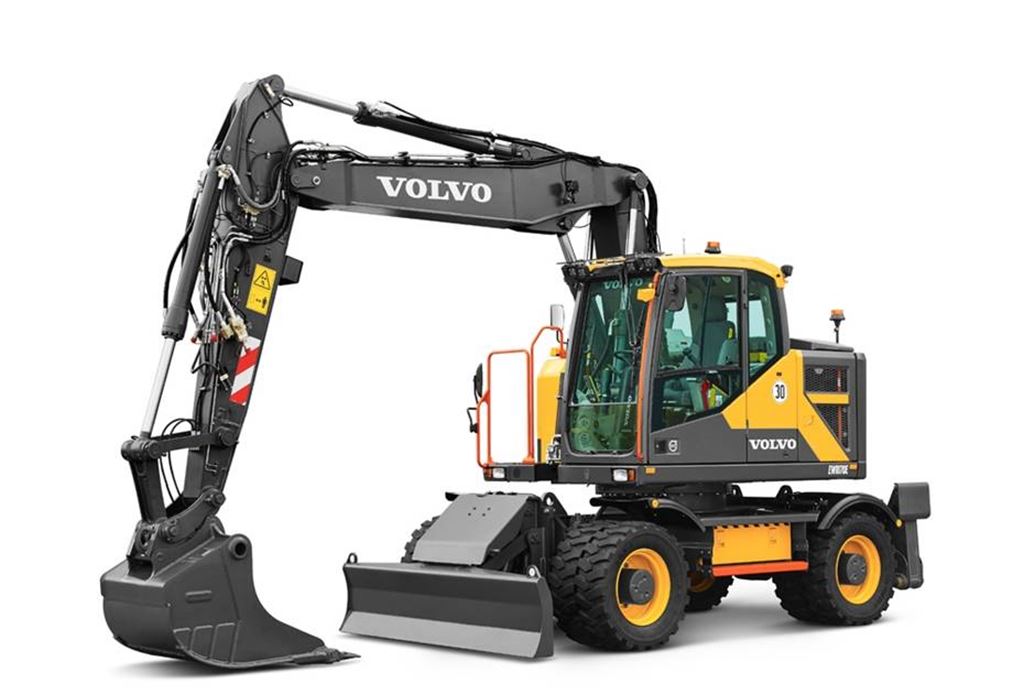

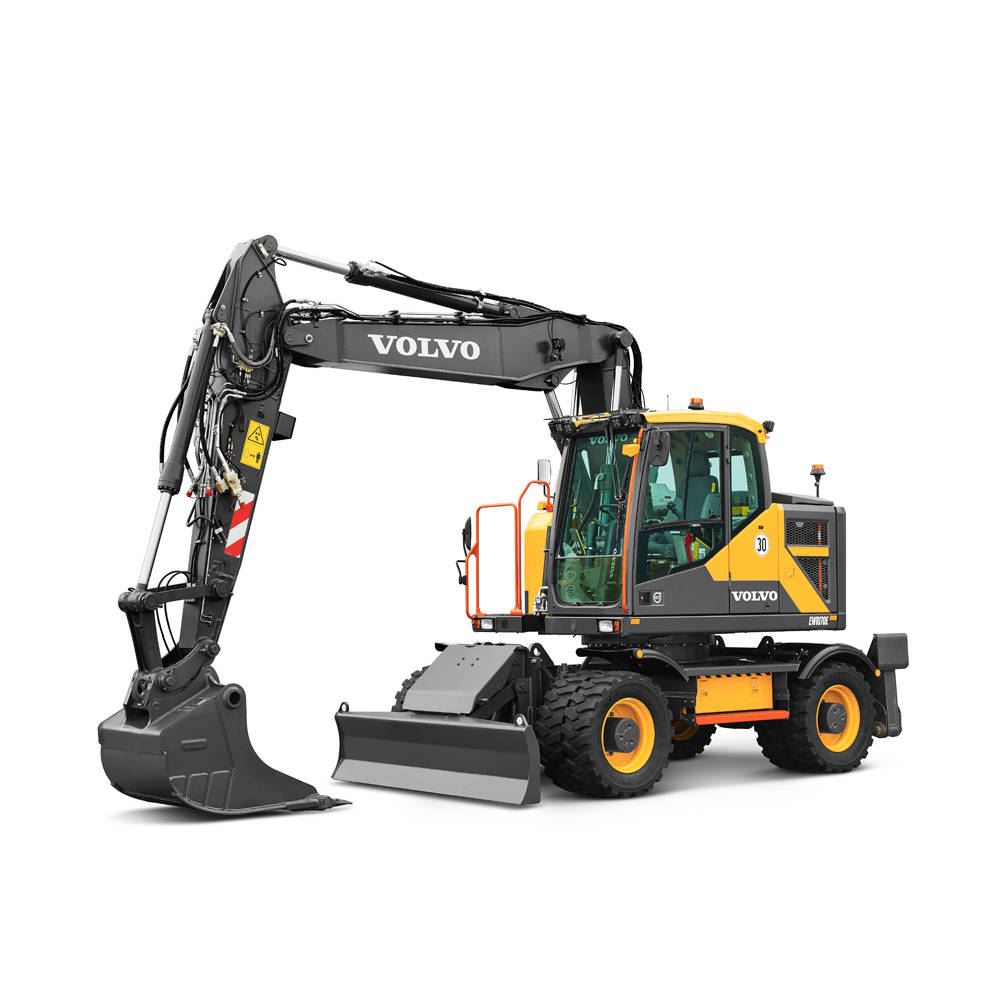

Volvo EWR170E
Built with our customers for our customers, the new Volvo EWR170E features one of the shortest tail swings on the market. Equipped with the latest features, powerful engine and intelligent technology, the EWR170E operates with efficiency and control, for ultimate productivity.
Features and Benefits
Volvo EWR170E Excavator - SWING INTO ACTION
Lifetime Frame & Structure Guarantee Frame (Frame, Boom, Arm)
Short swing performance
Enhanced controllability
Outstanding serviceability
Boom suspension system
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
DRIVELINE
| Engine Output - Net | 150 hp (112 kW) |
| Engine auto shut off | Yes |
| Transmission Type | 3 speed Powershift |
| Displacement | 247 Inches³ (4.04 ltr) |
| Service Brake Actuation | Hydraulic Power Brakes |
| Torque Speed | 1,700 |
| Engine Manufacturer | Volvo |
| Engine Manufacturer | Volvo |
| Tire size - Standard | 10.00-20 |
| Standard number of tires | 8 |
| Engine Model | D4J |
| Engine Torque | 456 lbf / ft (618 Nm) |
| Rated Speed | 2,000 |
| Auto idle | Yes |
| Service Brake Type | Dual Circuit |
| Emission Rating | Tier 4 |
WEIGHTS
| Operating Weight | 42,329 lbs (19200 kg) |
DIMENSIONS
| Dig Depth - 2 Piece Boom | 18 ft 6 in ft/in (5640 mm) |
| Dig Depth - Articulated Boom | 18 ft 6 in ft/in (5640 mm) |
| Ground Level Reach - Mono Boom | - |
| Dig Depth - Mono Boom | - |
| Dozer Blade - Width | 8 ft 4 in ft/in (2540 mm) |
| Standard Dipper Length | 8 ft ft/in (2450 mm) |
| Wheelbase | 8 ft 6 in ft/in (2600 mm) |
| Longest Dipper Length | 10 ft 2 in ft/in (3100 mm) |
| Maximum Dig Height - Mono Boom | - |
| Ground Clearance | 13 inches (340 mm) |
| Machine Width - Maximum | 8 ft 4 in ft/in (2540 mm) |
| Maximum Transport Length - Mono Boom | - |
| Dump Clearance Height - Mono Boom | - |
| Overall Width | 8 ft 4 in ft/in (2540 mm) |
| Cab Height | 10 ft 4 in ft/in (3150 mm) |
| Transport Height - Over Mono Boom | - |
| Mono Boom Size | - |
| Mono Boom Size | - |
| Rear Axle To Slew Centre | 3 ft 9 in ft/in (1150 mm) |
| Overall width stabilizers down | 13 ft 1 in ft/in (3990 mm) |
CAPACITIES
| Bucket Pivot Angle | - |
| Fuel Tank | 53 gallons (US) (200 ltr) |
PERFORMANCE
| Slew Speed | 9 |
| Sound Level External | 101 |
| Dipper Standard, Boost Tearout Artic | 19,334 lbf (86 kN) |
| Dipper Longest, Boost Tearout Artic | 16,186 lbf (72 kN) |
| Sound Level Standard | ISO 6,396 / 6,395 |
| Sound Level internal | 71 |
| Dipper Short, Boost Tearout Artic | 22,031 lbf (98 kN) |
| Max bucket breakout, Mono Boom | - |
| Transmission Pump Flow | - |
| Transmission Pump | - |
| Boom Pressure | 4,931 PSI (340 bar) |
DESCRIPTION
| Number Of Mono Booms | - |
| Number Of 2 Piece Booms | 1 |
| Number Of Articulated Booms | 1 |
| Total Number Of Dippers - 2 Piece | 4 |
| Total Number Of Dippers - Articulated | 4 |
| Dipper Length - Longest 2 Piece | 10 ft 2 in ft/in (3100 mm) |
| Dipper Length - Longest Articulated | 10 ft 2 in ft/in (3100 mm) |
| Dipper Length - Standard 2 Piece | 8 ft ft/in (2450 mm) |
| Dipper Length - Standard Articulated | 8 ft ft/in (2450 mm) |
| Total Number Of Dippers - Mono | - |
| Dipper Length - Shortest Articulated | - |
| Dipper Length - Shortest 2 Piece | - |
| Platform | Care Track |
| Dipper Length - Shortest 2 Piece | 6 ft 7 in ft/in (2000 mm) |
| Dipper Length - Shortest Articulated | 6 ft 7 in ft/in (2000 mm) |
| Dipper Length - Short Articulated | 6 ft 7 in ft/in (2000 mm) |
| Telematics Available | Yes |
