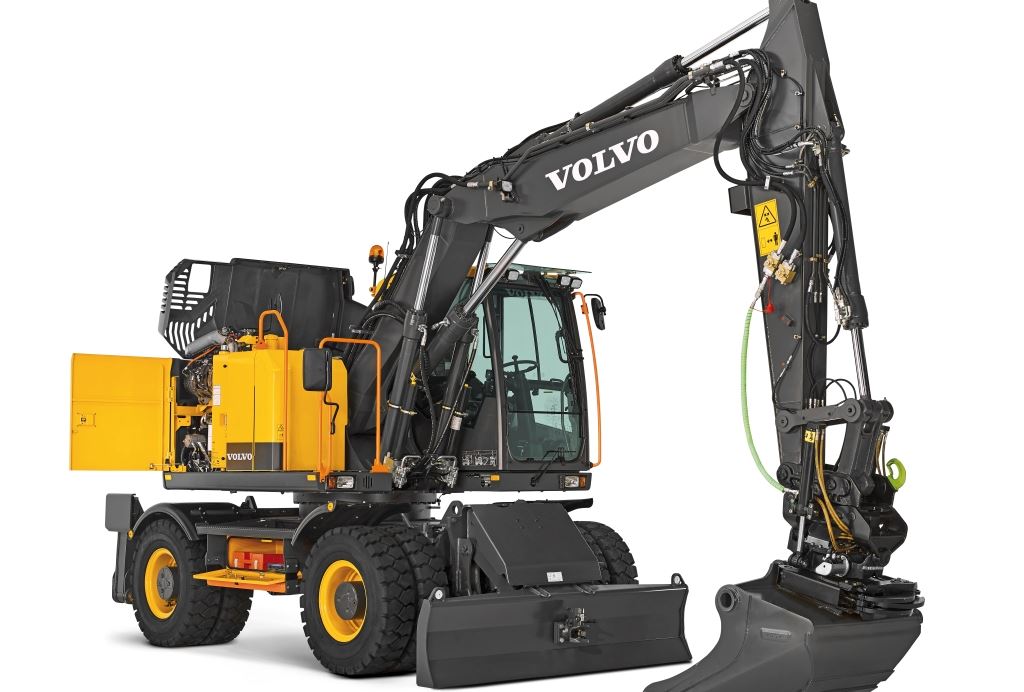

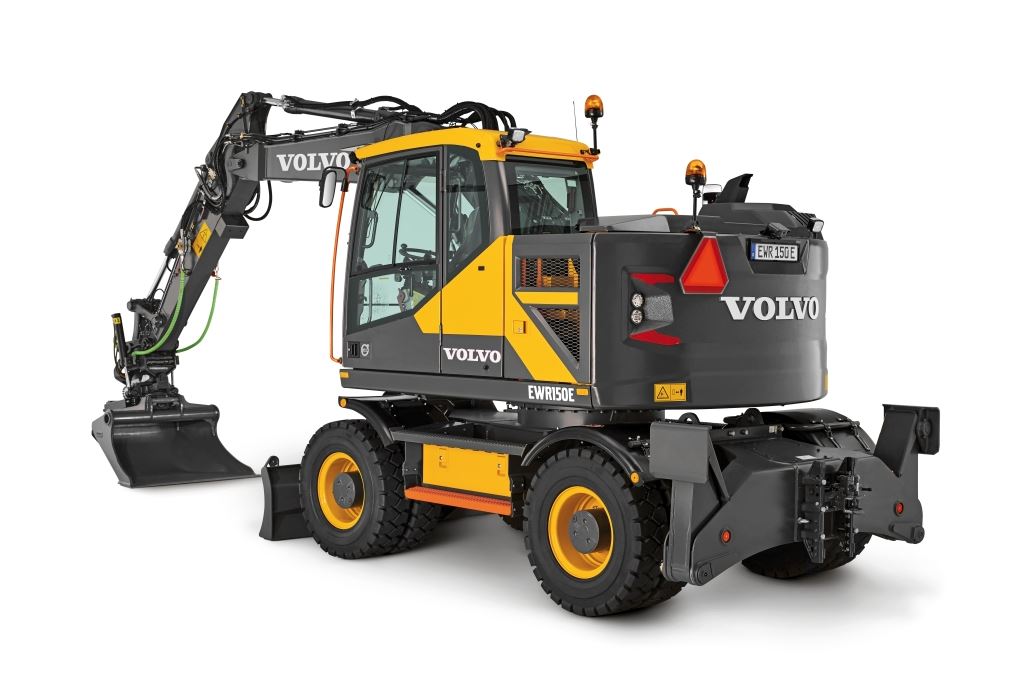

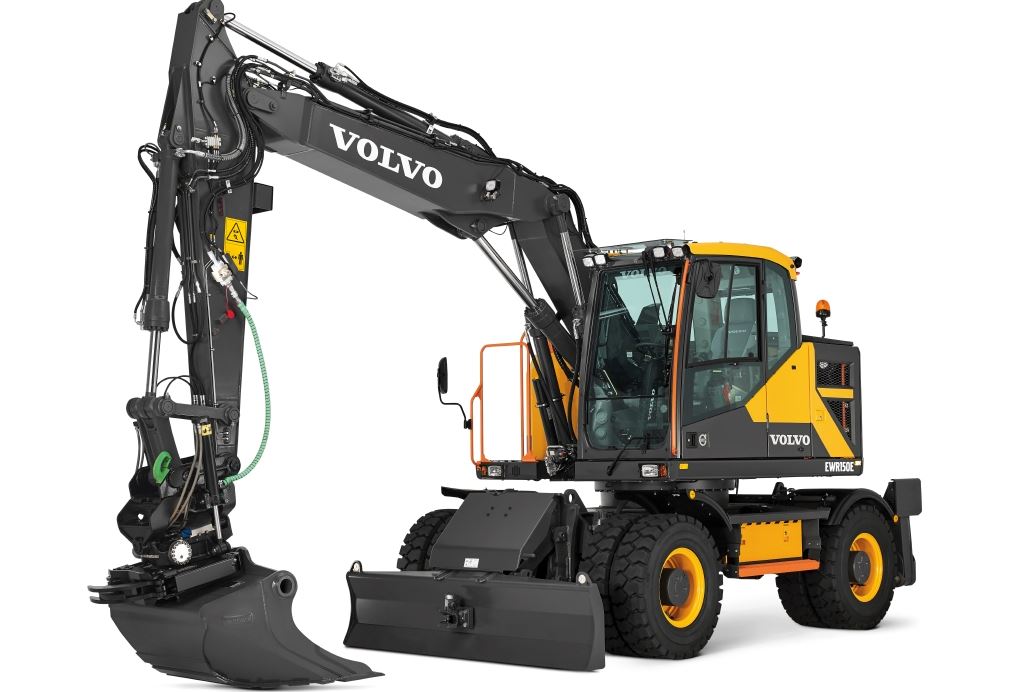

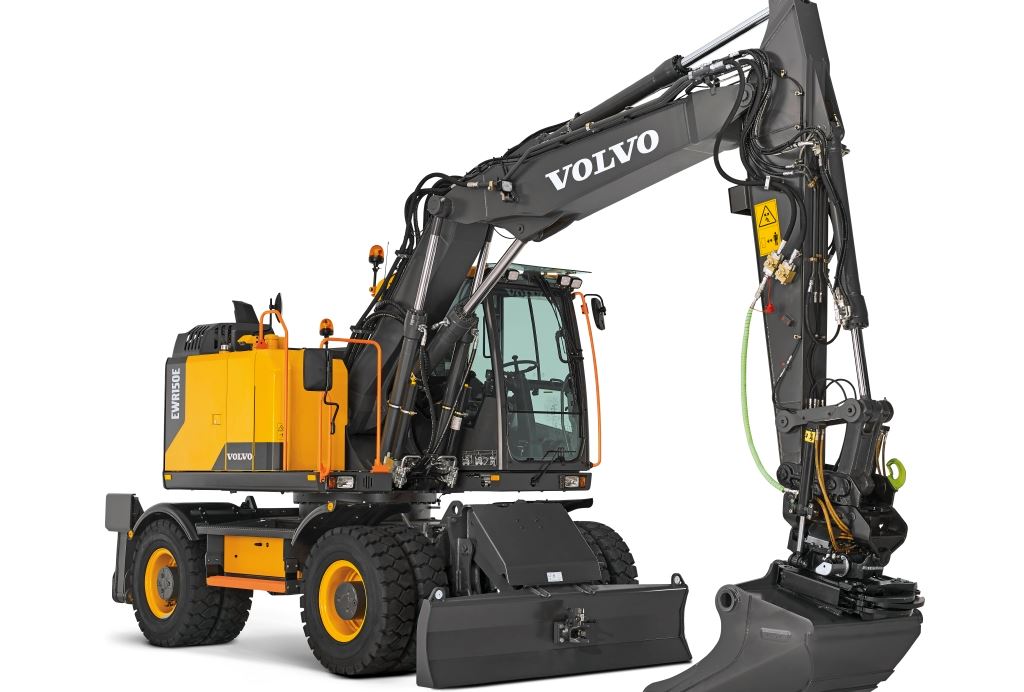

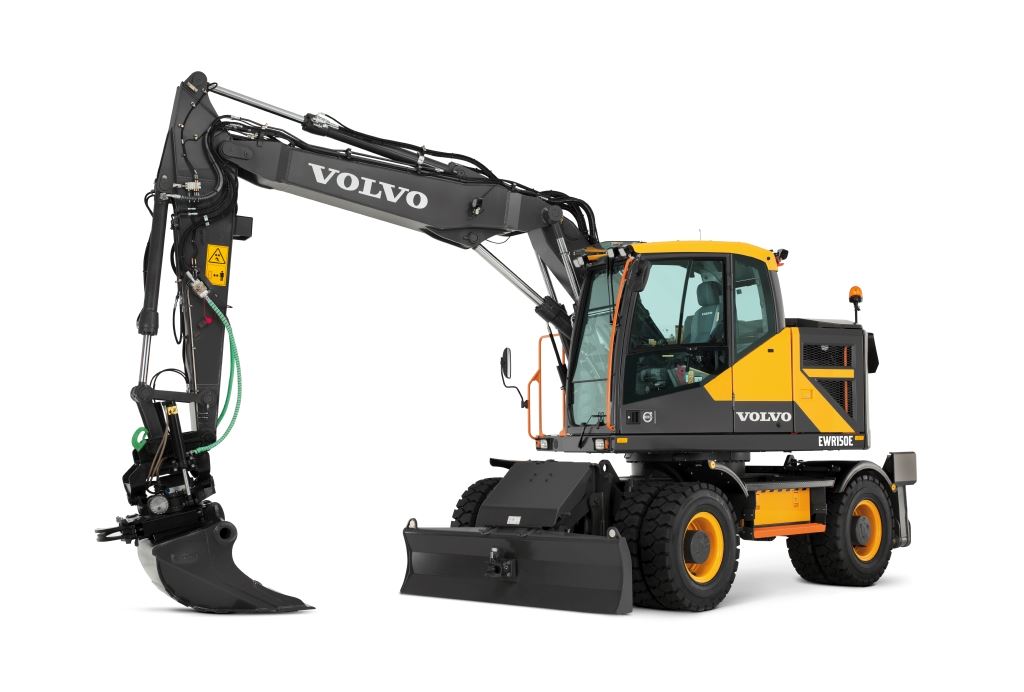

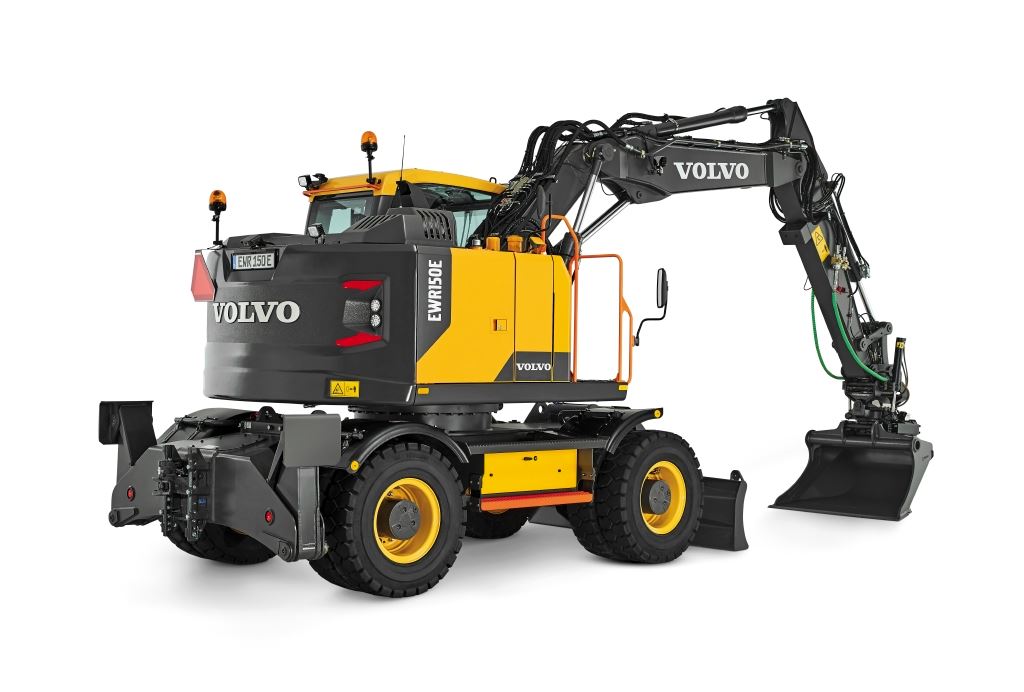

Volvo EWR150E

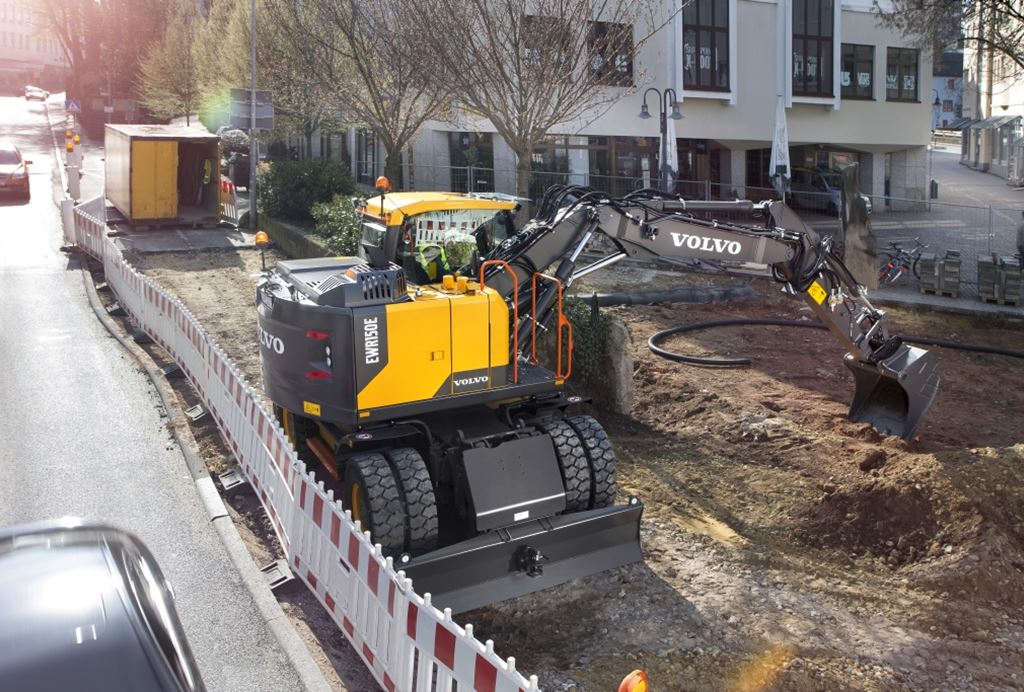

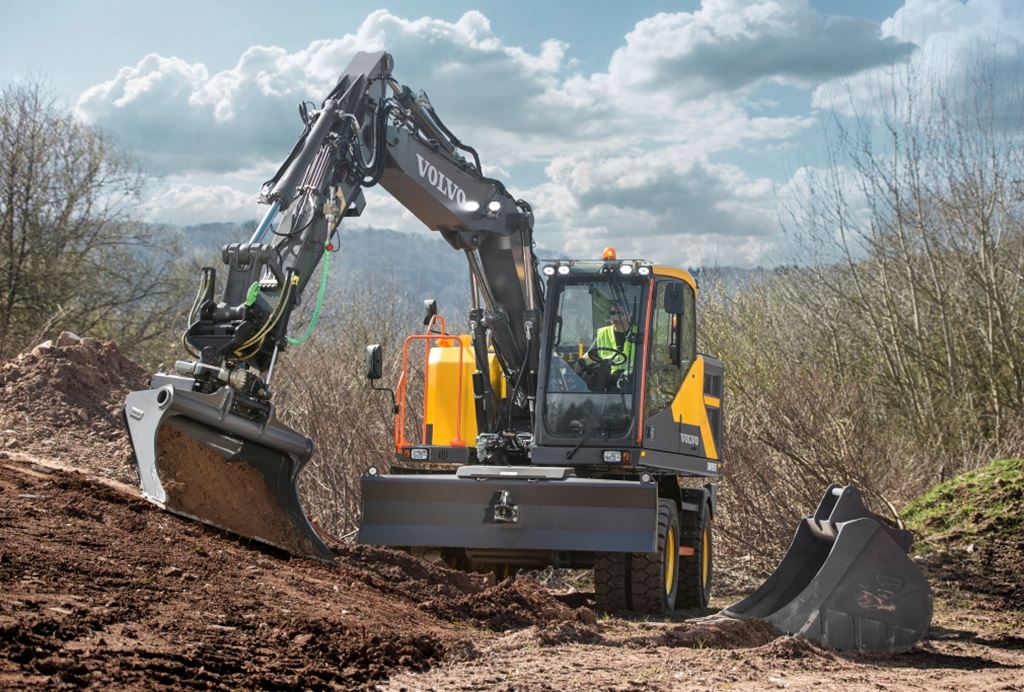

The EWR150E wheeled excavator bridges the gap between 14 ton and 16 ton class machines to deliver everything and more that you would expect from a 15 ton excavator. Work and perform in narrow and confined spaces with the new Volvo short swing radius wheeled excavator, the shortest radius Stage IV machine on the market. Swing into action with superior performance and stability.
Features and Benefits
Volvo EWR150E Excavator - DESIGNED BY YOU, BUILT BY VOLVO
Lifetime Frame & Structure Guarantee Frame (Frame, Boom, Arm)

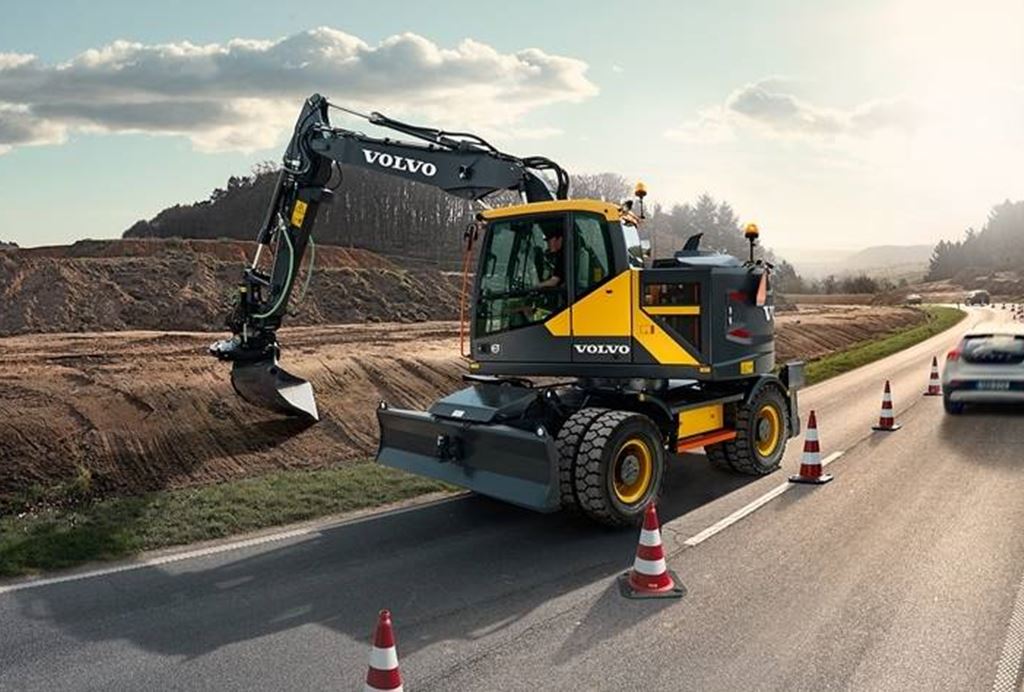

Short radius performance
Leading visibility and safety
Flexible configurations
Premium cabs and engines
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
DESCRIPTION
| Dipper Length - Longest 2 Piece | 10 ft 2 in ft/in (3100 mm) |
| Dipper Length - Longest Articulated | 10 ft 2 in ft/in (3100 mm) |
| Telematics Available | Yes |
| Dipper Length - Shortest Articulated | - |
| Dipper Length - Shortest 2 Piece | - |
| Platform | Care Track |
| Number Of Mono Booms | 1 |
| Dipper Length - Shortest 2 Piece | 6 ft 7 in ft/in (2000 mm) |
| Dipper Length - Shortest Articulated | 6 ft 7 in ft/in (2000 mm) |
| Dipper Length - Short Articulated | 6 ft 7 in ft/in (2000 mm) |
| Number Of 2 Piece Booms | 1 |
| Number Of Articulated Booms | 1 |
| Total Number Of Dippers - 2 Piece | 4 |
| Total Number Of Dippers - Articulated | 4 |
| Dipper Length - Standard 2 Piece | 8 ft ft/in (2450 mm) |
| Dipper Length - Standard Articulated | 8 ft ft/in (2450 mm) |
| Total Number Of Dippers - Mono | 4 |
DRIVELINE
| Engine Output - Net | 137 hp (102 kW) |
| Tire size - Standard | 10.00-20 |
| Standard number of tires | 8 |
| Engine Model | D4J |
| Service Brake Type | Dual Circuit |
| Engine Torque | 446 lbf / ft (605 Nm) |
| Emission Rating | Tier 4 |
| Rated Speed | 2,000 |
| Auto idle | Yes |
| Engine auto shut off | Yes |
| Transmission Type | 3 speed Powershift |
| Displacement | 247 Inches³ (4.04 ltr) |
| Service Brake Actuation | Hydraulic Power Brakes |
| Torque Speed | 1,500 |
| Engine Manufacturer | Volvo |
| Engine Manufacturer | Volvo |
WEIGHTS
| Operating Weight | 36,376 lbs (16500 kg) |
DIMENSIONS
| Mono Boom Size | 14 ft 9 in ft/in (4.5 m) |
| Mono Boom Size | 14 ft 9 in ft/in (4.5 m) |
| Ground Clearance | 13 inches (340 mm) |
| Machine Width - Maximum | 8 ft 4 in ft/in (2540 mm) |
| Maximum Transport Length - Mono Boom | 25 ft 1 in ft/in (7640 mm) |
| Dump Clearance Height - Mono Boom | 18 ft 10 in ft/in (5740 mm) |
| Overall Width | 8 ft 4 in ft/in (2540 mm) |
| Cab Height | 10 ft 4 in ft/in (3150 mm) |
| Overall width stabilizers down | 13 ft 1 in ft/in (3990 mm) |
| Dig Depth - 2 Piece Boom | 16 ft 9 in ft/in (5100 mm) |
| Dig Depth - Articulated Boom | 16 ft 9 in ft/in (5100 mm) |
| Ground Level Reach - Mono Boom | 26 ft 11 in ft/in (8200 mm) |
| Dig Depth - Mono Boom | 16 ft 8 in ft/in (5070 mm) |
| Transport Height - Over Mono Boom | 10 ft 11 in ft/in (3330 mm) |
| Dozer Blade - Width | 8 ft 4 in ft/in (2540 mm) |
| Standard Dipper Length | 8 ft ft/in (2450 mm) |
| Wheelbase | 8 ft 6 in ft/in (2600 mm) |
| Longest Dipper Length | 10 ft 2 in ft/in (3100 mm) |
| Maximum Dig Height - Mono Boom | 28 ft 1 in ft/in (8560 mm) |
| Rear Axle To Slew Centre | 8 ft 6 in ft/in (1150 mm) |
PERFORMANCE
| Dipper Short, Boost Tearout Artic | 16,411 lbf (73 kN) |
| Max bucket breakout, Mono Boom | 24,392 lbf (108.5 kN) |
| Transmission Pump Flow | - |
| Slew Speed | 9 |
| Transmission Pump | - |
| Sound Level External | 100 |
| Dipper Standard, Boost Tearout Artic | 14,275 lbf (63.5 kN) |
| Boom Pressure | 4,714 PSI (325 bar) |
| Dipper Longest, Boost Tearout Artic | 12,027 lbf (53.5 kN) |
| Sound Level Standard | ISO 6,396 / 2000/14 EC |
| Sound Level internal | 71 |
CAPACITIES
| Bucket Pivot Angle | - |
| Fuel Tank | 53 gallons (US) (200 ltr) |
