Excavators

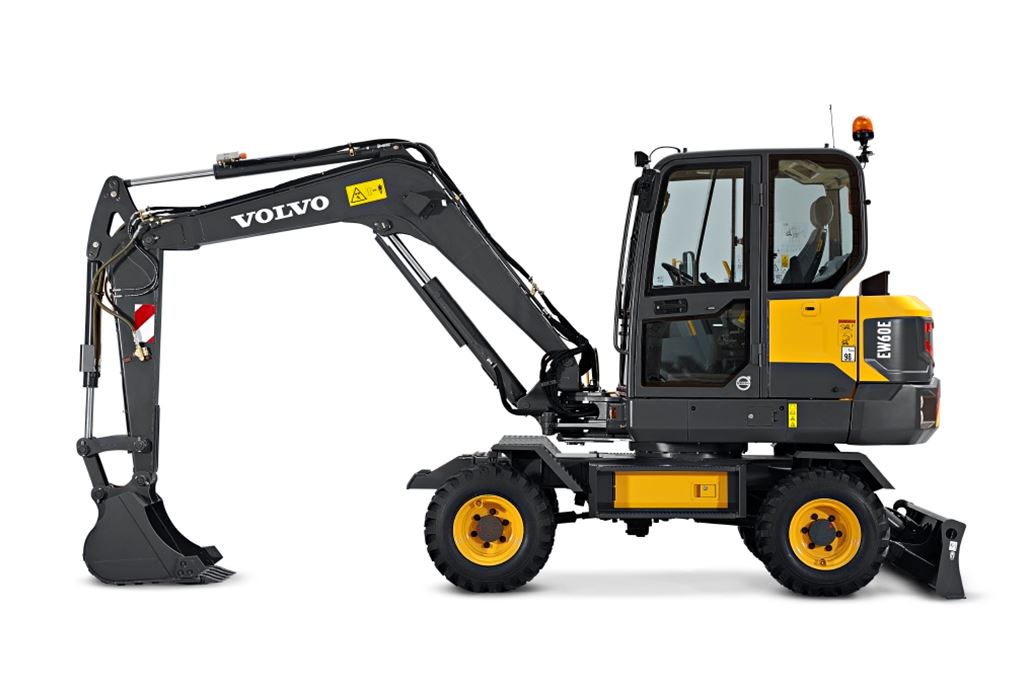

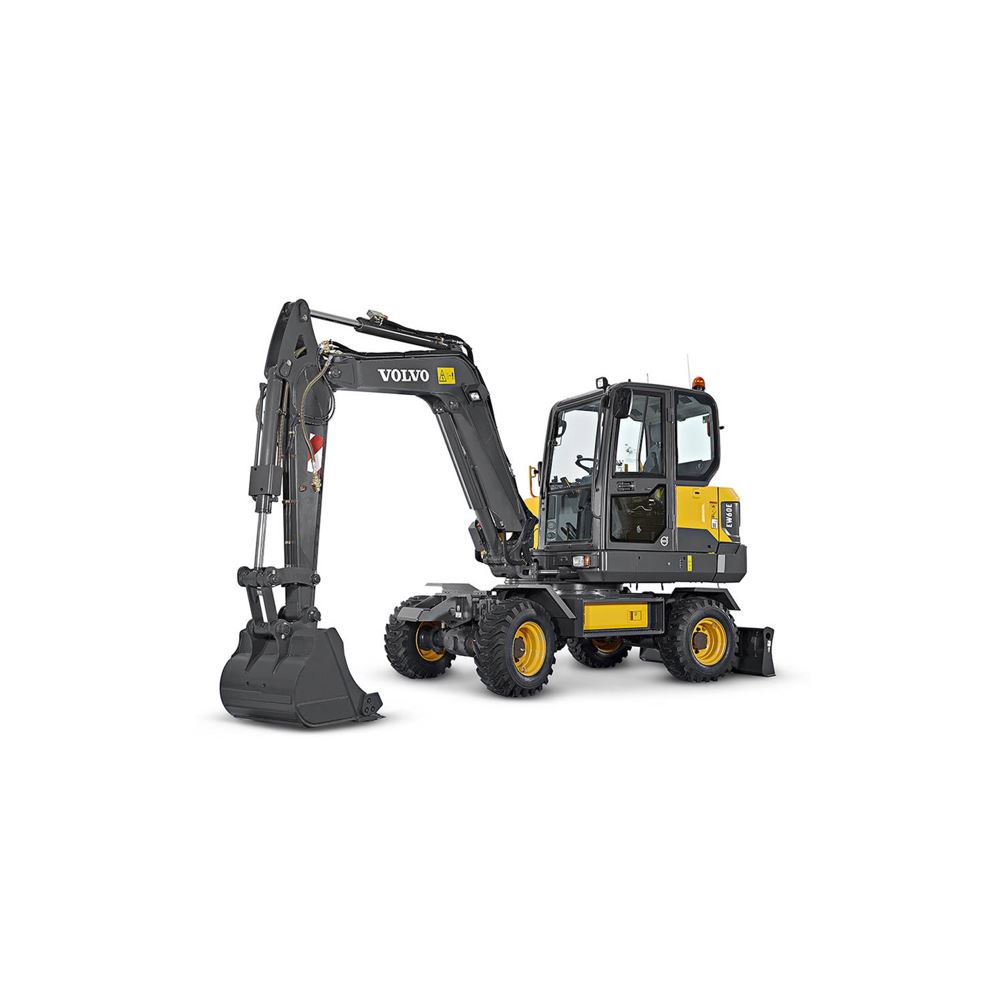

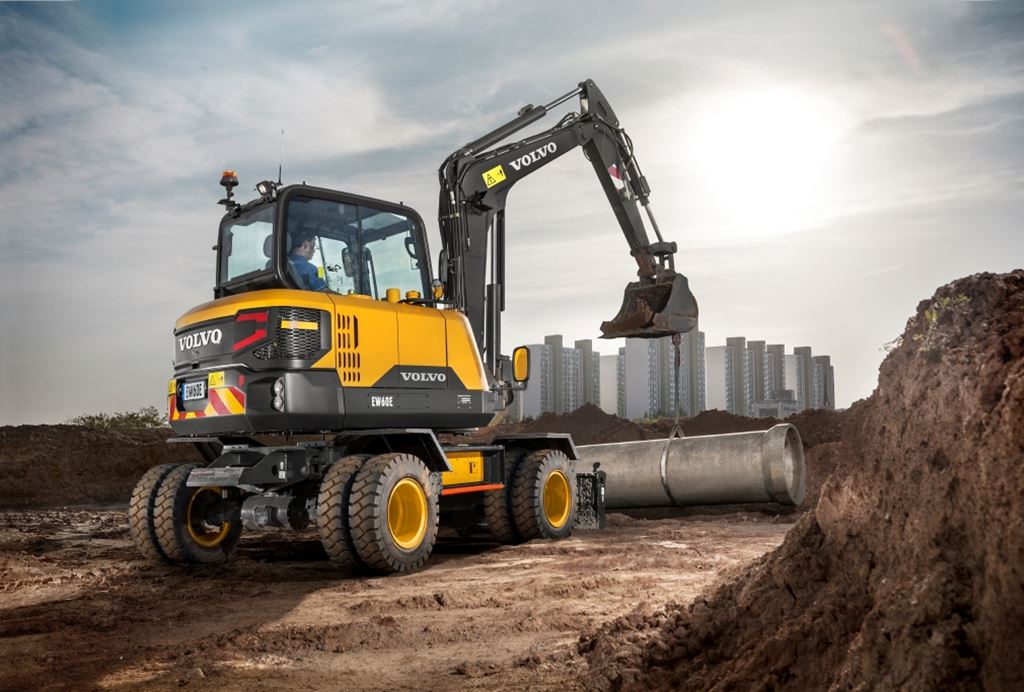

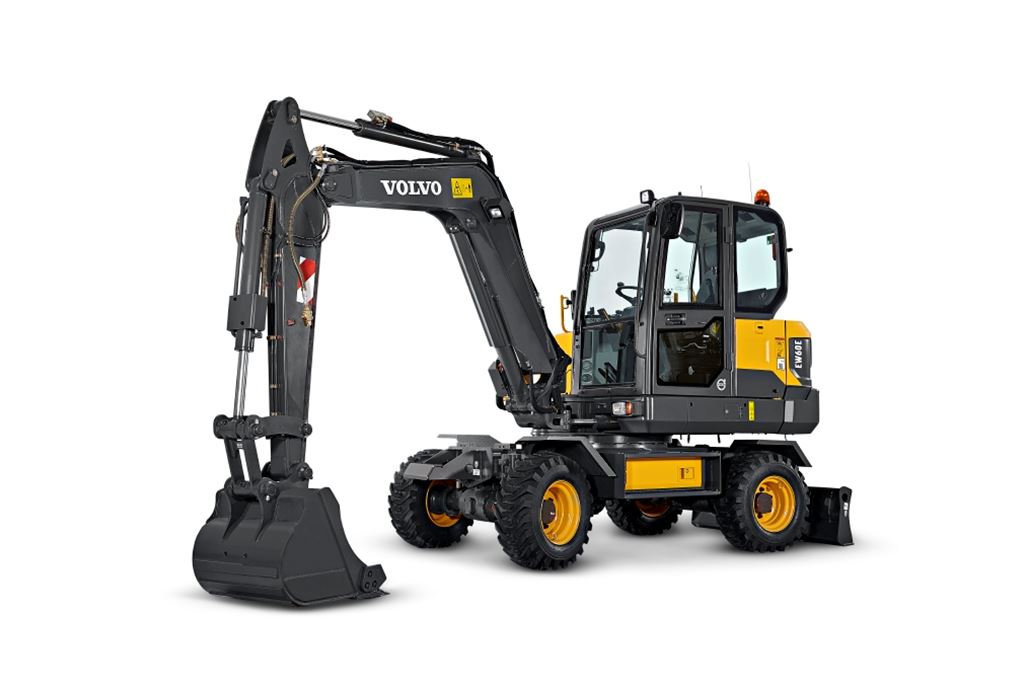

Volvo EW60E
Work in comfort all day, every day and get more done. The new and improved EW60E wheeled excavator features a larger cab design for a comfortable and more productive operator environment. The cab delivers superior comfort to increase your efficiency and reduce fatigue for precise operation.
Downloads
Features and Benefits
Volvo EW60E Excavator - VERSATILITY AND SERVICEABILITY MEET

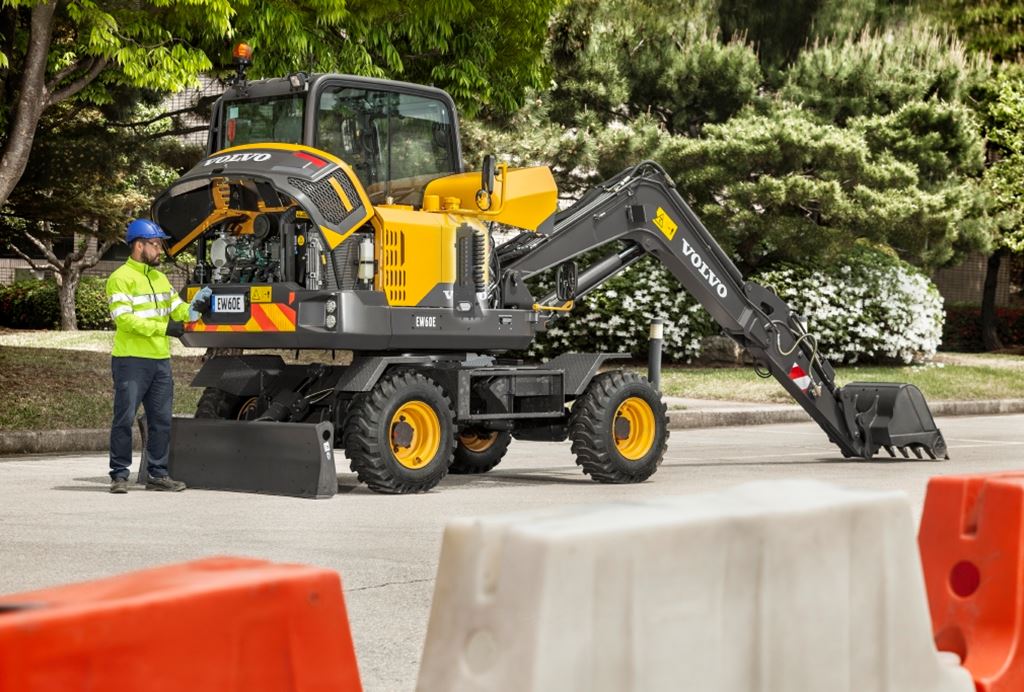

Outstanding serviceability

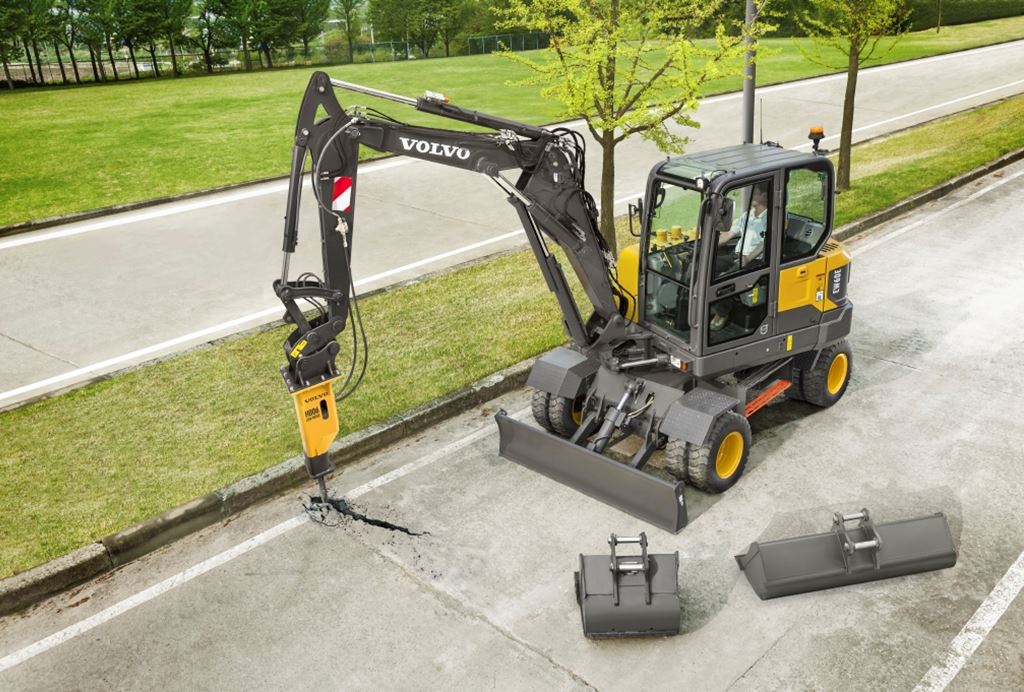

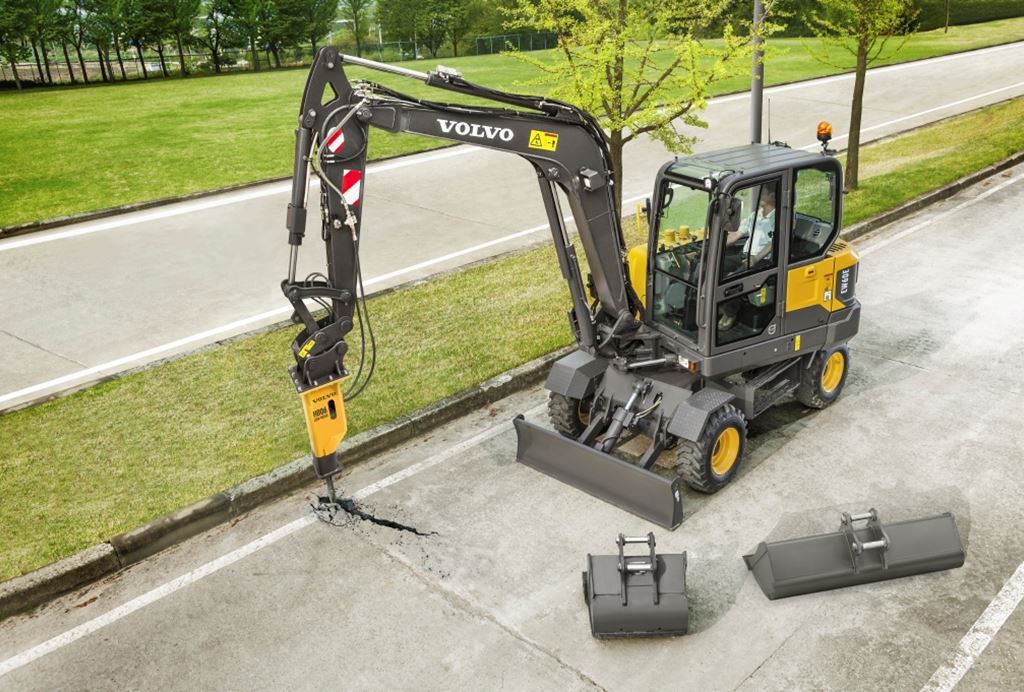

Wide range of attachments
Lifetime Frame & Structure Guarantee Frame (Frame, Boom, Arm)
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
DIMENSIONS
| Maximum Dig Height - Mono Boom | 19 ft 8 in ft/in (6007 mm) |
| Longest Dipper Length | - |
| Wheelbase | 6 ft 11 in ft/in (2100 mm) |
| Standard Dipper Length | 5 ft 3 in ft/in (1600 mm) |
| Transport Height - Over Mono Boom | - |
| Dig Depth - Mono Boom | 10 ft 10 in ft/in (3292 mm) |
| Ground Level Reach - Mono Boom | 19 ft 1 in ft/in (5810 mm) |
| Dig Depth - 2 Piece Boom | - |
| Dig Depth - Articulated Boom | - |
| Overall width stabilizers down | 9 ft 4 in ft/in (1930 mm) |
| Cab Height | 9 ft 4 in ft/in (2855 mm) |
| Maximum Transport Length - Mono Boom | 19 ft 3 in ft/in (5869 mm) |
| Machine Width - Maximum | 9 ft 4 in ft/in (1930 mm) |
| Rear Axle To Slew Centre | - |
| Mono Boom Size | 9 ft 6 in ft/in (2.9 m) |
| Mono Boom Size | 9 ft 6 in ft/in (2.9 m) |
| Ground Clearance | 12 inches (295 mm) |
| Dump Clearance Height - Mono Boom | 14 ft 7 in ft/in (4443 mm) |
| Overall Width | 6 ft 1 in ft/in (1845 mm) |
| Dozer Blade - Width | 6 ft 4 in ft/in (1930 mm) |
DRIVELINE
| Torque Speed | 1,500 |
| Service Brake Actuation | - |
| Displacement | 160 Inches³ (2.615 ltr) |
| Engine Output - Net | 61 hp (45.2 kW) |
| Auto idle | Yes |
| Rated Speed | 2,400 |
| Emission Rating | Tier 4 |
| Engine Torque | 163 lbf / ft (222 Nm) |
| Service Brake Type | Wet Multi Discs |
| Engine Model | D 3 H |
| Tire size - Standard | 12 - 17 |
| Standard number of tires | 4 |
| Transmission Type | 2 Speed Powershift |
| Engine Manufacturer | Volvo |
| Engine Manufacturer | Volvo |
| Engine auto shut off | Yes |
DESCRIPTION
| Total Number Of Dippers - Mono | 1 |
| Dipper Length - Standard 2 Piece | - |
| Dipper Length - Standard Articulated | - |
| Dipper Length - Longest 2 Piece | - |
| Dipper Length - Longest Articulated | - |
| Total Number Of Dippers - 2 Piece | - |
| Total Number Of Dippers - Articulated | - |
| Number Of 2 Piece Booms | - |
| Number Of Articulated Booms | - |
| Dipper Length - Shortest 2 Piece | - |
| Dipper Length - Shortest Articulated | - |
| Dipper Length - Short Articulated | - |
| Number Of Mono Booms | 1 |
| Platform | Care Track |
| Dipper Length - Shortest Articulated | - |
| Dipper Length - Shortest 2 Piece | - |
| Telematics Available | Yes |
PERFORMANCE
| Sound Level internal | 78 |
| Sound Level Standard | ISO 6,396 / 2000/14 EC |
| Dipper Standard, Boost Tearout Artic | - |
| Sound Level External | 97 |
| Transmission Pump | - |
| Slew Speed | 10 |
| Dipper Short, Boost Tearout Artic | - |
| Max bucket breakout, Mono Boom | 9,734 lbf (43.3 kN) |
| Transmission Pump Flow | - |
| Boom Pressure | 3,263 PSI (225 bar) |
| Dipper Longest, Boost Tearout Artic | - |
WEIGHTS
| Operating Weight | 12,970 lbs (5880 kg) |
CAPACITIES
| Fuel Tank | 29 gallons (US) (110 ltr) |
| Bucket Pivot Angle | - |
