Excavators

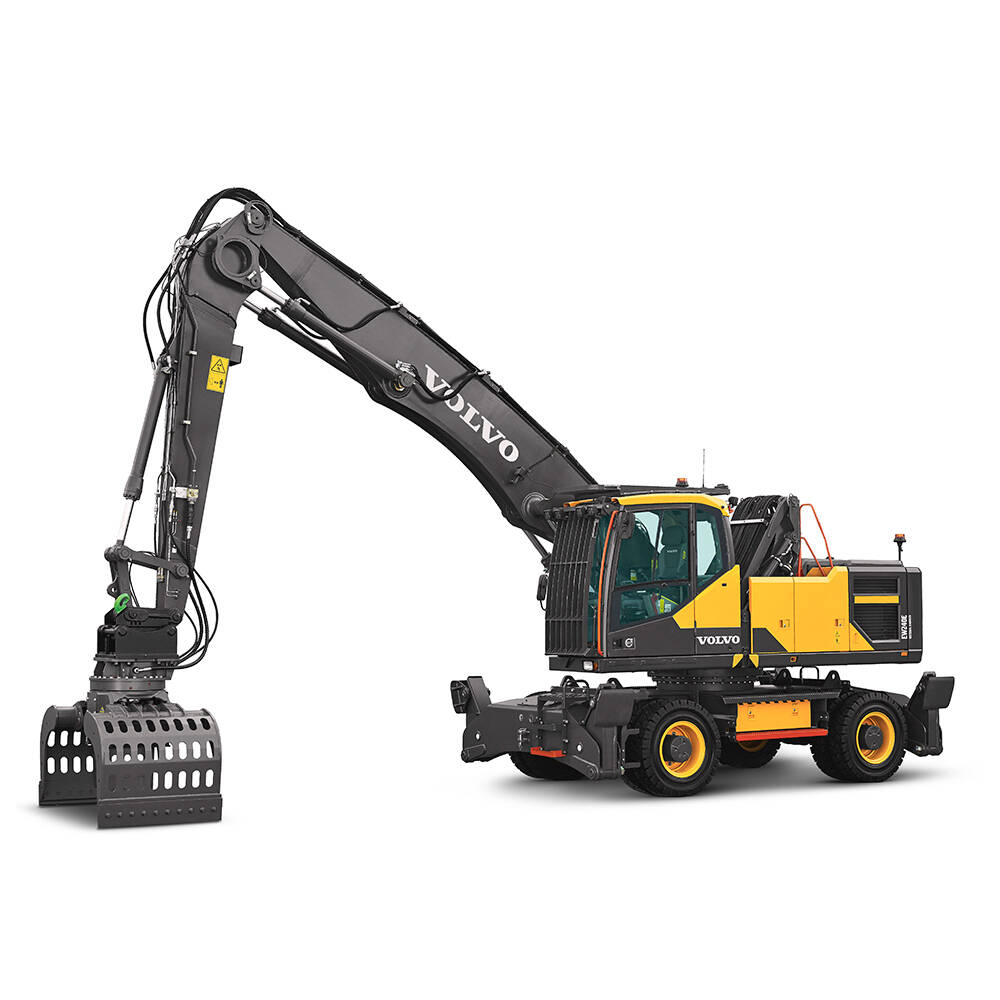

Volvo EW240E MH
PUT WASTE IN ITS PLACE

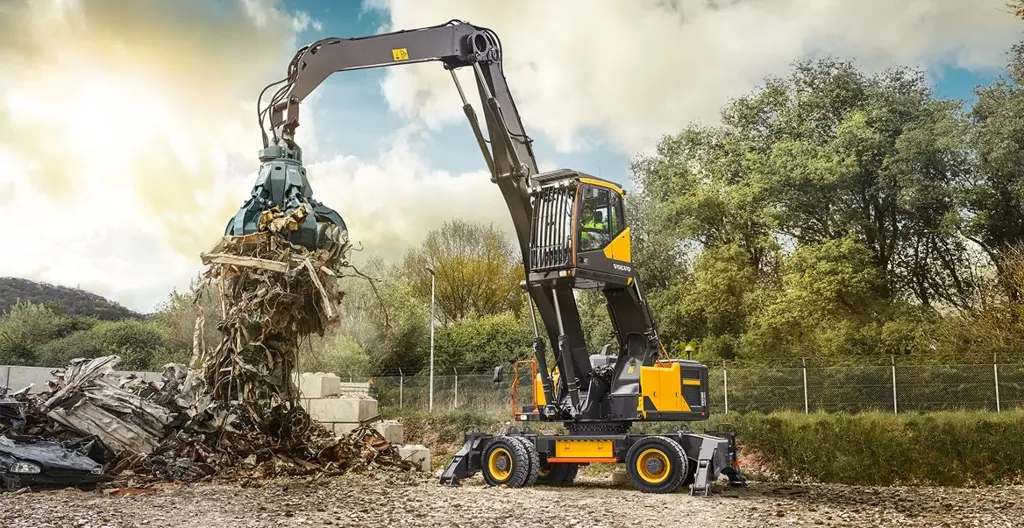

The EW240E Material Handler is tailor-made for waste and recycling applications. Designed and manufactured in the Volvo factory, it is our largest material handler yet and is built on decades of experience producing proven multi-purpose and reliable Volvo wheeled excavators.
Purchase this machine
Reach out to our team to learn more.
Rent this machine
Get a free rental quote.
Downloads
Features and Benefits
Volvo EW240E MH Excavator - PUT WASTE IN ITS PLACE
- OPERATOR'S CHOICE
- Work in comfort in the spacious Volvo cab, which can be elevated to provide operators with an eye-view 16 feet above the ground. For smooth operation when working at height, the double damped cab mounts reduce vibration and noise. Operators can raise the cab and move the outriggers directly from the joysticks.
- CONFIGURED YOUR WAY
- To enhance productivity, configure your machine both inside and out, and have it delivered to you straight from the factory. For increased visibility, you can fit your machine with Volvo Smart View or a one-piece polycarbonate window, with protection film. Additionally, you can select from a gooseneck arm or sorting arm, to ensure you always have the best grasp on the job.
- DO MORE JOBS WITH JUST ONE MACHINE
- Boost your machine’s productivity with a range of compatible attachments, available straight from the Volvo factory. You also have access to a range of Volvo Services, designed to secure maximum return on investment. From Genuine Volvo Parts and Volvo service technicians, to proactive machine monitoring and operator training – everything is available from one place.
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
Description
| Display And Instruments | Monitor & diagnostics |
| Air Conditioning | Climate control |
| Longest Dipper | 16 ft 5 in (5000 mm) |
| Reference Dipper | 16 ft 5 in (5000 mm) |
Driveline
| Engine Manufacturer | Volvo |
| Engine Model | D 6J |
| Displacement | 348 Inches³ (5.7 ltr) |
| Engine Output - Net | 167 hp (126 kW) |
| Engine Output - Gross | 173 hp (129 kW) |
| Number Of Motor Speeds | Infinitely variable |
| Standard Number Of Tires | 8 |
| Slew Brake Type | Wet multi disc |
| Slew Brake Actuation | Spring applied-hydraulic release |
| Service Brake Type | Multi Wet Disc |
| Service Brake Actuation | Dual Circuit |
| Service Brake Location | Axle |
| Parking Brake Type | Wet multi disc |
| Parking Brake Actuation | Spring applied- hydraulic release |
Dimensions
| Maximum Transport Length - Straight Boom | 31 ft 3 in (9527 mm) |
| Max. Transport Height - Straight Boom | 10 ft 9 in (3274 mm) |
| Overall Width | 8 ft 10 in (2700 mm) |
| Overall Width - Maximum | 9 ft 8 in (2950 mm) |
| Tailswing Radius | 8 ft 7 in (2624 mm) |
| Cab Riser | Hydraulic |
| Overall Width Stabilizers Down | 14 ft (4257 mm) |
| Maximum Reach - Straight Boom - Standard | 36 ft 8 in (11200 mm) |
| Maximum Height - Straight Boom - Attachment Pivot | 41 ft 4 in (12600 mm) |
| Maximum Depth - Straight Boom - Attachment Pivot | 10 ft 6 in (3200 mm) |
| Reach With Boom In Vertical Position | 10 ft 10 in (3300 mm) |
| Straight Boom Height At Max Reach | 10 ft (3000 mm) |
| Max Lift At Max Reach-Straight | 5,100 lbs (2300 kg) |
| Oscillation | Front Axle |
Capacities
| Fuel Tank Capacity | 77 gallons (US) (290 ltr) |
| Voltage | 24 V |
Performance
| Main Pumps Maximum Flow | 99 gallons (US) / min (375 lt/min) |
Weights
| Operating Weight | 57,320 lbs (26000 kg) |
| Standard Attachment Type | Orange peel grapple |
