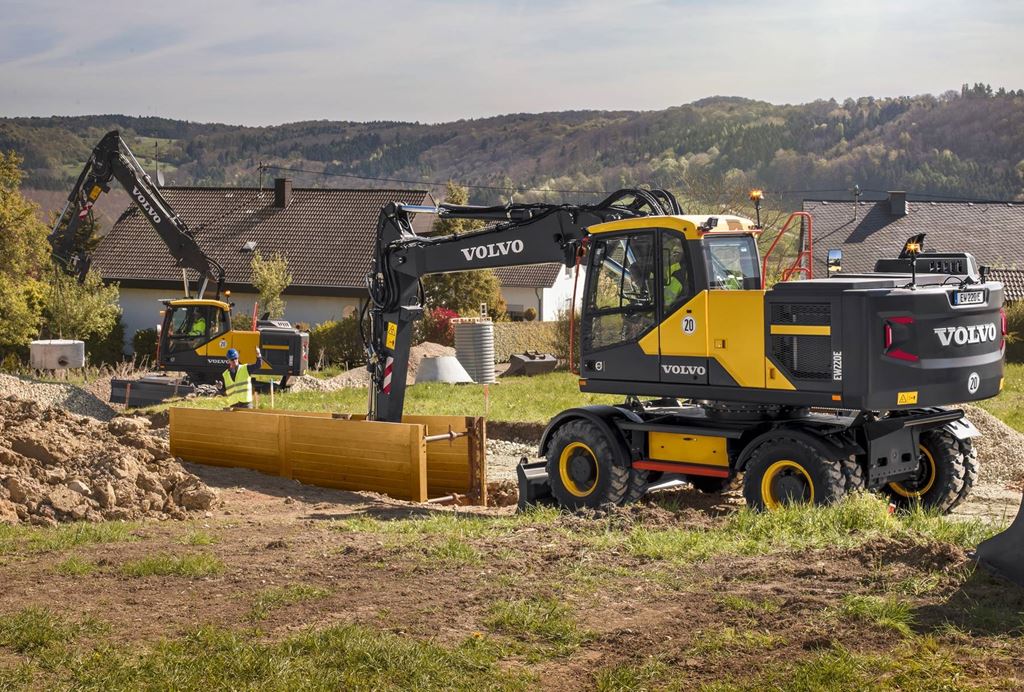

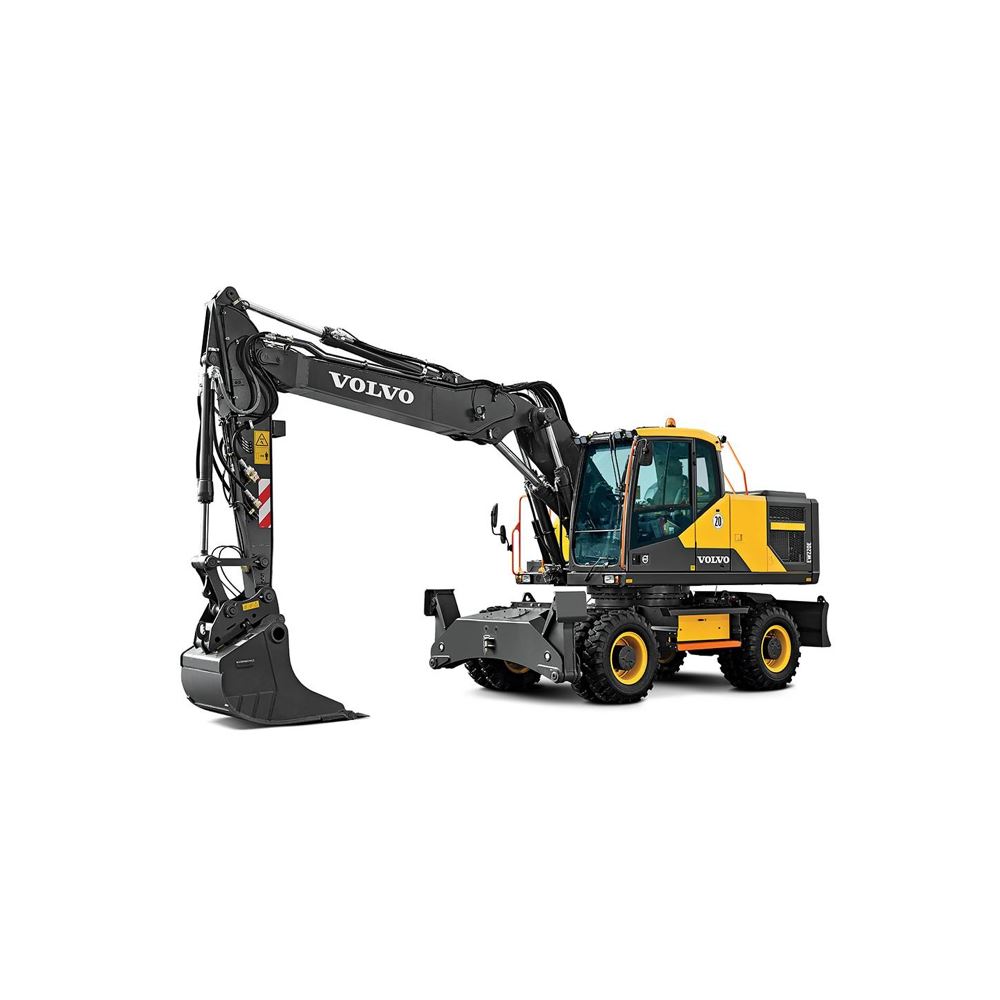

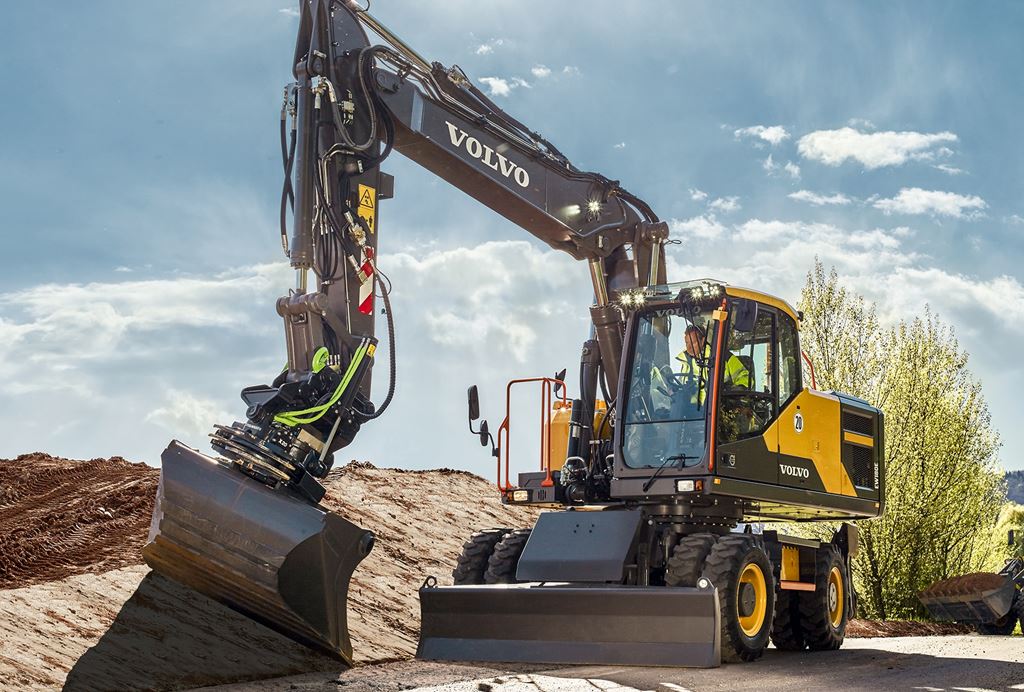

Volvo EW220E
Get ready to work with the EW220E, offering precise movements to help you maintain total control. Fitted with a powerful Volvo engine and perfectly matched hydraulic system to deliver high performance, excellent control and low fuel consumption, the versatile machine makes easy work of even the most demanding applications.
Downloads
Features and Benefits
Volvo EW220E Excavator - EXCAVATOR EXCELLANCE
Lifetime Frame & Structure Guarantee Frame (Frame, Boom, Arm)
Enhanced controllability
Outstanding serviceability
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
DRIVELINE
| Engine Output - Net | 169 hp (126 kW) |
| Fuel Consumption @ Rated Power | - |
| Service Brake Actuation | Dual Circuit |
| Standard tire size - twin | 10.00-20 |
| Displacement | 348 Inches³ (5.7 ltr) |
| Parking Brake Actuation | Spring applied- hydraulic release |
| Service Brake Type | - |
| Slew Brake Type | Wet multi disc |
| Parking Brake Type | Wet multi disc |
| Transmission Motor Type | Hydrostatic |
| Slew Brake Actuation | Spring applied-hydraulic release |
| Engine Manufacturer | Volvo |
| Engine Model | D 6J |
| Number Of Motor Speeds | 3 |
| Transmission Type | 3 Speed Powershift |
| Emission Rating | Tier 4 |
| Service Brake Location | Axle |
WEIGHTS
| Operating Weight | 50,927 lbs (23100 kg) |
| Operational capacity 1 | - |
| Side lift Straight @ 6m | - |
| Side lift Straight @ 9m | - |
| End lift Straight @ 6m | - |
| End lift Straight @ 9m | - |
DESCRIPTION
| Dipper Type | Goose Neck |
| Display & Instruments | 8 inch color LCD |
| Longest Dipper | 10 ft 6 in ft/in (3200 mm) |
| Boom Length Straight | - |
| Air Conditioning | Climate control |
| Reference Dipper | 10 ft 6 in ft/in (3200 mm) |
| Number of Straight Booms | - |
| Total Number Of Dippers | 1 |
DIMENSIONS
| Reach with boom in vertical position | - |
| Cab Riser | Fixed |
| Overall Width | 8 ft 5 in ft/in (2540 mm) |
| Transport Height - Over Straight Boom | 11 ft 7 in ft/in (3530 mm) |
| Maximum Reach - Straight Boom - Longest | - |
| Overall Width - Maximum | 8 ft 4 in ft/in (2540 mm) |
| Tailswing Radius | 8 ft 7 in ft/in (2624 mm) |
| Side lift Straight at GL @ 6 m | - |
| End lift Straight at GL @ 9 m | - |
| Maximum Transport Length - Straight Boom | - |
| Maximum Reach - Straight Boom - Standard | - |
| Maximum Reach - Straight Boom - Attachment Pivot | - |
| End lift Straight at GL @ 6 m | - |
| Oscillation | Front Axle |
| Side lift Straight at GL @ 9 m | - |
| Tail Length - Over Side | 4 ft 7 in ft/in (1404 mm) |
| Max. transport height - straight boom | - |
| Max lift @ max reach-Straight | - |
| Transport Length - Straight Boom | - |
| Ground Clearance | 13 inches (334 mm) |
| Straight Boom Height @Max Reach | - |
| Counterweight Clearance | 4 ft 3 in ft/in (1295 mm) |
| Maximum Depth - Straight Boom - Attachment Pivot | - |
CAPACITIES
| Voltage | 24 |
| Fuel tank capacity | 78 gallons (US) (290 ltr) |
| Hydraulic Tank | 44 gallons (US) (170 ltr) |
PERFORMANCE
| Boom pressure | 4,931 PSI (340 bar) |
| Max Swing Pump Flow | - |
| Boost pressure | 5,439 PSI (375 bar) |
