Excavators
Volvo EW200E MH
EXCAVATOR EXCELLENCE
Get ready to work with the EW220E, offering precise movements to help you maintain total control. Fitted with a powerful Volvo engine and perfectly matched hydraulic system to deliver high performance, excellent control and low fuel consumption, the versatile machine makes easy work of even the most demanding applications.
Purchase this machine
Reach out to our team to learn more.
Rent this machine
Get a free rental quote.
Downloads
Features and Benefits
Volvo EW200E MH Excavator -

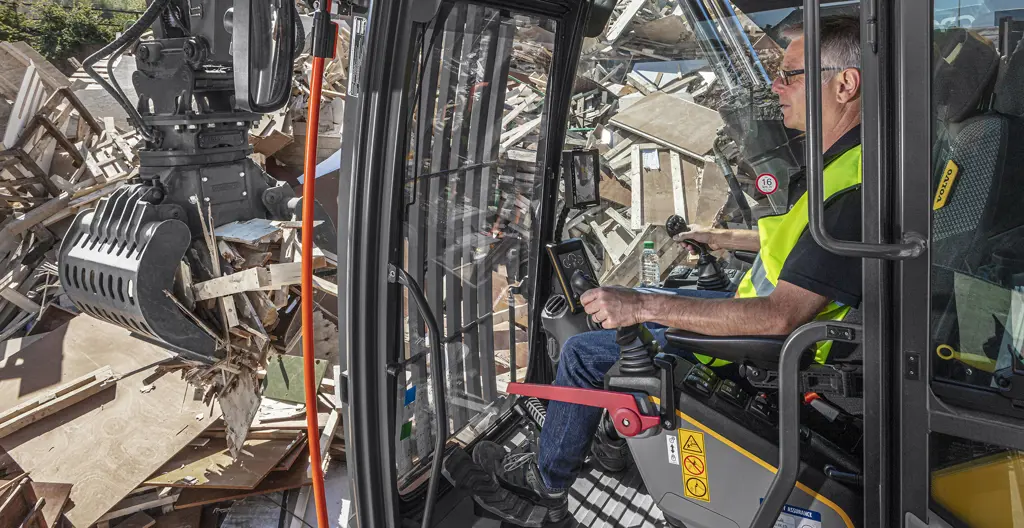

- ENHANCED CONTROLLABILITY
- Experience ultimate control of the entire machine from the intuitive joysticks, including tiltrotator, blade and outriggers.
- REACH FURTHER, LIFT MORE
- The heavy-duty two-piece boom and arm offers a total reach of over 10 meters, giving you the versatility to do even more.
- STEELWRIST® TILTROTATOR
- Boost productivity and reduce fuel consumption with the factory-fitted Steelwrist® tiltrotator, offering ultimate control using the two joysticks and machine display.
- SUPERIOR SERVICEABILITY
- Greasing points are grouped together for fast maintenance and filters placed behing wide-opening engine doors.
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
Description
| Longest Dipper | 13 ft 1 in ft-in (4000 mm) |
| Reference Dipper | 11 ft 5 in ft-in (3500 mm) |
Driveline
| Engine Manufacturer | Volvo |
| Engine Model | D6J |
| Displacement | 348 in³ (5.7 L) |
| Engine Output - Net | 169 hp (126 kW) |
| Engine Output - Gross | 173 hp (129 kW) |
| Number Of Motor Speeds | Infinitely variable |
| Standard Number Of Tires | 8 |
| Service Brake Location | Axle |
Dimensions
| Overall Width | 8 ft 3 in ft-in (2520 mm) |
| Tailswing Radius | 7 ft 2 in ft-in (2190 mm) |

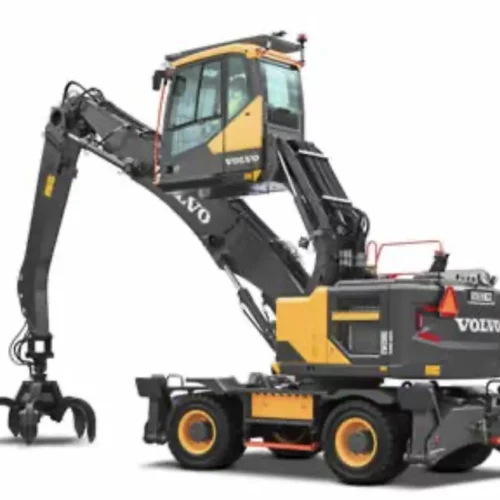

| Cab Riser | Hydraulic |
| Overall Width Stabilizers Down | 13 ft 3 in ft-in (4040 mm) |
| Maximum Reach - Straight Boom - Standard | 39 ft 1 in ft-in (11900 mm) |
| Maximum Height - Straight Boom - Attachment Pivot | 36 ft 9 in ft-in (11200 mm) |
| Maximum Depth - Straight Boom - Attachment Pivot | 4 ft 11 in ft-in (1500 mm) |
| Oscillation | Front Axle |
Capacities
| Fuel Tank Capacity | 66 gallon (US) (250 L) |
Performance
| Main Pumps Maximum Flow | 79 gallon (US)/min (300 L/min) |
Weights
| Operating Weight | 50,376 lb (22850 kg) |
| Standard Attachment Type | Sorting grab |
