Excavators

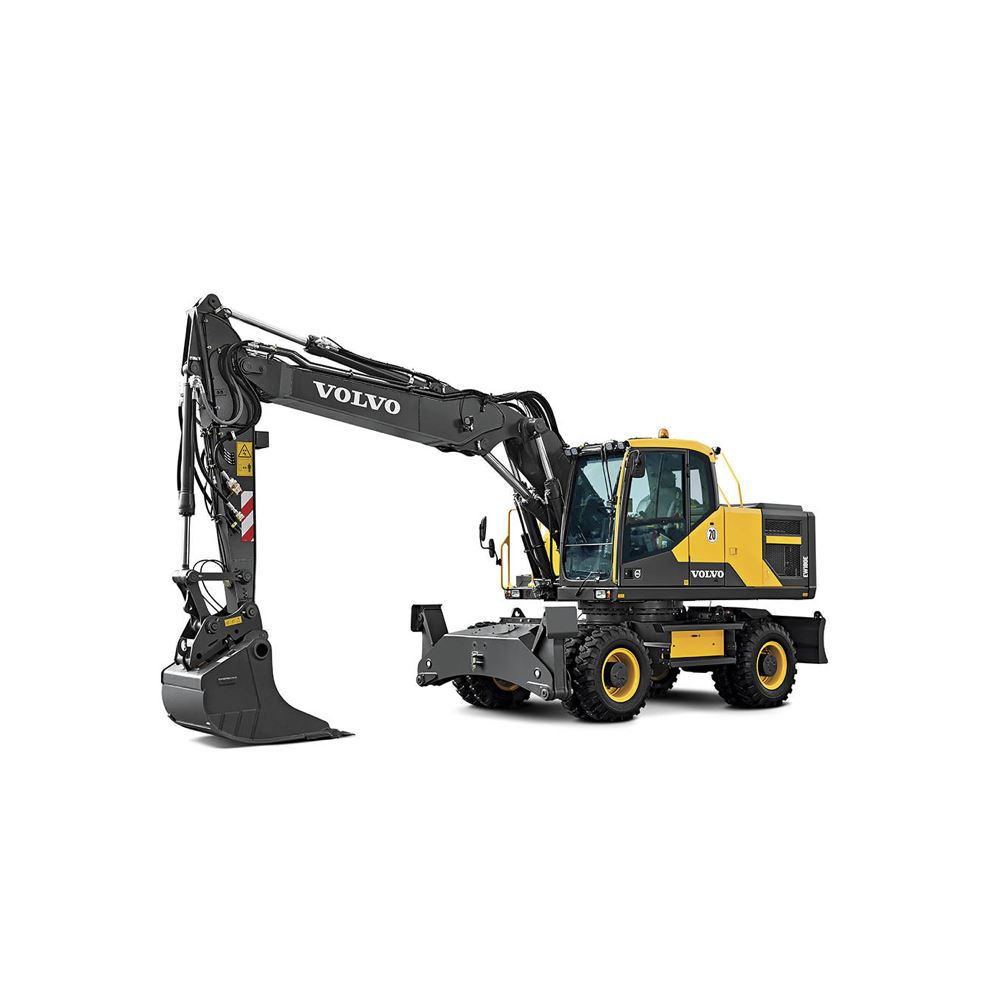

Volvo EW180E
Built with our customers for our customers, the Volvo EW180E is the most advanced multi-tool carrier in the industry. Made in Germany, Volvo’s wheel excavator boast a 40 year heritage and have continuously developed into highly versatile and high quality machines. With maneuverability at the heart of its design, our new EW180E will perform time and time again on any job site.
Downloads
Features and Benefits
Volvo EW180E Excavator - ELEVATE YOUR OPERATIONS
Lifetime Frame & Structure Guarantee Frame (Frame, Boom, Arm)

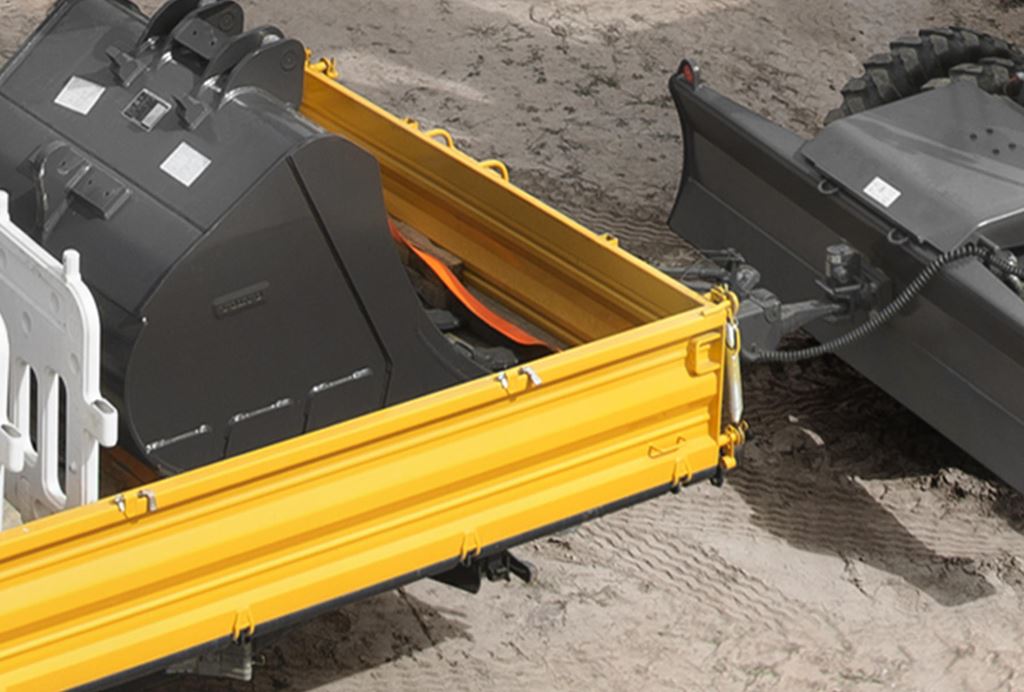

Trailer hitch

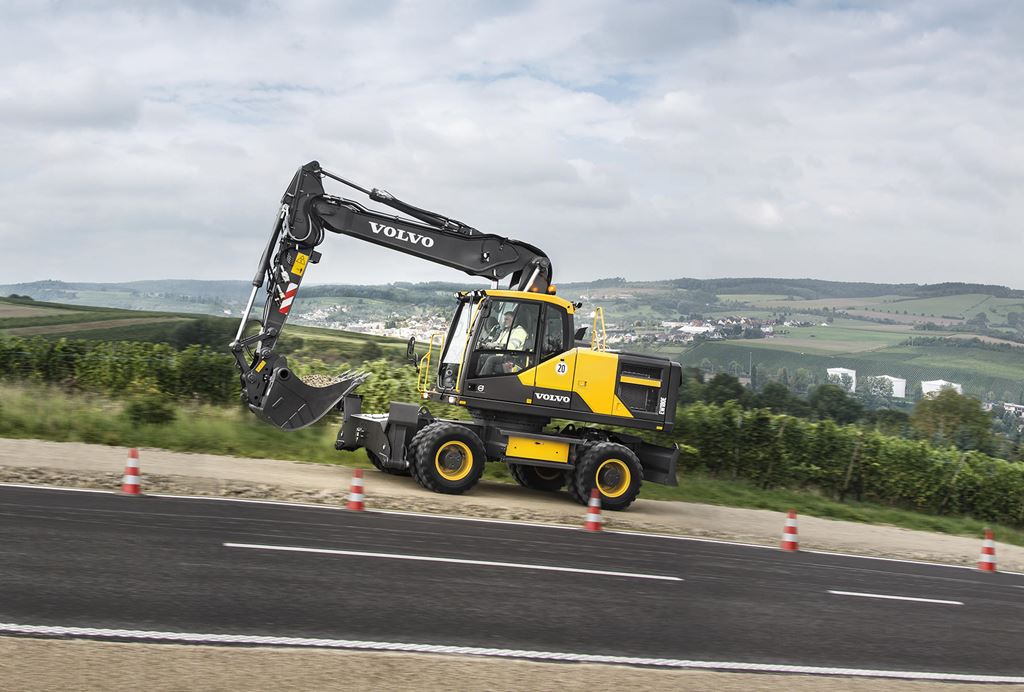

Boom suspension system

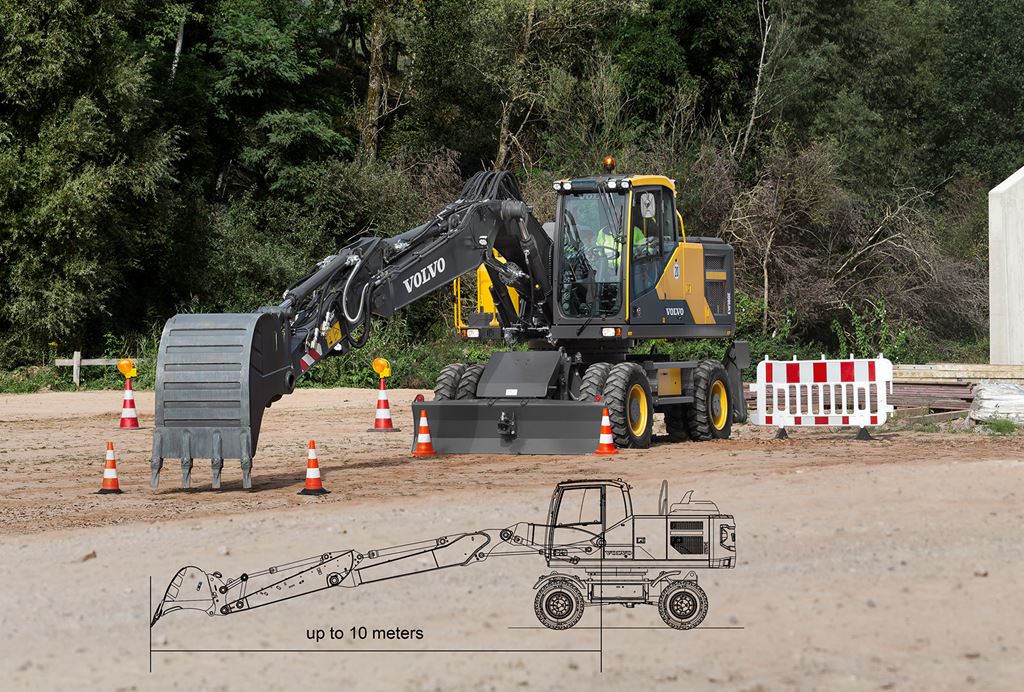

Stretched two-piece boom

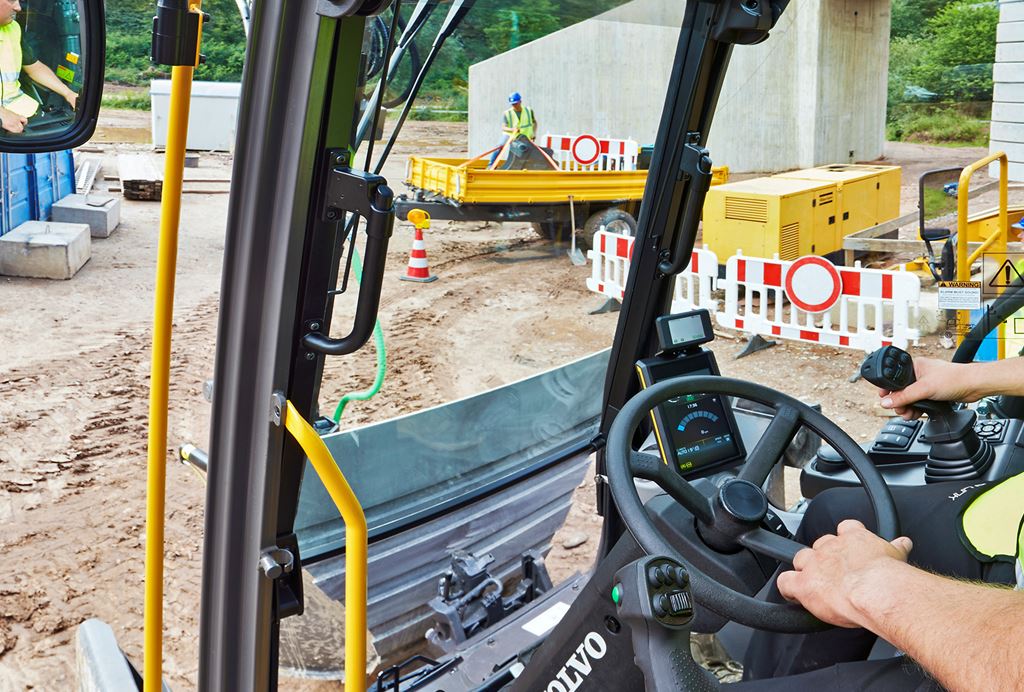

Enhanced controllability

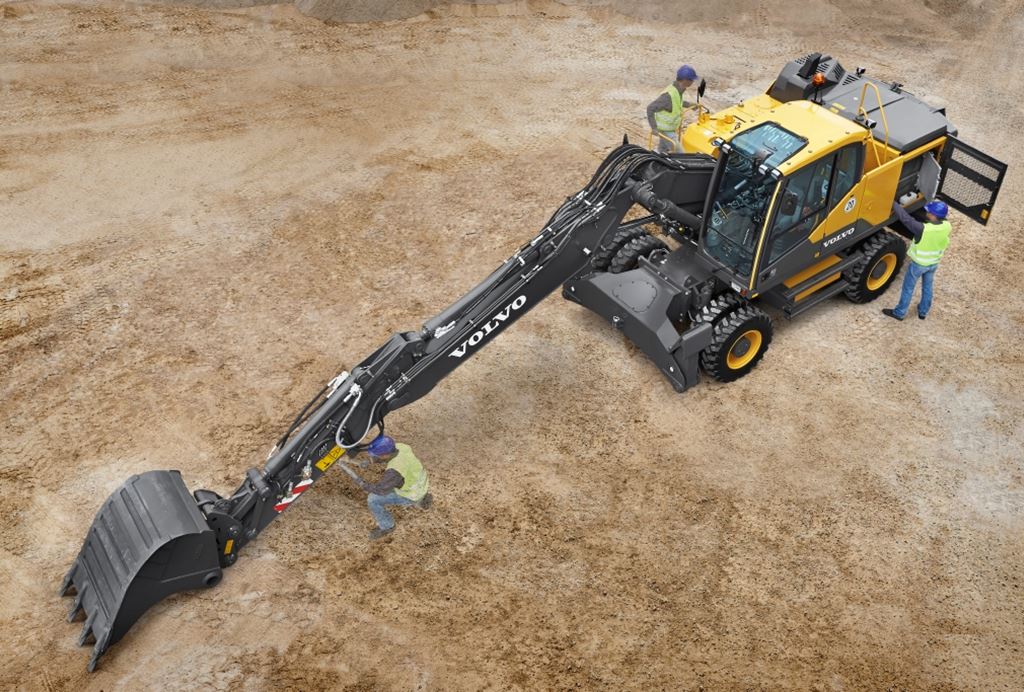

Outstanding serviceability
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
DIMENSIONS
| Max. transport height - straight boom | - |
| Side lift Straight at GL @ 9 m | - |
| End lift Straight at GL @ 6 m | - |
| Maximum Reach - Straight Boom - Attachment Pivot | - |
| Maximum Transport Length - Straight Boom | - |
| End lift Straight at GL @ 9 m | - |
| Counterweight Clearance | 4 ft 2 in ft/in (1280 mm) |
| Side lift Straight at GL @ 6 m | - |
| Straight Boom Height @Max Reach | - |
| Ground Clearance | 13 inches (333 mm) |
| Transport Length - Straight Boom | - |
| Max lift @ max reach-Straight | - |
| Maximum Reach - Straight Boom - Longest | - |
| Overall Width | 8 ft 3 in ft/in (2520 mm) |
| Cab Riser | Fixed |
| Reach with boom in vertical position | - |
| Overall Width - Maximum | 8 ft 4 in ft/in (2540 mm) |
| Tailswing Radius | 8 ft 4 in ft/in (2550 mm) |
| Maximum Reach - Straight Boom - Standard | - |
| Oscillation | Front Axle |
| Maximum Depth - Straight Boom - Attachment Pivot | - |
| Tail Length - Over Side | 4 ft 2 in ft/in (1280 mm) |
| Transport Height - Over Straight Boom | - |
DESCRIPTION
| Reference Dipper | 10 ft 6 in ft/in (3200 mm) |
| Longest Dipper | - |
| Display & Instruments | 8 inch color LCD |
| Total Number Of Dippers | 1 |
| Number of Straight Booms | - |
| Dipper Type | Droop Nose |
| Boom Length Straight | - |
| Air Conditioning | Climate control |
CAPACITIES
| Hydraulic Tank | 44 gallons (US) (165 ltr) |
| Voltage | 24 |
| Fuel tank capacity | 78 gallons (US) (295 ltr) |
DRIVELINE
| Service Brake Location | Axle |
| Number Of Motor Speeds | Infinitely variable |
| Engine Model | D 6J |
| Engine Manufacturer | Volvo |
| Slew Brake Actuation | Spring applied-hydraulic release |
| Transmission Motor Type | Variable displacement motor |
| Engine Output - Net | 169 hp (126 kW) |
| Parking Brake Type | Wet multi disc |
| Service Brake Type | - |
| Displacement | 348 Inches³ (5.7 ltr) |
| Standard tire size - twin | 10.00-20 |
| Service Brake Actuation | Dual Circuit |
| Fuel Consumption @ Rated Power | - |
| Parking Brake Actuation | Spring applied- hydraulic release |
| Slew Brake Type | Wet multi disc |
| Emission Rating | Tier 4 |
| Transmission Type | Powershift |
WEIGHTS
| Operating Weight | 43,872 lbs (19900 kg) |
| End lift Straight @ 6m | - |
| Operational capacity 1 | - |
| Side lift Straight @ 9m | - |
| Side lift Straight @ 6m | - |
| End lift Straight @ 9m | - |
PERFORMANCE
| Boom pressure | 4,931 PSI (340 bar) |
| Max Swing Pump Flow | - |
| Boost pressure | 5,439 PSI (375 bar) |
