Excavators
Volvo EW160E
Built with our customers for our customers, the new Volvo EW160E is the most advanced multi-tool carrier in the industry. Made in Germany, Volvo’s wheel excavator boasts a 40 year heritage and have continuously developed into highly versatile and high quality machines.
Features and Benefits
Volvo EW160E Excavator - OPERATE WITH CONTROL AND COMFORT
Lifetime Frame & Structure Guarantee Frame (Frame, Boom, Arm)
Trailer hitch
Boom suspension system
Stretched two-piece boom
Hydraulic elevated cab

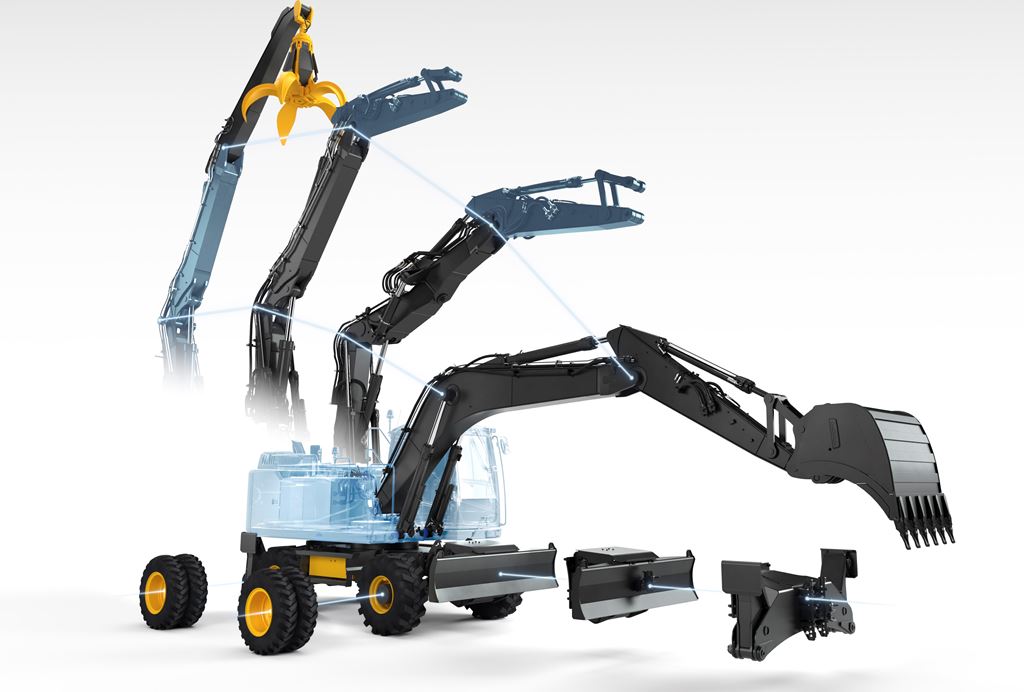

Flexible configurations
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
DRIVELINE
| Engine Manufacturer | Volvo |
| Engine Manufacturer | Volvo |
| Torque Speed | - |
| Service Brake Actuation | - |
| Engine Output - Net | 152 hp (112 kW) |
| Engine auto shut off | - |
| Emission Rating | Tier 4 |
| Service Brake Type | - |
| Standard number of tires | 8 |
| Tire size - Standard | 10.00-20 |
| Engine Model | D6J |
| Engine Torque | - |
| Rated Speed | 1,900 |
| Auto idle | - |
| Transmission Type | 3 speed Powershift |
| Displacement | 348 Inches³ (5.7 ltr) |
DESCRIPTION
| Total Number Of Dippers - Mono | 4 |
| Number Of Mono Booms | 1 |
| Dipper Length - Shortest Articulated | - |
| Dipper Length - Shortest 2 Piece | - |
| Telematics Available | Yes |
| Platform | Care Track |
| Dipper Length - Shortest 2 Piece | 6 ft 7 in ft/in (2000 mm) |
| Dipper Length - Shortest Articulated | 6 ft 7 in ft/in (2000 mm) |
| Dipper Length - Short Articulated | 6 ft 7 in ft/in (2000 mm) |
| Number Of 2 Piece Booms | 1 |
| Number Of Articulated Booms | 1 |
| Total Number Of Dippers - 2 Piece | 4 |
| Total Number Of Dippers - Articulated | 4 |
| Dipper Length - Longest 2 Piece | 10 ft 2 in ft/in (3100 mm) |
| Dipper Length - Longest Articulated | 10 ft 2 in ft/in (3100 mm) |
| Dipper Length - Standard 2 Piece | 8 ft ft/in (2450 mm) |
| Dipper Length - Standard Articulated | 8 ft ft/in (2450 mm) |
PERFORMANCE
| Sound Level Standard | - |
| Dipper Longest, Boost Tearout Artic | 16,186 lbf (72 kN) |
| Boom Pressure | 4,931 PSI (340 bar) |
| Dipper Standard, Boost Tearout Artic | 19,334 lbf (86 kN) |
| Transmission Pump | - |
| Transmission Pump Flow | - |
| Max bucket breakout, Mono Boom | 28,326 lbf (126 kN) |
| Dipper Short, Boost Tearout Artic | 22,031 lbf (98 kN) |
| Slew Speed | 9 |
| Sound Level External | - |
| Sound Level internal | - |
DIMENSIONS
| Dozer Blade - Width | 8 ft 4 in ft/in (2540 mm) |
| Dump Clearance Height - Mono Boom | 20 ft 2 in ft/in (6150 mm) |
| Maximum Transport Length - Mono Boom | 27 ft 1 in ft/in (8250 mm) |
| Mono Boom Size | 16 ft 5 in ft/in (5 m) |
| Mono Boom Size | 16 ft 5 in ft/in (5 m) |
| Rear Axle To Slew Centre | - |
| Ground Clearance | 14 inches (360 mm) |
| Machine Width - Maximum | 8 ft 4 in ft/in (2540 mm) |
| Overall Width | 8 ft 4 in ft/in (2540 mm) |
| Cab Height | 10 ft 4 in ft/in (3140 mm) |
| Overall width stabilizers down | 13 ft 1 in ft/in (3980 mm) |
| Dig Depth - 2 Piece Boom | 18 ft 3 in ft/in (5570 mm) |
| Dig Depth - Articulated Boom | 18 ft 3 in ft/in (5570 mm) |
| Ground Level Reach - Mono Boom | 28 ft 11 in ft/in (8810 mm) |
| Dig Depth - Mono Boom | 18 ft 4 in ft/in (5580 mm) |
| Transport Height - Over Mono Boom | 10 ft ft/in (3040 mm) |
| Standard Dipper Length | 8 ft ft/in (2450 mm) |
| Wheelbase | 8 ft 6 in ft/in (2600 mm) |
| Longest Dipper Length | 10 ft 1 in ft/in (3100 mm) |
| Maximum Dig Height - Mono Boom | 29 ft 10 in ft/in (9100 mm) |
WEIGHTS
| Operating Weight | 38,030 lbs (17250 kg) |
CAPACITIES
| Bucket Pivot Angle | - |
| Fuel Tank | 66 gallons (US) (250 ltr) |
