Excavators

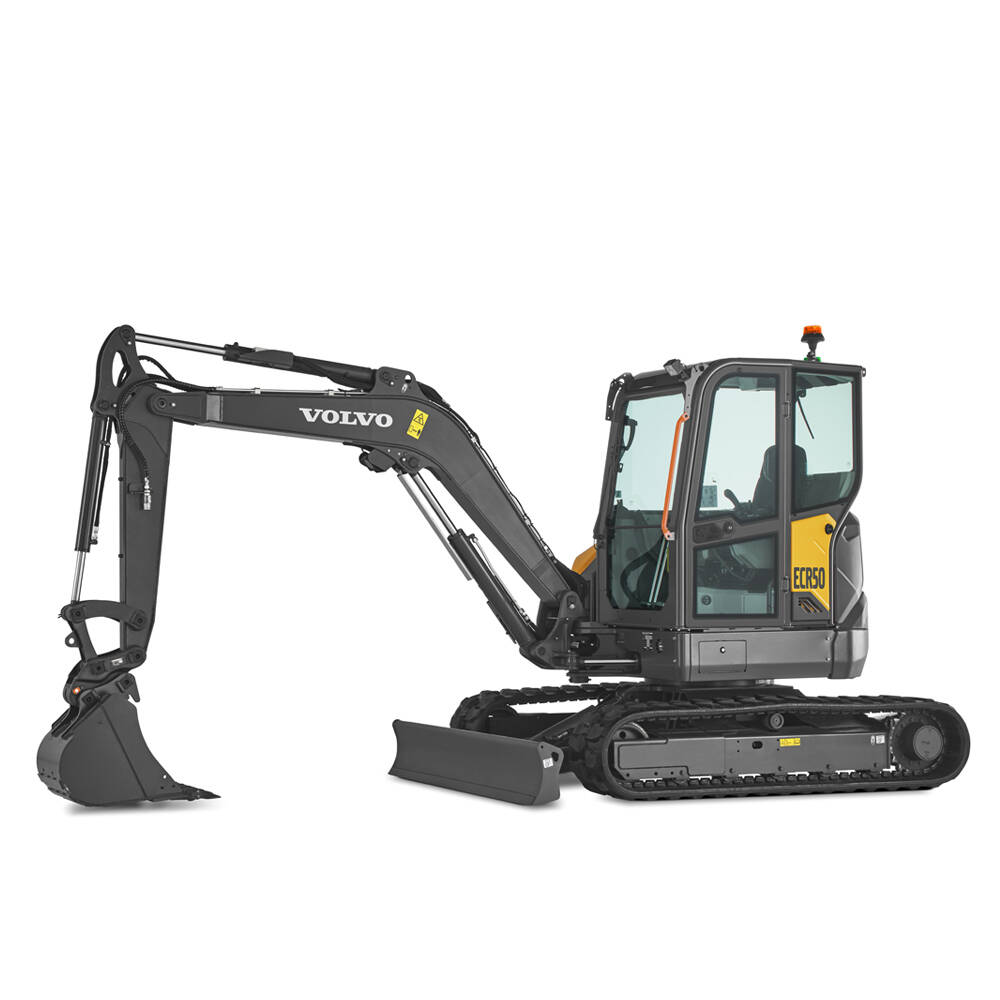

Volvo ECR50
THE ULTIMATE ALL-ROUNDER
With zero tail swing, the F-generation ECR50 is the perfect choice when working in confined spaces. This true 5t machine offers superior stability and best-in class lifting capacity. With intuitive and easy-to-use controls, operators can quickly get to grips with the machine and easily work with a variety of attachments. Durable by design, easy servicing and other smart features ensure low operating costs.
Features and Benefits
Volvo ECR50 Excavator -
- BIG VERSATILITY, LOW OPERATING COST

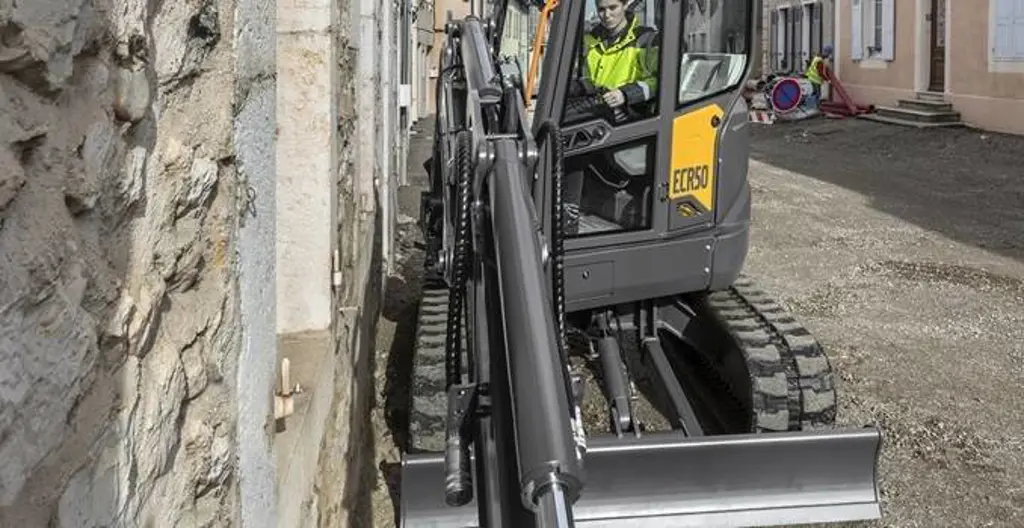

- The zero tail swing radius of the F-generation ECR50 enables easy access and work in confined spaces, while also reducing the risk of machine damage. The in-track boom swing ensures the swing post and cylinder remain within the track width when digging in offset alongside obstacles. Reinforced digging equipment, undercarriage and hoods further contribute towards outstanding durability.
- INTUITIVELY EFFICIENT
- Quickly and easily get to grips with the F-generation ECR50. With the intuitive jogwheel and 5” color display, operators benefit from easy-to-navigate menus. Achieve precise and efficient work with ease thanks to the proportional fingertip controls, large and easy to control travel pedals and automatic two-speed travel.
- TRUE 5T PERFORMER
- Take on tough work with confidence and control. With best-in-class lifting capacity, the F-generation ECR50 is a true 5t machine. Outstanding stability and hydraulic power contribute towards unrivalled digging performance, lifting capacity and rimpull.
- SWITCH IT UP
- Changing between hydraulic attachments is as easy as child's play. In the F-generation ECR50 you can pre-program the hydraulic settings best suited to all your attachments in just a few steps. You can then choose whether operators select pre-defined settings only, or leave the option for operators to make final hydraulic adjustments from the cab.
- MAXIMUM UPTIME
- Spend less time carrying out maintenance. A 50-hour greasing interval, easily accessed service points and wide-opening engine hood all help to keep uptime to a maximum. With auto engine shutdown, hours not worked are not recorded, keeping your machine efficient for longer while reducing maintenance costs. The patented multifunction hydraulic oil filter, provides outstanding protection to the hydraulic system.
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
Description
| Standard Arm Length | 4 ft 7 in (1400 mm) |
Telematics
| Telematics Available | Option |
Driveline
| Engine Manufacturer | Volvo |
| Engine Model | D 2 H |
| Displacement | 149 Inches³ (2.434 ltr) |
| Rated Speed | 2,200 rpm |
| Engine Output - Gross | 42 hp (31.2 kW) |
| Number Of Track Rollers - Each Side | 5 |
| Track Shoe Width | 16 inches (400 mm) |
Dimensions
| Bucket Capacity | 0 yd³ (0.144 m³) |
| Bucket Weight | 249 lbs (113 kg) |
| Transport Length Mono Boom | 19 ft 11 in (6075 mm) |
| Max Transport Height | 8 ft 5 in (2540 mm) |
| Max Machine Width | 6 ft 7 in (2000 mm) |
| Track Length On Ground | 6 ft 7 in (2000 mm) |
| Zero Tailswing | Yes |
| Heaped Bucket Capacity | 0 yd³ (0.144 m³) |
| Bucket Width - Standard | 24 inches (600 mm) |
| Variable Undercarriage Availability | No |
| Ground Level Reach | 18 ft 10 in (5748 mm) |
| Dig Height | 17 ft 7 in (5369 mm) |
| Dump Height - Mono Boom | 12 ft 5 in (3787 mm) |
| Dig Depth | 11 ft 1 in (3374 mm) |
| Mono Boom - Size | 9 ft (2.75 m) |
| Standard Arm | 4 ft 7 in (1400 mm) |
Capacities
| Fuel Tank | 19 gallons (US) (70 ltr) |
Performance
| Ground Bearing Pressure | 4 PSI (28.4 kPa) |
| Arm Tearout | 5,834 lbf (25.95 kN) |
| Bucket Breakout | 8,134 lbf (36.18 kN) |
| Main Pump | Variable axial piston |
| Number Of Main Pumps | 1 |
| Total Flow | 32 gallons (US) / min (120 lt/min) |
Weights
| Operating Weight | 11,133 lbs (5050 kg) |
