Excavators
Volvo ECR25D
The Volvo ECR25D compact excavator has been designed with mobility and performance in mind. Featuring a range of innovations engineered for effortless transportation, you'll benefit from an ideal transport weight and an integrated bucket transport system. Achieve more with Volvo.
Features and Benefits
Volvo ECR25D Excavator -
- SMALL SIZE. BIG POWER.

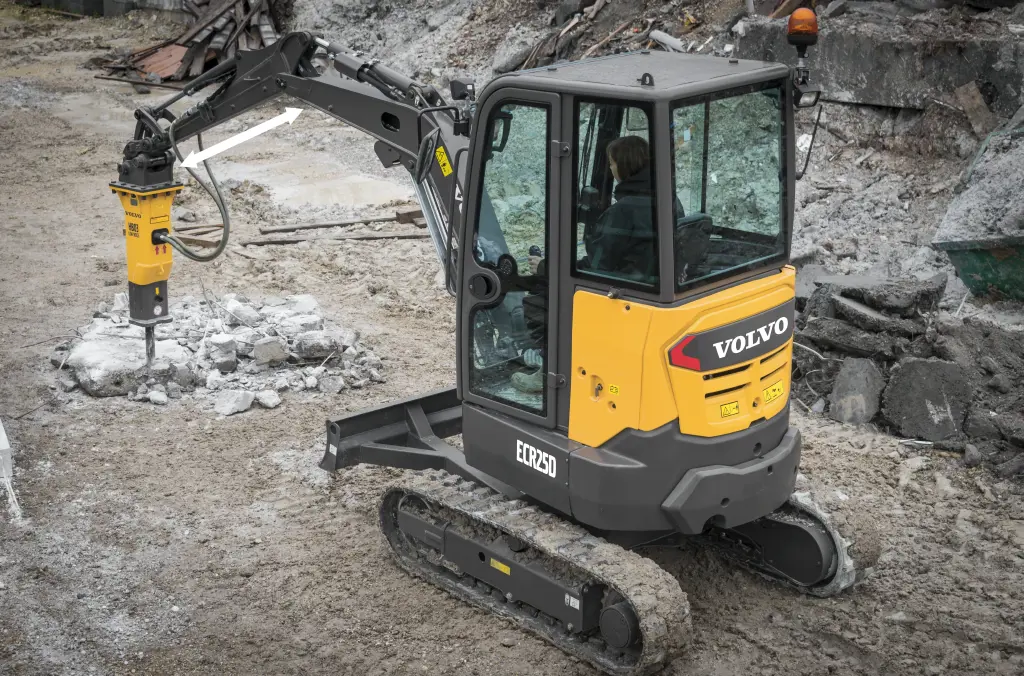

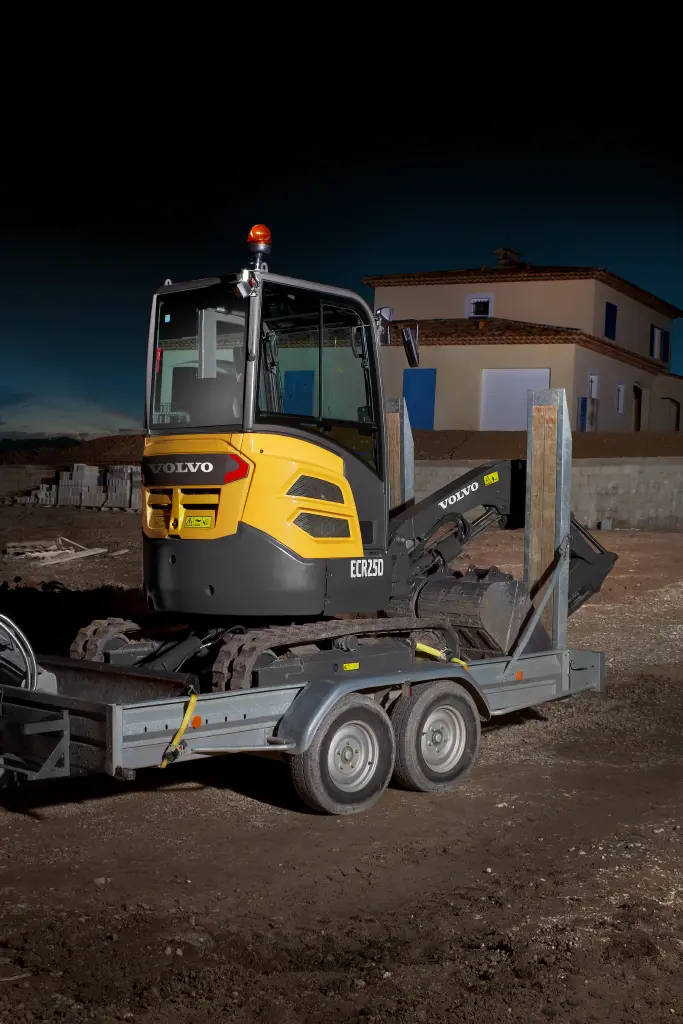

- Conveniently transport this highly mobile machine with up to three buckets and a hydraulic breaker on a small trailer and benefit from a total transport weight of less than 3.5 tonnes. Safe transportation is enabled by four, easily accessible, tie-down points.
- MAINTENANCE MADE EASY
- It’s easy to keep your hardworking ECR25D up and running with worry-free maintenance. The wide-opening lockable engine hood provides clear access to all daily service points, while the minimum 50-hour interval on all greasing points saves valuable time and money. Check hydraulic oil at a glance with the Volvo patented hydraulic filter, featuring transparent housing to prevent unplanned downtime.
- CONTROL COSTS
- Decrease your total cost of ownership with a range of built-in features. The ideally matched Volvo engine and single variable displacement pump reduce fuel consumption, while auto-idle and auto-engine shutdown maximizes fuel efficiency, cut service costs and ensure high resale value. Controlling your costs needn’t be complicated, which is why the flat glass windows of the cab can be replaced easily and inexpensively.
- THE OPERATOR'S CHOICE
- As the industry’s leading operator environment, the easily accessible Volvo cab boasts superb visibility, comfortable seat, ergonomic controls, and conveniently-located cup and phone holders. The flat floor makes cleaning quick and easy, while noise and vibration insulation keep the operator fresh and focused – longer.
- INTUITIVE OPERATION
- Experience precise, smooth and effortless command of the boom offset and auxiliary hydraulic flows with proportional fingertip controls. The easy-to-use joystick allows you to fine-tune the maximum hydraulic flow of any attachment to ensure ideal speed and power for any task. And, with automatic two-speed travel, you can drive the machine at high speed, which is automatically reduced when more traction is required.
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
Description
| Standard Arm Length | 3 ft 5 in (1050 mm) |
Telematics
| Telematics Available | Yes |
Driveline
| Engine Manufacturer | Volvo |
| Engine Model | D 1.1A |
| Displacement | 69 Inches³ (1.123 ltr) |
| Rated Speed | 2,400 rpm |
| Engine Output - Net | 21 hp (16 kW) |
| Engine Output - Gross | 21 hp (15.6 kW) |
| Number Of Track Rollers - Each Side | 3 |
| Track Shoe Width | 10 inches (250 mm) |
Dimensions
| Bucket Capacity | 0 yd³ (0.074 m³) |
| Bucket Weight | 130 lbs (59 kg) |
| Transport Length Mono Boom | 15 ft 1 in (4595 mm) |
| Max Transport Height | 8 ft 4 in (2535 mm) |
| Max Machine Width | 5 ft 1 in (1550 mm) |
| Track Length On Ground | 6 ft 3 in (1900 mm) |
| Zero Tailswing | Yes |
| Heaped Bucket Capacity | 0 yd³ (0.074 m³) |
| Bucket Width - Standard | 20 inches (500 mm) |
| Variable Undercarriage Availability | No |
| Ground Level Reach | 14 ft 2 in (4313 mm) |
| Dig Height | 13 ft 4 in (4010 mm) |
| Dump Height - Mono Boom | 9 ft 2 in (2784 mm) |
| Dig Depth | 8 ft 1 in (2461 mm) |
| Standard Arm | 3 ft 5 in (1050 mm) |
| Longest Arm | 4 ft 5 in (1350 mm) |
Capacities
| Fuel Tank | 7 gallons (US) (28 ltr) |
Performance
| Ground Bearing Pressure | 5 PSI (30.5 kPa) |
| Arm Tearout | 3,993 lbf (17.76 kN) |
| Bucket Breakout | 5,020 lbf (22.33 kN) |
| Main Pump | Variable axial piston |
| Number Of Main Pumps | 1 |
| Total Flow | 18 gallons (US) / min (67 lt/min) |
Weights
| Operating Weight | 5,490 lbs (2490 kg) |
