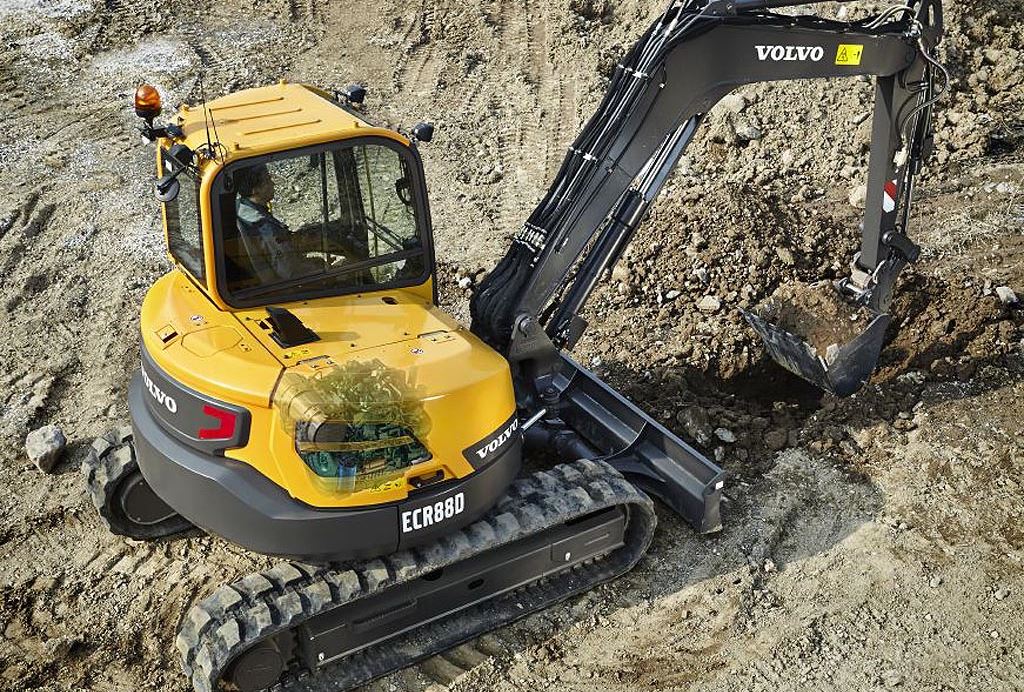

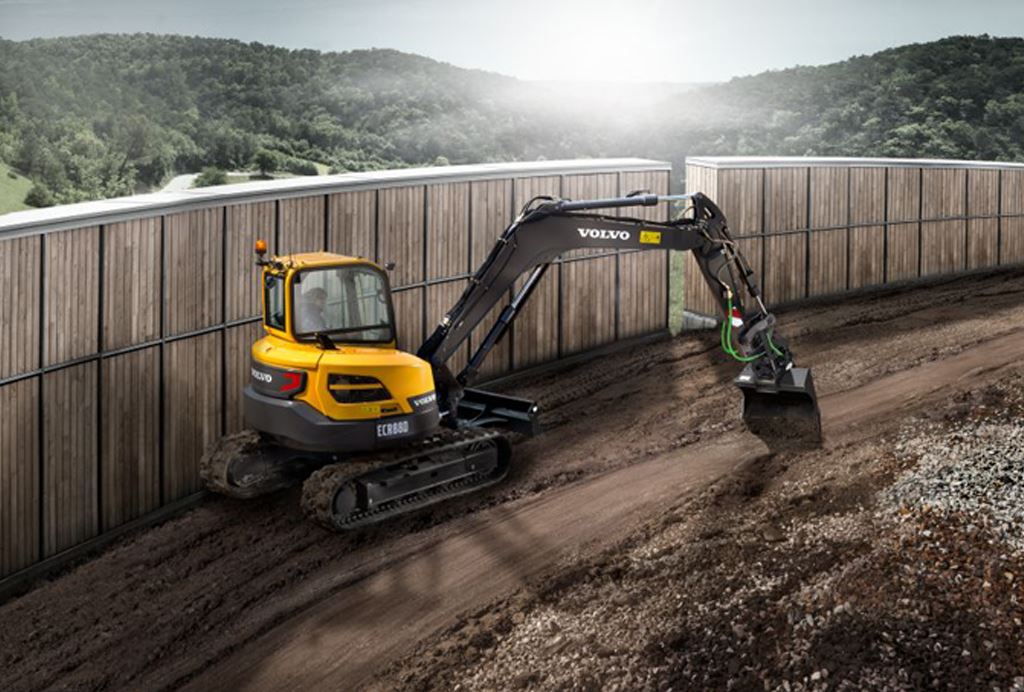

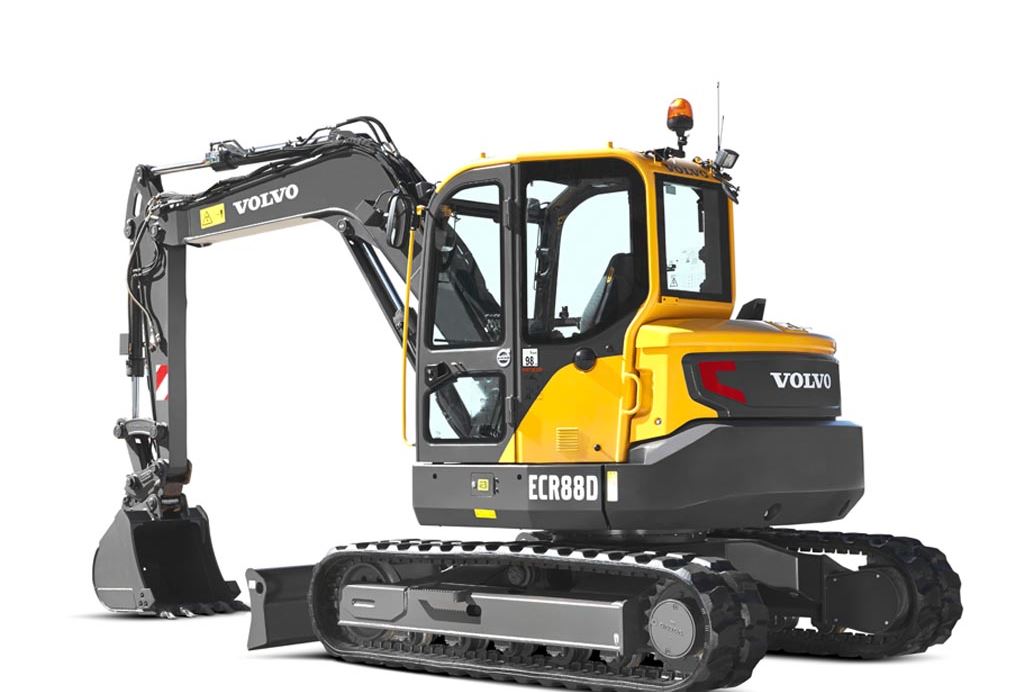

Volvo ECR 88 D
The Volvo mini excavators are compact short swing radius excavators that deliver powerful and efficient performance. Featuring a powerful Volvo engine and perfectly matched hydraulic system, these machines give optimum productivity, excellent control and low fuel consumption. Whether your project requires on road construction, utilities, landscaping or any other application, the Volvo ECR88D compact excavator offers you precise control and smooth operation.
Downloads
Features and Benefits
Volvo ECR 88 D Excavator - VISIBLY BETTER
Lifetime Frame & Structure Guarantee (Frame, Boom & Arm)
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
DRIVELINE
| Engine Output - Gross | 58 hp (43 kW) |
| Track Shoe Width | 18 inches (450 mm) |
| Engine Manufacturer | Volvo |
| Engine Manufacturer | Volvo |
| Engine Output - Net | 56 hp (41 kW) |
| Number Of Track Rollers - Each Side | 5 |
| Emission Rating | - |
| Rated speed | 2,000 |
| Engine Model | D 2.6H |
| Displacement | 160 Inches³ (2.615 ltr) |
| Aspiration | Turbo intercooled |
DIMENSIONS
| Heaped Bucket Capacity - Standard | 0 yd³ (0.26 m³) |
| Track Gauge - Standard | 6 ft 1 in ft/in (1850 mm) |
| Vertical Wall - Mono Boom | 9 ft 3 in ft/in (2820 mm) |
| Dig Height - Mono Boom | 22 ft 3 in ft/in (6790 mm) |
| Dump Height - Mono Boom | 16 ft 3 in ft/in (4960 mm) |
| Digging Reach - Mono Boom | 22 ft 10 in ft/in (6970 mm) |
| Width over fixed tracks | 7 ft 7 in ft/in (2300 mm) |
| Transport Length Mono Boom | 20 ft 11 in ft/in (6370 mm) |
| Transport Height - Maximum | 8 ft 11 in ft/in (2715 mm) |
| Dig Depth - Mono Boom | 13 ft 7 in ft/in (4130 mm) |
| Overall Undercarriage Width | 7 ft 7 in ft/in (2300 mm) |
| Ground Level Reach - Mono Boom | 22 ft 4 in ft/in (6800 mm) |
| Bucket Weight - Standard | - |
| Ground Clearance | 16 inches (405 mm) |
| Track Length On Ground | 7 ft 3 in ft/in (2200 mm) |
| Overall Bucket Width - Standard | 30 inches (750 mm) |
| Zero Tailswing? | Yes |
| Zero Tailswing | Yes |
| Longest Dipper | 6 ft 11 in ft/in (2100 mm) |
| Standard Dipper | 5 ft 7 in ft/in (1700 mm) |
| Mono Boom - Size | 11 ft 8 in ft/in (3.55 m) |
| Capacity Standard | - |
WEIGHTS
| Operating Weight | 19,420 lbs (8810 kg) |
HYBRID SYSTEM UNIT
| Type | - |
| Rated Power Output | - |
PERFORMANCE
| Side lift - Max Reach | 2,180 lbs (990 kg) |
| Boom Pressure | 4,270 PSI (294 bar) |
| Standard Shoe Width | - |
| Ground Bearing Pressure | 6 PSI (40 kPa) |
| End lift - Max Reach | 3,680 lbs (1670 kg) |
| Bucket Breakout | 12,860 lbf (57.2 kN) |
| Total Flow | 45 gallons (US) / min (169 lt/min) |
| Main Pump | Variable axial piston |
| Dipper Tearout | 8,950 lbf (39.8 kN) |
CAPACITIES
| Fuel Tank | 29 gallons (US) (110 ltr) |
| Hydraulic Tank | 22 gallons (US) (84 ltr) |
DESCRIPTION
| Telematics Available | Optional |
| Dipper Length - Standard | 5 ft 7 in ft/in (1700 mm) |
