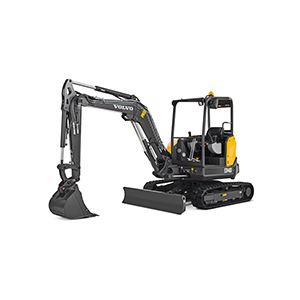

Volvo ECR 40 D
The ECR40D compact excavator short swing radius machine is designed to work with power and precision in tight spaces, reducing the risk of damage and improving safety in all applications. Featuring a comfortable cab, excellent hydraulics, easy-to-use controls and outstanding serviceability.
Features and Benefits
Volvo ECR 40 D Excavator - SWINGING POWER
Lifetime Frame & Structure Guarantee (Frame, Boom & Arm)
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
DRIVELINE
| Engine Output - Gross | 25 hp (18.5 kW) |
| Track Shoe Width | 12 inches (300 mm) |
| Engine Manufacturer | Volvo |
| Engine Manufacturer | Volvo |
| Engine Output - Net | - |
| Number Of Track Rollers - Each Side | 4 |
| Emission Rating | Tier 4 |
| Rated speed | 2,200 |
| Engine Model | D 1.7A |
| Displacement | 101 Inches³ (1.647 ltr) |
| Aspiration | Naturally Aspirated |
DIMENSIONS
| Heaped Bucket Capacity - Standard | 0 yd³ (0.114 m³) |
| Track Gauge - Standard | - |
| Vertical Wall - Mono Boom | 8 ft 3 in ft/in (2521 mm) |
| Dig Height - Mono Boom | 15 ft 5 in ft/in (4690 mm) |
| Dump Height - Mono Boom | 11 ft ft/in (3347 mm) |
| Digging Reach - Mono Boom | 18 ft 2 in ft/in (5533 mm) |
| Width over fixed tracks | 5 ft 10 in ft/in (1780 mm) |
| Transport Length Mono Boom | 18 ft 6 in ft/in (5650 mm) |
| Transport Height - Maximum | 8 ft 2 in ft/in (2481 mm) |
| Dig Depth - Mono Boom | 10 ft 3 in ft/in (3131 mm) |
| Overall Undercarriage Width | 5 ft 10 in ft/in (1780 mm) |
| Ground Level Reach - Mono Boom | 17 ft 9 in ft/in (5411 mm) |
| Bucket Weight - Standard | 198 lbs (90 kg) |
| Ground Clearance | 11 inches (285 mm) |
| Track Length On Ground | 5 ft 3 in ft/in (1604 mm) |
| Overall Bucket Width - Standard | - |
| Zero Tailswing? | Yes |
| Zero Tailswing | Yes |
| Longest Dipper | - |
| Standard Dipper | - |
| Mono Boom - Size | - |
| Capacity Standard | - |
WEIGHTS
| Operating Weight | 8,554 lbs (3880 kg) |
HYBRID SYSTEM UNIT
| Type | - |
| Rated Power Output | - |
PERFORMANCE
| Side lift - Max Reach | 919 lbs (417 kg) |
| Boom Pressure | 3,481 PSI (240 bar) |
| Standard Shoe Width | - |
| Ground Bearing Pressure | 5 PSI (36 kPa) |
| End lift - Max Reach | 2,165 lbs (982 kg) |
| Bucket Breakout | 7,394 lbf (32.89 kN) |
| Total Flow | 27 gallons (US) / min (103 lt/min) |
| Main Pump | - |
| Dipper Tearout | 5,330 lbf (23.71 kN) |
CAPACITIES
| Fuel Tank | 17 gallons (US) (64 ltr) |
| Hydraulic Tank | 9 gallons (US) (32 ltr) |
DESCRIPTION
| Telematics Available | Optional |
| Dipper Length - Standard | 4 ft 7 in ft/in (1400 mm) |
