Excavators

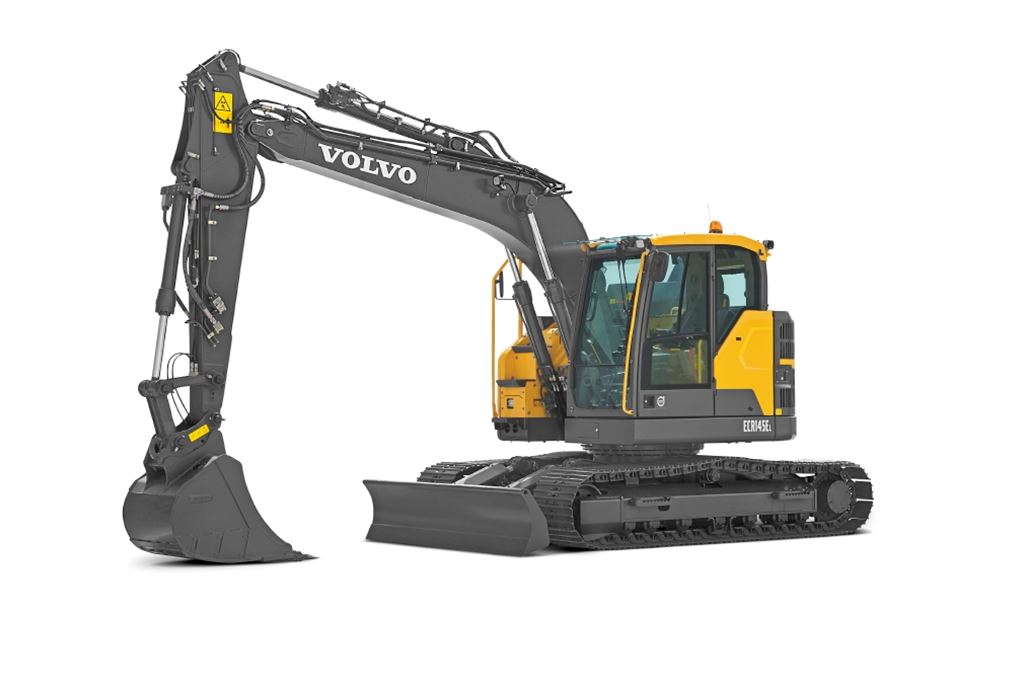

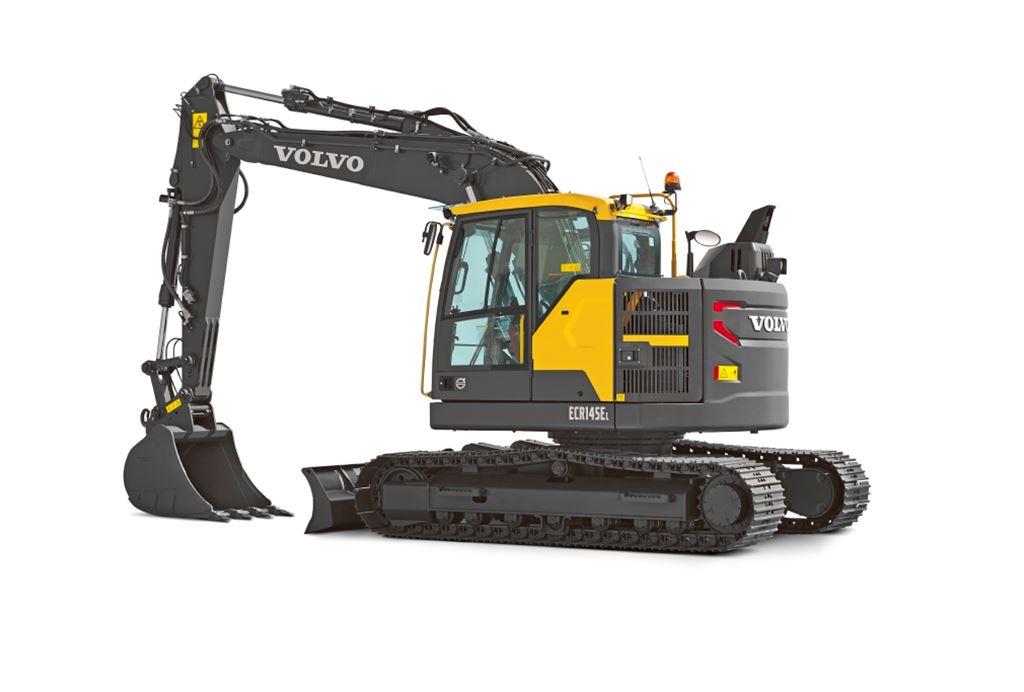

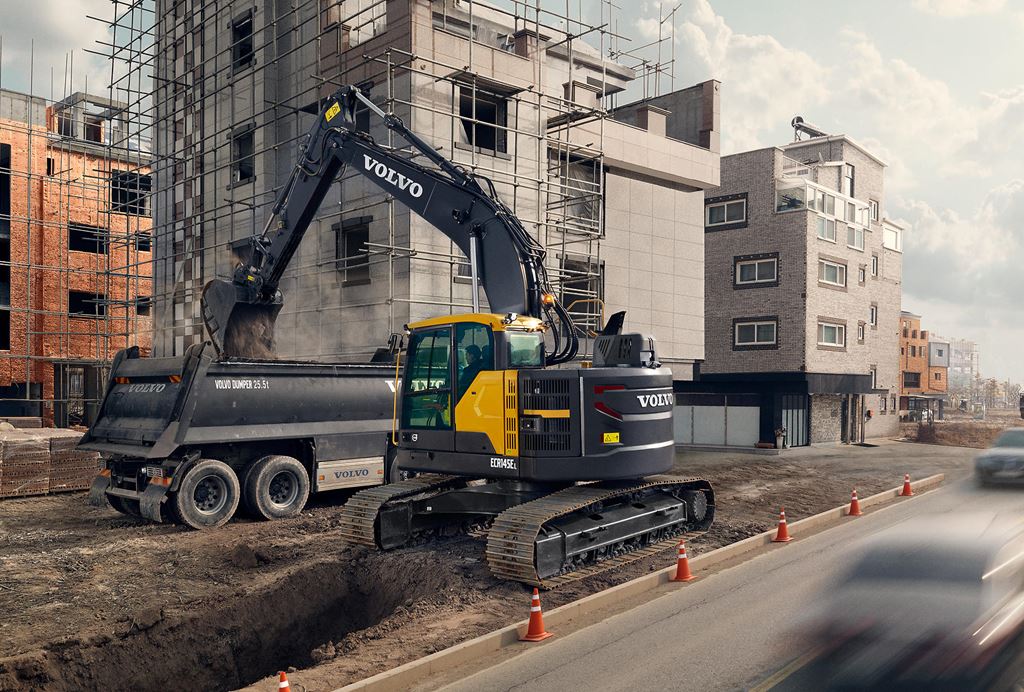

Volvo ECR 145 E

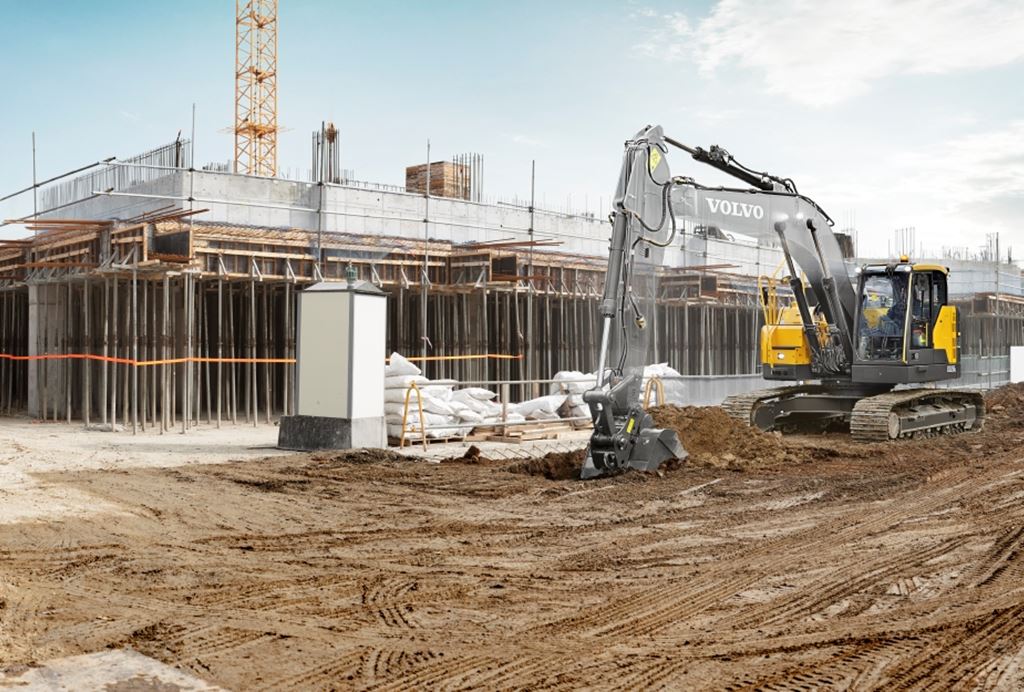

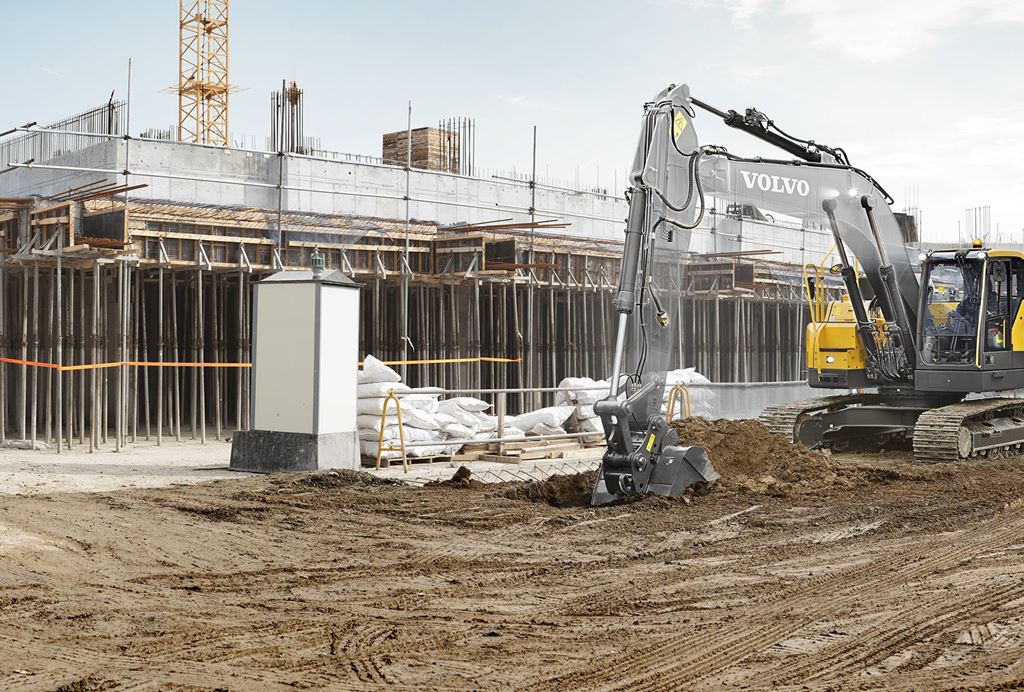

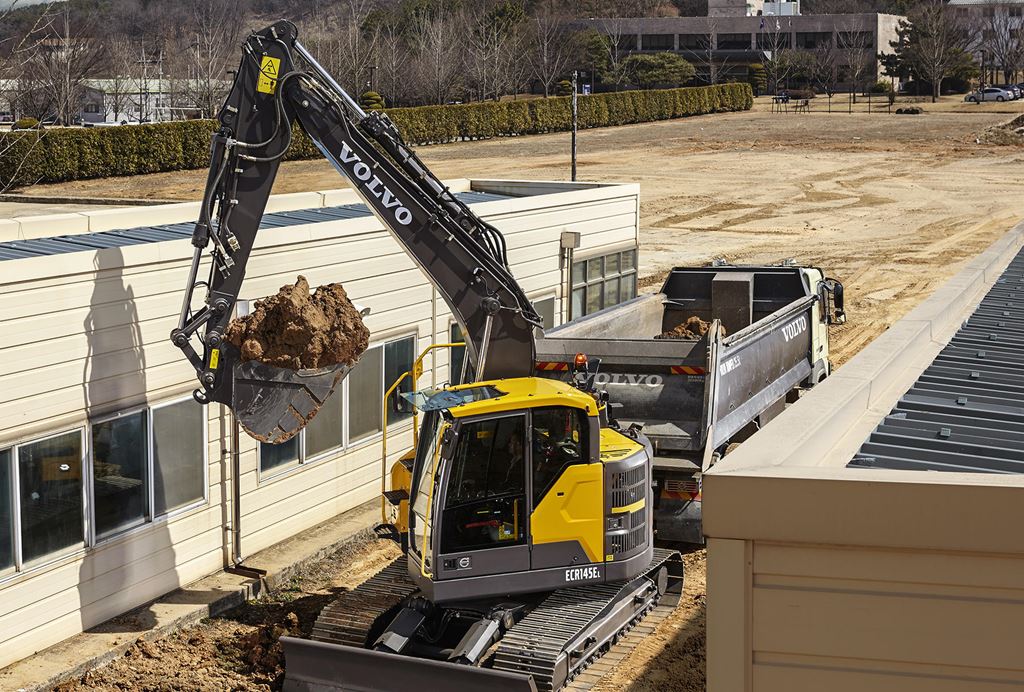

The optimized compact design of the ECR145E excavator offers a short swing radius for operating in confined spaces without compromising on performance while the optimized Volvo Tier 4 Final engine and hydraulics system for smoother operation and increased productivity.
Features and Benefits
Volvo ECR 145 E Excavator - COMPACT DESIGN
Proven low fuel consumption
World-class Volvo Care Cab
Smooth performance and control
Lifetime Frame & Structure Guarantee (Frame, Boom, Arm)
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
DRIVELINE
| Engine Output - Gross | 121 hp (90 kW) |
| Track Shoe Width | 24 inches (600 mm) |
| Engine Manufacturer | Volvo |
| Engine Manufacturer | Volvo |
| Engine Output - Net | 119 hp (89 kW) |
| Number Of Track Rollers - Each Side | 7 |
| Emission Rating | Tier 4 / Stage IV |
| Rated speed | 2,000 |
| Engine Model | D4J |
| Displacement | 244 Inches³ (4 ltr) |
| Aspiration | Turbo |
DIMENSIONS
| Heaped Bucket Capacity - Standard | 1 yd³ (0.66 m³) |
| Track Gauge - Standard | - |
| Vertical Wall - Mono Boom | 15 ft 11 in ft/in (4855 mm) |
| Dig Height - Mono Boom | 32 ft 4 in ft/in (9860 mm) |
| Dump Height - Mono Boom | 24 ft ft/in (7310 mm) |
| Digging Reach - Mono Boom | 29 ft ft/in (8850 mm) |
| Width over fixed tracks | 8 ft 10 in ft/in (2690 mm) |
| Transport Length Mono Boom | 24 ft 1 in ft/in (7345 mm) |
| Transport Height - Maximum | 10 ft 8 in ft/in (3250 mm) |
| Dig Depth - Mono Boom | 19 ft 9 in ft/in (6030 mm) |
| Overall Undercarriage Width | 8 ft 6 in ft/in (2590 mm) |
| Ground Level Reach - Mono Boom | 28 ft 7 in ft/in (8720 mm) |
| Bucket Weight - Standard | 1,059 lbs (480 kg) |
| Ground Clearance | 17 inches (430 mm) |
| Track Length On Ground | 10 ft ft/in (3040 mm) |
| Overall Bucket Width - Standard | - |
| Zero Tailswing? | Short |
| Zero Tailswing | Short |
| Longest Dipper | - |
| Standard Dipper | - |
| Mono Boom - Size | - |
| Capacity Standard | - |
WEIGHTS
| Operating Weight | 33,460 lbs (15177.2 kg) |
HYBRID SYSTEM UNIT
| Type | - |
| Rated Power Output | - |
PERFORMANCE
| Side lift - Max Reach | 3,490 lbs (1580 kg) |
| Boom Pressure | 4,690 PSI (324 bar) |
| Standard Shoe Width | - |
| Ground Bearing Pressure | 5 PSI (37.2 kPa) |
| End lift - Max Reach | 5,780 lbs (2620 kg) |
| Bucket Breakout | 21,720 lbf (96.6 kN) |
| Total Flow | 66 gallons (US) / min (248 lt/min) |
| Main Pump | - |
| Dipper Tearout | 13,430 lbf (59.8 kN) |
CAPACITIES
| Fuel Tank | 53 gallons (US) (200 ltr) |
| Hydraulic Tank | 16 gallons (US) (59 ltr) |
DESCRIPTION
| Telematics Available | Yes |
| Dipper Length - Standard | 9 ft 10 in ft/in (3000 mm) |
