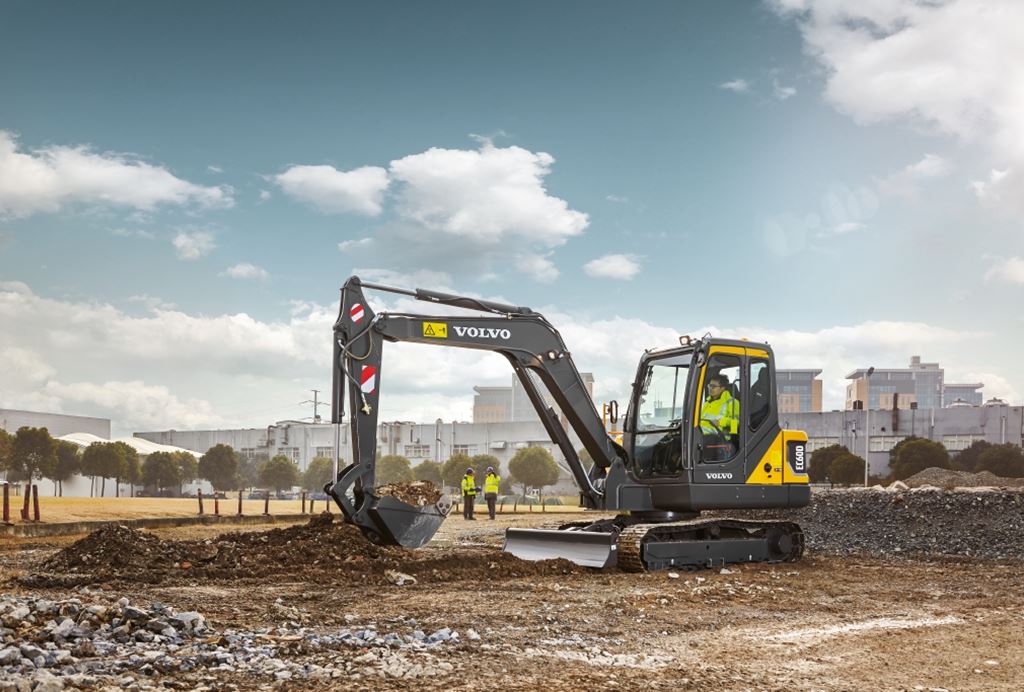

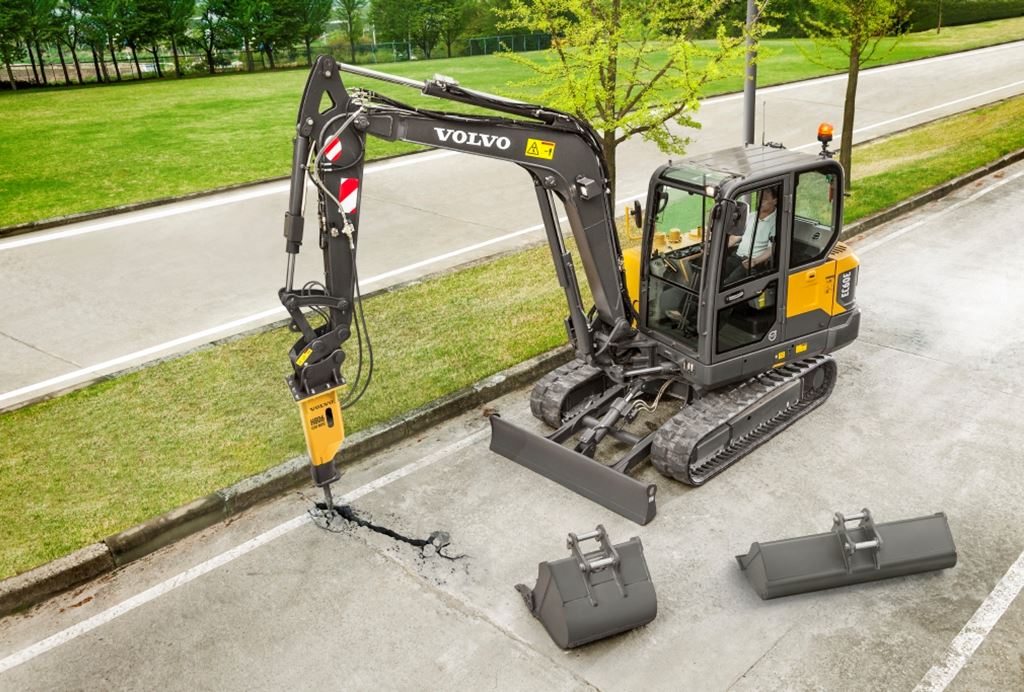

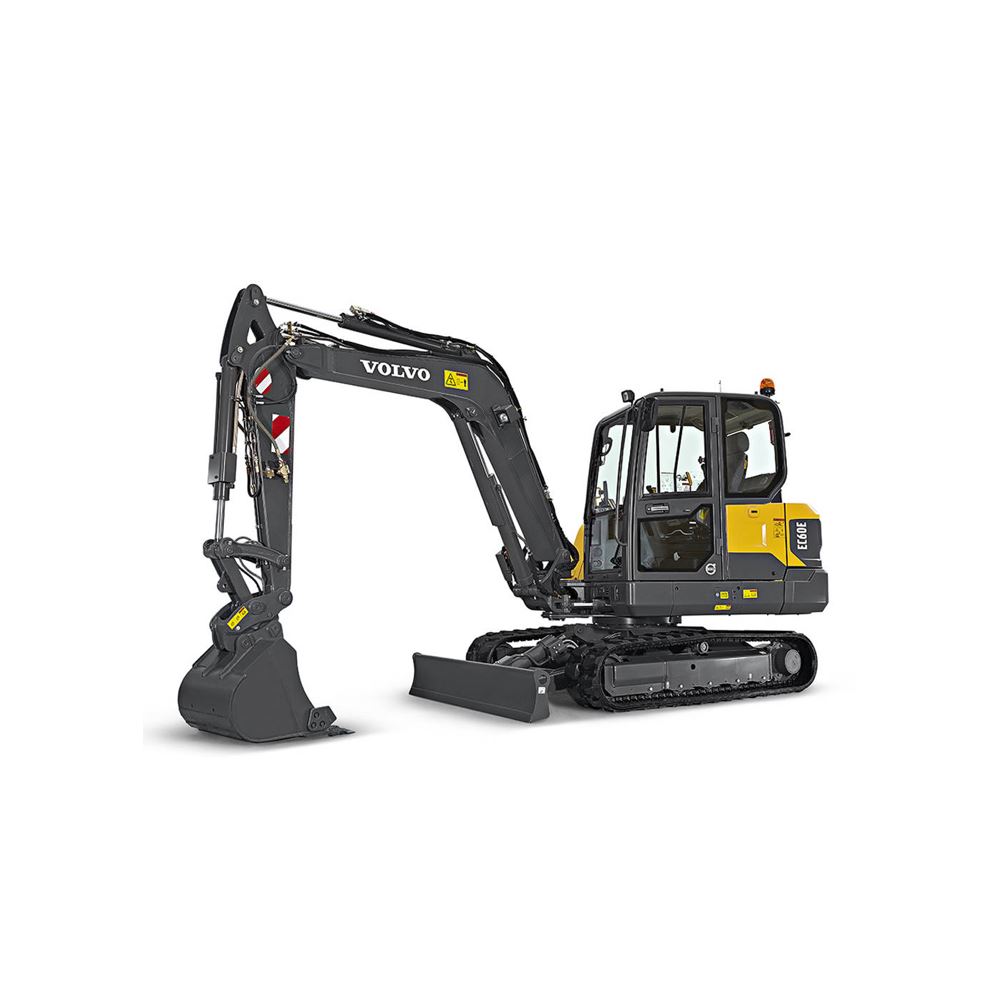

Volvo EC60E
This versatile and powerful compact excavator can be tailored for any job and is suitable for a wide range of applications, using its improved performance to get your results, fast. The new and improved EC60E features a larger cab design for a comfortable and more productive operator environment. And as a Volvo, it is designed to reduce your running costs with excellent service access, convenient maintenance points and Volvos auto engine shutdown feature.
Downloads
Features and Benefits
Volvo EC60E Excavator - MORE WORK
– 10% increase in swing force and lifting capacity – 20% increase in power – 8% improvement in fuel economy – 10% more spacious cab and 10% improved A/C power – Lifetime warranty on boom, arm and frame
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
DRIVELINE
| Aspiration | Turbo, charge air cooled |
| Engine Output - Gross | 59 hp (44.3 kW) |
| Track Shoe Width | 16 inches (400 mm) |
| Engine Manufacturer | Volvo |
| Engine Manufacturer | Volvo |
| Engine Output - Net | 57 hp (42.7 kW) |
| Number Of Track Rollers - Each Side | 5 |
| Emission Rating | Tier 4 |
| Rated speed | 2,200 |
| Engine Model | D 2.6H |
| Displacement | 160 Inches³ (2.62 ltr) |
DIMENSIONS
| Overall Bucket Width - Standard | 24 inches (600 mm) |
| Heaped Bucket Capacity - Standard | 0 yd³ (0.142 m³) |
| Transport Length Mono Boom | 19 ft ft/in (5800 mm) |
| Track Gauge - Standard | 5 ft ft/in (1520 mm) |
| Vertical Wall - Mono Boom | 8 ft 7 in ft/in (2625 mm) |
| Dig Height - Mono Boom | 18 ft 8 in ft/in (5695 mm) |
| Dump Height - Mono Boom | 13 ft 7 in ft/in (4150 mm) |
| Digging Reach - Mono Boom | 20 ft ft/in (6105 mm) |
| Width over fixed tracks | 6 ft 4 in ft/in (1920 mm) |
| Transport Height - Maximum | - |
| Dig Depth - Mono Boom | 12 ft 1 in ft/in (3695 mm) |
| Overall Undercarriage Width | 6 ft 4 in ft/in (1920 mm) |
| Ground Level Reach - Mono Boom | 19 ft 7 in ft/in (5970 mm) |
| Bucket Weight - Standard | 280 lbs (129 kg) |
| Ground Clearance | 14 inches (350 mm) |
| Track Length On Ground | 6 ft 6 in ft/in (1990 mm) |
| Zero Tailswing? | No |
| Zero Tailswing | No |
| Longest Dipper | 6 ft 3 in ft/in (1900 mm) |
| Standard Dipper | 5 ft 3 in ft/in (1600 mm) |
| Mono Boom - Size | 9 ft 10 in ft/in (3 m) |
| Capacity Standard | - |
WEIGHTS
| Operating Weight | 12,830 lbs (5819 kg) |
HYBRID SYSTEM UNIT
| Rated Power Output | - |
| Type | - |
PERFORMANCE
| Side lift - Max Reach | 1,550 lbs (700 kg) |
| Boom Pressure | 3,270 PSI (226 bar) |
| Standard Shoe Width | 16 inches (400 mm) |
| Ground Bearing Pressure | 5 PSI (32.8 kPa) |
| End lift - Max Reach | 3,200 * lbs (1450 * kg) |
| Bucket Breakout | 9,720 lbf (43.3 kN) |
| Total Flow | 32 gallons (US) / min (121 lt/min) |
| Main Pump | Variable axial piston |
| Dipper Tearout | 6,470 lbf (28.8 kN) |
CAPACITIES
| Fuel Tank | 29 gallons (US) (110 ltr) |
| Hydraulic Tank | 20 gallons (US) (76 ltr) |
DESCRIPTION
| Telematics Available | Optional |
| Dipper Length - Standard | 5 ft 3 in ft/in (1600 mm) |
