Excavators

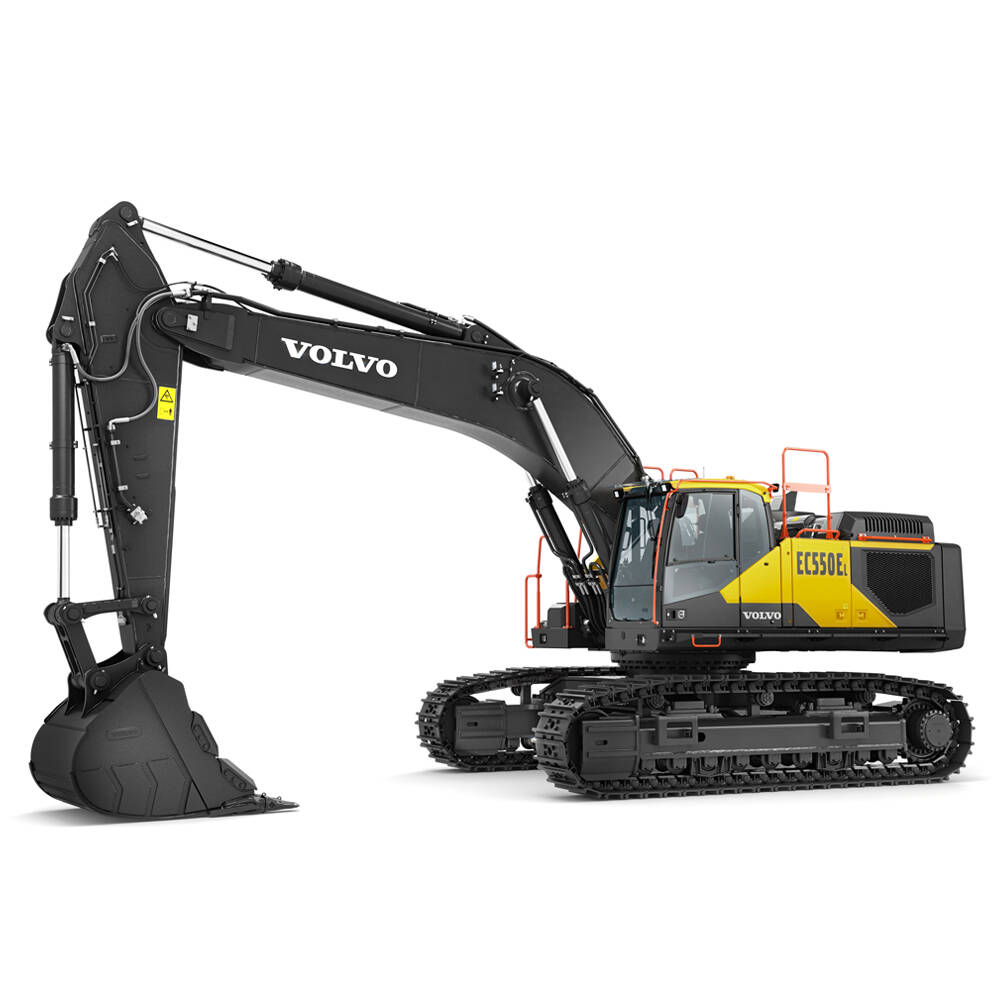

Volvo EC550E
Reduce costs and boost profits in the EC530E and EC550E. Features including new electro-hydraulic system, Volvo attachments and Fuel Efficiency Report all contribute towards the unrivalled levels of efficiency delivered by these 50-tonne crawler excavators.
Purchase this machine
Reach out to our team to learn more.
Rent this machine
Get a free rental quote.
Downloads
Features and Benefits
Volvo EC550E Excavator - BIG ON PROFITABILITY
- •Boom and arm bouncing reduction technology dramatically reduces machine shock, resulting in a more comfortable and productive operator performance.
- •For easy operation and reduced operator fatigue, Comfort Drive Control gives operators the opportunity to steer the machine using the advanced joystick rollers with index finger grip, instead of using the pedals.
- •Maximize machine uptime and reduce repair costs with the CareTrack telematic system. Choose to keep track of your machine yourself or let us take care of it with ActiveCare Direct. Our Volvo Uptime Center will provide telematics monitoring, supplying fleet utilization reporting and notifying you should preventive maintenance action be required.
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
Description
| Standard Arm Length | 11 ft (3350 mm) |
Telematics
| Telematics Available | Standard |
Driveline
| Engine Manufacturer | Volvo |
| Engine Model | D 13J |
| Displacement | 781 Inches³ (12.8 ltr) |
| Rated Speed | 1,600 rpm |
| Engine Output - Net | 445 hp (339 kW) |
| Engine Output - Gross | 456 hp (340 kW) |
| Number Of Track Rollers - Each Side | 9 |
| Track Shoe Width | 36 inches (900 mm) |
Dimensions
| Bucket Capacity | 3.71-6.02 yd³ (2.84-4.6 m³) |
| Bucket Weight | 5632-7415 lbs (2554-3363 kg) |
| Transport Length Mono Boom | 40 ft 2 in (12240 mm) |
| Max Transport Height | 13 ft 9 in (4200 mm) |
| Max Machine Width | 13 ft 9 in (4200 mm) |
| Track Length On Ground | 14 ft 10 in (4515 mm) |
| Zero Tailswing | No |
| Heaped Bucket Capacity | 4 yd³ (3.31 m³) |
| Variable Undercarriage Availability | Yes |
| Ground Level Reach | 39 ft 2 in (11930 mm) |
| Dig Height | 36 ft 9 in (11210 mm) |
| Dump Height - Mono Boom | 25 ft 6 in (7760 mm) |
| Dig Depth | 25 ft 3 in (7690 mm) |
Capacities
| Fuel Tank | 180 gallons (US) (680 ltr) |
Performance
| Ground Bearing Pressure | 9 PSI (63.5 kPa) |
| Arm Tearout | 53,980 lbf (240 kN) |
| Bucket Breakout | 69,270 lbf (308 kN) |
| Number Of Main Pumps | 2 |
| Total Flow | 220 gallons (US) / min (832 lt/min) |
Weights
| Operating Weight | 125,575 lbs (56960 kg) |
