Demolition Equipment

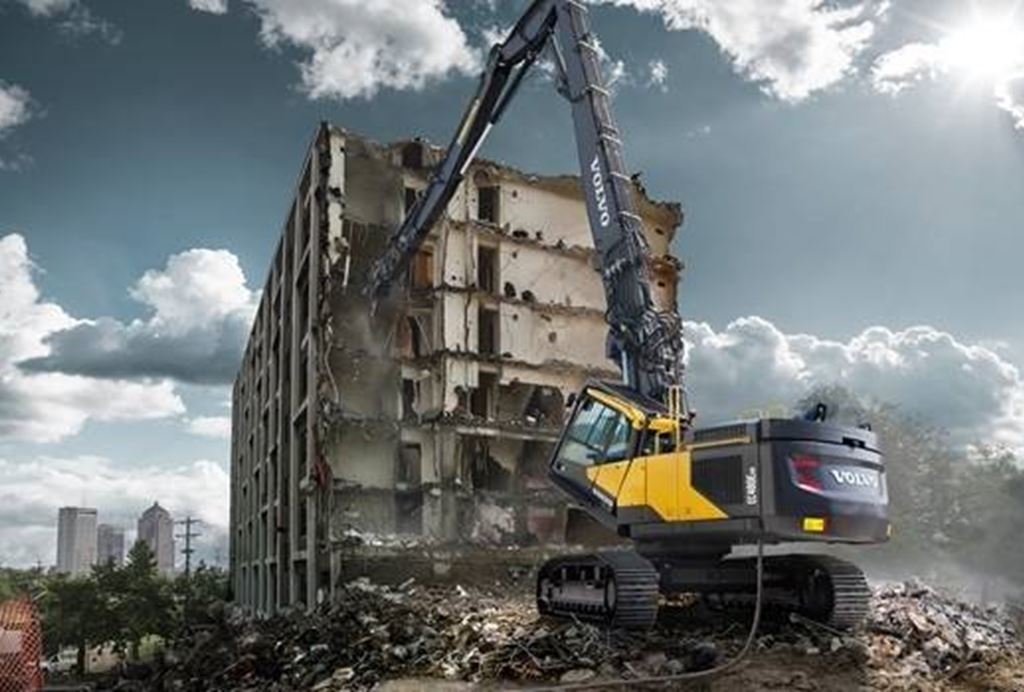

Volvo EC480E HR (Variable UC)
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
DRIVELINE
| Engine Output - Net | 380 hp (283 kW) |
| Slew Brake Type | Wet multi disc |
| Transmission Motor Type | 2 Variable displacement motors |
| Engine Manufacturer | Volvo |
| Transmission Type | Planetary reduction |
| Displacement | 781 Inches³ (12.8 ltr) |
| Variable Undercarriage: Yes/No | Yes |
| Fuel Consumption @ Rated Power | - |
| Engine Model | D13J |
| Emission Rating | Tier 4 |
WEIGHTS
| Maximum tool weight for Demolition Boom | 7,716 lbs (3500 kg) |
| Operating Weight | 147,920 lbs (67085 kg) |
| Straight Boom Specification Weight | 125,310 lbs (56830 kg) |
| Demolition Boom Ground Pressure | 14 PSI (98.8 kPa) |
| Ground Bearing Pressure | 14 PSI (98.8 kPa) |
| Banana Boom Ground Pressure | - |
| Triple Articulated Boom Ground Pressure | - |
| Straight Boom Ground Pressure | - |
| Demolition Boom Specification Weight | 147,920 lbs (67085 kg) |
| Triple Articulated Boom Specification Weight | 125,310 lbs (56830 kg) |
| Banana Boom Specification Weight | 125,310 lbs (56830 kg) |
DIMENSIONS
| Max lift @ max reach-Straight | 20,470 lbs (9310 kg) |
| Tailswing Radius | 12 ft 9 in ft/in (3880 mm) |
| Transport Length - Demolition Boom | 65 ft 9 in ft/in (20045 mm) |
| Maximum Depth - Straight Boom | 21 ft 3 in ft/in (6470 mm) |
| Side lift Straight at GL @ 6 m | 39,060 lbs (18130 kg) |
| End lift Straight at GL @ 9 m | 28,760 lbs (13330 kg) |
| Max Reach Demolition Boom Standard | 52 ft 9 in ft/in (16090 mm) |
| Ground Clearance | 19 inches (485 mm) |
| Reference Boom For Lift | 24 ft 7 in ft/in (7500 mm) |
| Maximum Height - Straight Boom | 45 ft 7 in ft/in (13905 mm) |
| Overall Width - Maximum | 13 ft 9 in ft/in (4180 mm) |
| Max Height Demolition Boom, Attachment Pivot | 92 ft 4 in ft/in (28140 mm) |
| Cabin Overall Height - Maximum | 11 ft 6 in ft/in (3500 mm) |
| Safe Working Angle | 15 |
| Superstructure Width | 9 ft 10 in ft/in (2990 mm) |
| Side lift Straight at GL @ 9 m | 22,100 lbs (10240 kg) |
| Maximum Reach - Straight Boom - Standard | 42 ft 1 in ft/in (12815 mm) |
| End lift Straight at GL @ 6 m | 46,980 * lbs (21630 * kg) |
| Transport Height - Over Straight Boom | 12 ft ft/in (3670 mm) |
| Transport Length - Straight Boom | 41 ft 9 in ft/in (12735 mm) |
| Reference Dipper For Lift | 11 ft ft/in (3350 mm) |
| Counterweight Clearance | 4 ft 6 in ft/in (1360 mm) |
| Transport Height - Over Demolition Boom | 10 ft 2 in ft/in (3095 mm) |
DESCRIPTION
| Boom Length Demolition | 51 ft 2 in ft/in (15.6 m) |
| Remote Machine Link (Telematics) | Care Track |
| Display & Instruments | Color monitor & diagnostics |
| Dipper Type | Straight demolition |
| Cab Tilt | 30 |
| Demolition Dipper | 27 ft 11 in ft/in (8500 mm) |
| Intermediate Boom Length | 8 ft 3 in ft/in (2500 mm) |
PERFORMANCE
| Boom Pressure | 4,690 PSI (324 bar) |
| Pump Type | Variable axial piston |
| Boost Pressure | 5,120 PSI (353 bar) |
| High speed FWR | 3 mph (5.2 kph) |
| Maximum Flow Per Pump | 99 gallons (US) / min (376 lt/min) |
| Slew Speed | 9 |
| Drawbar Pull | 74,970 lbf (333 kN) |
CAPACITIES
| Alternator Output | 80 |
| Fuel Tank | 180 gallons (US) (680 ltr) |
| Hydraulic Tank | 71 gallons (US) (270 ltr) |
