Demolition Equipment
Volvo EC380E HR (Variable UC)

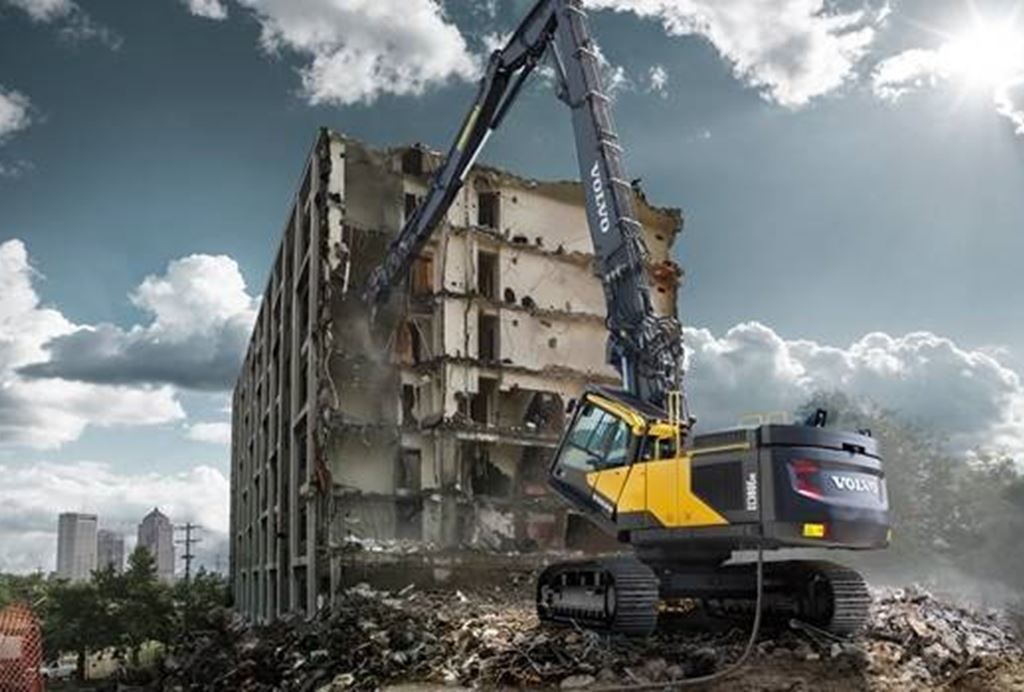

Volvo is dedicated to producing the ultimate in heavy-duty demolition machinery. Purpose-built to suit the needs of this demanding task, the EC380EHR high reach demolition equipment from Volvo is equipped with robust components and a powerful engine to ensure you can keep working shift after shift. Ensuring a strong performance in even the toughest of demolition projects, this machine is the ideal partner.
Features and Benefits
Volvo EC380E HR (Variable UC) Demolition Equipment - A STRONG PERFORMANCE

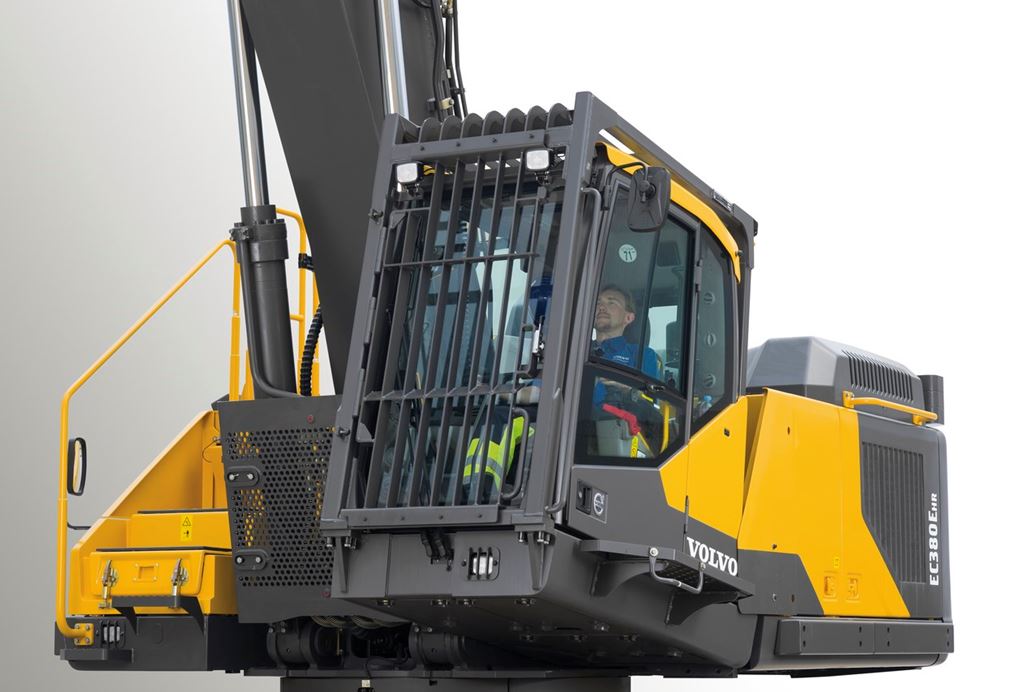

Falling Object Guard (FOG)
High Visibility Cab

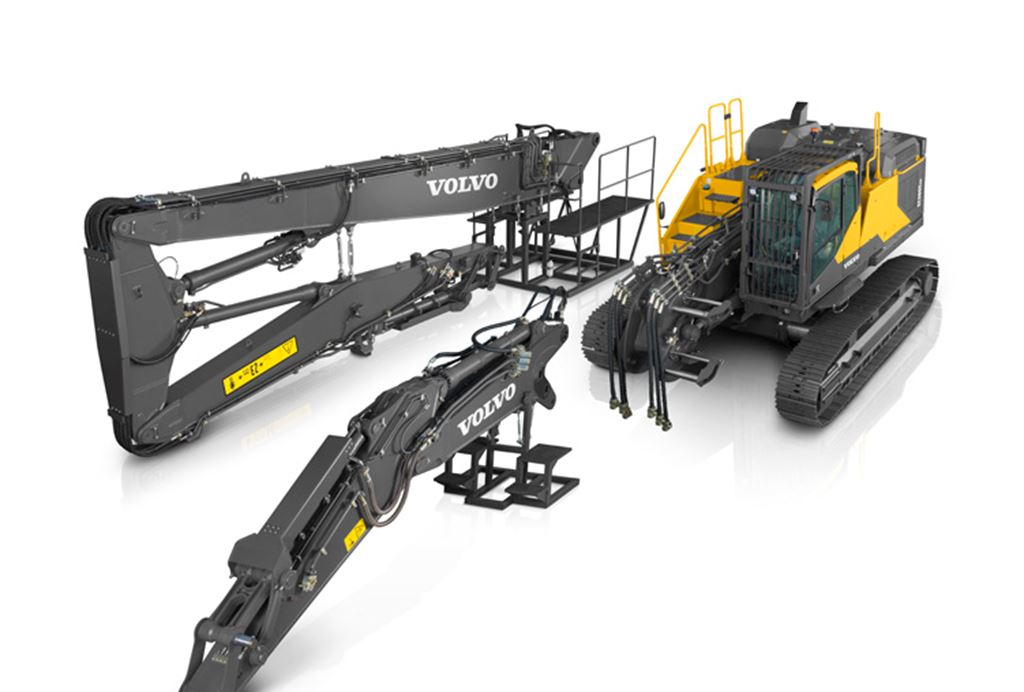

Volvo Patented Modular Boom System
Lifetime Frame & Structure Guarantee (Frame, Boom, Arm)
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
PERFORMANCE
| Maximum Flow Per Pump | 79 gallons (US) / min (300 lt/min) |
| Boom Pressure | 4,690 PSI (324 bar) |
| Pump Type | Variable axial piston |
| Boost Pressure | 5,120 PSI (353 bar) |
| High speed FWR | 3 mph (5.3 kph) |
| Slew Speed | 10 |
| Drawbar Pull | 62,180 lbf (276.5 kN) |
WEIGHTS
| Demolition Boom Ground Pressure | 12 PSI (82.2 kPa) |
| Straight Boom Specification Weight | 101,340 lbs (45965 kg) |
| Maximum tool weight for Demolition Boom | 6,614 lbs (3000 kg) |
| Operating Weight | 118,520 lbs (53750 kg) |
| Ground Bearing Pressure | 12 PSI (82.2 kPa) |
| Banana Boom Ground Pressure | - |
| Triple Articulated Boom Ground Pressure | - |
| Straight Boom Ground Pressure | - |
| Demolition Boom Specification Weight | 111,880 lbs (50750 kg) |
| Triple Articulated Boom Specification Weight | 101,340 lbs (45965 kg) |
| Banana Boom Specification Weight | 101,340 lbs (45965 kg) |
DRIVELINE
| Transmission Motor Type | 2 Variable displacement motors |
| Engine Output - Net | 307 hp (229 kW) |
| Emission Rating | Tier 4 |
| Engine Manufacturer | Volvo |
| Transmission Type | Planetary reduction |
| Variable Undercarriage: Yes/No | Yes |
| Fuel Consumption @ Rated Power | - |
| Slew Brake Type | Wet multi disc |
| Displacement | 781 Inches³ (12.8 ltr) |
| Engine Model | D13J |
DIMENSIONS
| Max Height Demolition Boom, Attachment Pivot | 75 ft 8 in ft/in (23060 mm) |
| Overall Width - Maximum | 13 ft 9 in ft/in (4180 mm) |
| Maximum Height - Straight Boom | 44 ft 3 in ft/in (13495 mm) |
| Reference Boom For Lift | 22 ft 4 in ft/in (6800 mm) |
| Max lift @ max reach-Straight | 17,510 * lbs (7940 * kg) |
| Tailswing Radius | 11 ft 10 in ft/in (3600 mm) |
| Transport Length - Demolition Boom | 54 ft 2 in ft/in (16515 mm) |
| Maximum Depth - Straight Boom | 19 ft ft/in (5800 mm) |
| Side lift Straight at GL @ 6 m | 31,950 lbs (14840 kg) |
| End lift Straight at GL @ 9 m | 22,320 * lbs (10400 * kg) |
| Max Reach Demolition Boom Standard | 47 ft 6 in ft/in (14490 mm) |
| Ground Clearance | 19 inches (480 mm) |
| Cabin Overall Height - Maximum | 11 ft ft/in (3360 mm) |
| Safe Working Angle | 20 |
| Superstructure Width | 9 ft 10 in ft/in (2990 mm) |
| Side lift Straight at GL @ 9 m | 18,020 lbs (8350 kg) |
| Maximum Reach - Straight Boom - Standard | 38 ft 10 in ft/in (11825 mm) |
| End lift Straight at GL @ 6 m | 36,290 * lbs (16720 * kg) |
| Transport Length - Straight Boom | 37 ft 11 in ft/in (11555 mm) |
| Counterweight Clearance | 4 ft ft/in (1220 mm) |
| Transport Height - Over Demolition Boom | 10 ft 2 in ft/in (3110 mm) |
| Transport Height - Over Straight Boom | 13 ft ft/in (3960 mm) |
| Reference Dipper For Lift | 10 ft 6 in ft/in (3200 mm) |
DESCRIPTION
| Boom Length Demolition | 41 ft 3 in ft/in (12.57 m) |
| Remote Machine Link (Telematics) | Care Track |
| Display & Instruments | Color monitor & diagnostics |
| Dipper Type | Straight demolition |
| Demolition Dipper | 22 ft ft/in (6700 mm) |
| Intermediate Boom Length | 8 ft 3 in ft/in (2500 mm) |
| Cab Tilt | 30 |
CAPACITIES
| Alternator Output | 80 |
| Fuel Tank | 164 gallons (US) (620 ltr) |
| Hydraulic Tank | 59 gallons (US) (225 ltr) |
